中文简体4.1-9.5 Connectors Flange Mount Connectors Manufacturer
Product Overview

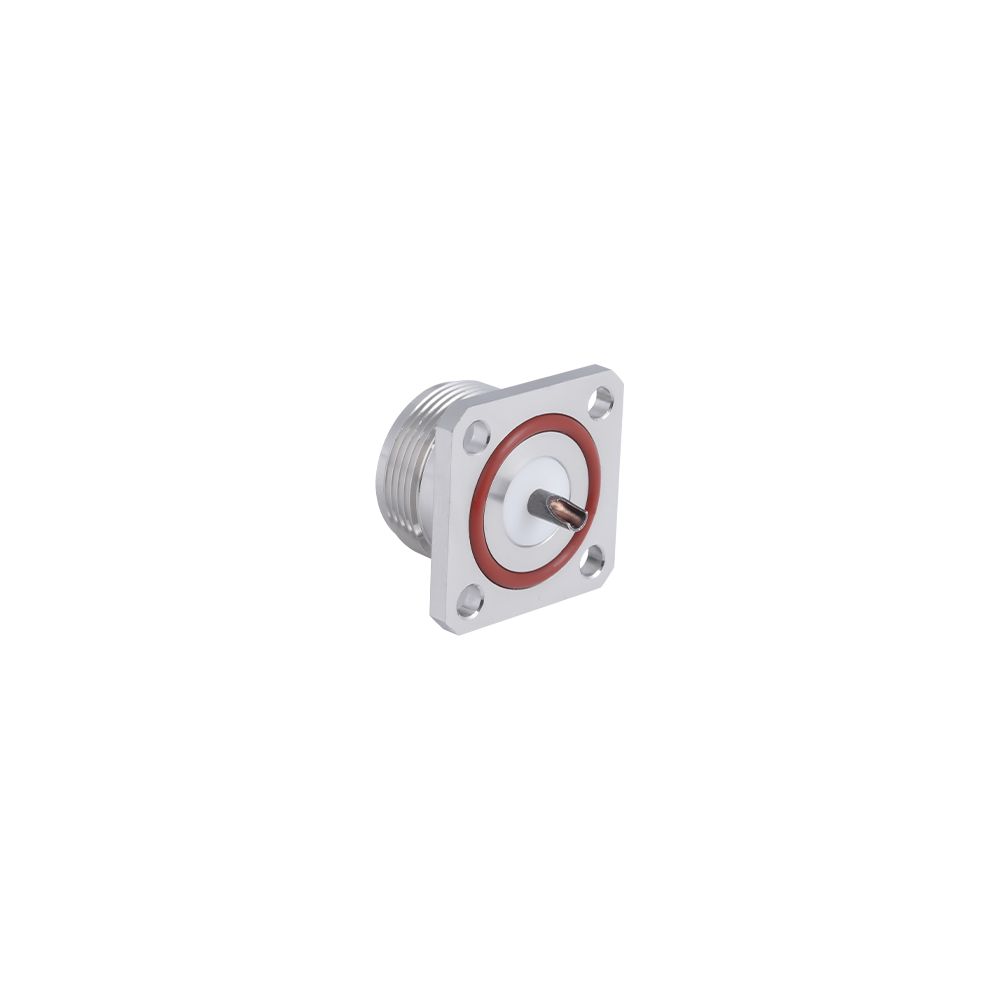

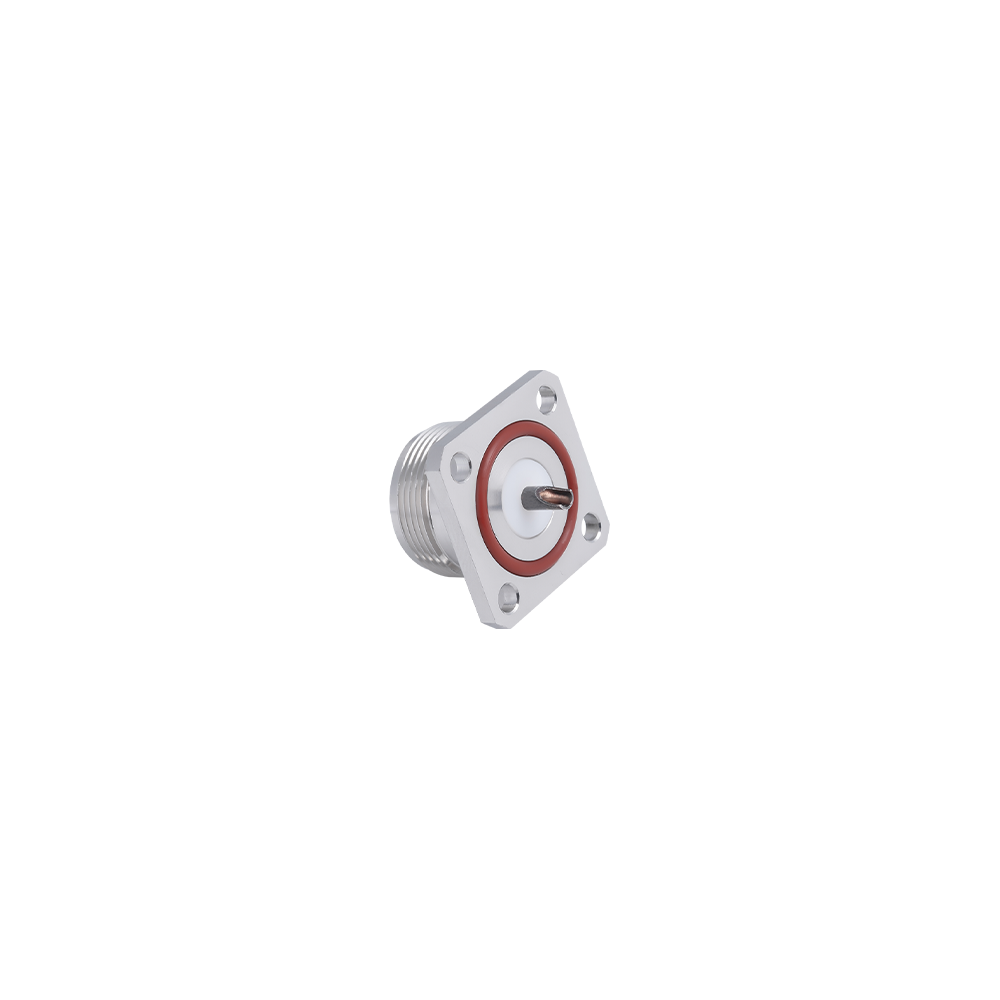

Flange mount connectors provide the most mechanically rigid and electrically reliable panel attachment method available for RF connectors. The 4.1-9.5 flange mount series from Yangzhou Jingcheng Electronics is engineered for direct integration into enclosure walls, chassis panels, and sub-rack assemblies where the connector must withstand significant mechanical loads — including mating/unmating cycles, cable pull forces, and vibration — without compromising RF performance. The flange body distributes mounting stress across a broad footprint, preventing the panel deformation and gasket compression issues that plague threaded bulkhead designs in high-vibration environments. Each flange variant is available in 2-hole, 4-hole, and extended flange configurations to accommodate diverse chassis layouts.
Key Features
Precision-machined stainless steel or brass flange body with corrosion-resistant plating for extended service life in outdoor and harsh environments
2-hole and 4-hole bolt-down configurations available; customized hole patterns accepted
Captive hardware options (integrated gaskets, captive washers) to simplify field installation and reduce lost-hardware risk
Low-resistance RF grounding achieved through large, flat flange-to-panel contact area
IP67-rated sealing options with silicone O-ring interfaces for weatherproof outdoor deployment
Mating interface ensures full interoperability with all 4.1-9.5 compatible mating connectors
Wide operating temperature range suitable for Arctic to tropical deployment environments
Gold, silver, and tri-metal plating options available for optimized electrical and environmental performance
Competitive Advantages
Integrated Manufacturing: Flange bodies, center conductors, and insulators all machined and assembled in our own facility — no sub-contracted components compromising quality traceability.
Tight Tolerance Control: Flange flatness, hole position accuracy, and thread quality are held to strict tolerances using our Hanwha CNC machining centers, ensuring reliable panel fit and consistent RF grounding.
Weatherproof Expertise: Years of supply experience to outdoor base station OEMs has driven robust in-house capability for weatherproof sealing design and environmental testing.
Flexible MOQ : As a direct factory, we offer order quantities tailored to project requirements for both standard catalog items and customized flange configurations, supporting prototyping through volume production.
Typical Applications
Outdoor macro base station antenna ports and equipment enclosures
Tower-mounted amplifier (TMA) and remote radio unit (RRU) chassis panels
Microwave backhaul transceiver unit bulkheads
Rugged shelter communication systems
Distributed antenna system (DAS) hub and node equipment
Broadcast transmitter cabinets and RF power amplifier chassis
Industrial wireless gateway and access point enclosures
FAQ
Q: What is the typical insertion loss performance of your flange mount 4.1-9.5 connectors?
A: Exact performance depends on frequency and specific configuration, but our flange mount connectors are designed to meet relevant industrial specification requirements. Please request our product datasheets for specific measured performance data from our vector network analyzer test records.
Q: Are custom flange patterns or extended flange dimensions available?
A: Yes. Our in-house CNC capability allows us to produce custom flange dimensions, hole patterns, and body geometries. Customers typically provide a mechanical drawing or 3D model, and we confirm feasibility and lead time within a few business days.
Q: Do your outdoor-rated flange connectors include a weatherproofing boot or self-amalgamating tape?
A: Waterproofing accessories including heat-shrink boots, silicone self-amalgamating tape kits, and pre-installed O-ring seals are available as options. We recommend specifying your IP requirement at the time of order.
