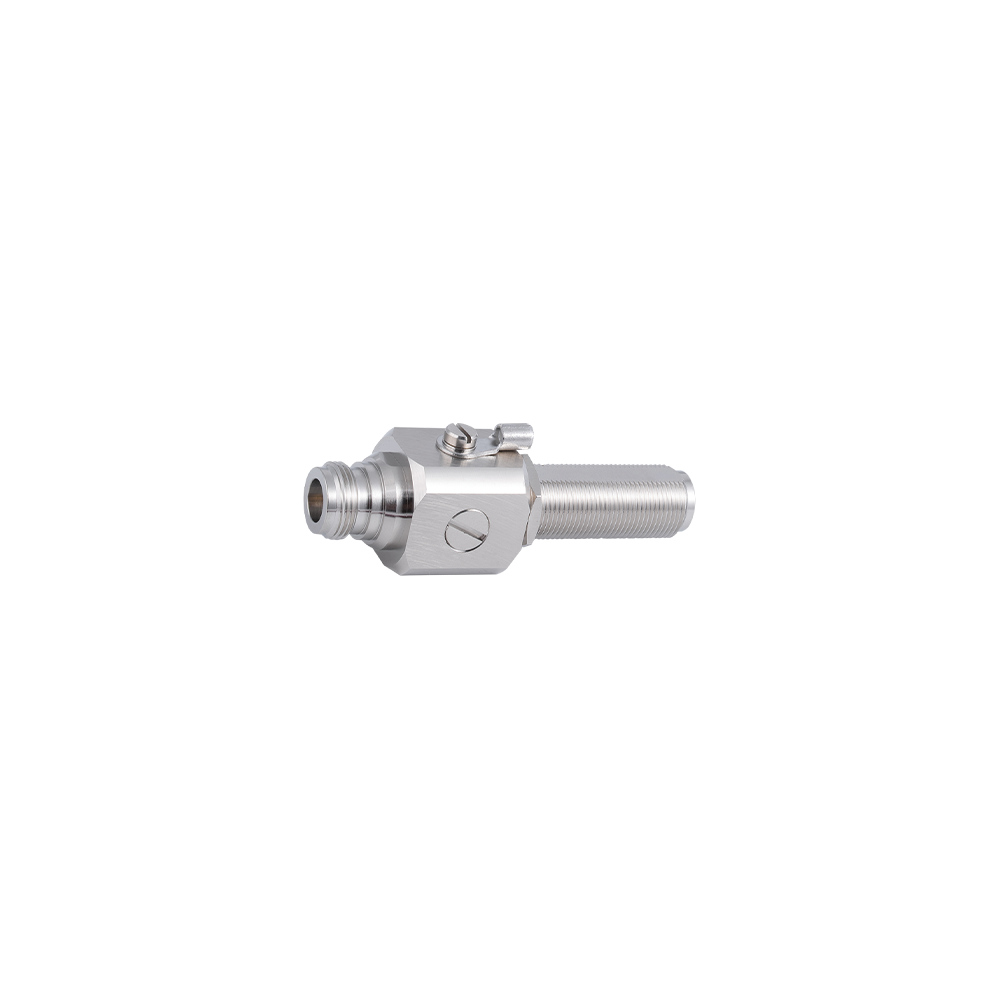

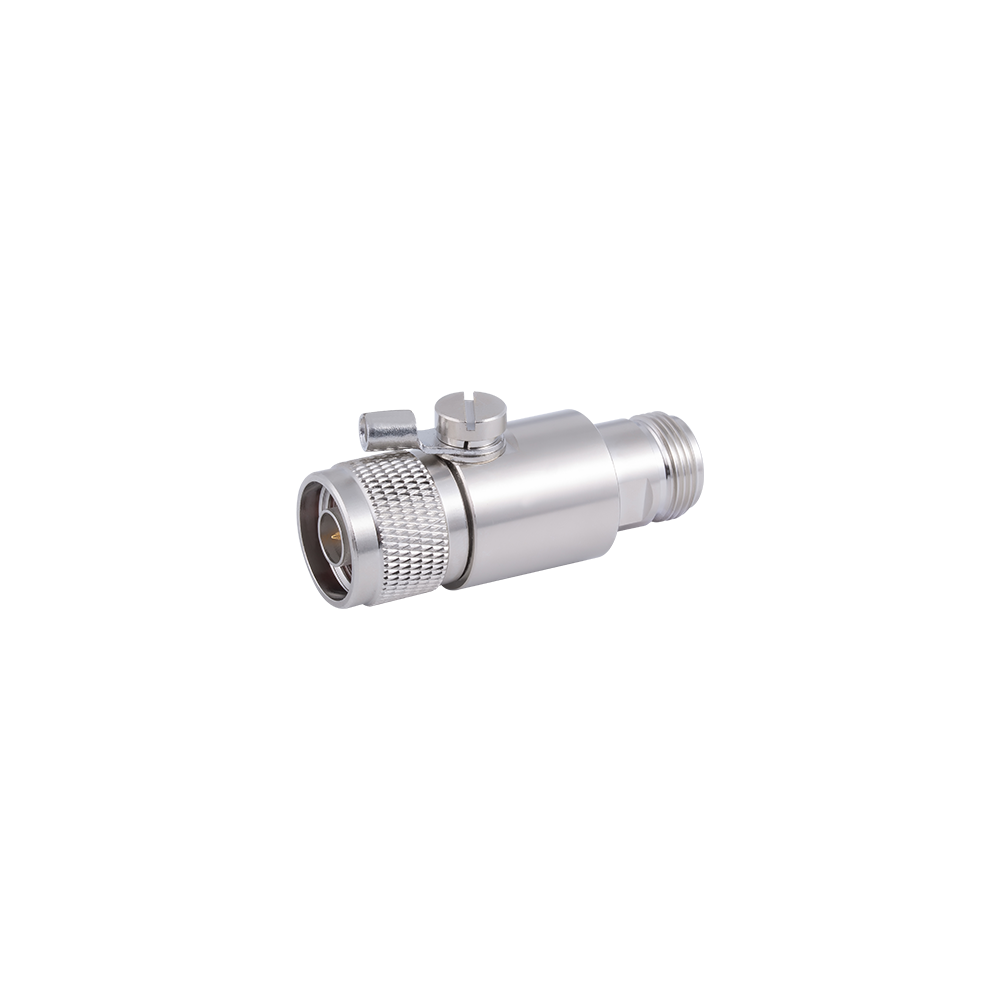

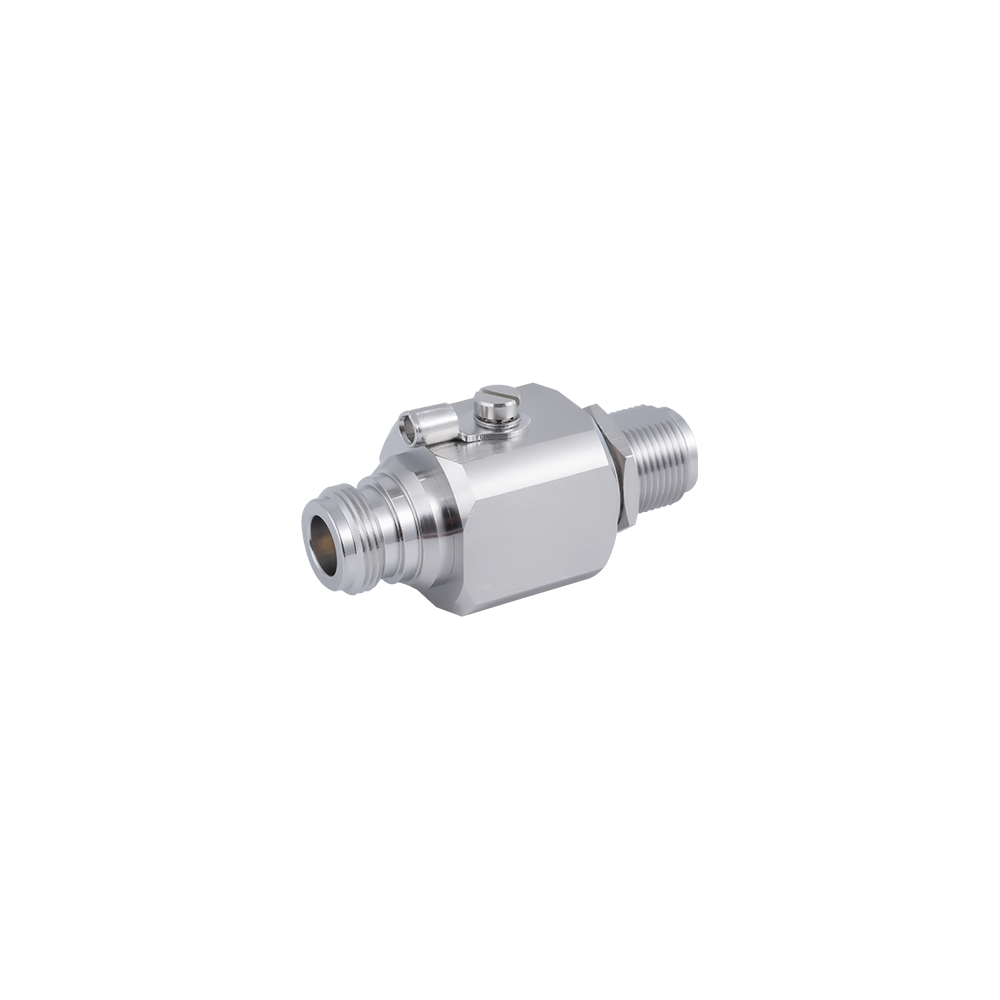

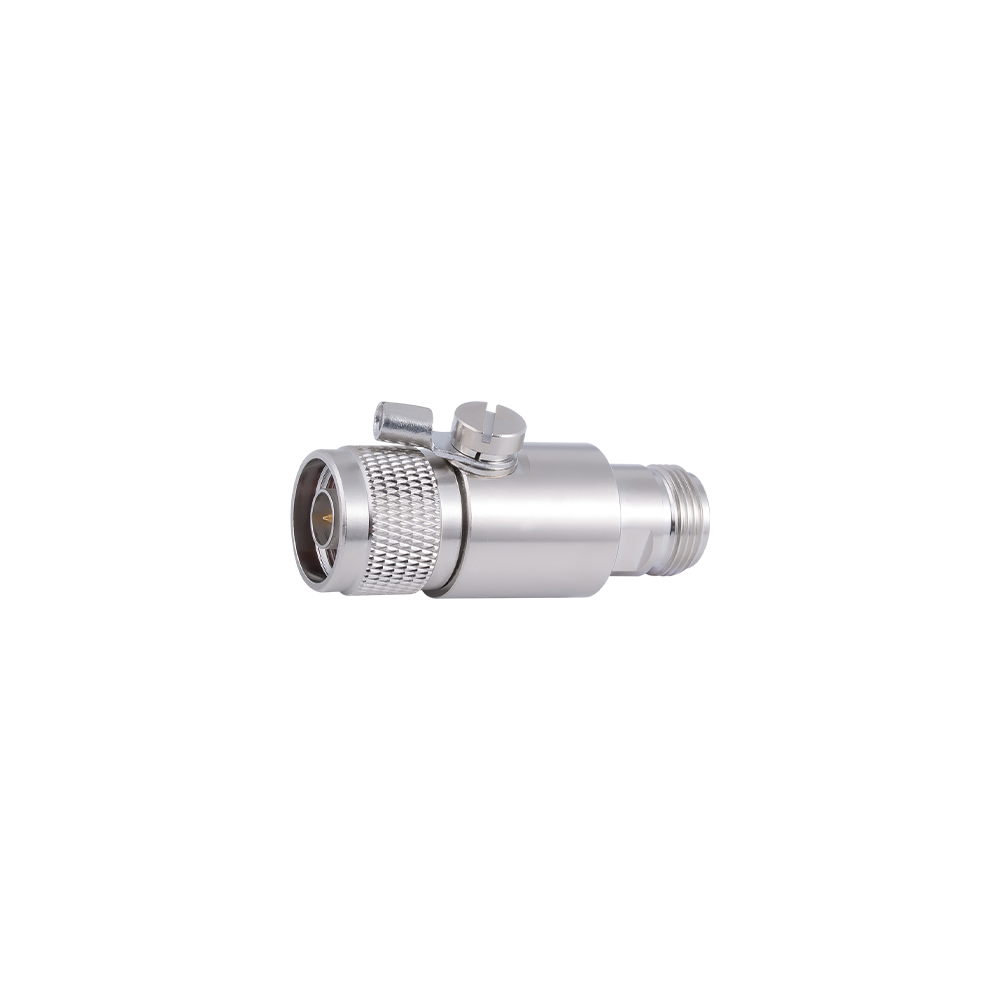

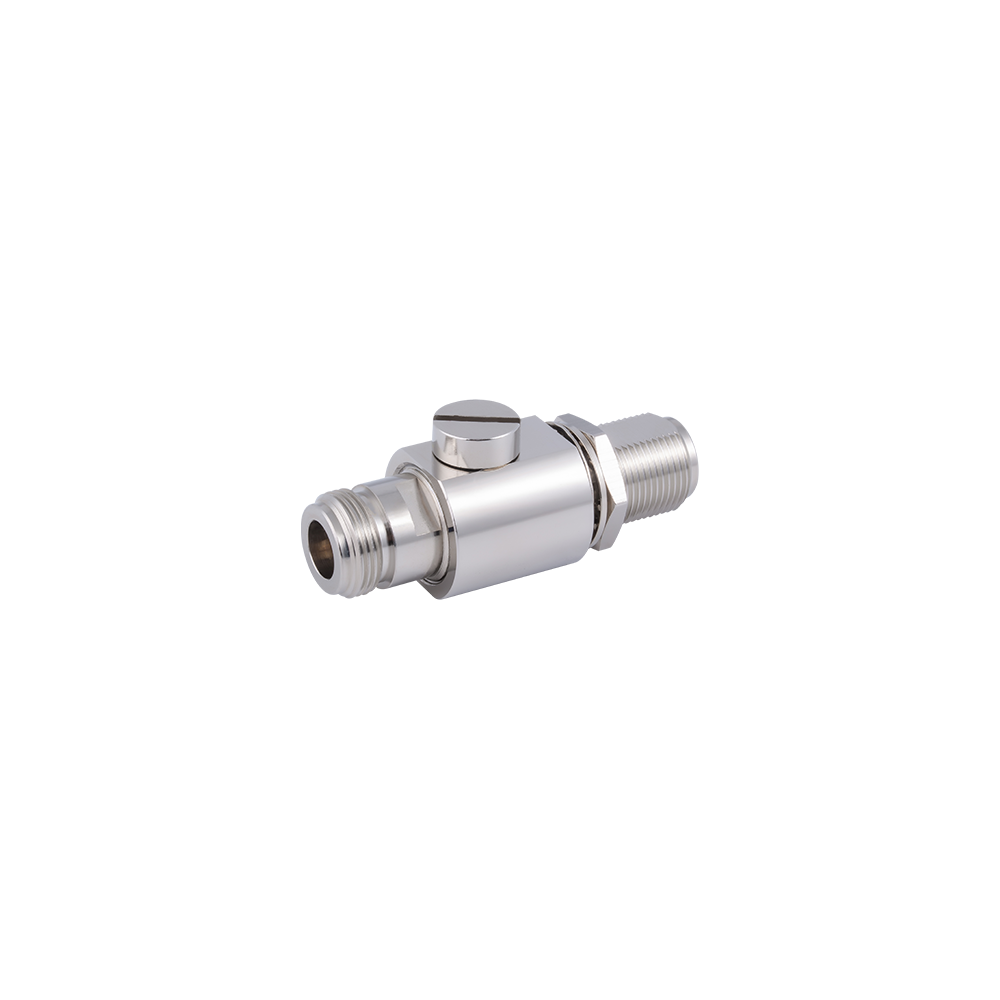

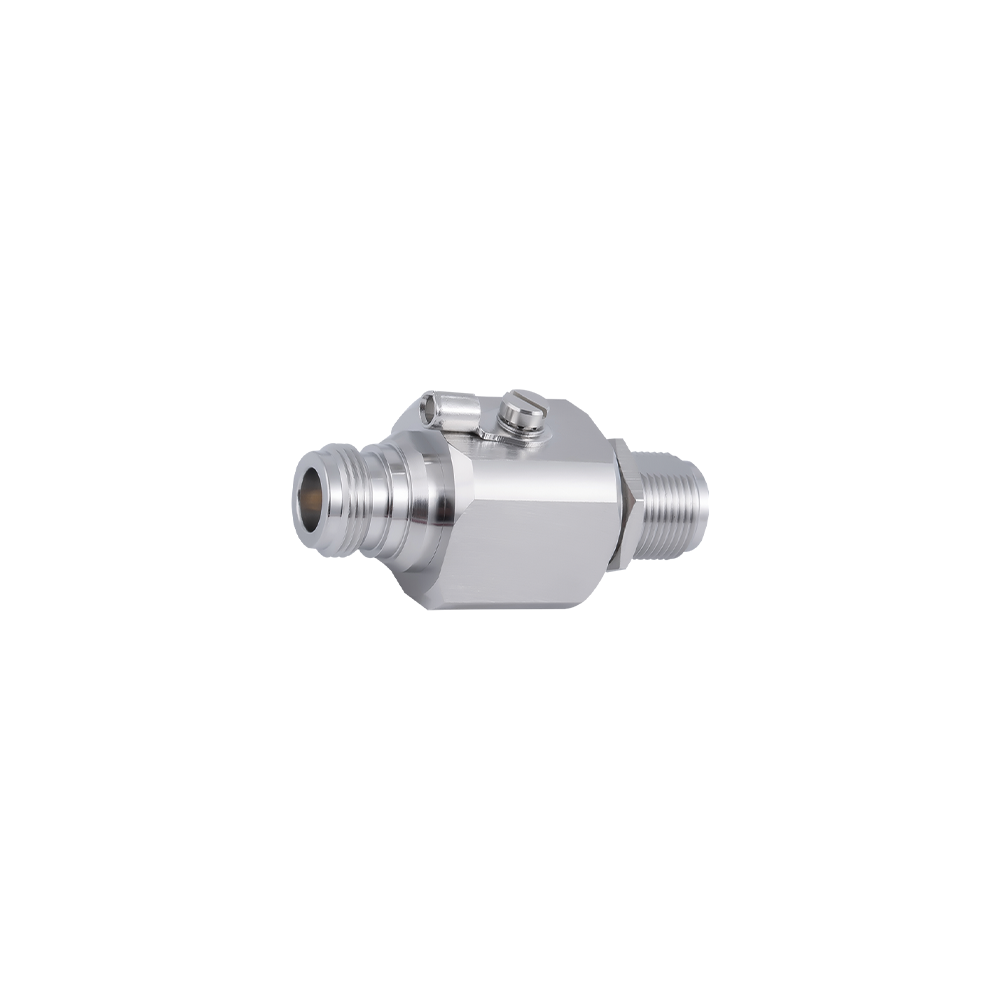

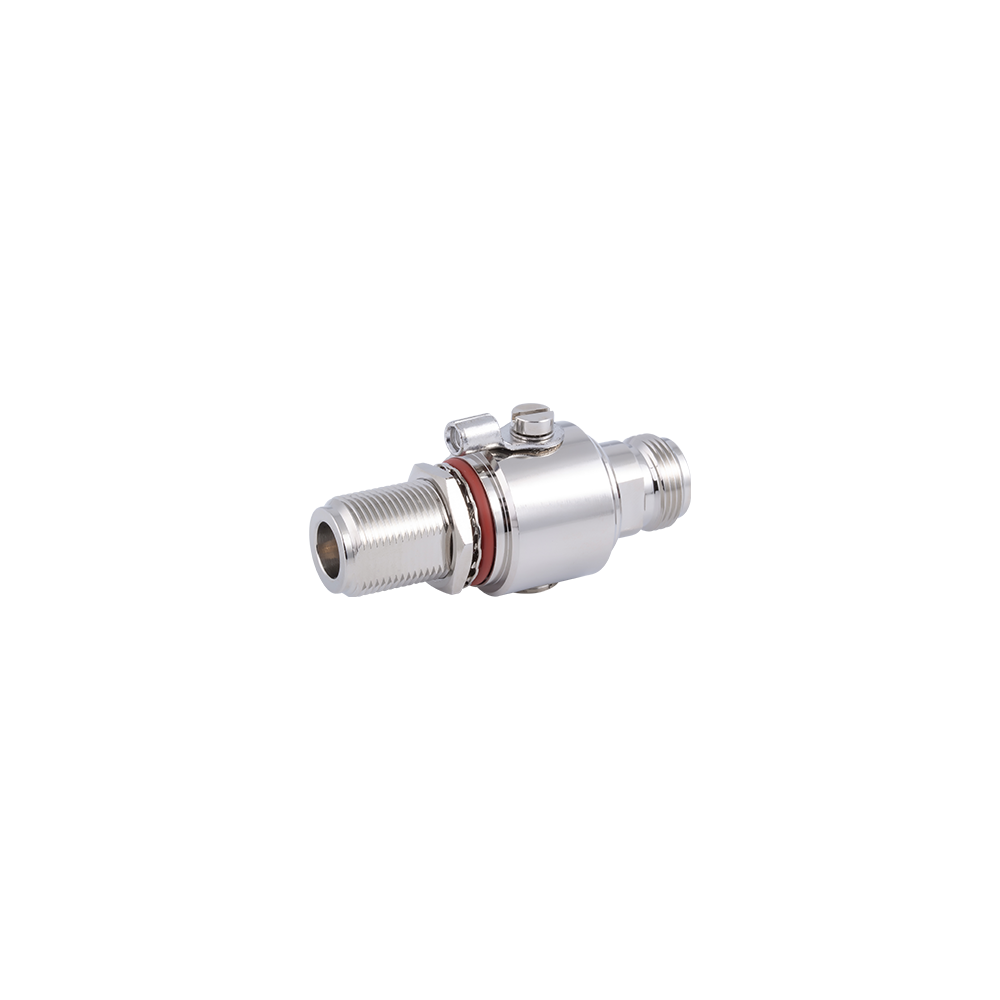

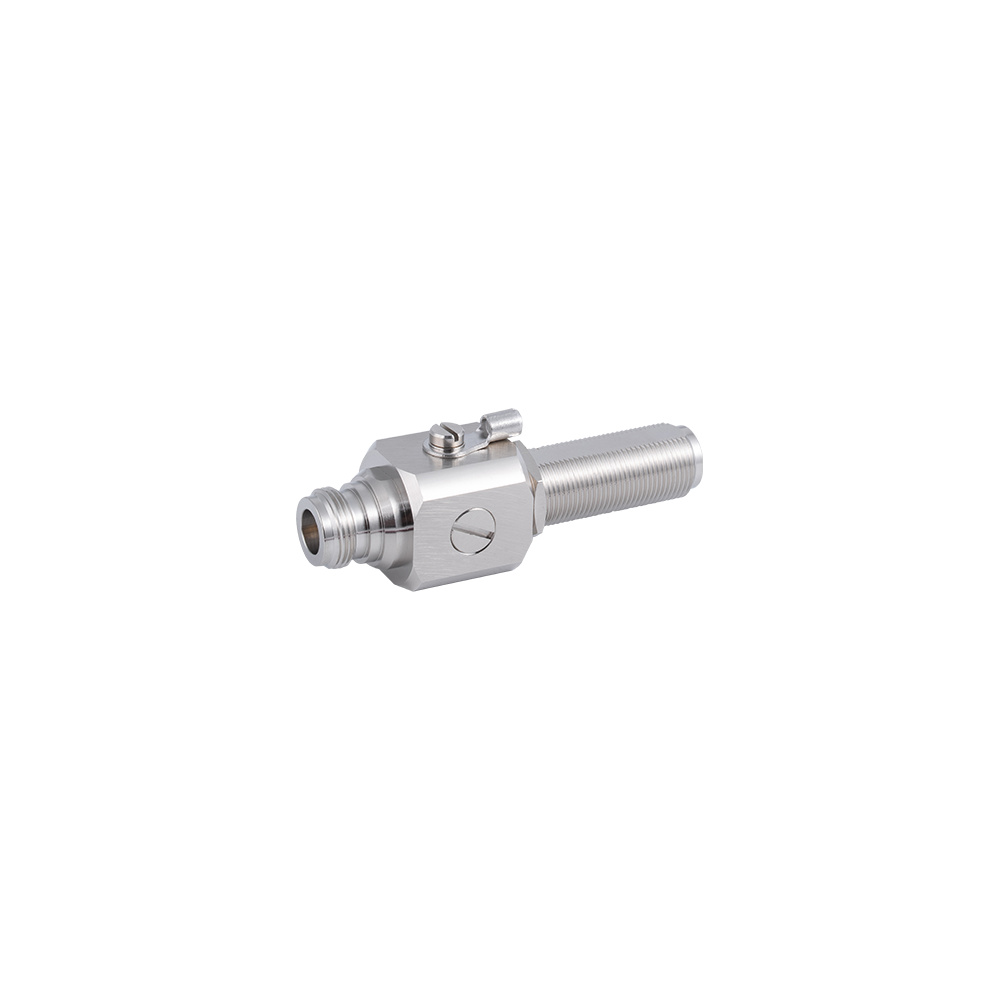

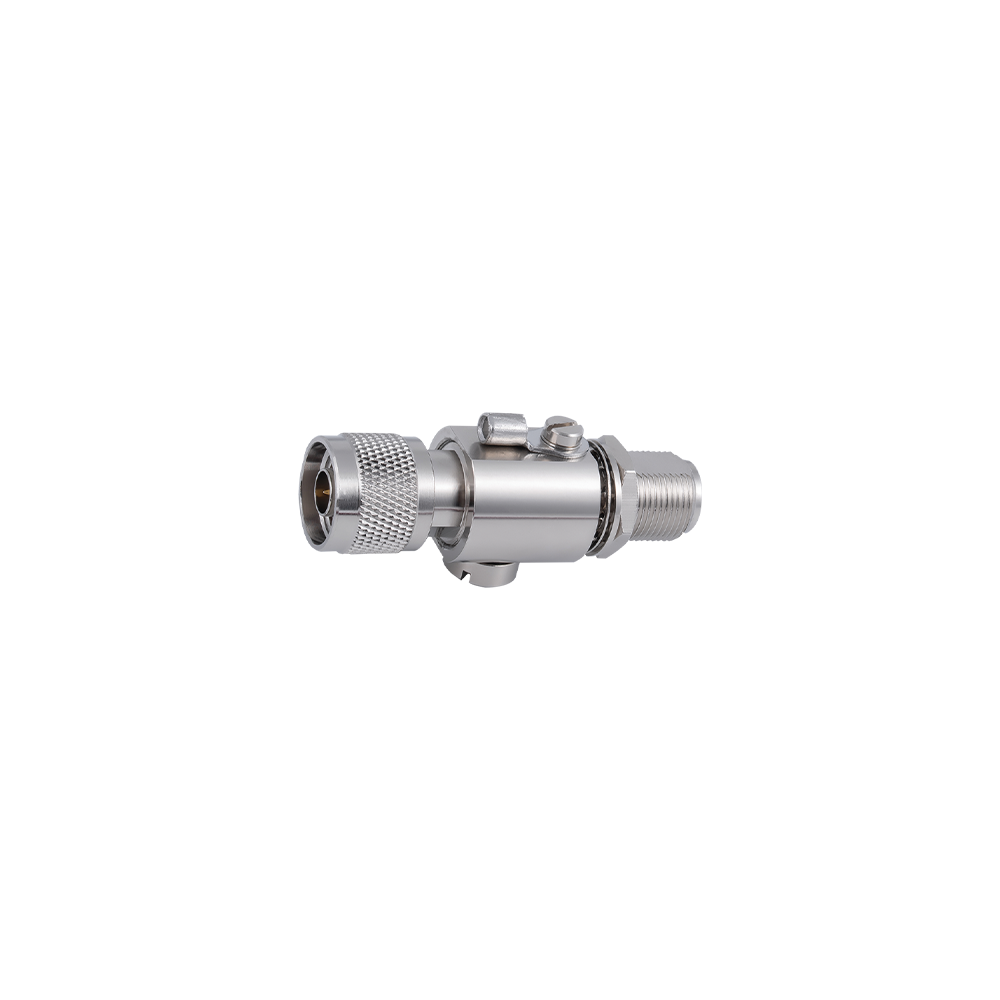

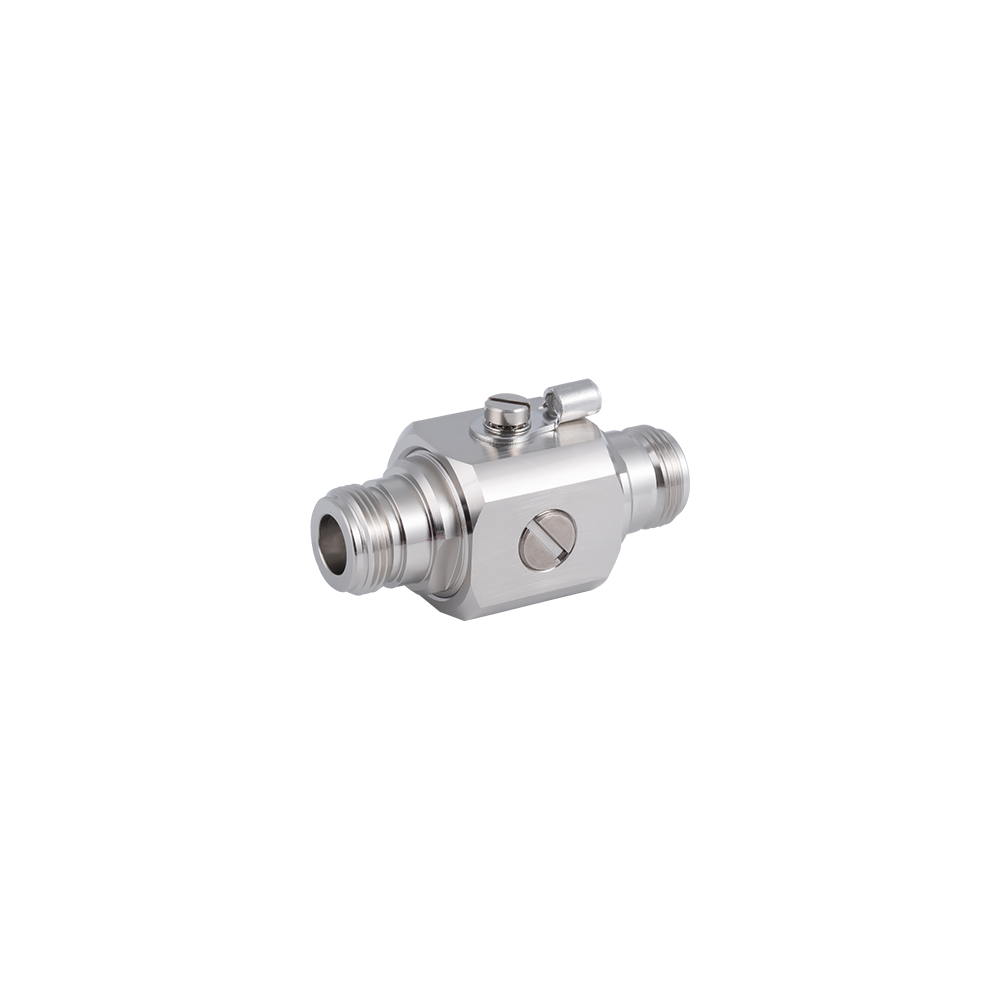

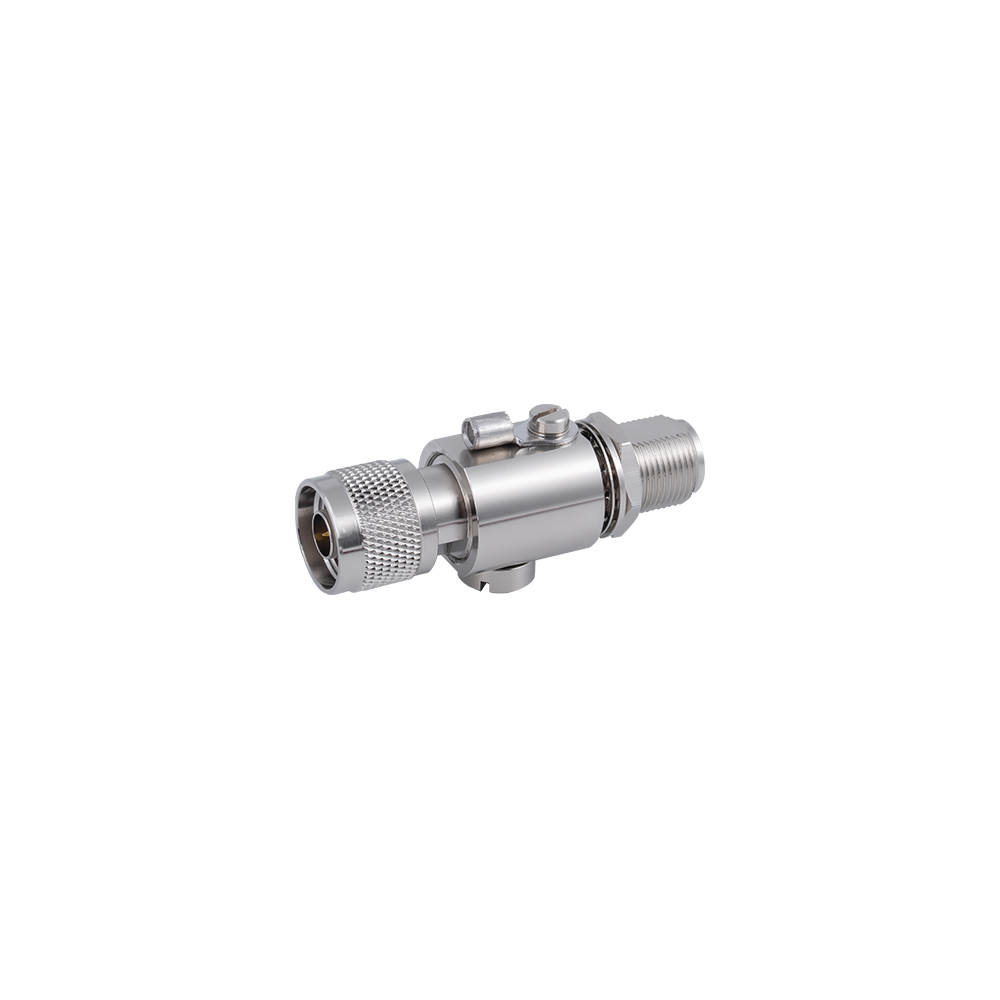

Product Overview The N-Type Coaxial Lightning Protector from Yangzhou Jingcheng Electronics addresses the broadband outdoor RF market where N-type connectors serve as the workhorse interface for antenna systems, point-to-point microwave links, Wi-Fi access point feeds, and outdoor unit (ODU) connections. Combining a robust threaded N interface—compliant with MIL-C-39012 dimensional standards—with a fast-response GDT protection core, this protector delivers dependable transient suppression from DC to 6 GHz while maintaining the low insertion loss critical for high-data-rate wireless backhaul and last-mile connectivity applications.
Key Features N male-to-female inline protector compliant with MIL-C-39012 N-type connector interface specifications Frequency coverage DC to 6 GHz encompassing 2.4 GHz, 5 GHz Wi-Fi, and 6 GHz unlicensed and licensed bands 50 Ω characteristic impedance, precision-machined inner and outer conductors for low PIM performance GDT protection element with high peak surge current rating for direct and induced lightning environments IP67-rated weatherproof construction with silicone O-ring sealing for outdoor mast, tower, and rooftop use Grounding stud on body for bonding to antenna mast earthing or building protection system Stainless steel or passivated aluminium body option for coastal and high-humidity environments Panel-mount and inline versions available for both bulkhead and in-line coaxial run installations
Typical Applications Wi-Fi access point outdoor antenna connections (2.4 GHz, 5 GHz, 6 GHz) Point-to-point and point-to-multipoint microwave backhaul antenna protection Outdoor unit (ODU) coaxial connection for VSAT and satellite internet terminals Industrial wireless sensor network antenna interface protection Amateur radio HF/VHF/UHF antenna feed protection at antenna tuner or transceiver
FAQ Q: Does the N-type protector support 5G NR sub-6 GHz frequency bands? A: Yes, the DC-to-6 GHz operating range covers all current 5G NR FR1 bands below 6 GHz; please verify with your specific band plan if operating near 6 GHz edge. Q: What is the IP rating and operating temperature range? A: The standard outdoor version is IP67 rated; operating temperature range and full environmental specifications are available on the product datasheet. Q: Is a low-PIM version available for base station co-location sites? A: A low-PIM variant is available for MIMO and co-location environments; contact our technical sales team for PIM specification details. Q: Can the grounding stud accept standard grounding clamps? A: Yes, the grounding stud is sized to accept standard-diameter grounding conductors and bonding clamps per IEC/NEC requirements.
Yangzhou Jingcheng Electronics Co., Ltd., a premier China N-Type Coaxial Lightning Protector Manufacturer and N-Type Coaxial Lightning Protector Factory, was founded in 1999. It is a high-tech enterprise specializing in the R&D and manufacturing of RF coaxial connectors, cable assemblies, and passive microwave components.
Equipped with a comprehensive R&D and production system, the company has obtained international certifications including ISO9001. Adhering strictly to standards such as MIL, IEC and GB, we offer over 30 product series with more than 2,000 specifications, covering SMA, BNC, N-type and other mainstream models. Our products are widely applied in the fields of communications, aerospace, automotive electronics and beyond, and exported to many countries and regions across Europe, America and Asia.
We uphold the tenet of "Quality as the Foundation, Customers as the Core", committed to providing reliable interconnection solutions and professional services for global clients.
N-Type Coaxial Lightning Protector Industry knowledge
1. N-Type Coaxial Lightning Protector Overview
The N-Type Coaxial Lightning Protector is a surge protective device (SPD) designed for the N-type connector interface—a widely adopted 50Ω coaxial standard in telecommunications, wireless infrastructure, and microwave systems. This protector safeguards sensitive RF equipment from transient overvoltages caused by lightning strikes, electrostatic discharge, and power line faults while preserving signal integrity across the transmission path.
Yangzhou Jingcheng Electronics Co., Ltd., established in 1999, manufactures a comprehensive range of N-Type Coaxial Lightning Protectors under ISO9001 certification, adhering to MIL, IEC, and GB standards. With over 30 product series and more than 2,000 specifications covering SMA, BNC, N-type, and other mainstream configurations, the company provides reliable interconnection solutions for communications, aerospace, and automotive electronics applications worldwide. Each N-Type Coaxial Lightning Protector is engineered to maintain the 50Ω characteristic impedance required for optimal RF performance.
The N-type interface features a threaded coupling mechanism (7/16-28 UNF) that provides a robust, weatherproof connection suitable for outdoor and indoor installations. The N-Type Coaxial Lightning Protector typically operates across a frequency range from DC to 6 GHz, with insertion loss values below 0.2 dB and VSWR under 1.2:1. These performance parameters ensure that signal integrity is preserved while providing effective surge protection for connected equipment.
Core Functions of N-Type Coaxial Lightning Protector:
Divert transient surge currents to ground before they reach sensitive RF equipment
Maintain 50Ω characteristic impedance for signal integrity in RF and microwave paths
Provide protection for base station transceivers, amplifiers, and antenna systems
Support broadband operation from DC to 6 GHz with low insertion loss
Comply with IEC 61643-21 and MIL-STD-188 for surge protective devices
2. Working Principle and Protection Technologies
The N-Type Coaxial Lightning Protector operates on the principle of transient voltage suppression. Under normal operating conditions, the device remains transparent to RF signals, allowing unimpeded transmission through the 50Ω coaxial path. When a surge voltage exceeds the protection threshold—typically between 90V and 1,100V depending on the model—the internal protection element activates and creates a low-impedance path to ground, redirecting the surge current away from the protected equipment.
(1) Gas Discharge Tube (GDT) Technology
GDT-based N-Type Coaxial Lightning Protectors utilize a sealed gas-filled chamber that ionizes when a voltage surge exceeds the spark-over threshold. Once ionized, the gas becomes conductive, creating a momentary short circuit that diverts surge current to ground. This technology offers wide bandwidth capability (DC to 6 GHz), DC pass-through functionality, and compact dimensions suitable for dense rack installations.
(2) Quarter-Wave Stub Technology
Quarter-wave stub protectors function as a frequency-selective filter. The stub is precisely tuned to a quarter-wavelength of the operating frequency, creating a virtual short circuit at that frequency for surge currents while passing the desired RF signal. This technology is maintenance-free, offers low residual voltage, and exhibits low intermodulation distortion. However, quarter-wave protectors are inherently narrowband and do not pass DC signals.
(3) Hybrid Protection Technology
Hybrid N-Type Coaxial Lightning Protectors combine multiple protection elements—such as GDTs, metal oxide varistors (MOVs), and transient voltage suppression (TVS) diodes—to achieve superior surge absorption across a broader range of transient conditions. These multi-stage designs provide faster response times, lower let-through voltages, and enhanced reliability for mission-critical applications.
The radar chart above illustrates the comparative performance of three primary protection technologies used in N-Type Coaxial Lightning Protectors. Gas Discharge Tube (GDT) technology offers wide bandwidth and DC pass capability but requires periodic maintenance. Quarter-wave stub technology is maintenance-free with low residual voltage but lacks DC pass capability and is narrowband. Hybrid technology combines the advantages of both, offering wide bandwidth, DC pass, low residual voltage, and fast response speed. Yangzhou Jingcheng Electronics Co., Ltd. manufactures all three types, enabling RF engineers to select the optimal protection technology for their specific application requirements—whether for base station protection, antenna feed safeguarding, or test equipment security.
3. Common Types and Technical Specifications
N-Type Coaxial Lightning Protectors are available in several configurations to accommodate different system requirements. The primary classification is based on connector gender configuration, protection technology, and surge current rating. All models maintain the 50Ω characteristic impedance specified for N-type connectors in RF and microwave applications.
Table 1: Common N-Type Coaxial Lightning Protector Types and Specifications
Configuration
Protection Technology
Frequency Range
Max Discharge Current
Insertion Loss
DC Pass
N Male to Female
GDT
DC - 6 GHz
10 - 20 kA
≤ 0.2 dB
Yes
N Female to Female
Quarter-Wave
0.8 - 2.5 GHz
5 - 10 kA
≤ 0.1 dB
No
N Male to Male
Hybrid (GDT + MOV)
DC - 6 GHz
20 kA
≤ 0.15 dB
Yes
The selection among these types depends on the specific application. GDT-based N-Type Coaxial Lightning Protectors are ideal for broadband applications requiring DC pass-through. Quarter-wave types excel in narrowband, high-power applications where maintenance access is limited. Hybrid types offer the best overall performance for mission-critical systems where both wide bandwidth and low residual voltage are required.
4. Key Performance Specifications
The performance of an N-Type Coaxial Lightning Protector is defined by several critical electrical parameters that directly impact system reliability and signal quality in RF and microwave applications.
The horizontal bar chart above presents the typical performance range for N-Type Coaxial Lightning Protectors. Insertion loss values below 0.2 dB ensure that signal attenuation remains negligible, preserving the integrity of transmitted RF signals in telecommunications and microwave paths. VSWR values below 1.2:1 indicate excellent impedance matching, minimizing signal reflections that could degrade system performance. Maximum discharge current ratings from 5 kA to 20 kA (8/20 μs waveform) provide robust protection against both direct and induced lightning strikes. The wide operating temperature range of -40°C to +90°C ensures reliable operation in diverse environmental conditions. Impulse life ratings of 400 surges at 500 A demonstrate the durability and long-term reliability of these protection devices in wireless infrastructure.
5. Application Scenarios
N-Type Coaxial Lightning Protectors are deployed across a wide spectrum of RF and microwave applications where 50Ω coaxial transmission lines are exposed to lightning risks. The device is typically installed at the boundary between lightning protection zones (LPZ 0A-1 and subsequent zones).
(1) Cellular Base Stations and Wireless Infrastructure
In cellular base stations (4G/LTE and 5G), N-Type Coaxial Lightning Protectors protect transceivers, remote radio units (RRUs), and antenna feeder systems from lightning-induced surges. These installations often feature outdoor antennas mounted on towers, where exposure to lightning strikes is significant.
(2) Microwave Backhaul and Point-to-Point Links
Microwave backhaul systems utilize N-Type Coaxial Lightning Protectors to safeguard transceivers, outdoor units (ODUs), and antenna interfaces. The 50Ω impedance of N-type connectors is the industry standard for these applications, ensuring compatibility with existing infrastructure.
(3) Radar and Navigation Systems
In aerospace and defense applications, N-Type Coaxial Lightning Protectors are employed in radar installations, navigation systems, and ground-based antenna arrays. These applications often require hybrid or multi-stage protection to meet stringent reliability and performance requirements.
(4) Test and Measurement Equipment
RF test laboratories and production facilities use N-Type Coaxial Lightning Protectors to protect spectrum analyzers, signal generators, and network analyzers from surge events that could damage sensitive instrumentation.
The bar chart above illustrates the estimated application distribution of N-Type Coaxial Lightning Protectors across major application sectors. Cellular base stations and wireless infrastructure represent the largest segment at 35%, driven by the extensive deployment of mobile networks globally. Microwave backhaul and point-to-point links account for 25% of deployments, reflecting the widespread use of N-type connectors in these applications. Radar and navigation systems represent 22%, with test and measurement equipment comprising the remaining 18%. Yangzhou Jingcheng Electronics Co., Ltd. serves all these sectors with tailored product solutions that meet the specific requirements of each application environment.
6. Selection Guide and Installation Considerations
Selecting the appropriate N-Type Coaxial Lightning Protector requires careful evaluation of several system parameters and installation factors specific to RF and microwave environments.
(1) Impedance Matching
The protector must maintain the 50Ω characteristic impedance specified for N-type connectors in RF and microwave applications. All N-Type Coaxial Lightning Protectors from Yangzhou Jingcheng Electronics are designed to meet this impedance requirement, ensuring signal integrity in RF transmission paths.
(2) Frequency Range and Bandwidth
The protector's operating frequency range must encompass all system frequencies. Most N-Type Coaxial Lightning Protectors offer coverage from DC to 6 GHz, accommodating the majority of cellular, microwave, and radar applications. For systems operating above 6 GHz, specialized protectors with extended frequency response may be required.
(3) Surge Current Rating
Select a protector with a maximum discharge current rating that exceeds the anticipated surge exposure. For most wireless infrastructure installations, a rating of 10 kA to 20 kA (8/20 μs waveform) provides adequate protection. High-risk installations in lightning-prone regions may require higher ratings.
(4) Installation Best Practices
Proper installation is essential for effective surge protection. The N-Type Coaxial Lightning Protector should be installed as close as possible to the protected equipment, with the grounding terminal connected to a low-impedance ground path using a conductor of at least 2.5 mm² cross-sectional area. The grounding resistance should not exceed 4 ohms. For outdoor installations, weatherproofing measures should be implemented to prevent moisture ingress.
(5) Connector Gender and Torque
The N-Type Coaxial Lightning Protector should be selected with the appropriate connector gender configuration to match existing cable and equipment interfaces. Proper torque (typically 0.9 to 1.1 N·m for N-type connectors) should be applied during installation to ensure reliable electrical contact and prevent damage to the connector interface.
7. Maintenance and Inspection
Regular maintenance ensures the continued effectiveness of N-Type Coaxial Lightning Protectors. While these devices are designed for long-term reliability, periodic inspection is recommended to verify proper operation, particularly in wireless infrastructure where equipment downtime has significant operational impact.
(1) Visual Inspection
Inspect the protector housing for signs of physical damage, corrosion, or moisture ingress. Check all N-type coaxial connections to ensure they are tight and properly seated. Examine the grounding connection for tightness and corrosion.
(2) Functional Testing
After a significant surge event, the N-Type Coaxial Lightning Protector should be tested to verify continued functionality. This can be accomplished by removing the protector from the circuit and testing with a surge protection tester or by checking system performance with and without the protector in place. If system operation returns to normal after removing the protector, the device requires replacement.
(3) Gas Discharge Tube Replacement
For GDT-based N-Type Coaxial Lightning Protectors, the gas discharge tube may need replacement after multiple surge events or at scheduled maintenance intervals. Replacement should only be performed when the system is not transmitting RF power. Always use replacement tubes specified by the manufacturer to ensure proper performance.
(4) Maintenance Schedule
Yangzhou Jingcheng Electronics Co., Ltd. recommends that N-Type Coaxial Lightning Protectors be inspected at least annually, with more frequent inspections for installations in high-risk lightning areas or tower-mounted equipment. After any known lightning event in the vicinity, an immediate inspection and functional test should be performed.
The maintenance checklist diagram above outlines the four key inspection and maintenance tasks for N-Type Coaxial Lightning Protectors. Visual inspection should verify the physical integrity of the housing, N-type connectors, and grounding connections. Functional testing measures insertion loss and VSWR to confirm electrical performance. GDT replacement may be required after multiple surge events to restore protection capability. Grounding resistance verification ensures that the surge current path to earth remains below 4 ohms. Yangzhou Jingcheng Electronics Co., Ltd. provides technical documentation to support these maintenance procedures for all N-Type protector products.
8. Frequently Asked Questions
(1) What is the impedance of an N-Type Coaxial Lightning Protector?
The N-Type Coaxial Lightning Protector is designed with a 50Ω characteristic impedance, which is the industry standard for N-type connectors used in telecommunications, wireless infrastructure, and microwave applications. This impedance matching ensures optimal signal transmission with minimal reflections.
(2) Can an N-Type Coaxial Lightning Protector pass DC power?
GDT-based and hybrid N-Type Coaxial Lightning Protectors typically pass DC, making them suitable for applications where DC power is injected over the coaxial cable, such as powering tower-mounted amplifiers or remote radio units (RRUs). Quarter-wave stub protectors do not pass DC.
(3) How often should an N-Type Coaxial Lightning Protector be replaced?
Replacement frequency depends on exposure to surge events. GDT-based protectors may require tube replacement after 400 surges at 500 A. If the protector shows signs of damage, increased insertion loss, or degraded VSWR, replacement is recommended. Yangzhou Jingcheng Electronics Co., Ltd. products are engineered for long service life under normal operating conditions.
(4) Where should the N-Type Coaxial Lightning Protector be installed?
The protector should be installed at the point where the coaxial cable enters the building or facility, and as close as possible to the protected equipment. This placement limits the penetration of lightning currents into the facility and provides the most effective protection for sensitive RF equipment.
(5) What is the frequency range of N-Type Coaxial Lightning Protectors?
Most N-Type Coaxial Lightning Protectors offer a frequency range from DC to 6 GHz, accommodating cellular (4G/5G), microwave backhaul, and radar applications. Some specialized models may support frequencies up to 11 GHz or higher.
9. Product Quality and Compliance
Yangzhou Jingcheng Electronics Co., Ltd. manufactures N-Type Coaxial Lightning Protectors in accordance with internationally recognized standards. The company holds ISO9001 certification and adheres to MIL, IEC, and GB specifications. N-type connector products comply with IEC 60169-16 and MIL-STD-348 dimensional and electrical requirements.
The compliance chart above illustrates the key standards and certifications that govern the design and manufacture of N-Type Coaxial Lightning Protectors at Yangzhou Jingcheng Electronics Co., Ltd. ISO9001 certification ensures that quality management systems are in place throughout the production process. Compliance with MIL-STD standards guarantees performance under demanding conditions. Adherence to IEC 61643-21 confirms that products meet international requirements for surge protective devices. IEC 60169-16 certification ensures that N-type connectors meet dimensional and electrical specifications required for RF and microwave applications. This multi-standard approach reflects the company's commitment to delivering reliable interconnection solutions for global clients across diverse RF and wireless industries.
