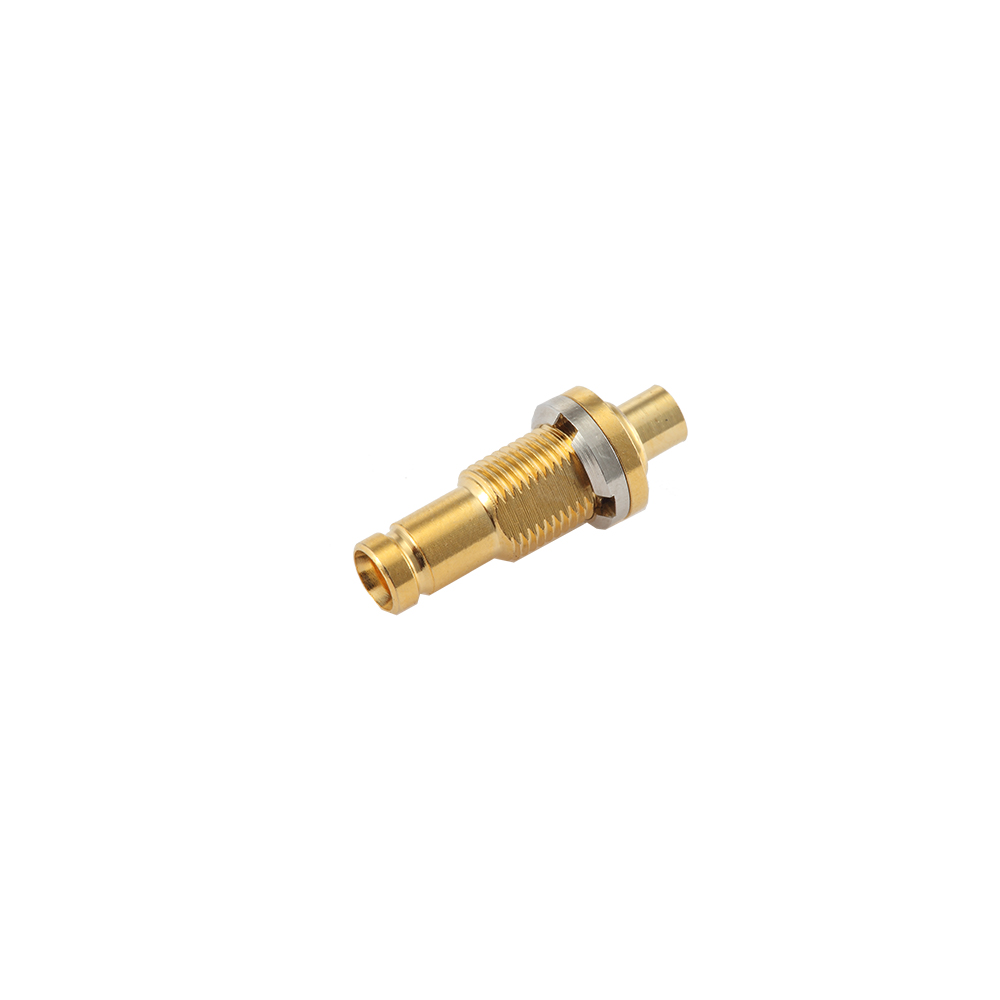

中文简体1.0/2.3(CC4) Connectors for Semi-Rigid & Semi-Flexible Cable Manufacturer
Product Overview
CC4 connectors for semi-rigid and semi-flexible cable are designed to terminate cables with solid or spiral outer conductors, offering excellent shielding effectiveness and phase-stable performance after forming. They are preferred for internal module-level interconnects where signal integrity, phase consistency, and stable transmission are critical requirements.
Key Features
Inner contact clamping structure precisely matched to semi-rigid outer conductor for reliable solder joints and low contact resistance
Tight outer conductor-to-cable shield fit maintains continuous shielding
Snap-on mating — no tools required for connection
Compatible with multiple semi-rigid and semi-flexible cable outer diameters
Competitive Advantages
Jingcheng Electronics supplies CC4 connectors alongside matched semi-flexible cable for simplified sourcing
Connector and cable dimensions are tightly coordinated to prevent assembly defects from tolerance mismatch
Custom fabrication available for non-standard cable routing in module interiors
Typical Applications
Fixed internal routing in RF transceiver modules
Phase-stable interconnects in microwave test equipment
RF links inside communication base stations
Array antenna feed networks requiring phase-matched lines
FAQ
Q: What is the difference between semi-rigid and semi-flexible cable, and which connector do I need?
A: Semi-rigid cable has a solid outer conductor tube that holds its shape after forming and provides the best shielding; semi-flexible uses a spiral or braided outer conductor that allows repeated bending. The termination process differs slightly between the two.
Please provide the cable model or outer diameter so our technical team can confirm the correct connector.
Q: Do semi-rigid cable connectors require soldering?
A: Yes. Semi-rigid cables are typically soldered at both the inner and outer conductors. Solder joint quality directly affects RF performance. The solder interfaces on our connectors are optimized for reliable, consistent joints.
Q: Can you supply finished semi-rigid cable assemblies (pre-formed jumpers)?
A: Yes. We offer custom semi-rigid and semi-flexible cable assembly services including forming, soldering, and electrical testing, delivered as ready-to-install jumpers.
Q: What is the upper frequency limit of these connectors?
A: The frequency limit depends on the specific model and the matched cable. Please contact our technical team with your application frequency to confirm the appropriate selection.
Q: Are small quantity orders accepted?
A: Yes. Please contact the sales team for minimum order quantities per model.
