EnglishSSMB PCB Mount RF Connectors
Product Introduction:

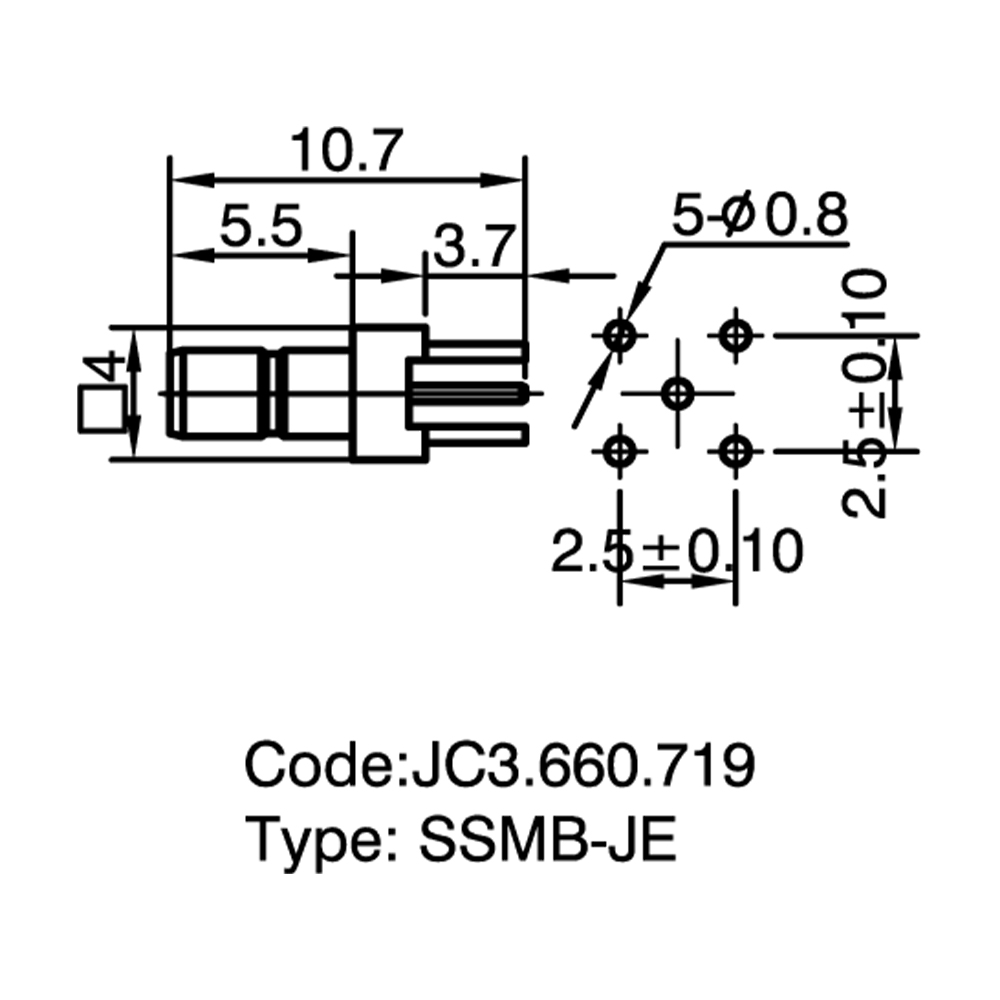

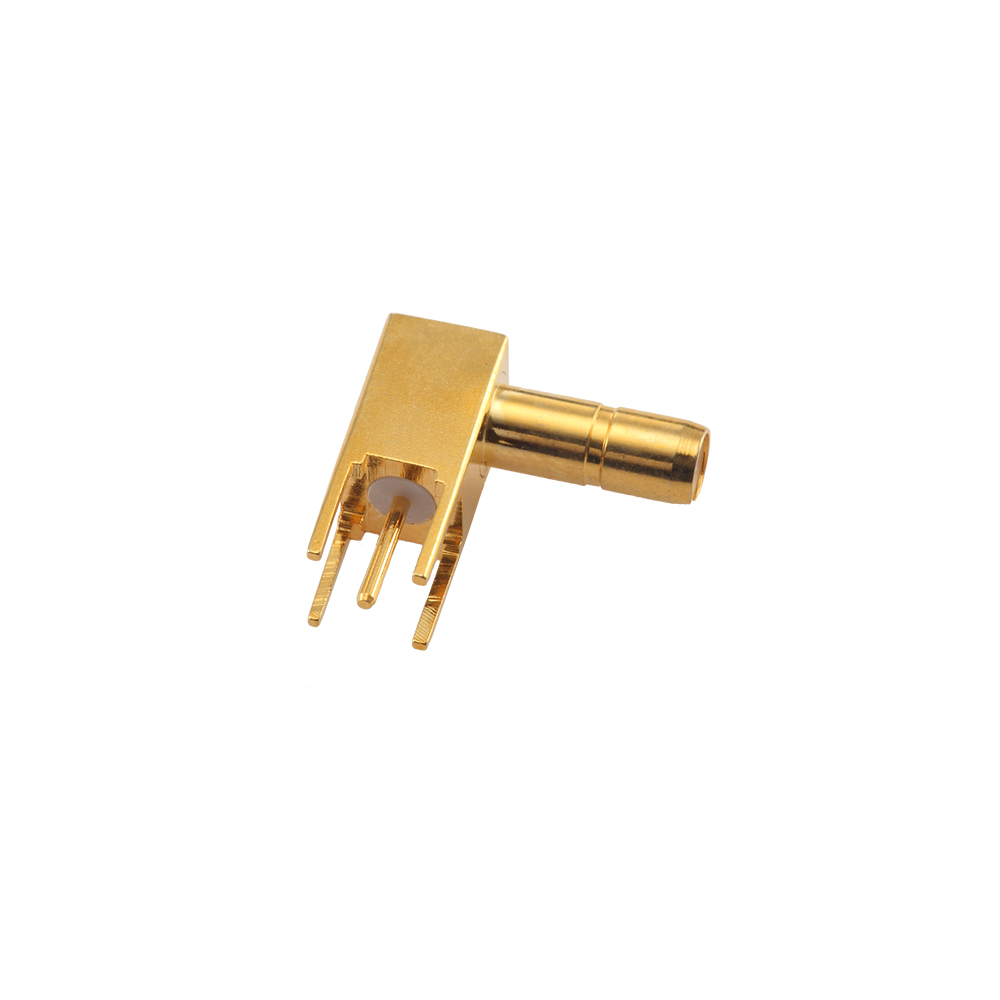

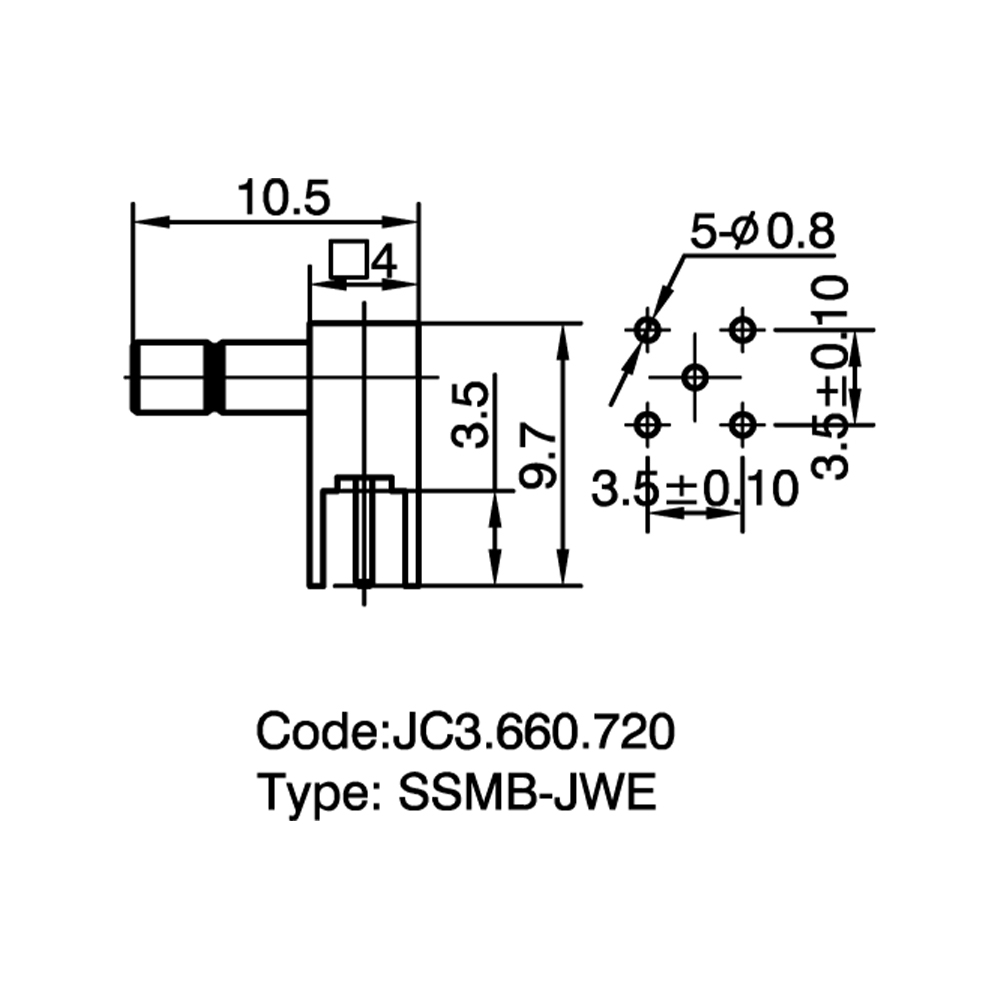

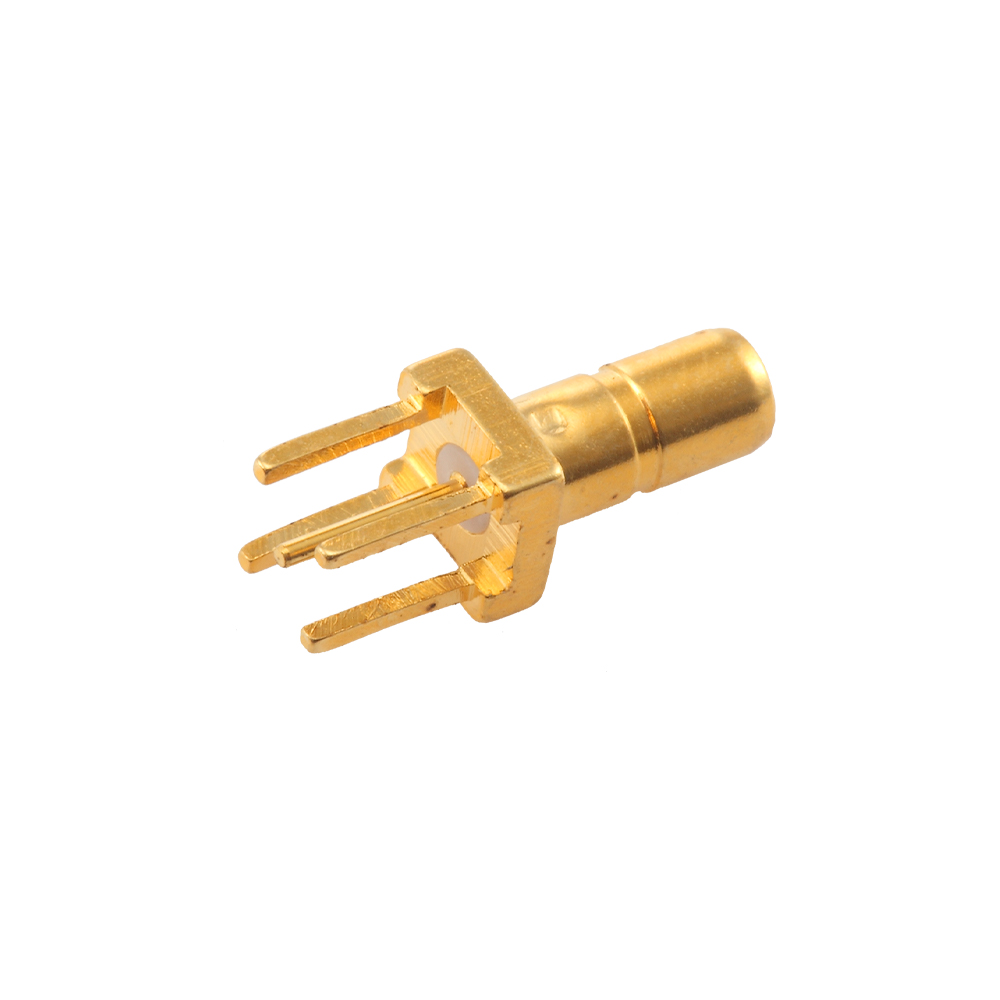

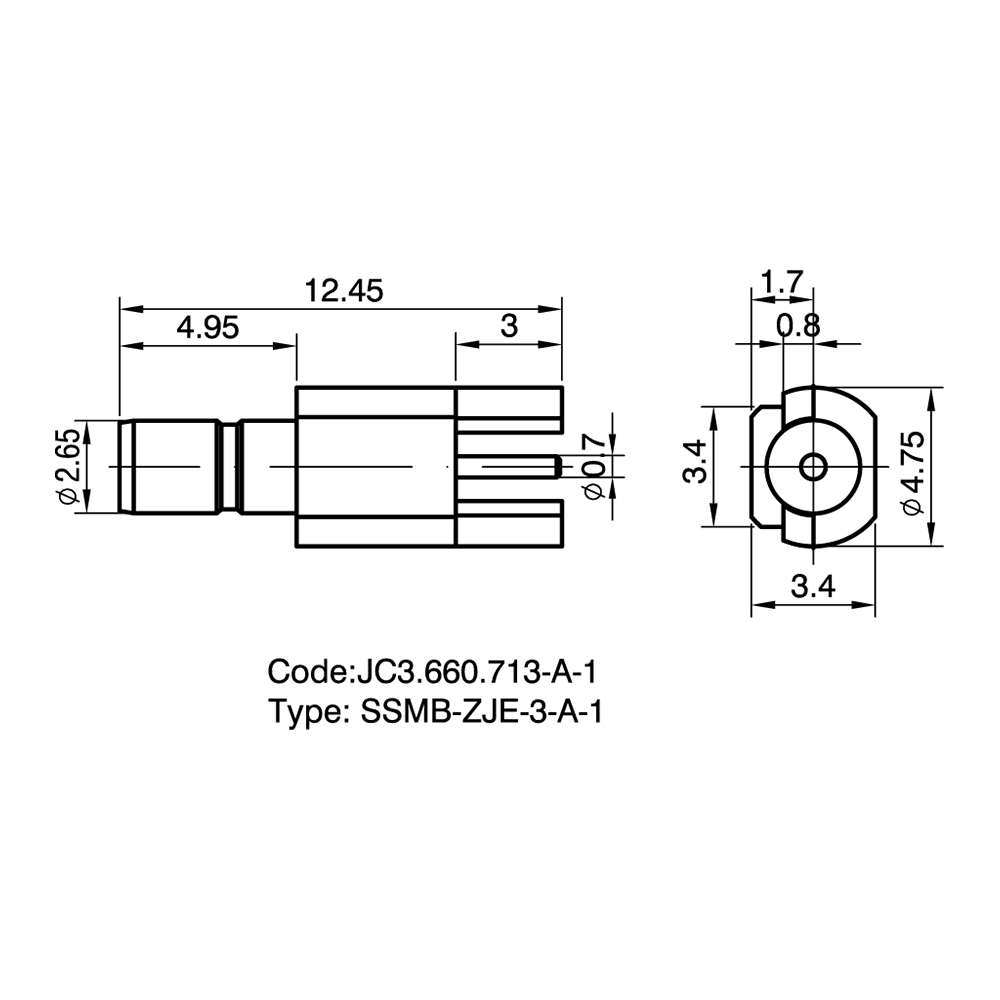

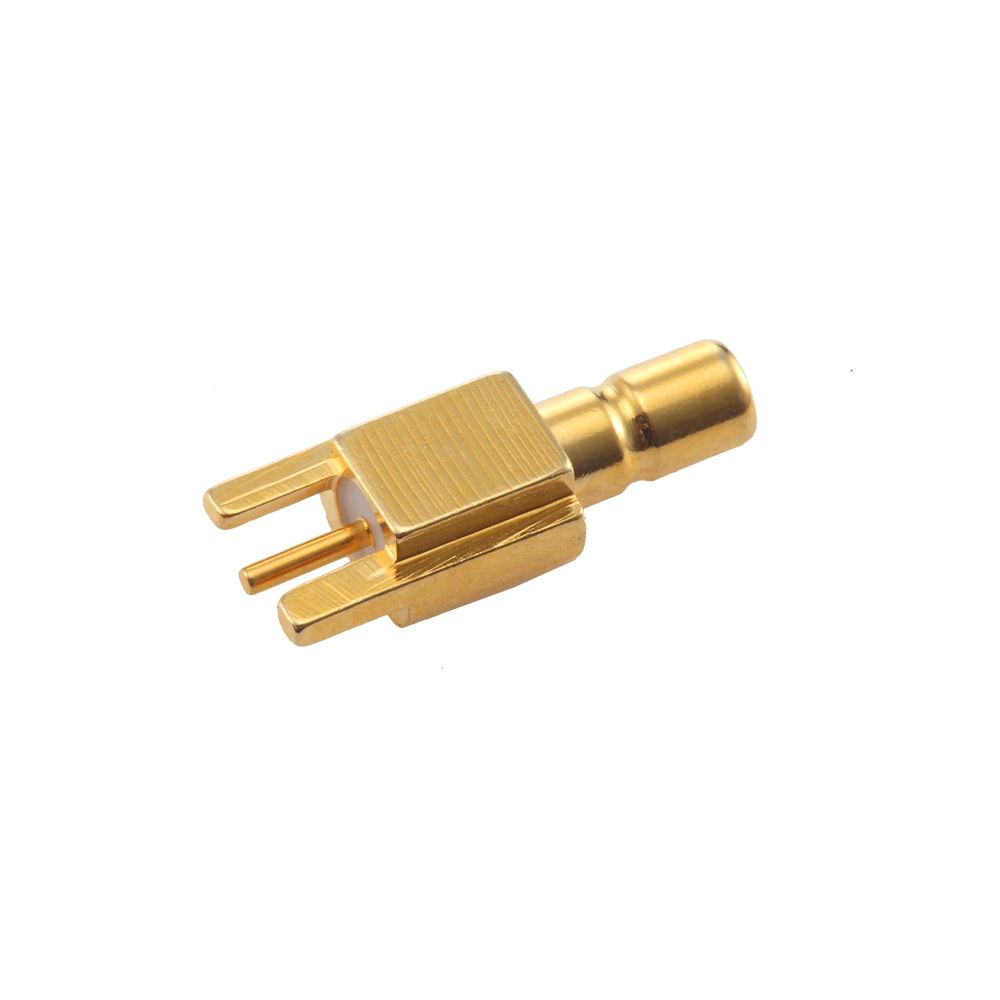

This SSMB connector is designed for direct mounting onto printed circuit boards, including both vertical through-hole types and horizontal SMT versions. It serves as a critical RF interface for wireless communication modules and smart positioning terminals.
Product Features:
Automated assembly support: Supplied in standard tape-and-reel packaging, it is fully compatible with high-speed pick-and-place machines, ensuring production consistency while significantly reducing manual assembly costs.
High-temperature resistance: The internal dielectric is made of high-performance PTFE, capable of withstanding reflow soldering temperatures up to 260°C without deformation.
Consistent gold plating: The center pin features uniform gold plating, effectively preventing oxidation in high-humidity environments and ensuring long-term contact reliability.
Application Advantages:
Improved production yield: Precisely designed pin structures ensure even solder paste distribution during assembly, reducing defects such as cold joints and solder bridging.
Wide application range: From smartwatches and tablets to industrial IoT gateways, its compact form factor meets the interconnection needs of modern electronic devices.
|
Temperature Range |
-55～+155℃ |
|
Impedance |
50Ω |
|
Frequency Range |
DC～3GHz |
|
Insulation resistance |
≥1000MΩ |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.07+0.10f |
|
Durability(mating) |
≥500 cycles |
