EnglishSSMA PCB Mount RF Connectors
Product Introduction:

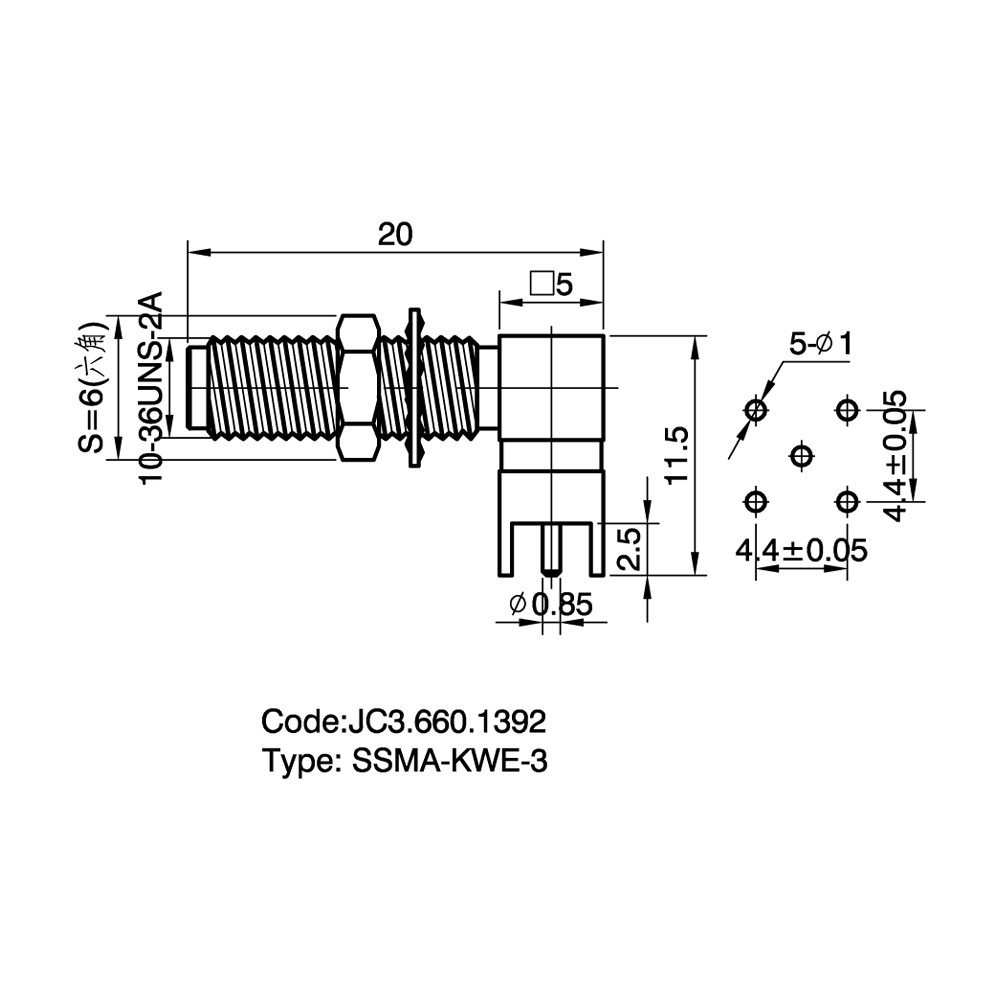

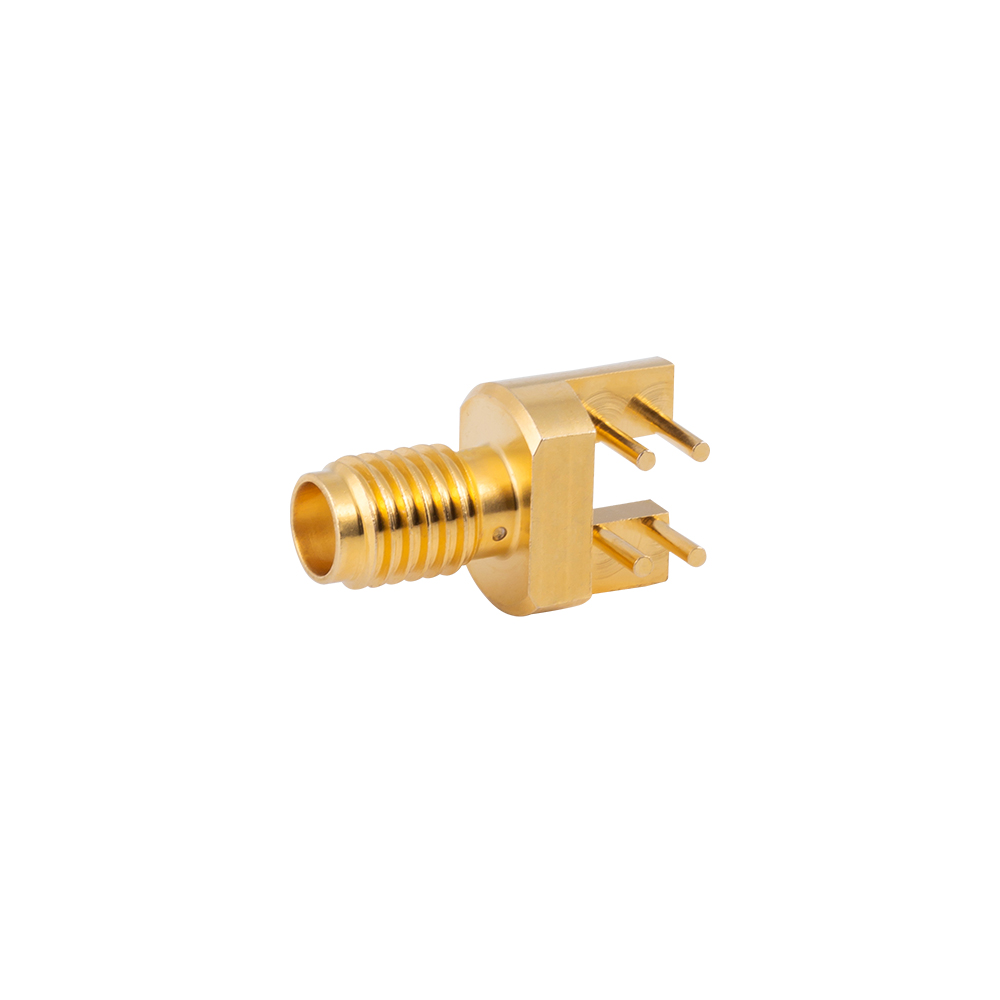

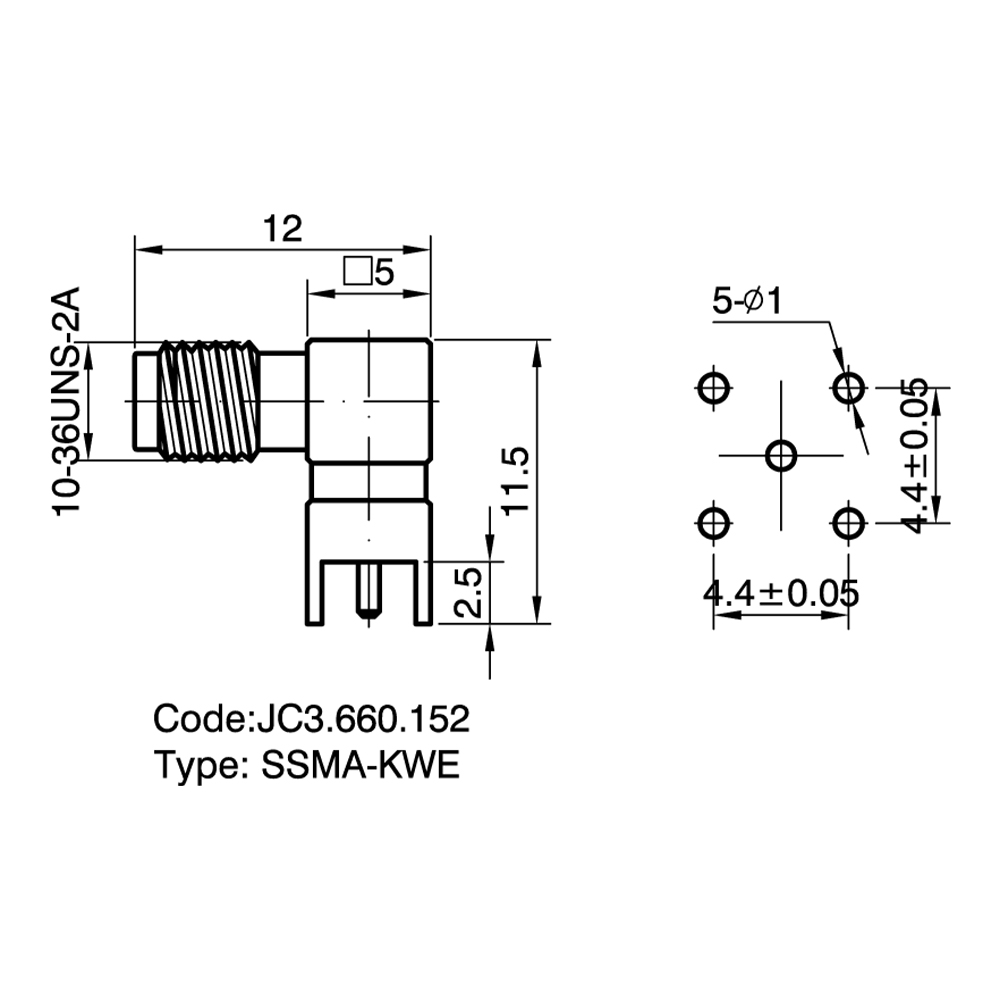

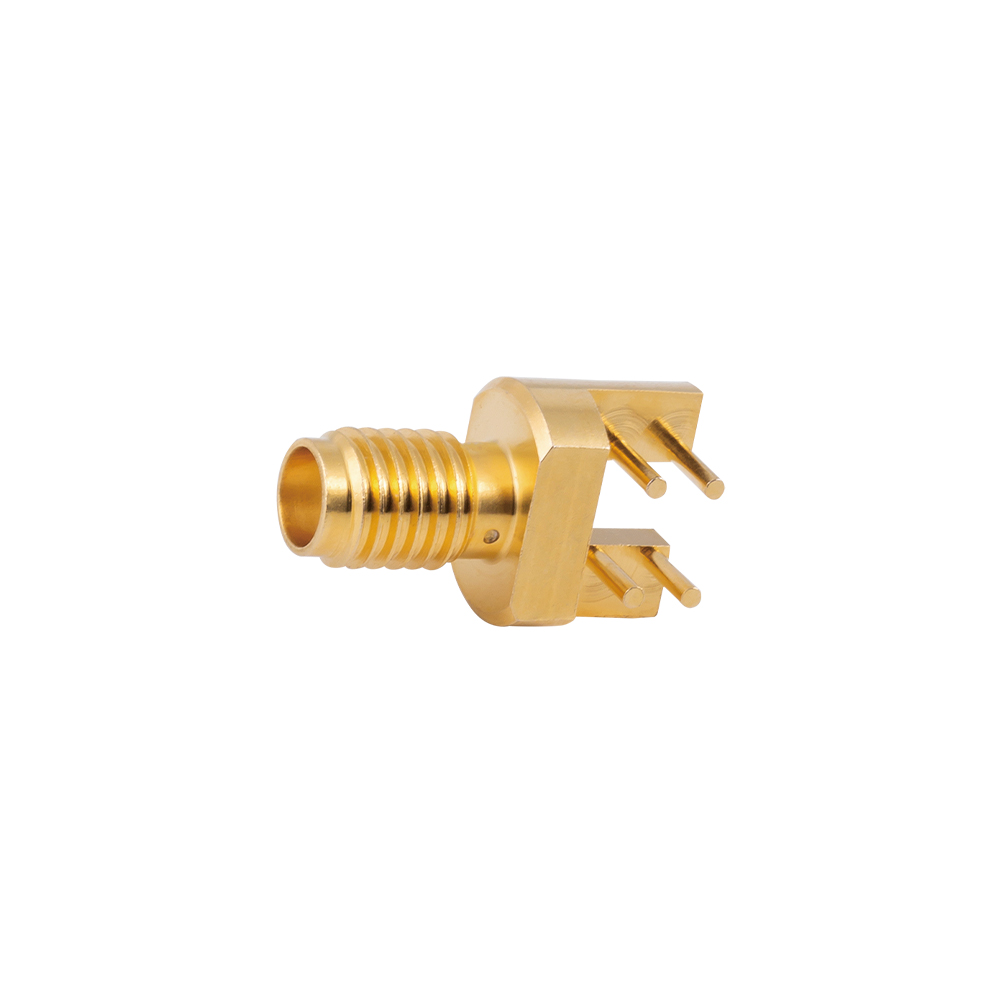

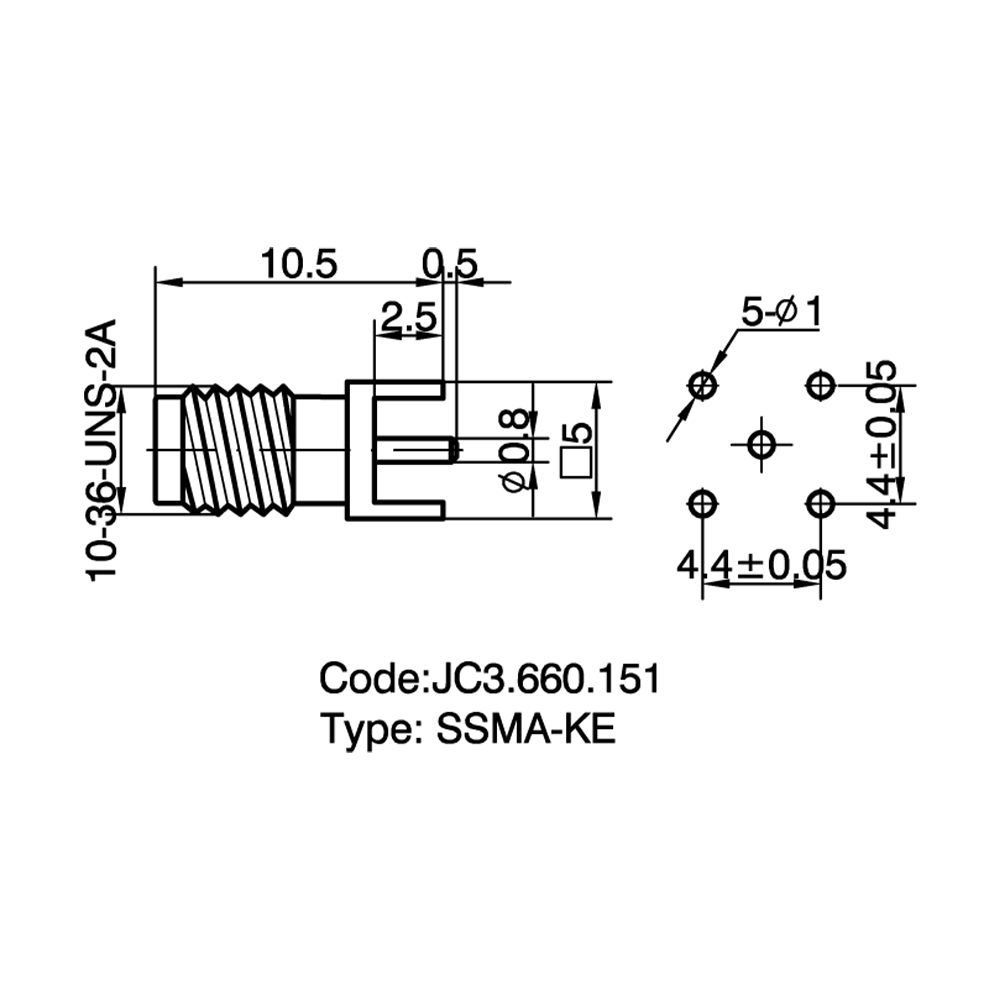

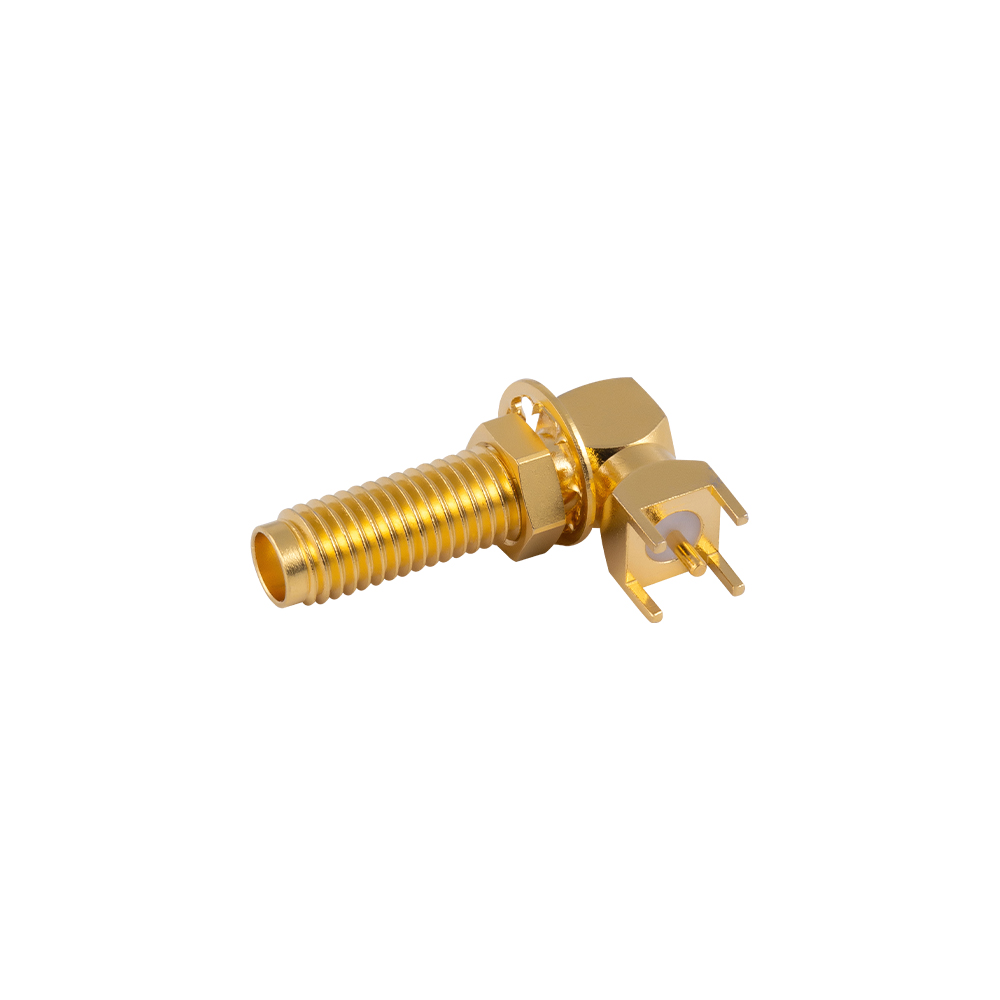

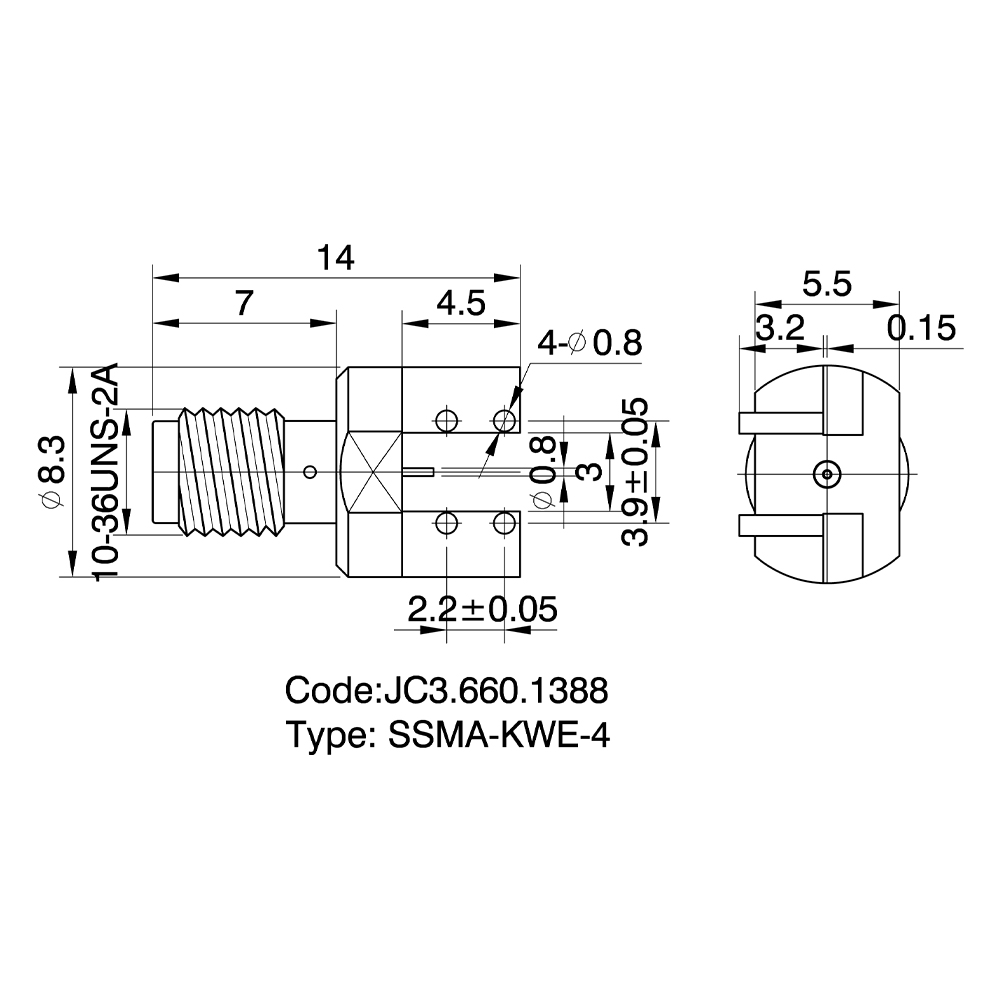

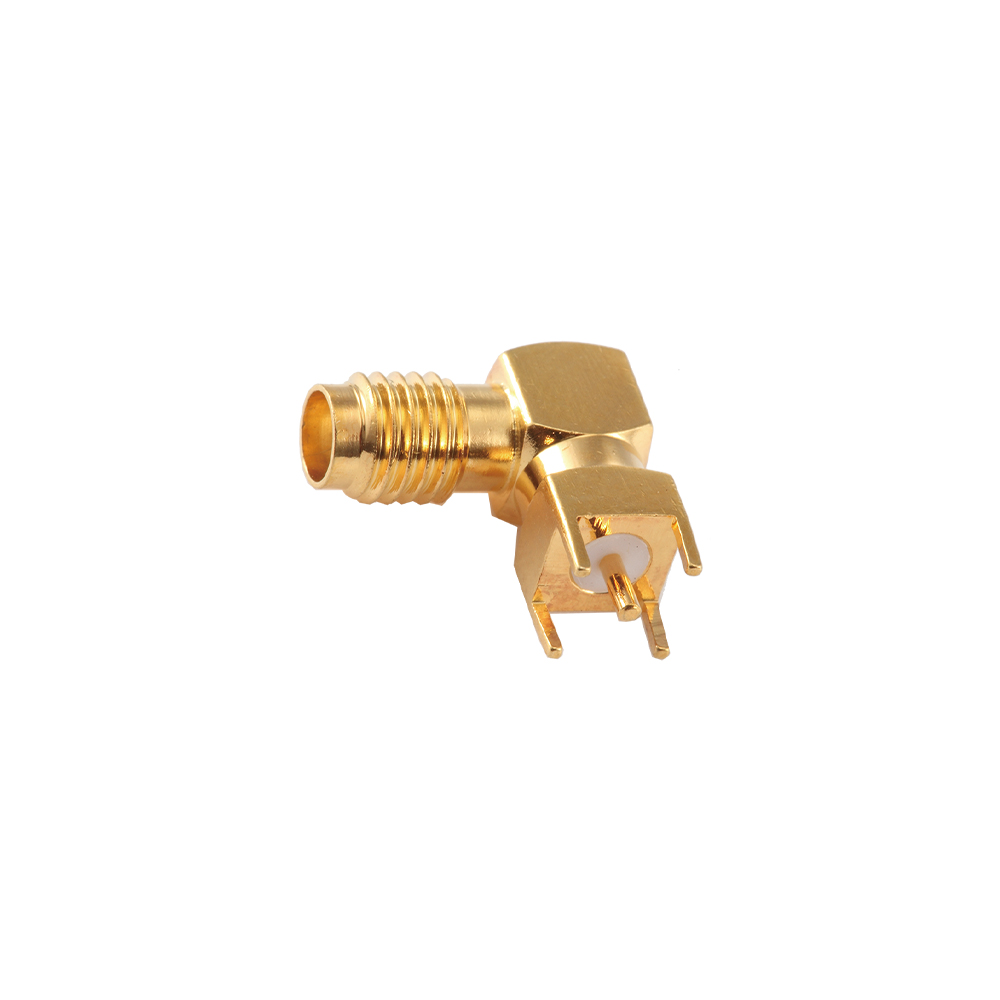

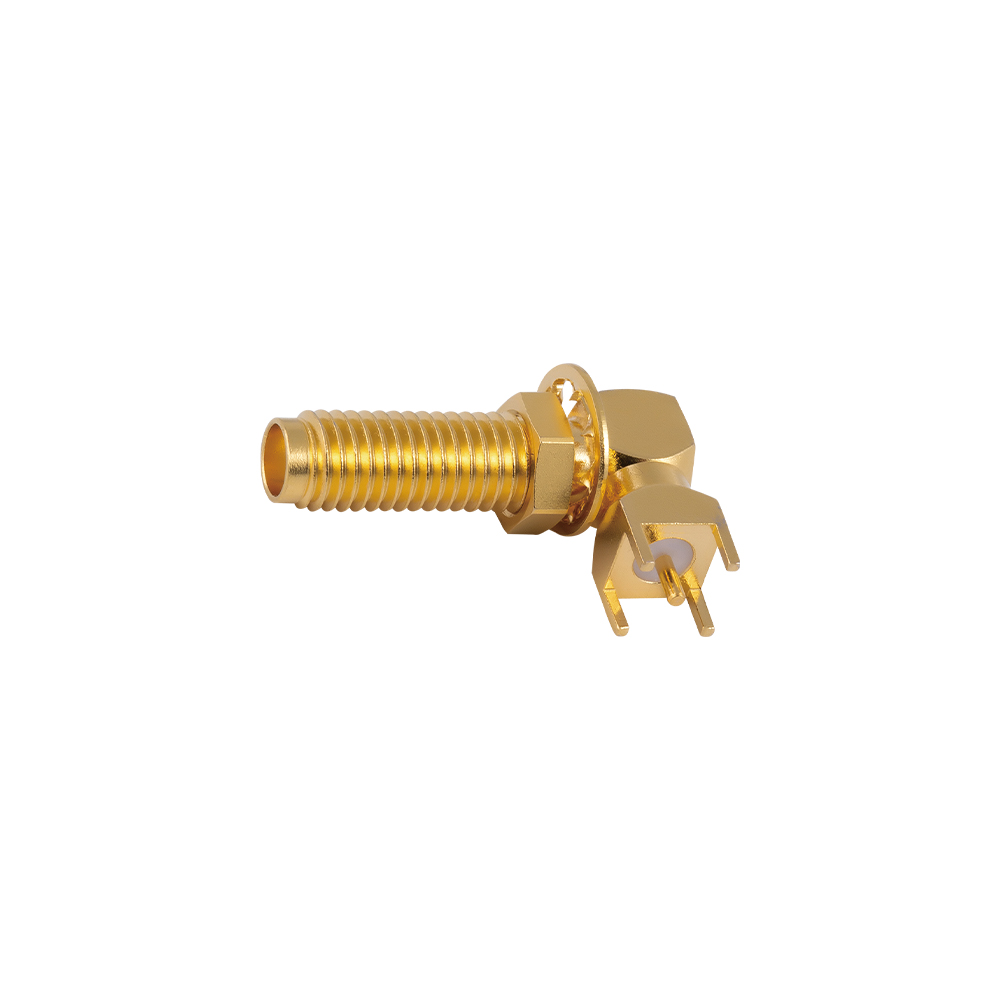

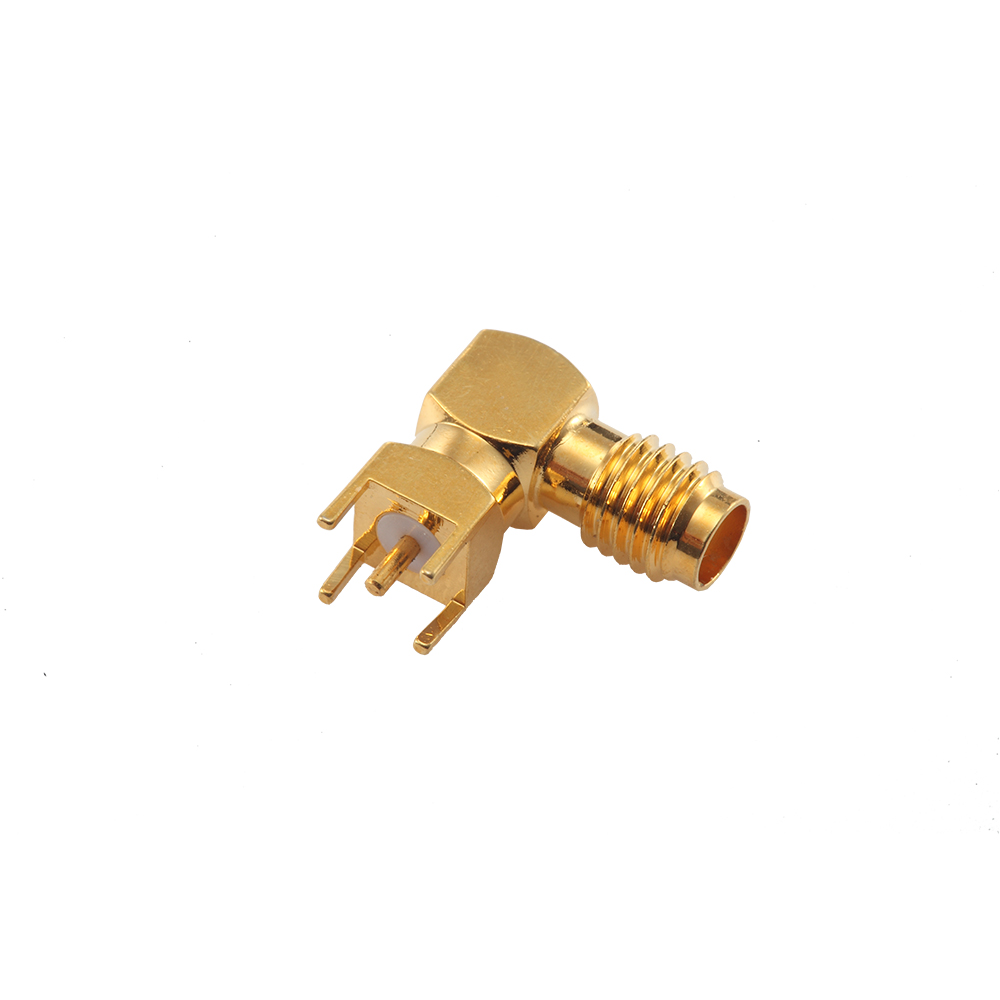

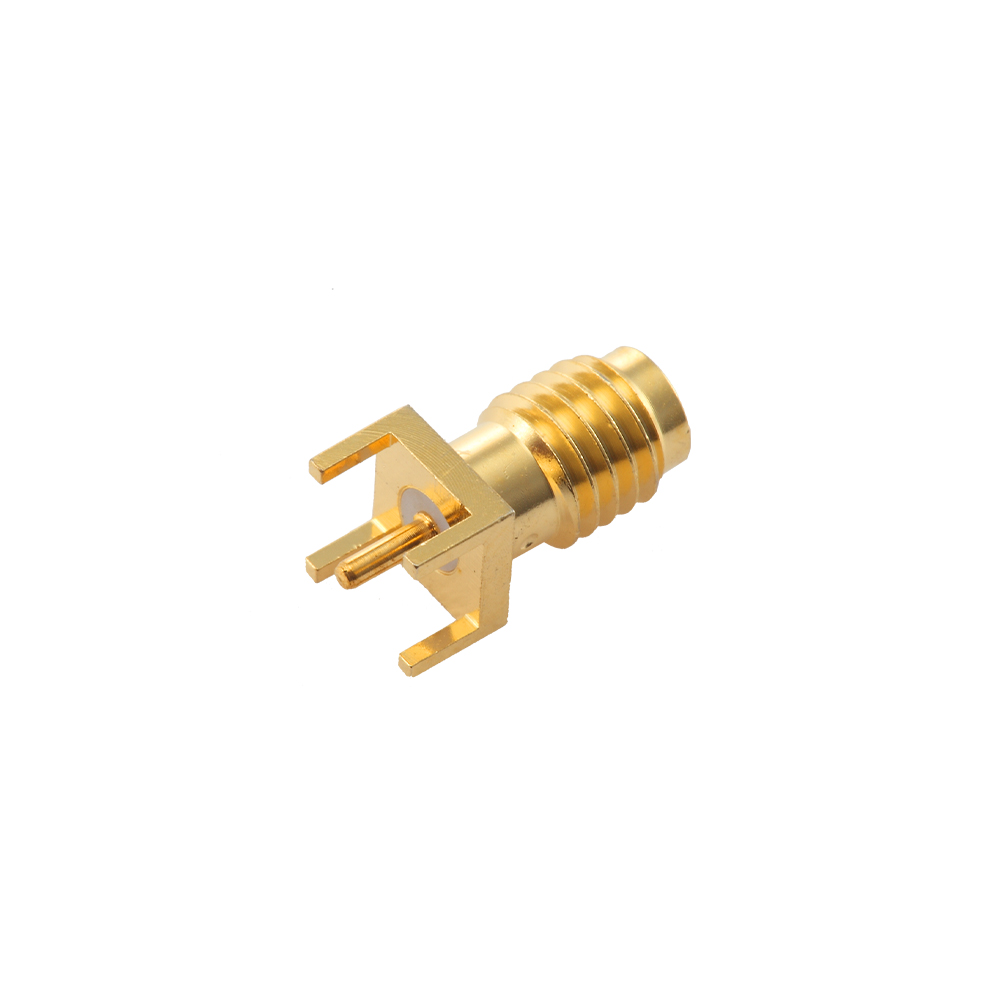

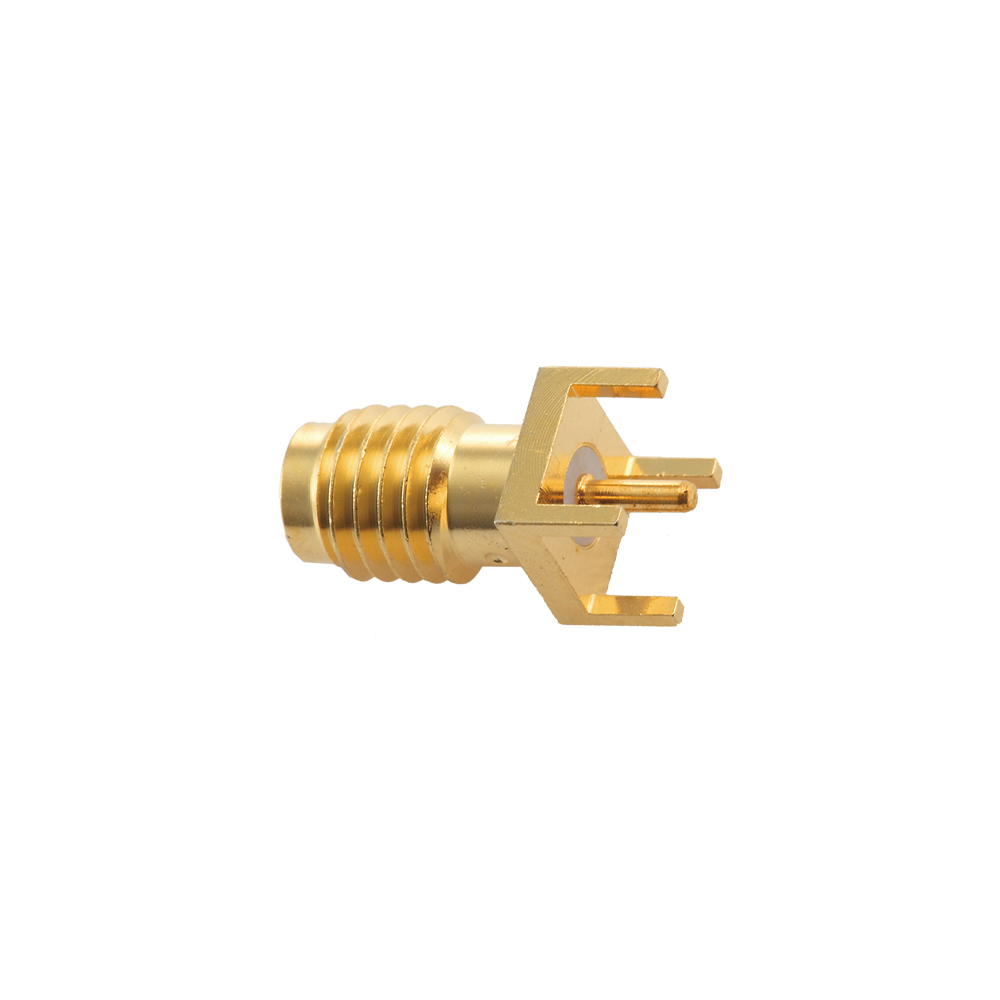

This is a receptacle directly soldered onto PCB pads, available in both through-hole and surface-mount (SMT) types. It provides a robust threaded external interface for board-level circuits and serves as the “entry and exit port” for signals on the PCB.
Product Features:
Secure soldering: Equipped with four reinforced solder legs to effectively distribute torque generated during mating and unmating, preventing pad detachment over long-term use.
High-temperature PTFE material: The internal insulator is made of high-performance polytetrafluoroethylene, capable of withstanding reflow temperatures above 260°C without deformation.
Ultra-low insertion loss: Maintains excellent conductivity even at frequencies above 6 GHz, with insertion loss far lower than standard commercial-grade connectors.
Application Advantages :
High PCB space utilization: Provides greater layout flexibility for hardware engineers and is a key component in achieving lightweight and miniaturized device designs.
Industrial-grade reliability: Complies with MIL standards and can withstand more than 500 mating cycles without damage, making it suitable for long-term operation in automated industrial systems.
Application Scenarios :
Mainly used in industrial IoT gateways, miniature communication terminals, medical imaging transmission equipment, and radar sensing modules for autonomous driving applications.
|
Temperature Range |
-55～+155℃ |
|
Impedance |
50Ω |
|
Frequency Range |
DC～35GHz |
|
Insulation resistance |
≥1000MΩ |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.07+0.10f(GHz) |
|
Durability(mating) |
≥500 cycles |
