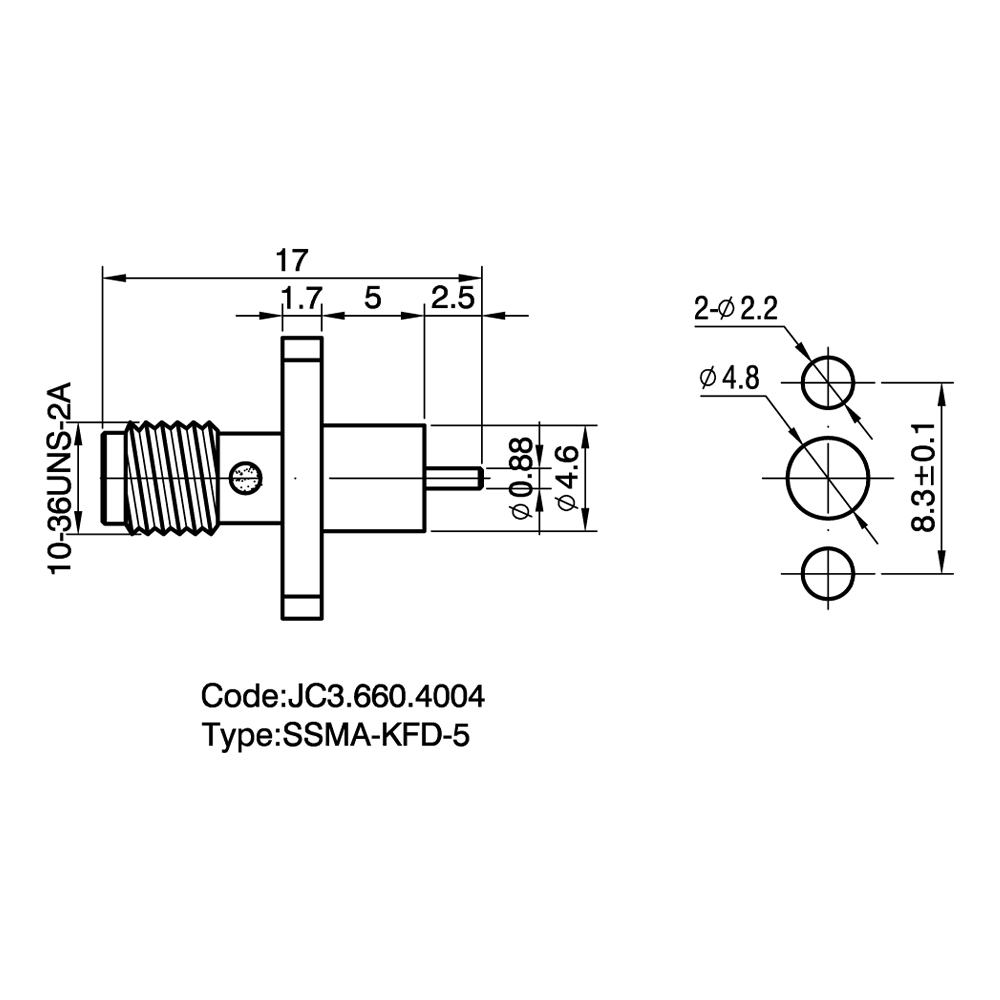

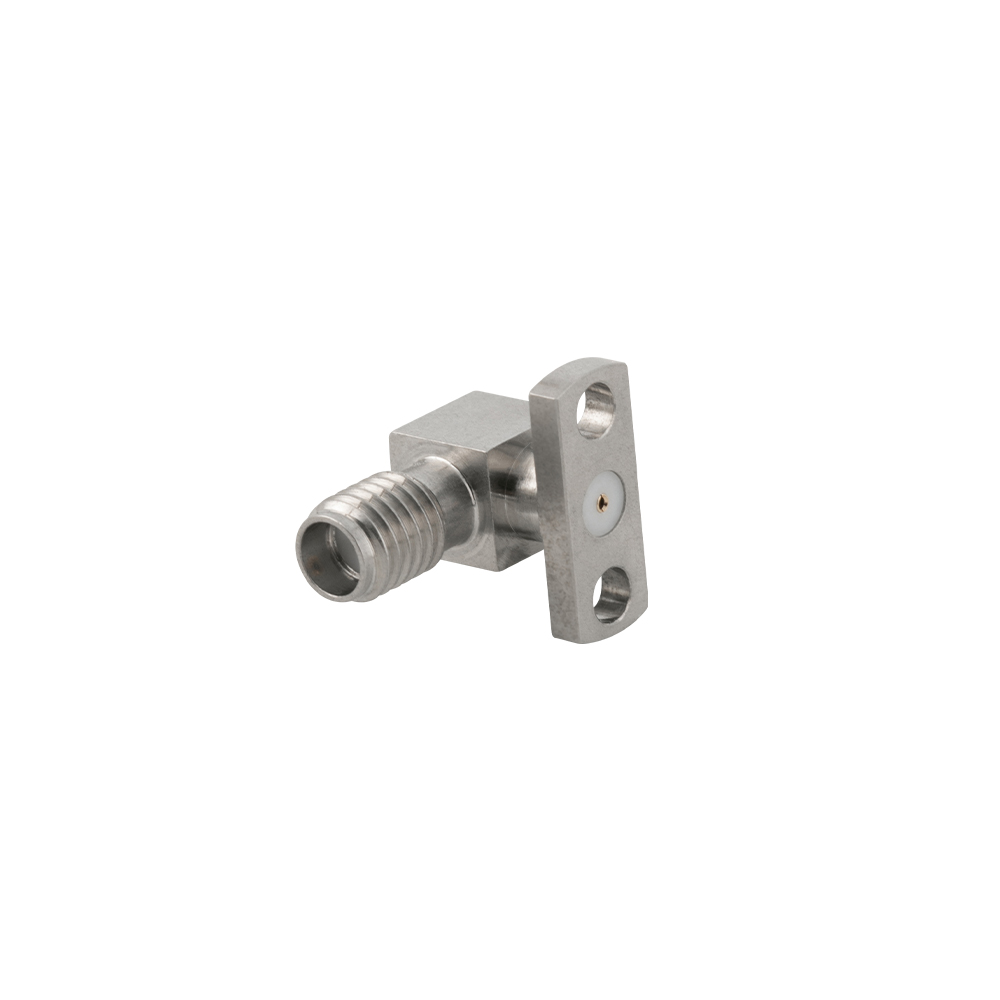

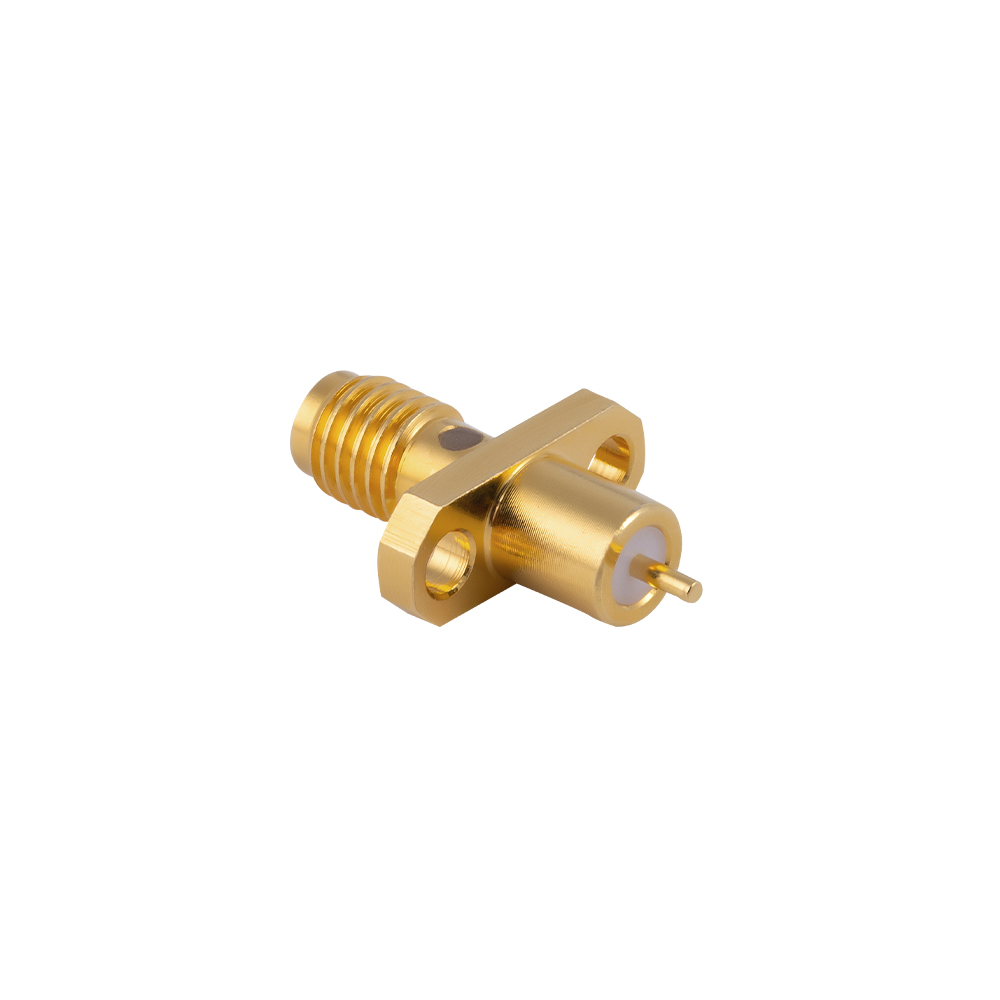

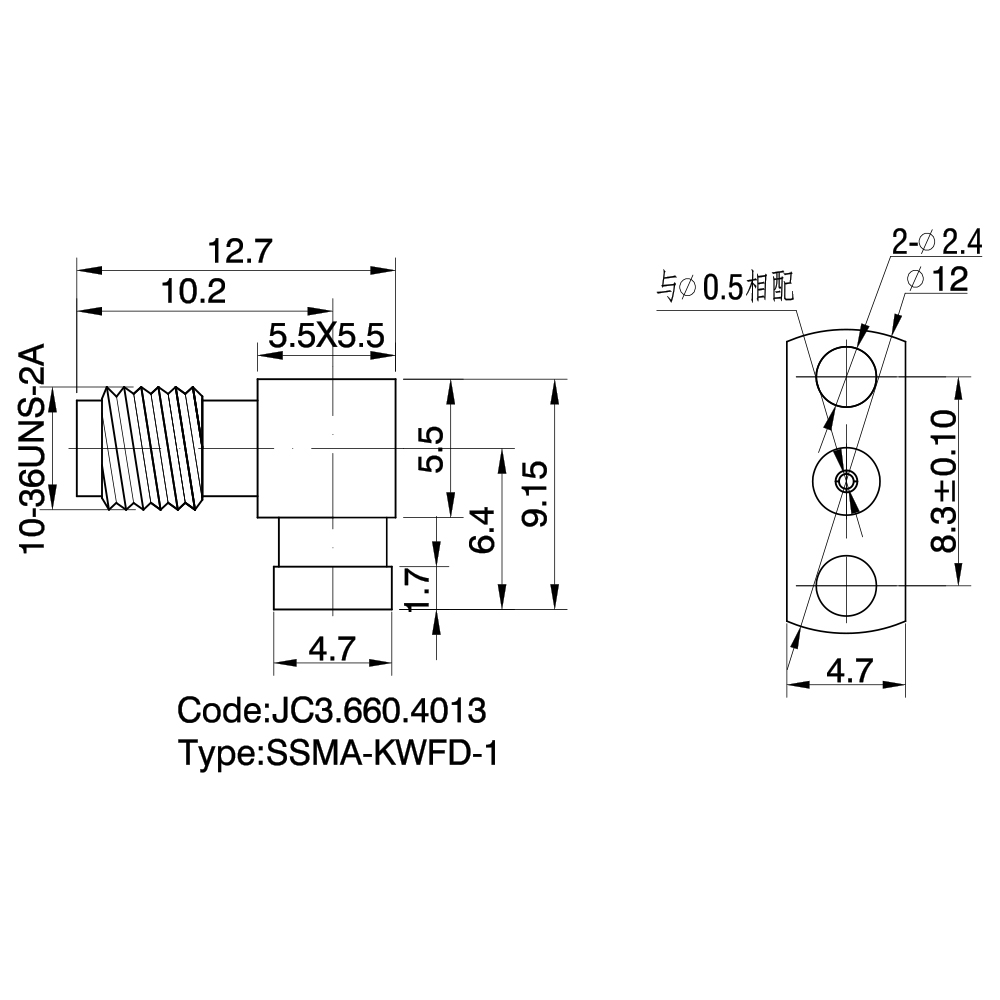

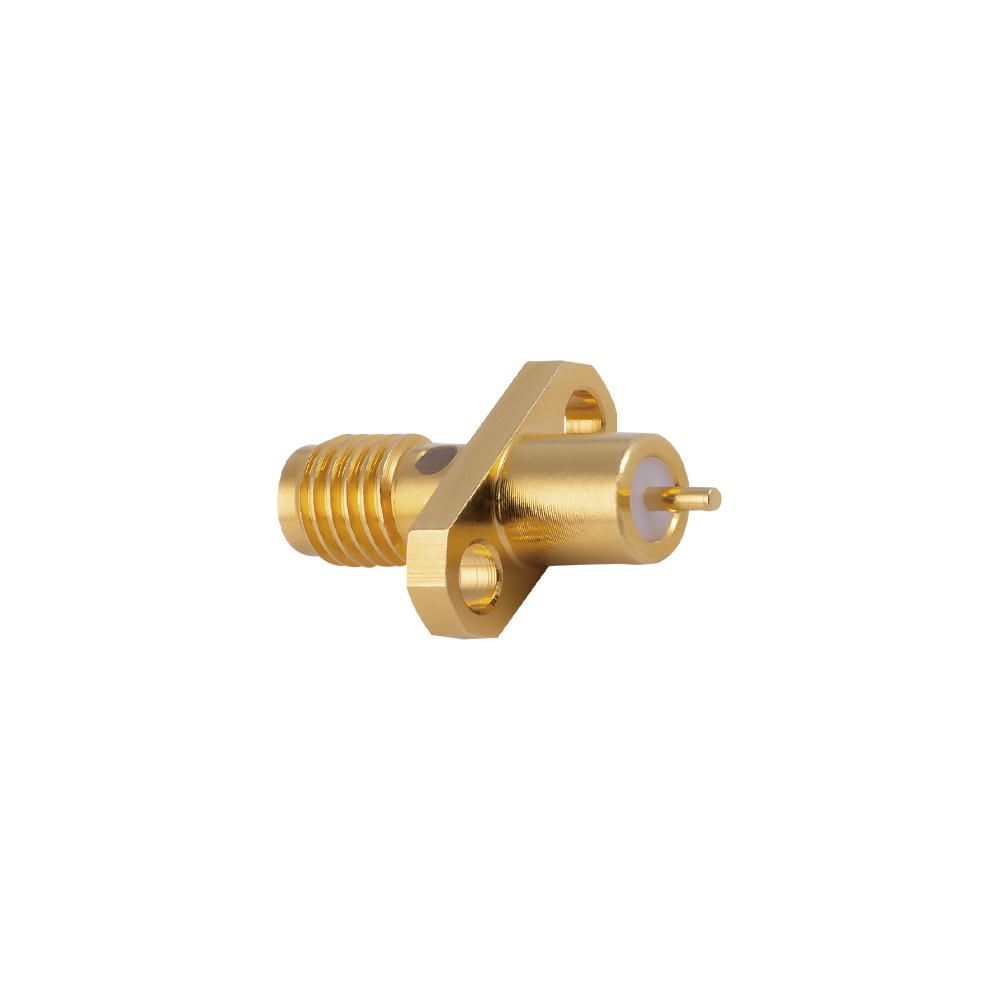

EnglishSSMA Micro-strip RF Connectors
Product Introduction:
Microstrip connectors (also known as end launch connectors) are primarily mounted on the edge of PCB boards, clamping onto the board edge like a “clip.” They are responsible for launching microstrip line signals from the PCB. Due to the extremely narrow lateral dimensions of SSMA, they allow for denser interface arrays along the same board edge.
Product Features:
Narrow-pitch routing support: Benefiting from the small outer diameter, engineers can install more connectors side by side within a limited board-edge width in multi-channel MIMO applications.
Smooth impedance transition: The center pin structure is simulation-optimized to ensure a smooth transition from planar circuits to cylindrical coaxial structures, greatly reducing parasitic capacitance in the transition area.
Corrosion resistance and long service life: Features thick gold plating, maintaining stable conductivity even in coastal or humid high-frequency communication base station environments.
Application Scenarios:
Suitable for 5G/6G test and evaluation boards, high-frequency power amplifier (PA) modules, RF switch matrices, and integrated microwave circuits.
|
Temperature Range |
-55～+155℃ |
|
Impedance |
50Ω |
|
Frequency Range |
DC～35GHz |
|
Insulation resistance |
≥1000MΩ |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.07+0.10f(GHz) |
|
Durability(mating) |
≥500 cycles |
