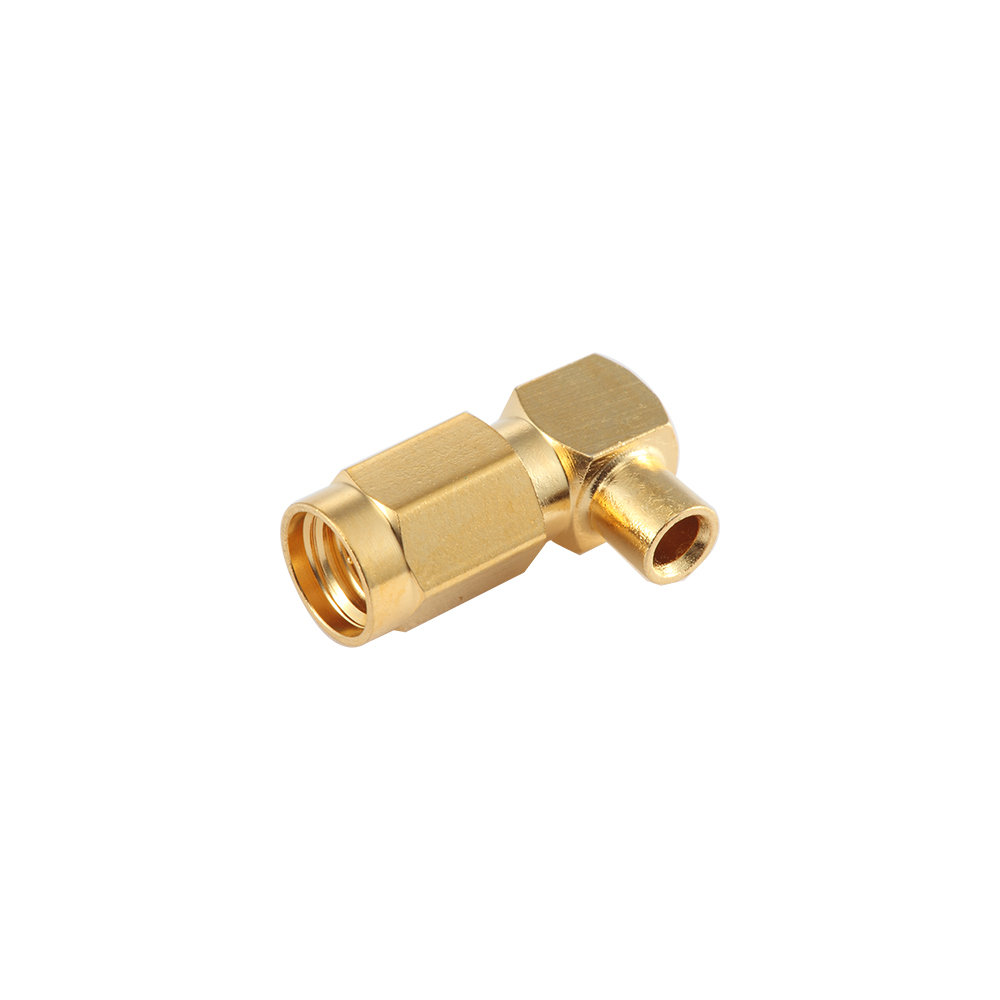

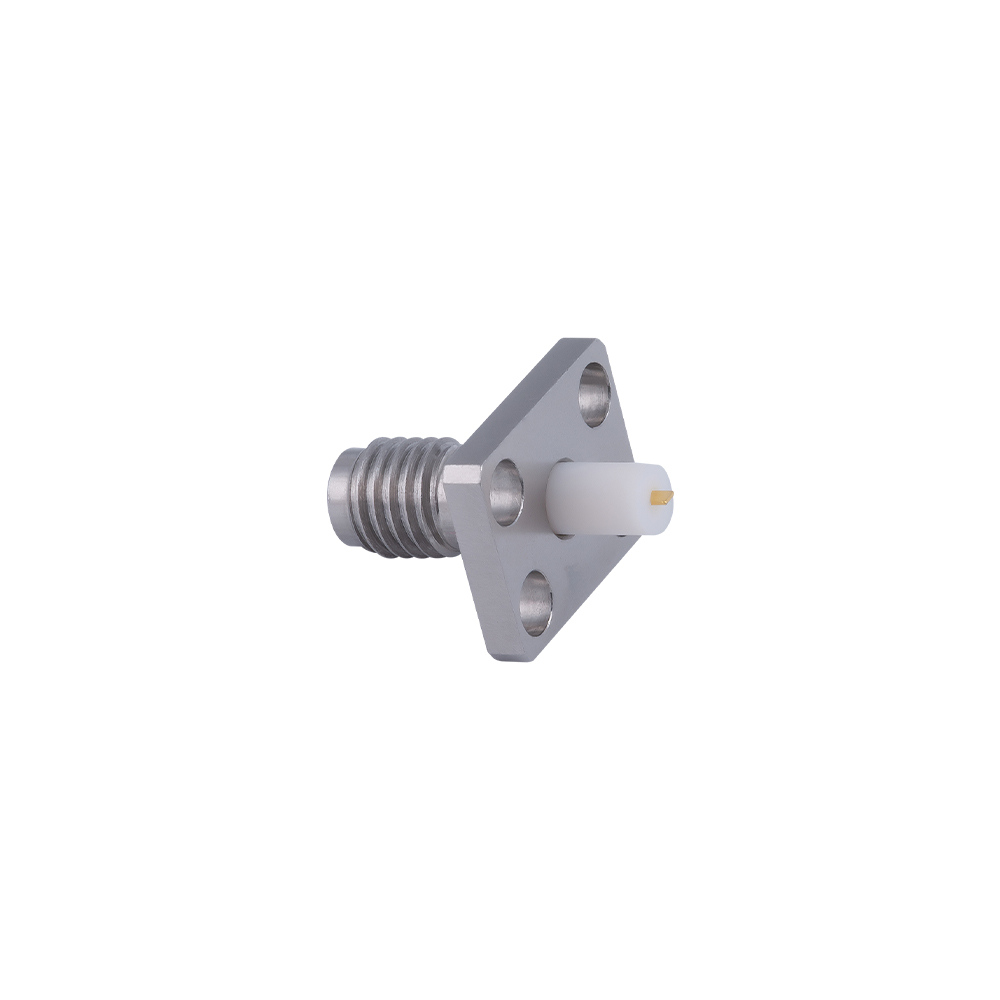

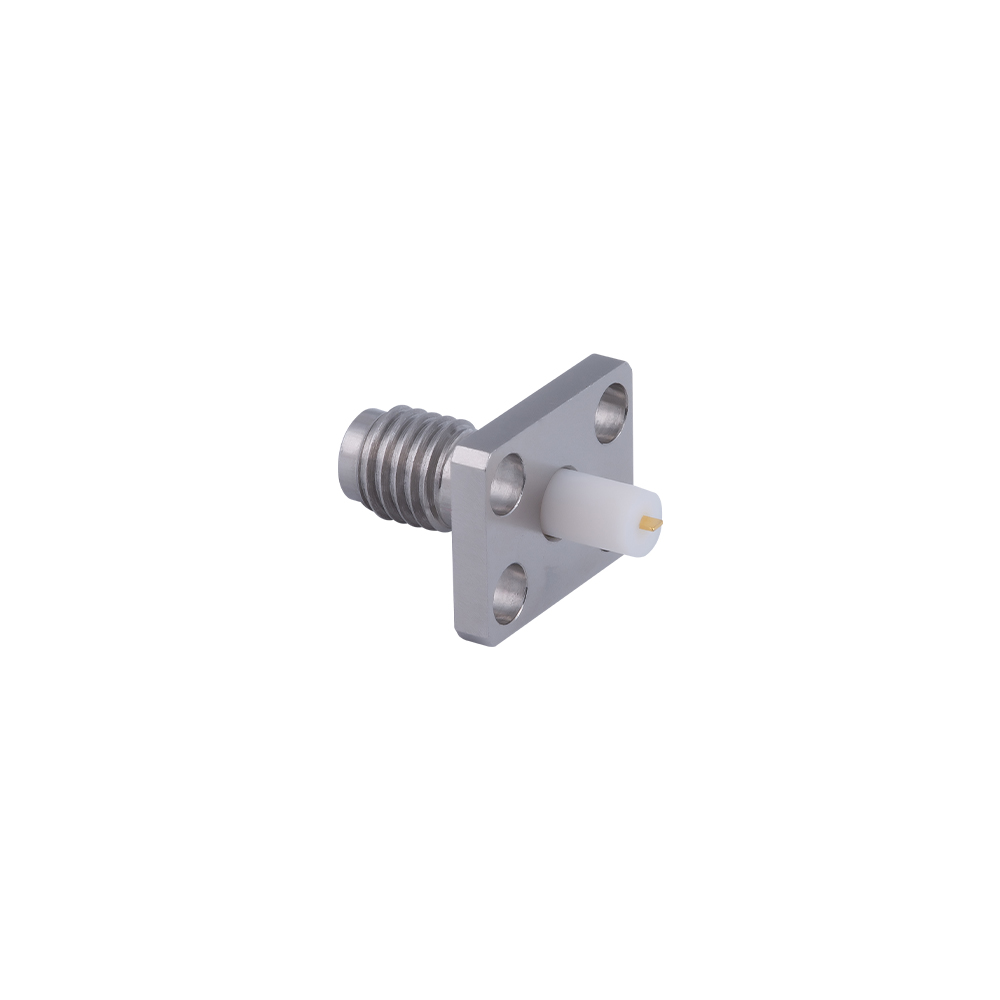

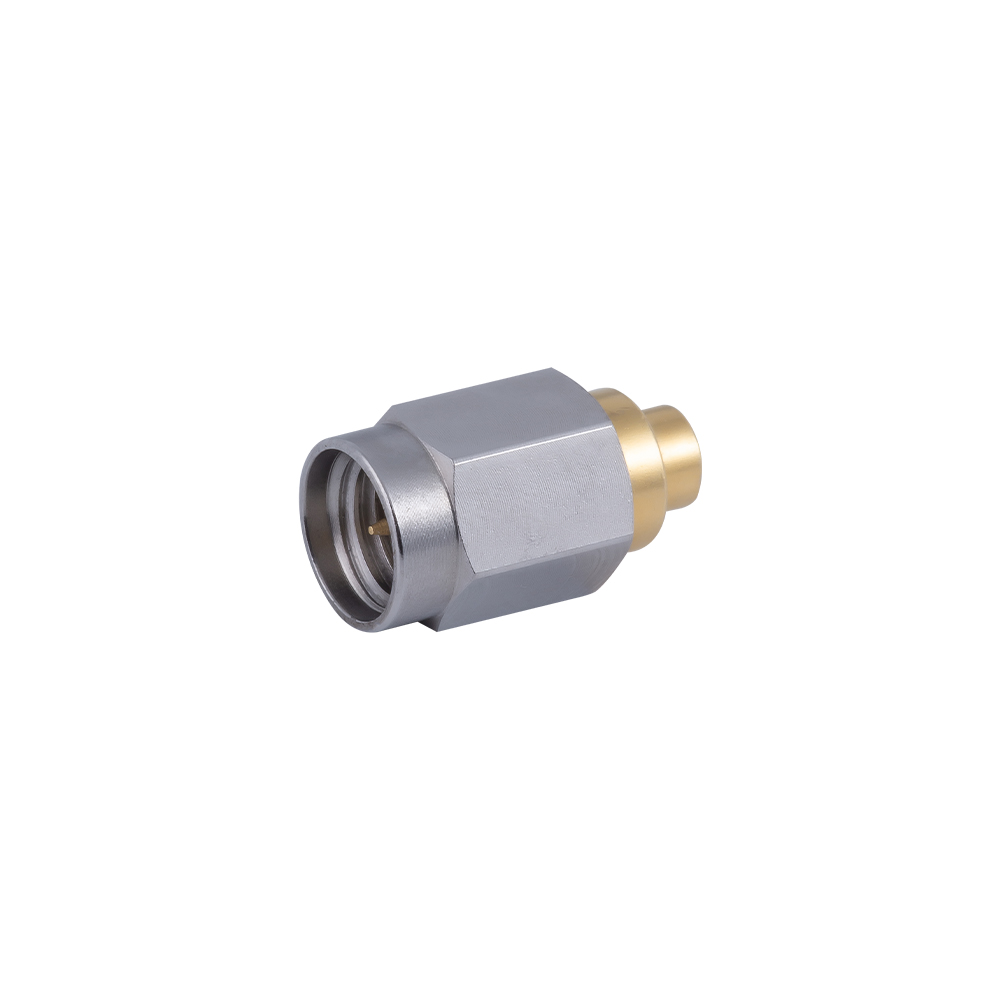

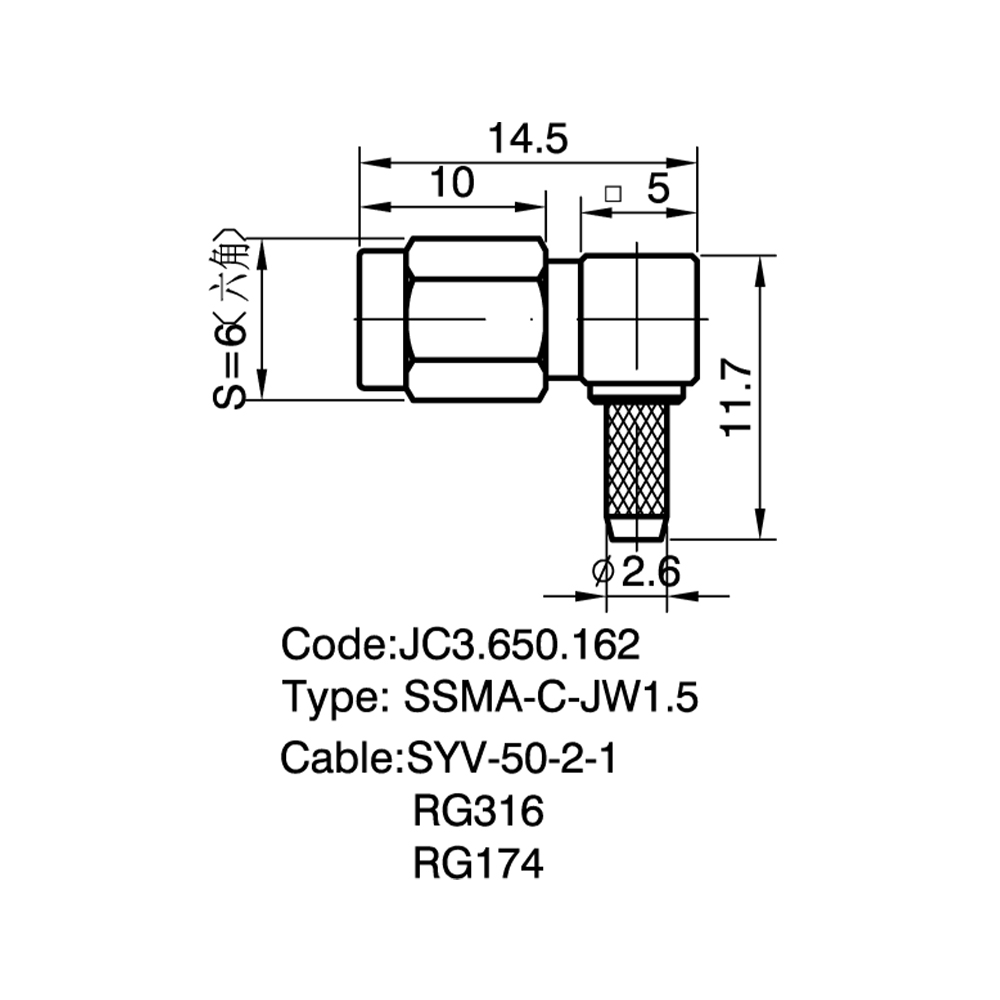

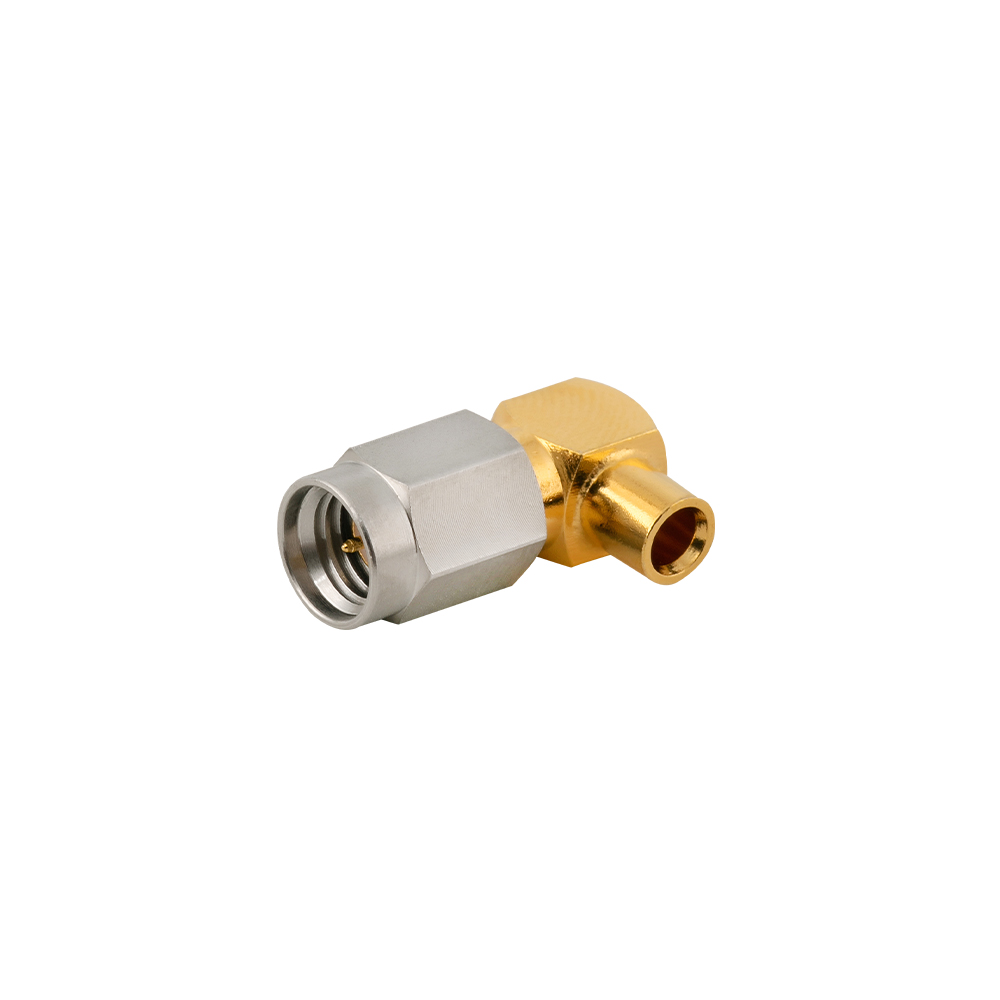

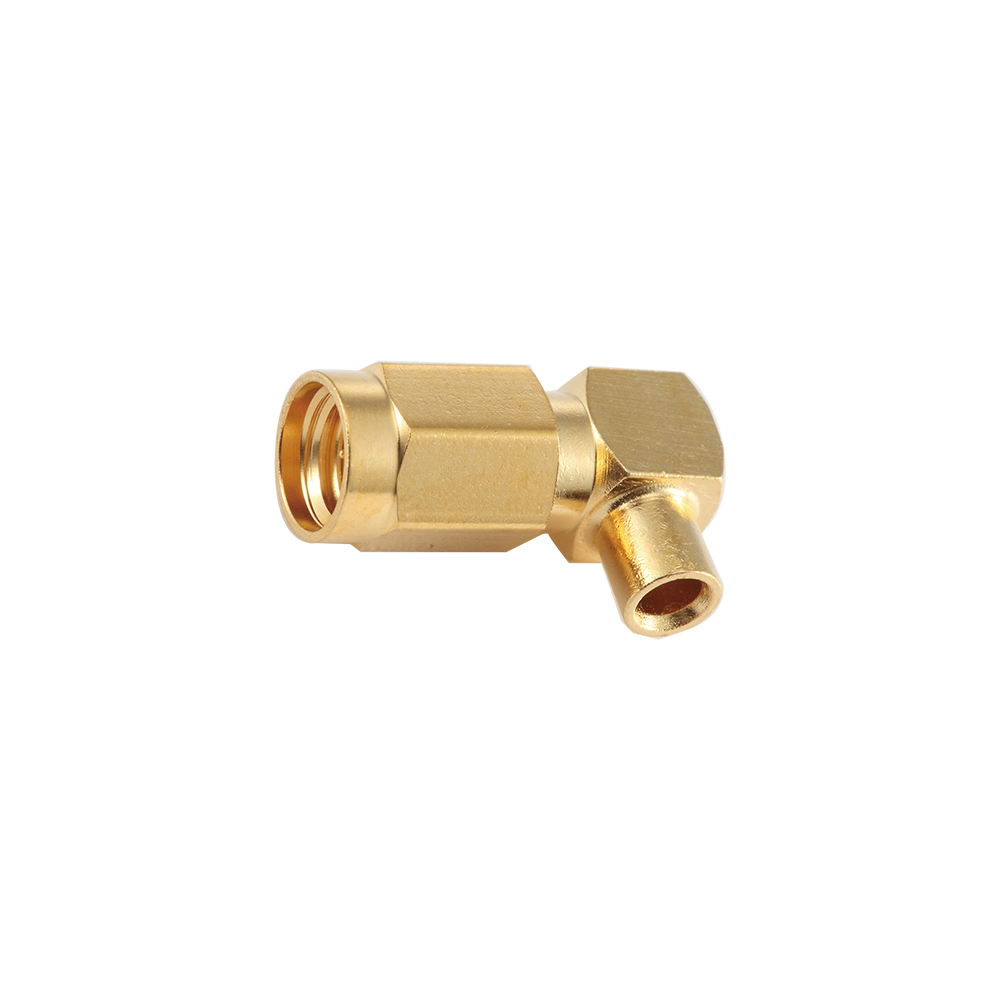

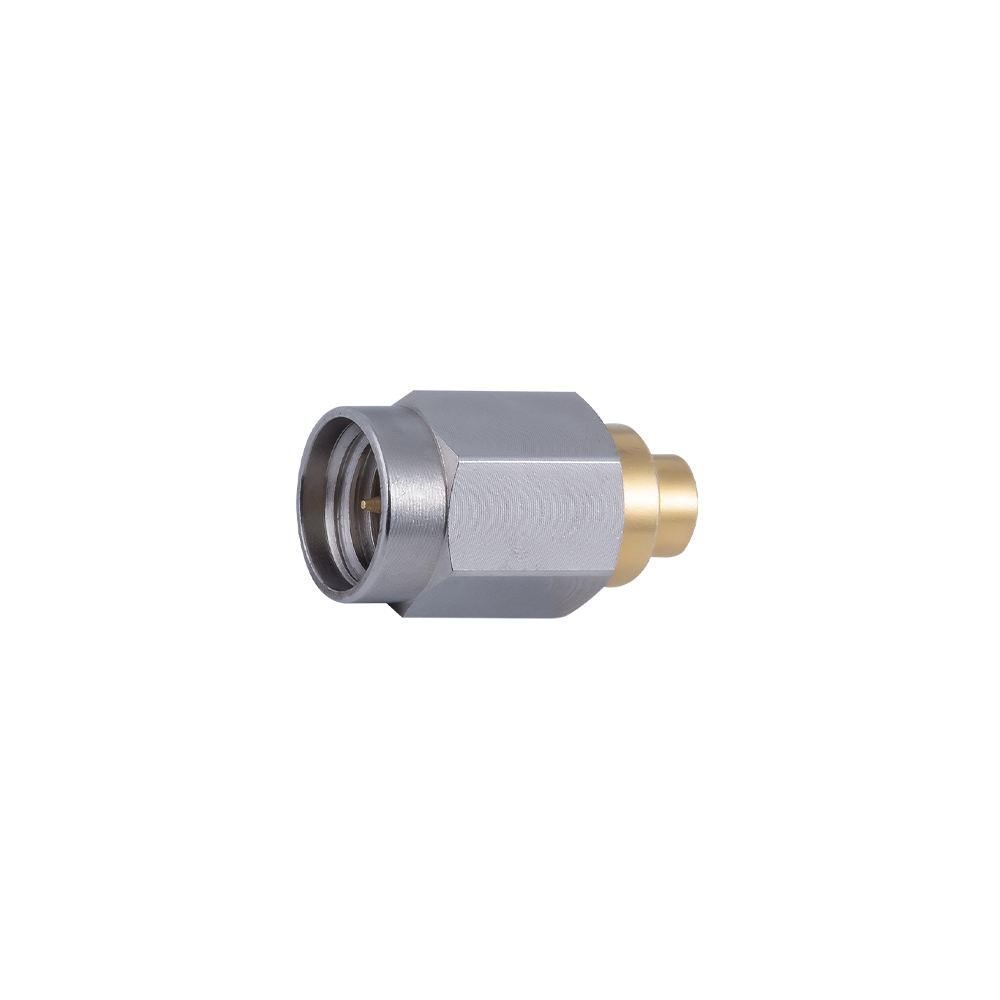

SSMA RF Coaxial Connectors

TYPE SSMA is one kind of Microminiature RF coaxial connector with Screw Coupling mechanism, Characteristic impedance is 50Ώ.The characteristic of connectors is in Small Size, light weight, wide frequency range, and high reliability.
They are used in Small-sized portable electronic equipment that are strict with the volume and weight, and used with RF coaxial cable on Network system. The frequency of the connector can be up to 18GHz by Using the high accuracy Semi-rigid Cable.

Temperature  Range

-55～+155℃

Impedance

50Ω

Frequency Range

DC～35GHz

Insulation resistance

≥1000MΩ

Voltage Standing Wave Ratio (VSWR)

≤1.07+0.10f(GHz)

 Durability(mating)

≥500cycles
