EnglishSMC RF Coaxial Connectors for Flexible Cable
Product Introduction:

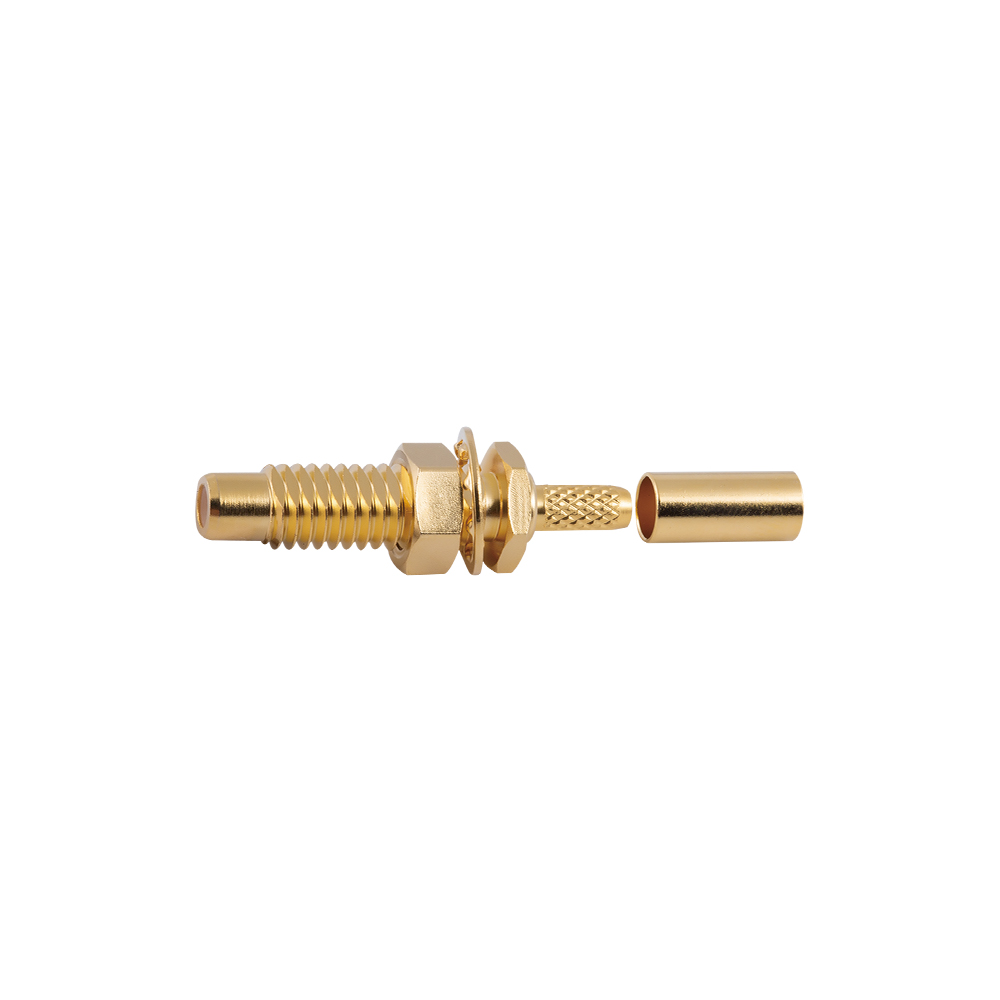

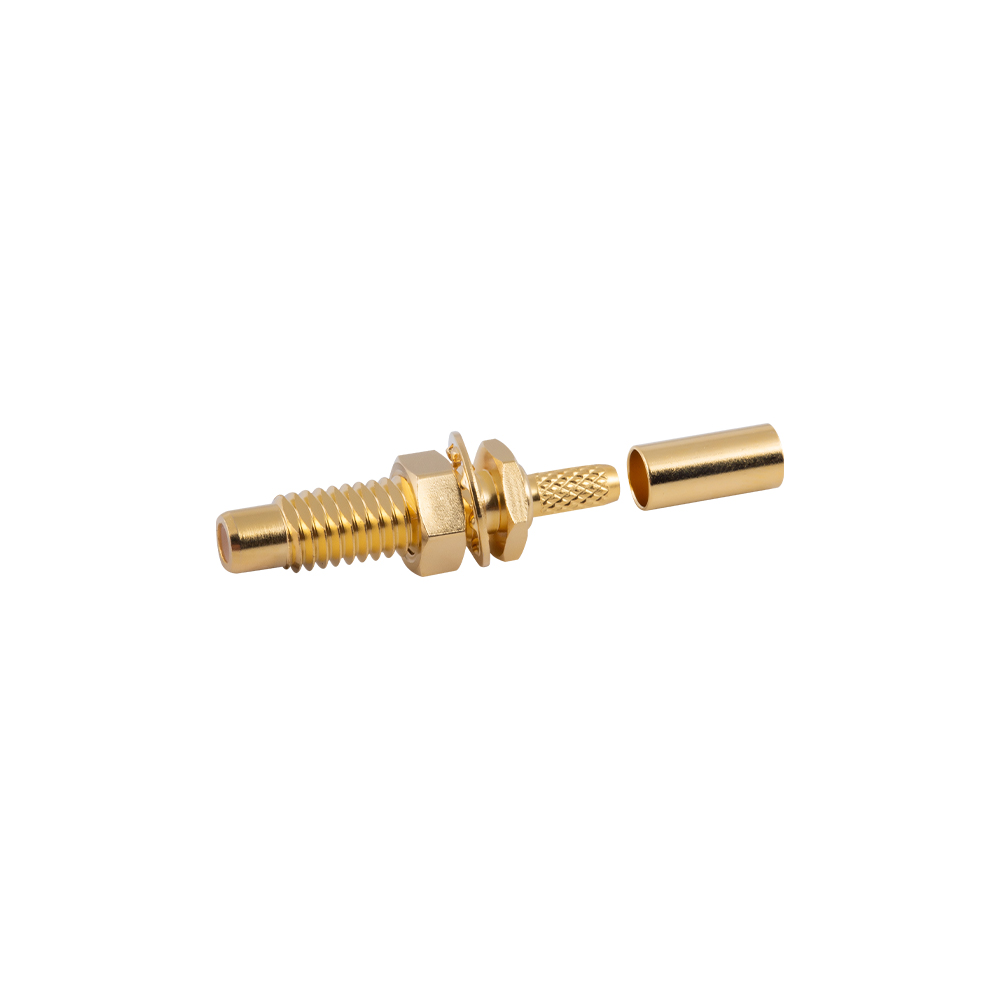

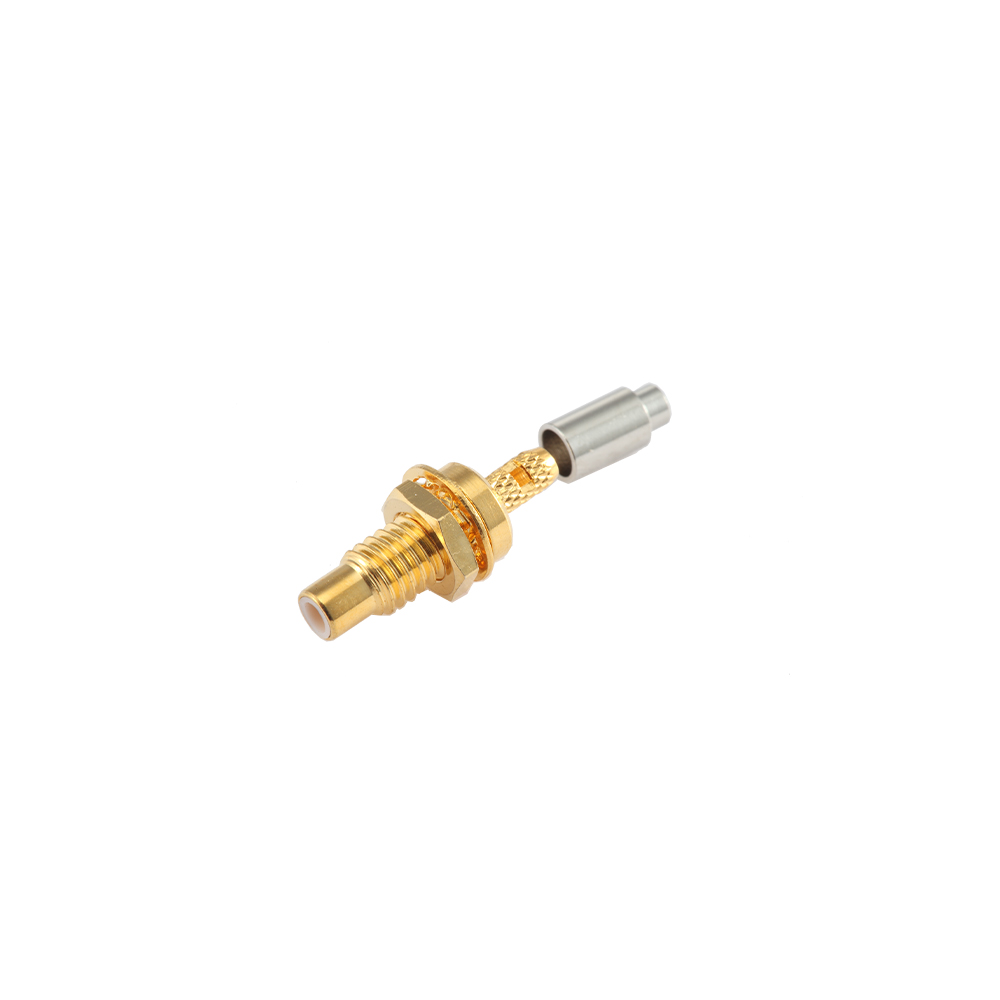

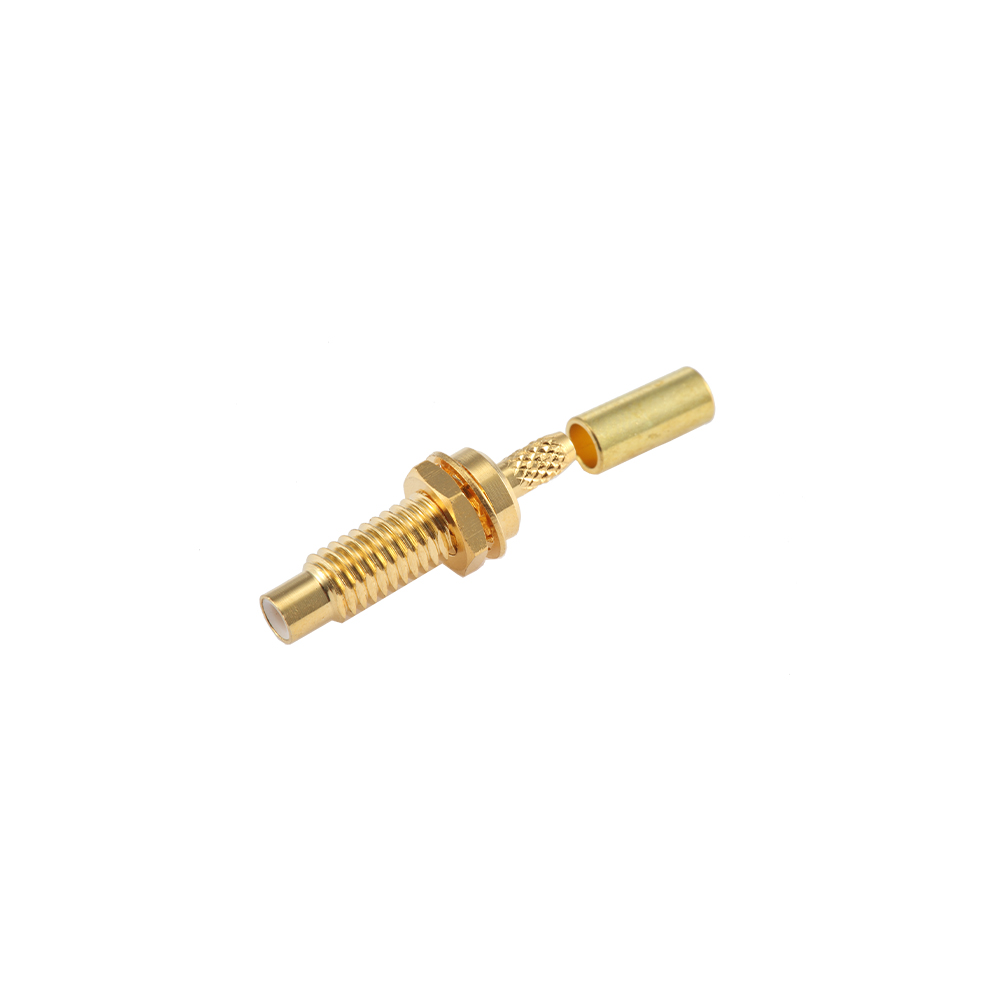

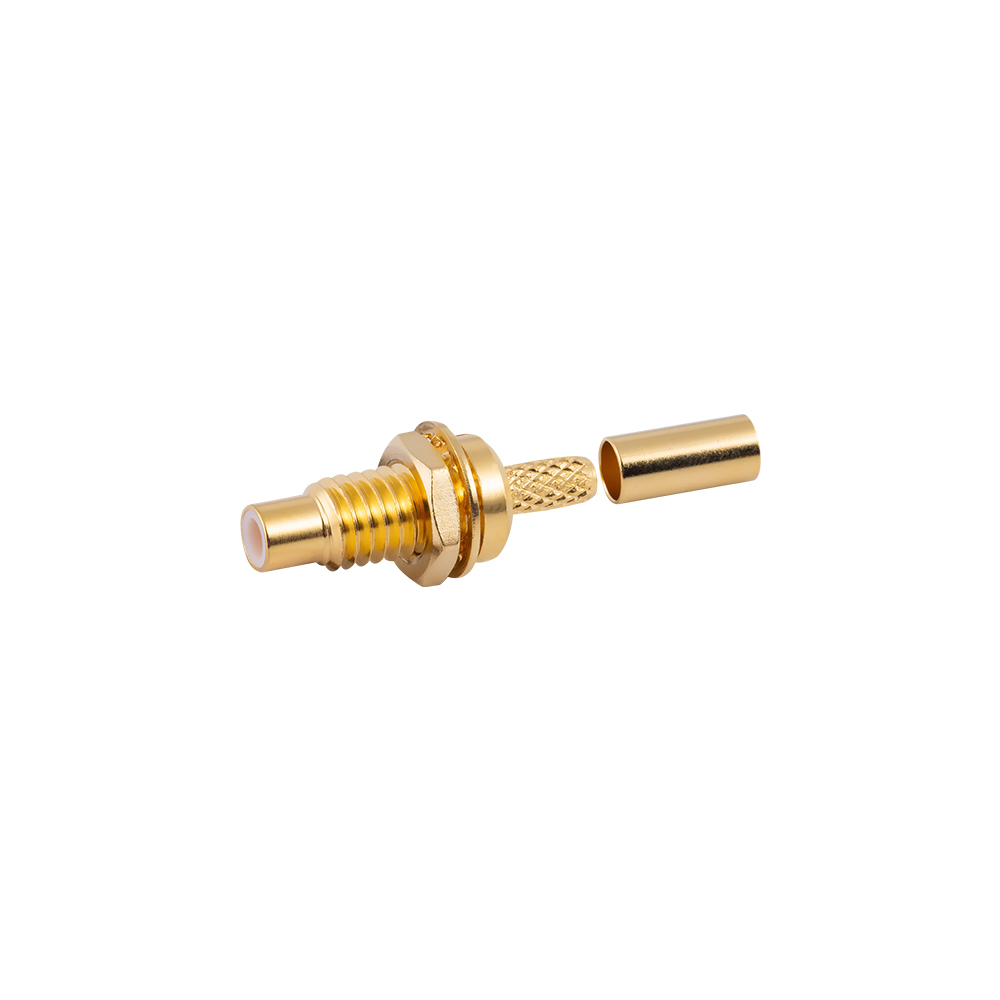

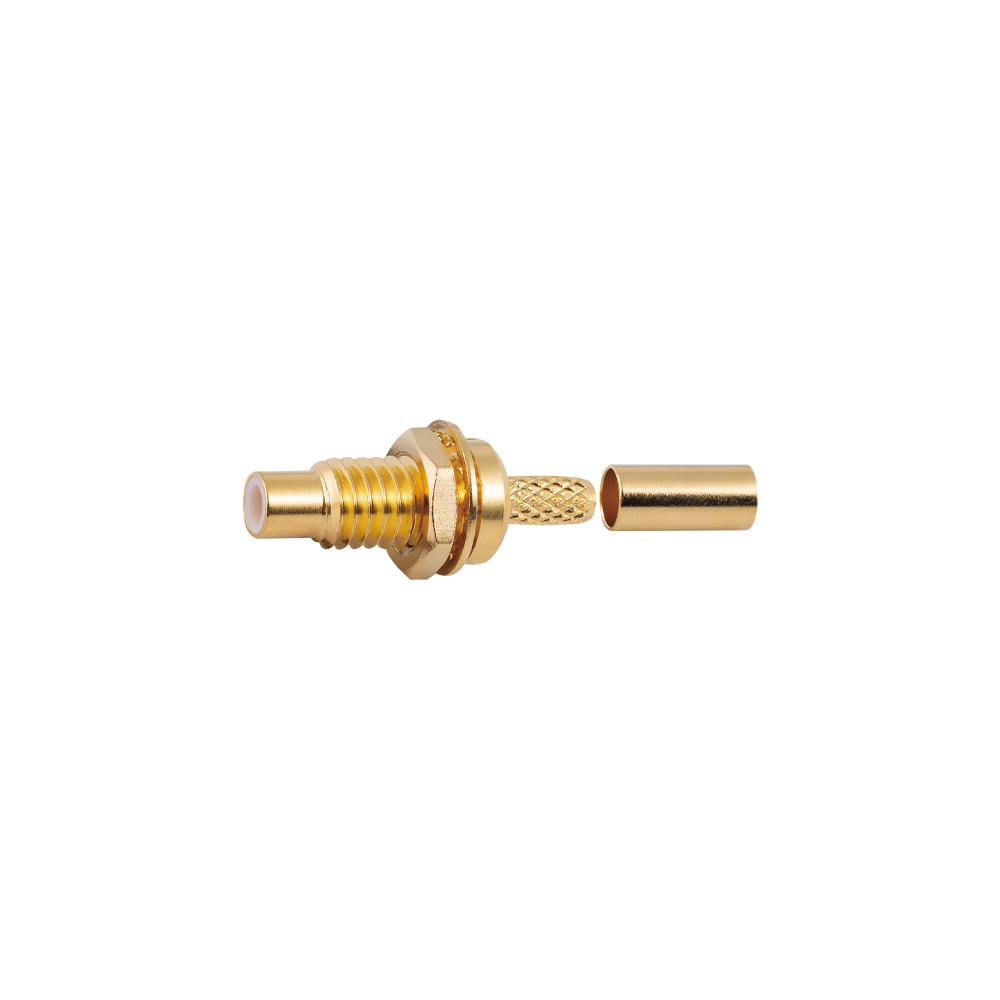

This is an SMC bulkhead receptacle with external threads and a fastening nut. It is mainly used as a chassis panel interface to provide a reliable connection between internal circuits and external antennas or feeder lines.
Product Features:
High mechanical strength: Dual fixation on the panel via a nut allows it to withstand significant axial pulling force and external impact.
Compact structure: Integrates threaded locking functionality within a very small form factor, greatly saving panel space.
Wide temperature adaptability: Maintains excellent sealing and electrical performance in environments ranging from -55°C to +155°C.
Application Advantages:
High protection level: Suitable for installation on sealed enclosures of outdoor base stations or industrial instruments, providing stable signal input/output interfaces.
Flexible installation: Supports front or rear mounting, accommodating different panel thicknesses.
|
Temperature Range |
-55～+155℃(PE Cable -40～+85℃) |
|
Impedance |
50Ω |
|
Frequency Range |
DC～6GHz |
|
Insulation resistance |
≥5000MΩ |
|
Insertion loss |
≤0.24 dB/6GHz |
|
Voltage Standing Wave Ratio (VSWR) |
Straight ≤1.30/3GHz |
|
|
Right angle ≤1.45/3GHz |
|
Durability(mating) |
≥500 cycles |
