EnglishSMC PCB Mount RF Coaxial Connectors
Product Introduction:

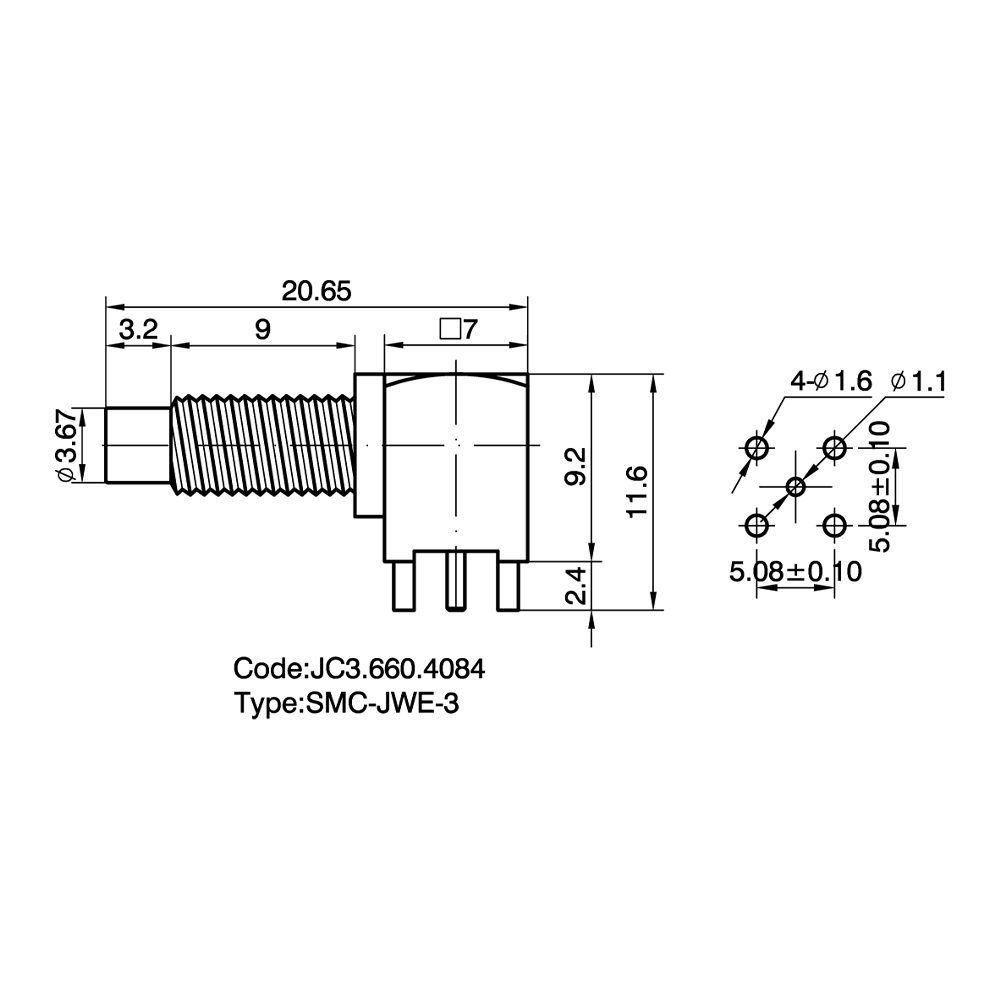

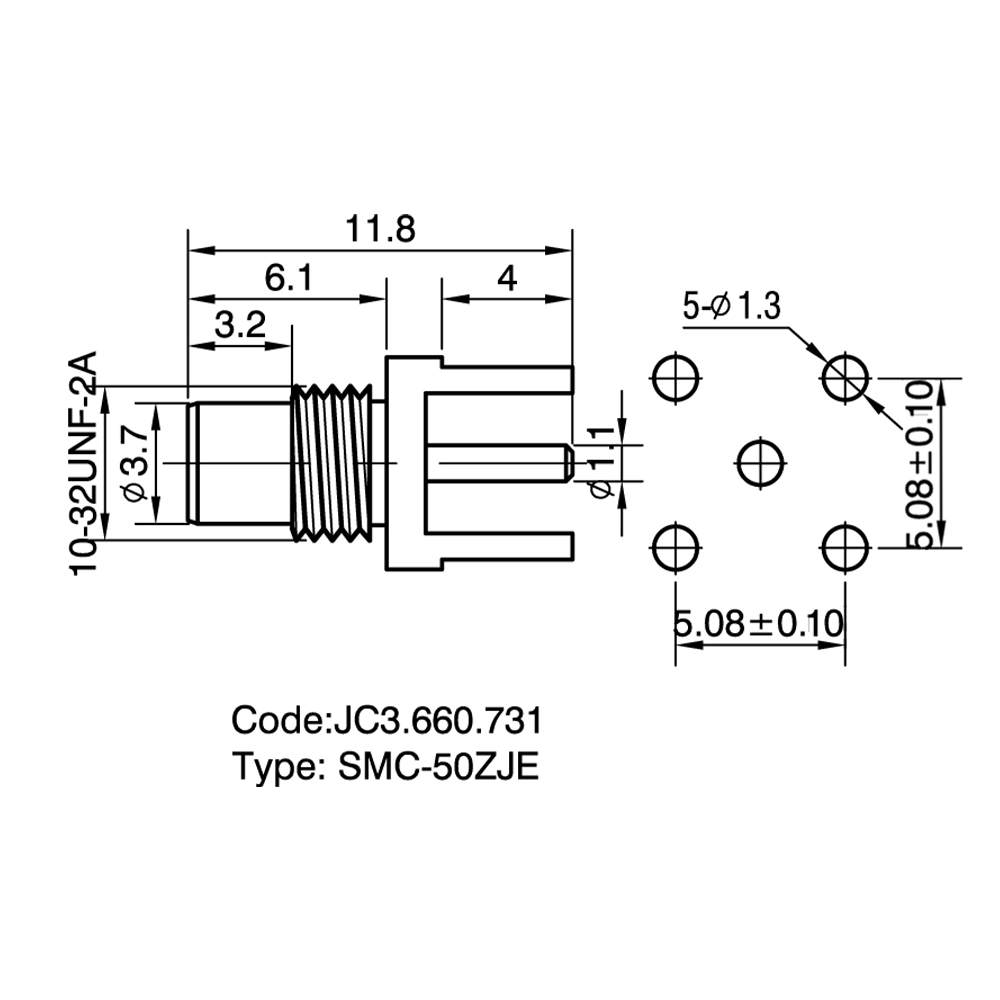

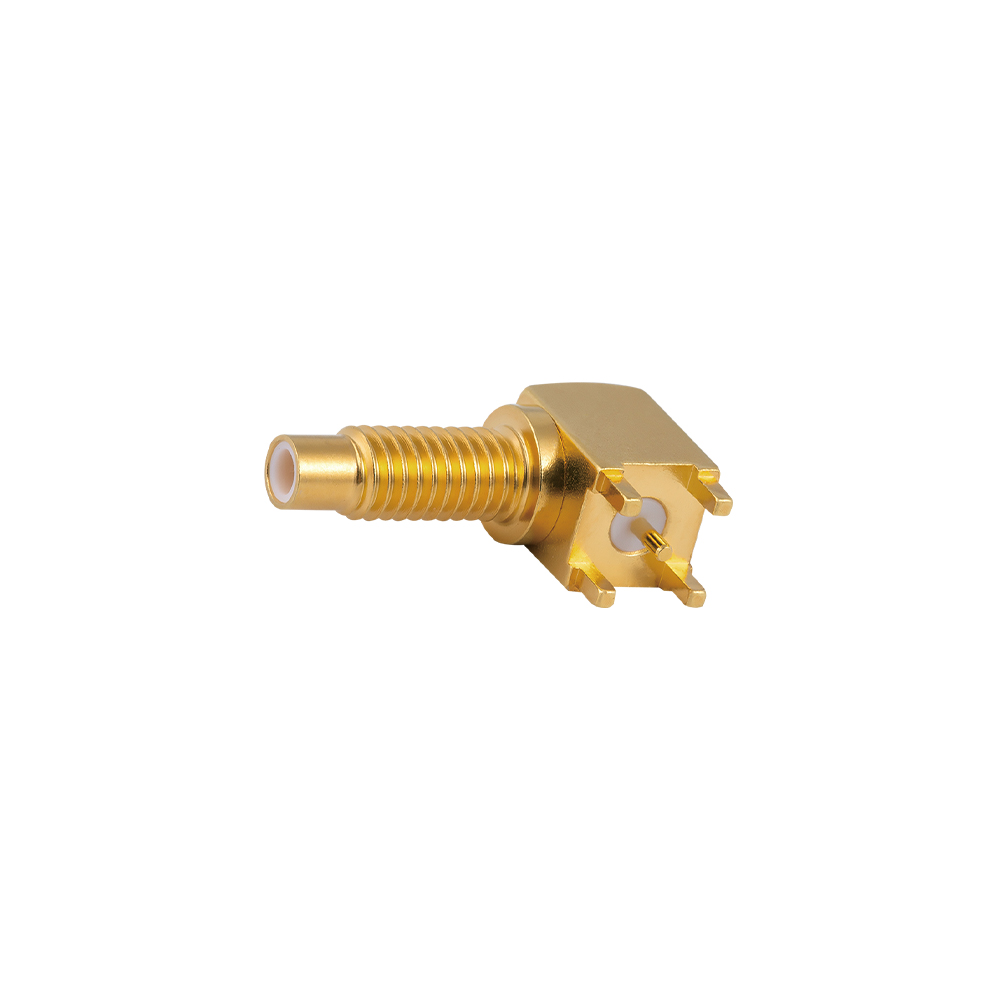

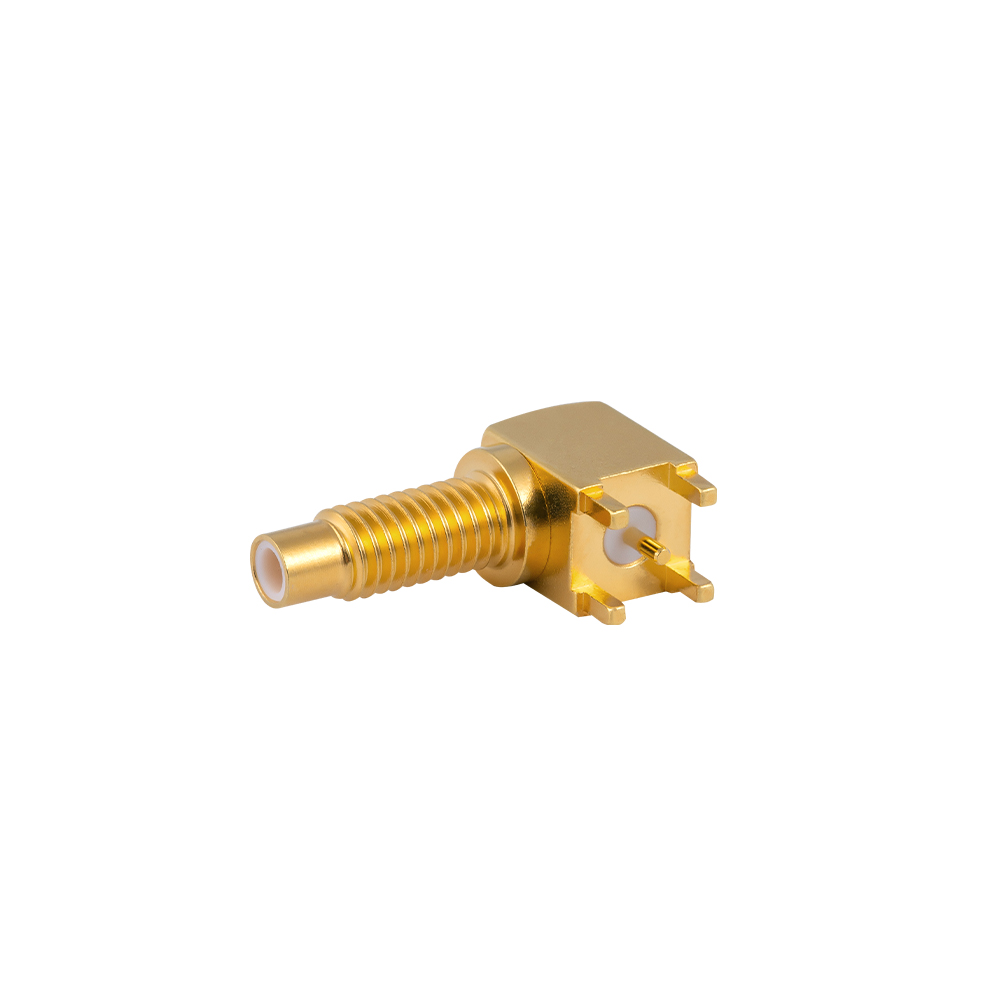

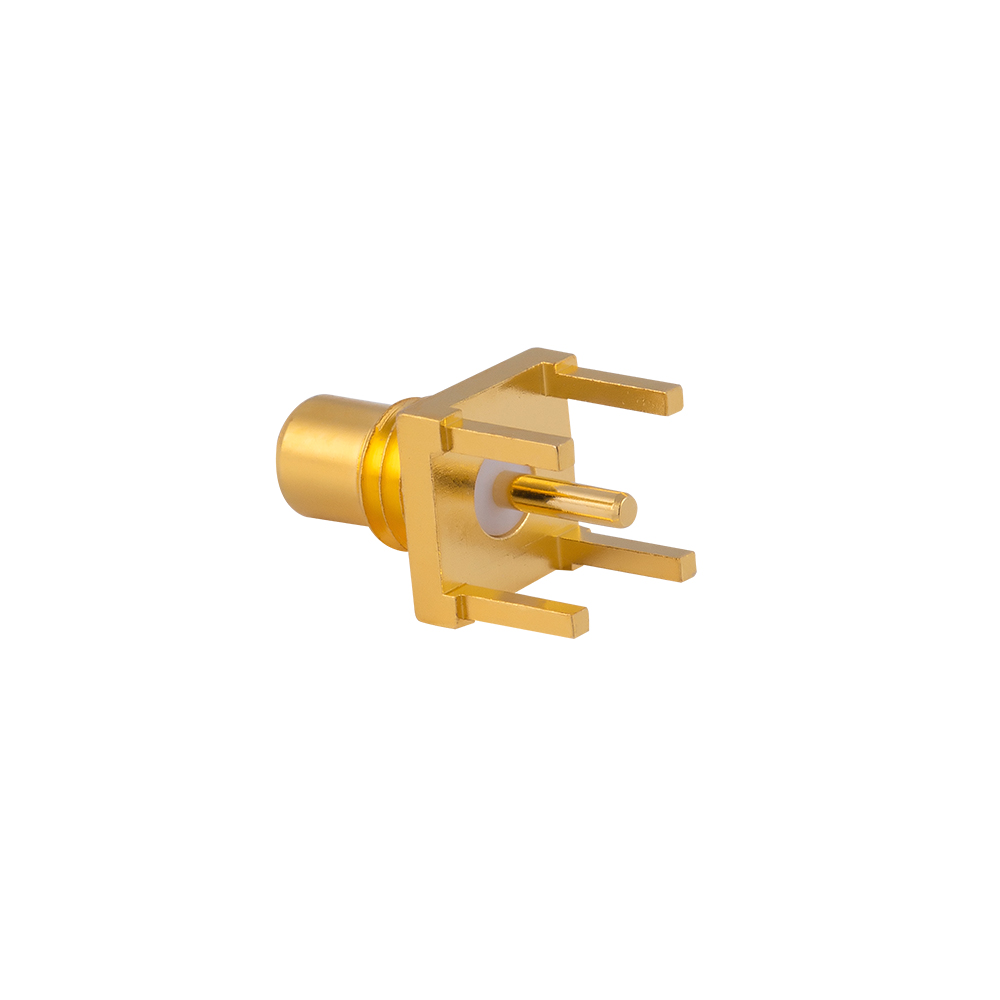

This series includes straight, right-angle, and SMT SMC PCB connectors suitable for automated assembly. It provides a standard threaded external interface for high-frequency signals on PCBs.
Product Features:
High-density routing: Smaller in size compared to SMA connectors, enabling higher port density on the PCB.
Reflow-resistant design: Uses high-temperature PTFE (polytetrafluoroethylene) insulator to ensure dimensional stability during automated soldering processes.
Excellent impedance matching: Optimized transition between pins and pads achieves a Voltage Standing Wave Ratio (VSWR) as low as 1.30 at 3 GHz.
Application Advantages:
Long-term connection reliability: Compared to SMB interfaces, SMC PCB connectors experience less stress on solder pads under lateral cable forces, resulting in longer service life.
Wide industry applicability: Widely used in measurement and control instruments, wireless telemetry, and microwave subsystem modules.
|
Temperature Range |
-55～+155℃(PE Cable -40～+85℃) |
|
Impedance |
50Ω |
|
Frequency Range |
DC～6GHz |
|
Insulation resistance |
≥5000MΩ |
|
Insertion loss |
≤0.24 dB/6GHz |
|
Voltage Standing Wave Ratio (VSWR) |
Straight ≤1.30/3GHz |
|
|
Right angle ≤1.45/3GHz |
|
Durability(mating) |
≥500 cycles |
