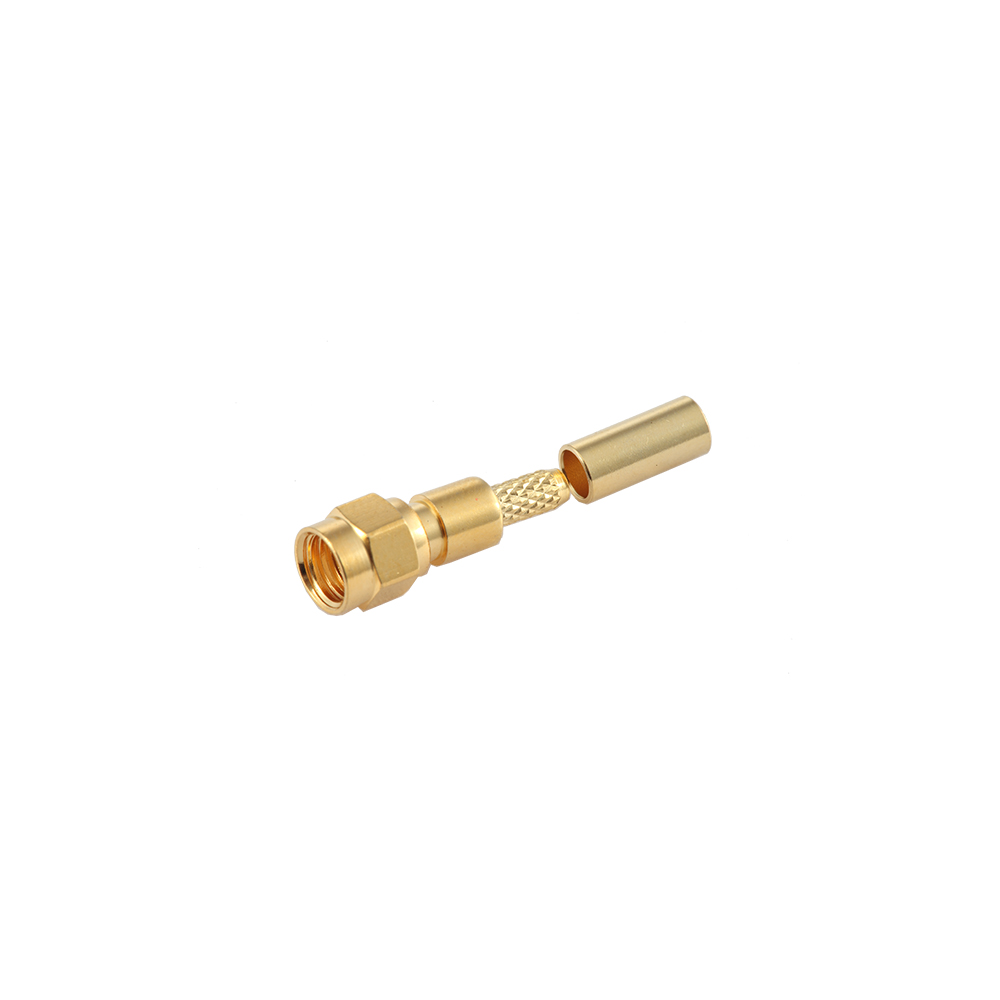

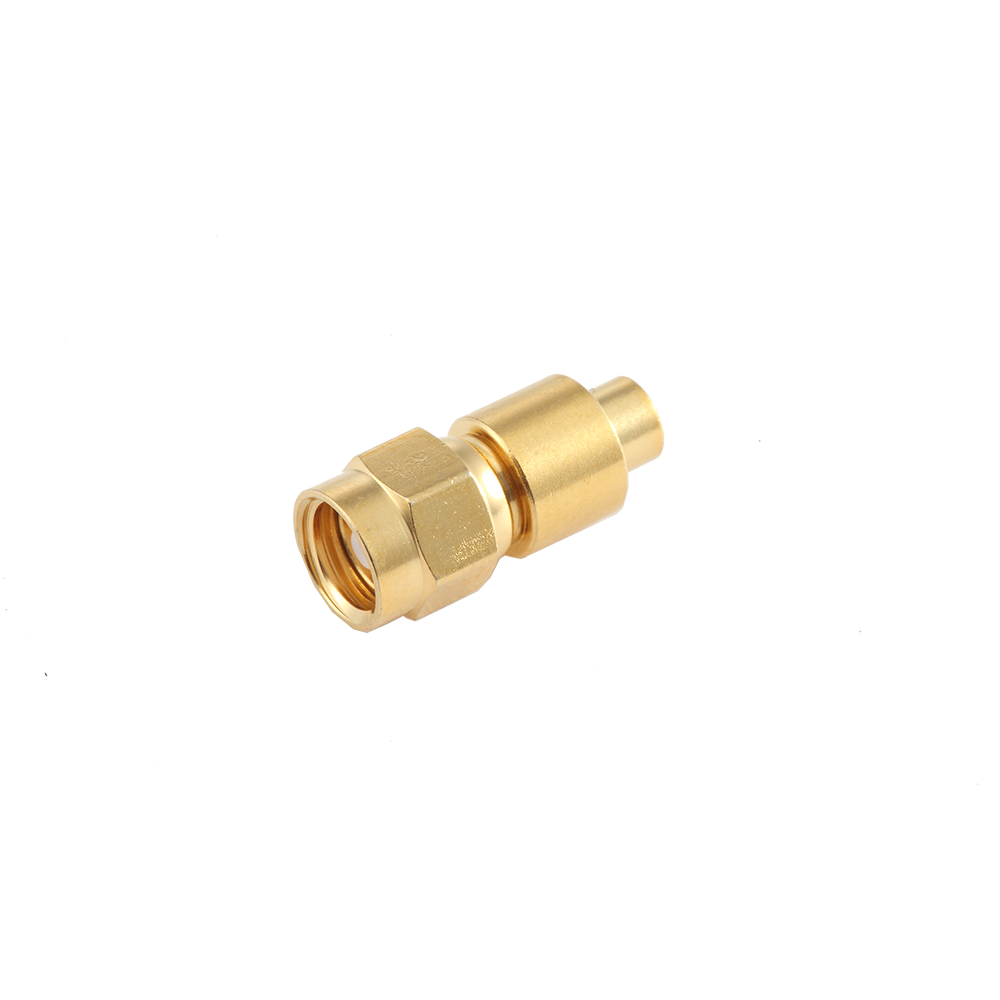

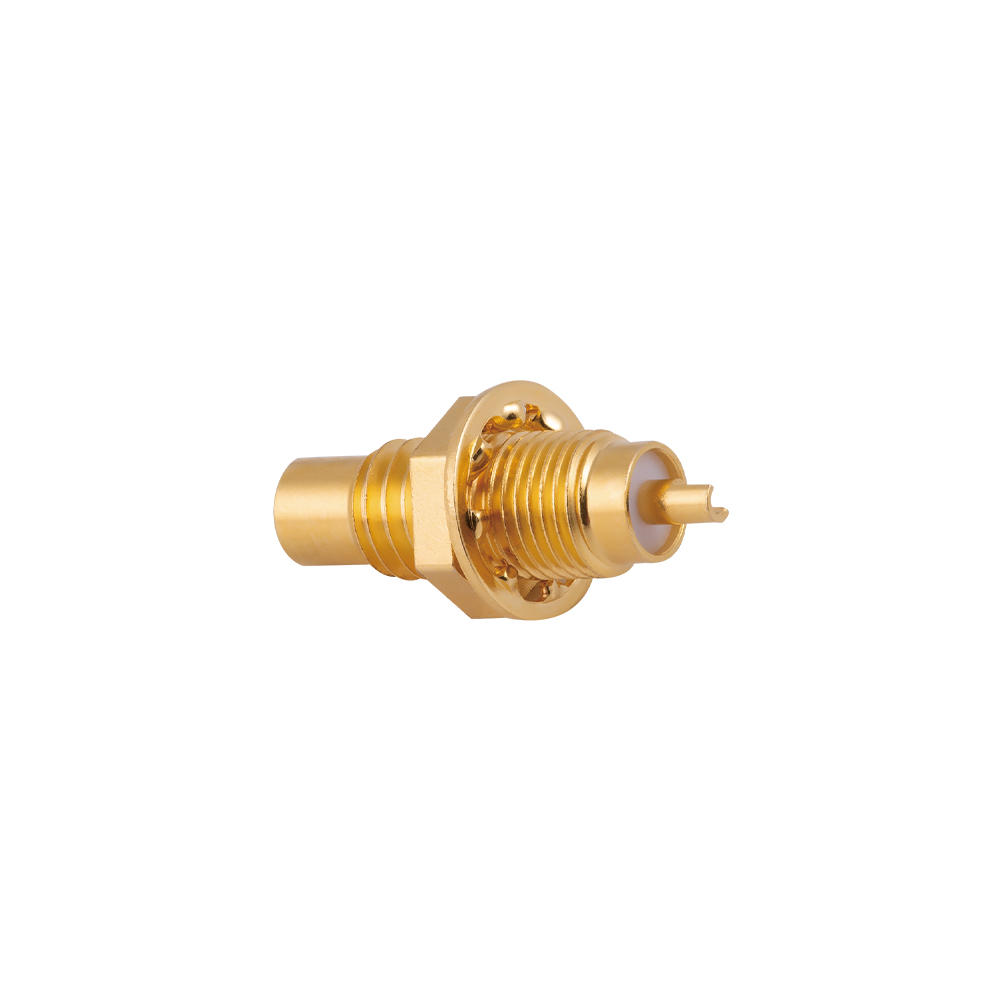

SMC RF Coaxial Connectors

TYPE SMC is one kind of miniature RF coaxial connectors which adds the thread connection form on the basis of SMB. Characteristic impedance is 50Ώ.The Characteristic of connectors is in small volume, light weight, reliable Connection, great vibration performance. They are used in connecting RF coaxial cable in Radio equipments and instruments.

Temperature  Range

-55～+155℃(PE Cable   -40～+85℃)

Impedance

50Ω

Frequency Range

DC～6GHz

Insulation resistance

≥5000MΩ

 Insertion loss

 ≤0.24 dB/6GHz

Voltage Standing Wave Ratio (VSWR)

 Straight ≤1.30/3GHz

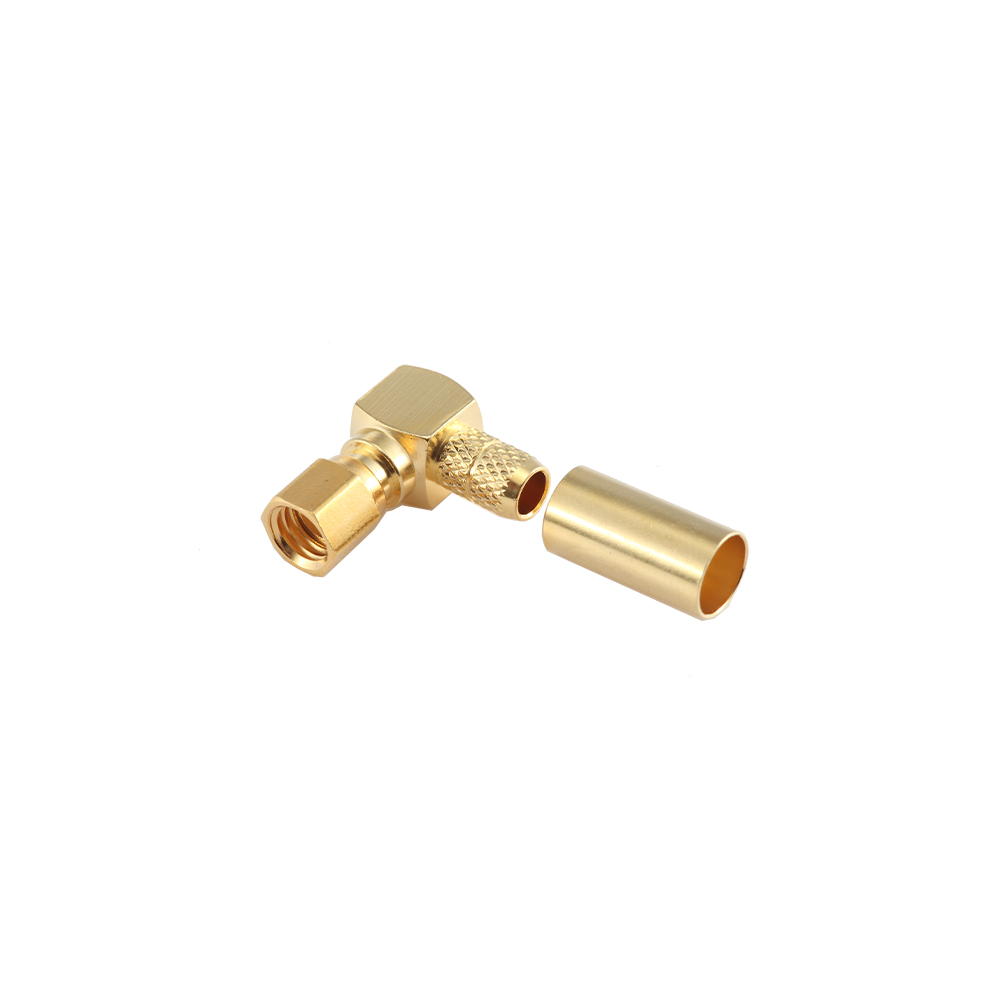

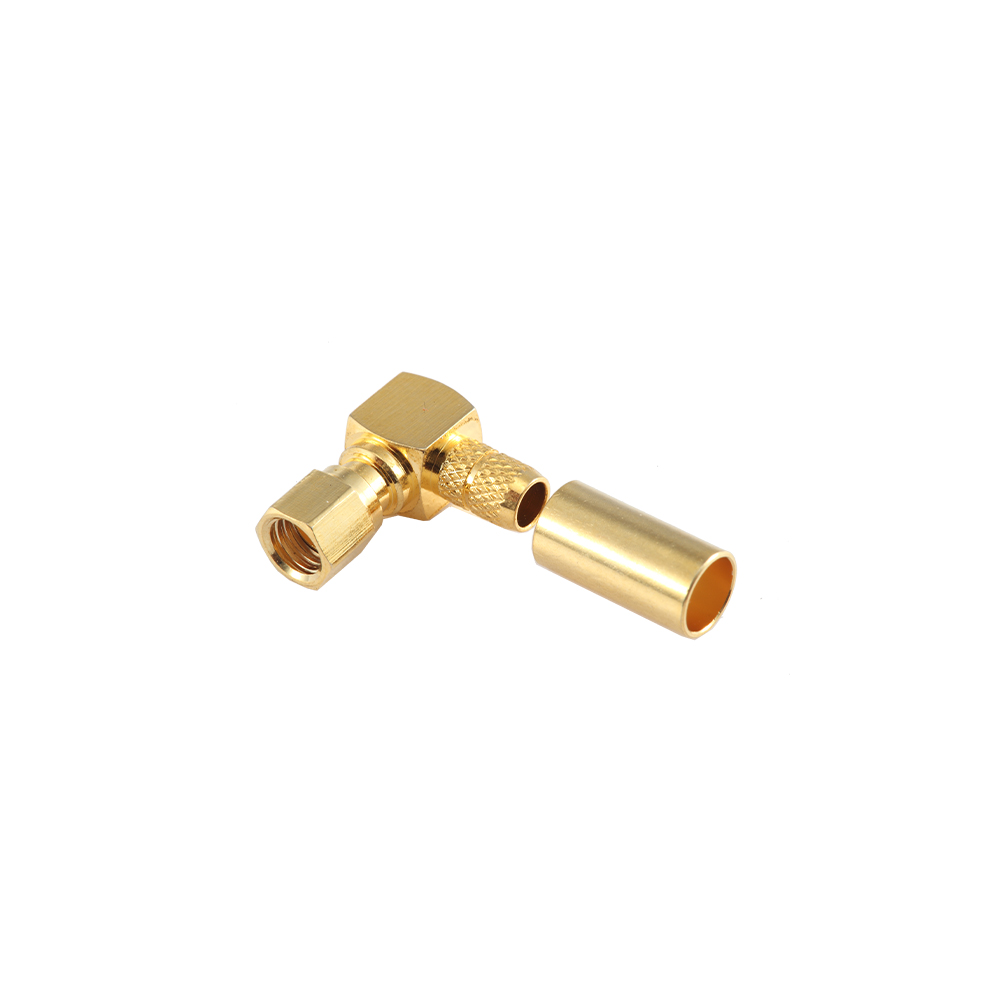

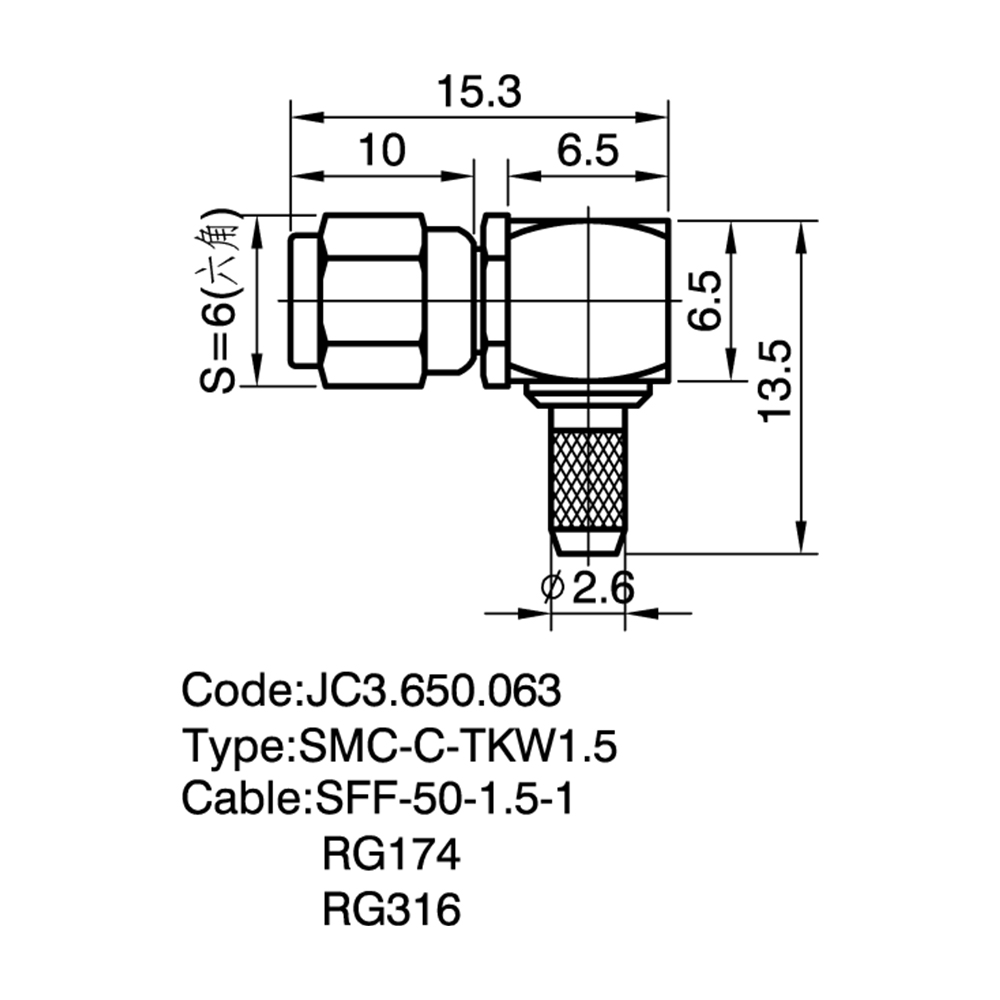

Right  angle ≤1.45/3GHz

 Durability(mating)

≥500cycles
