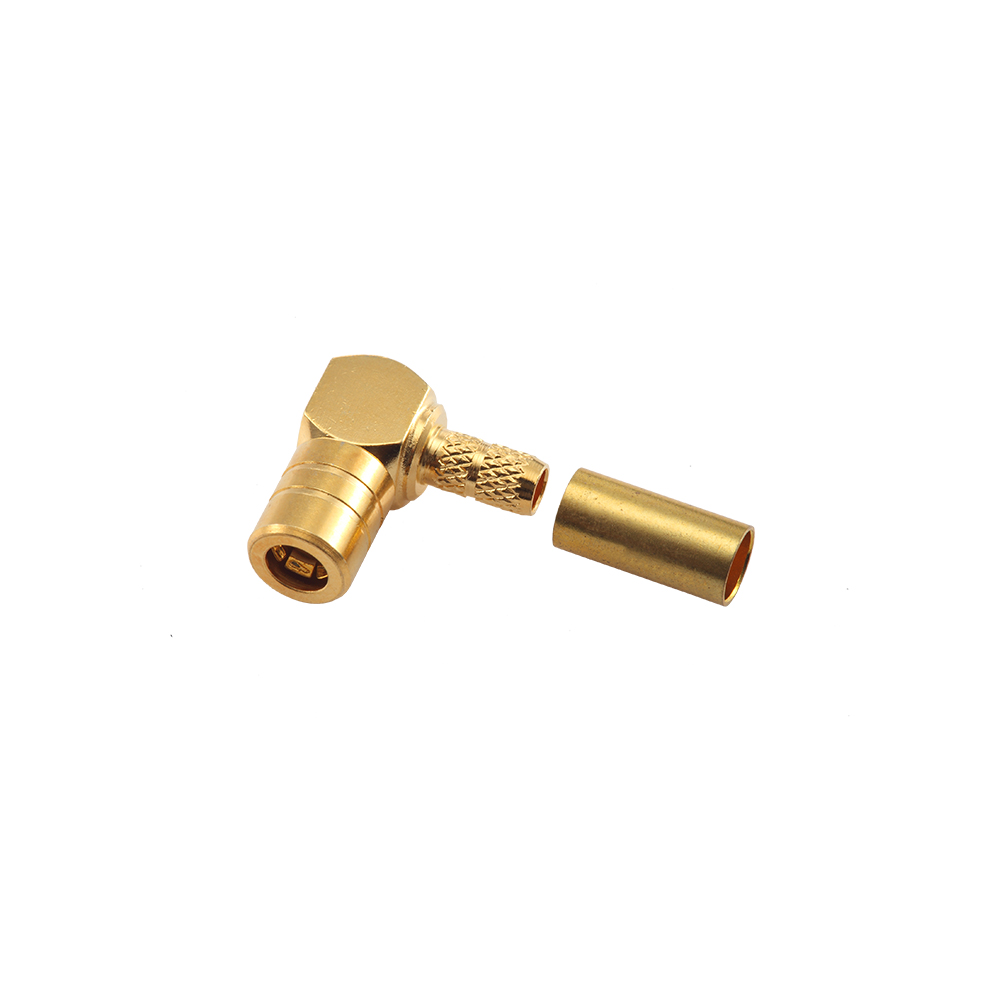

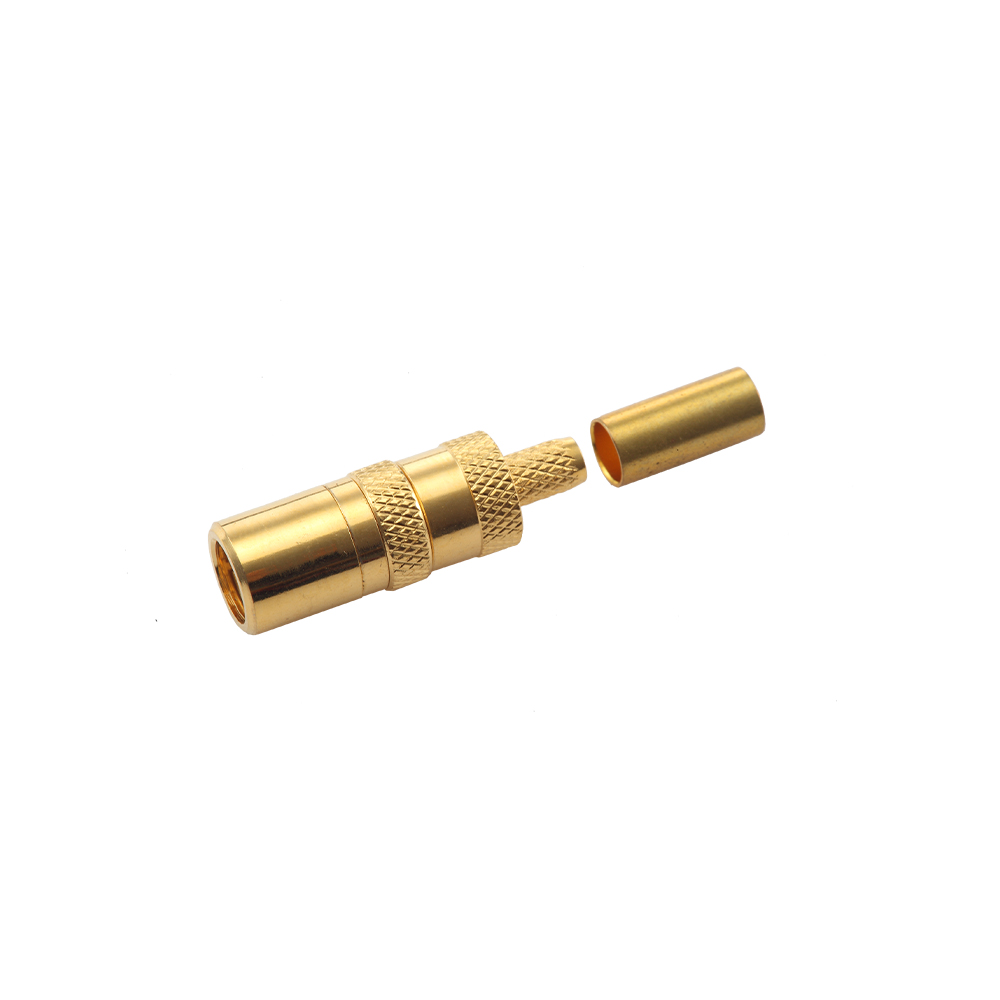

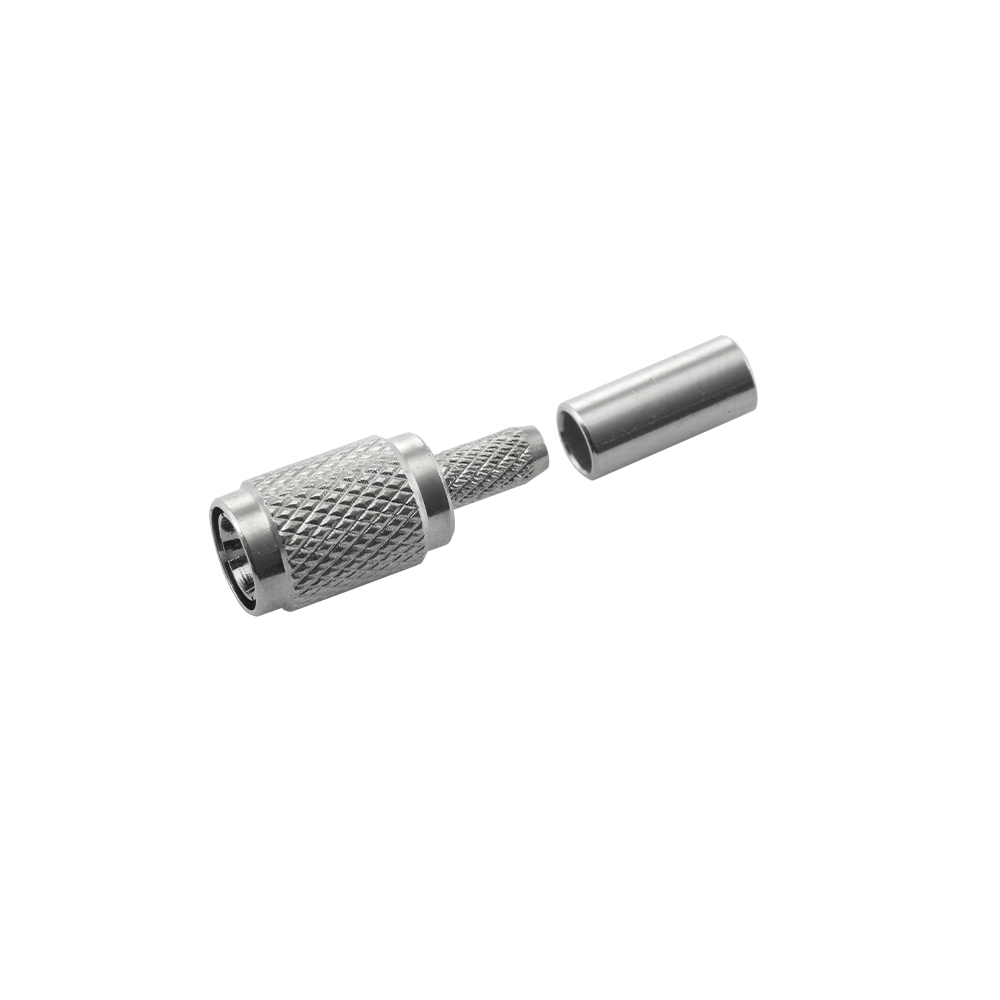

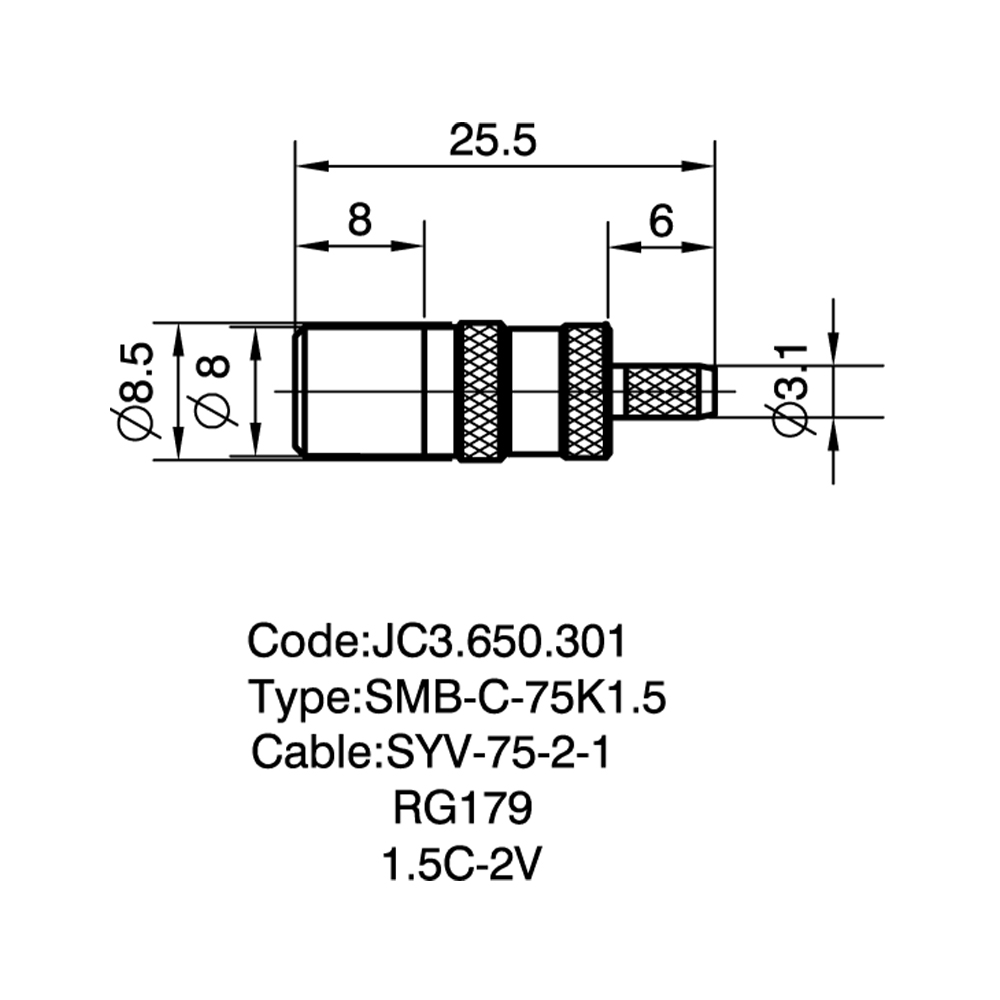

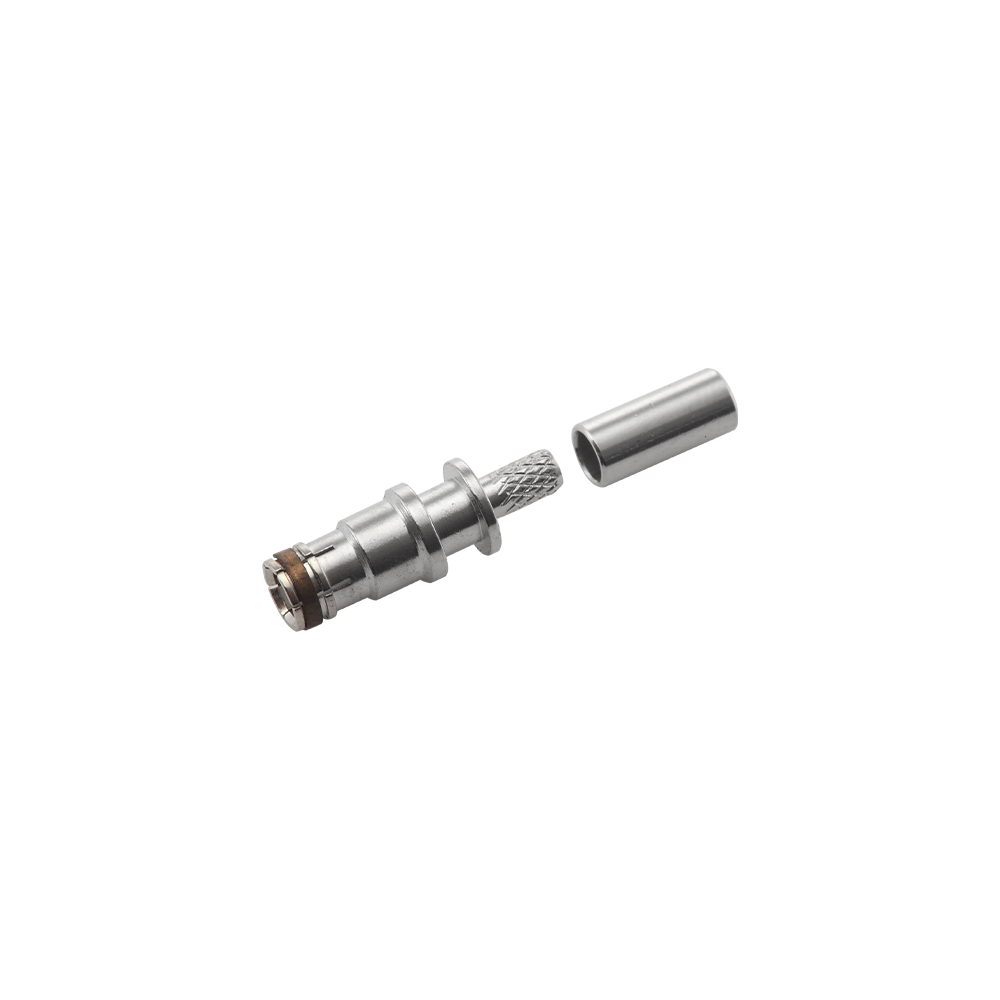

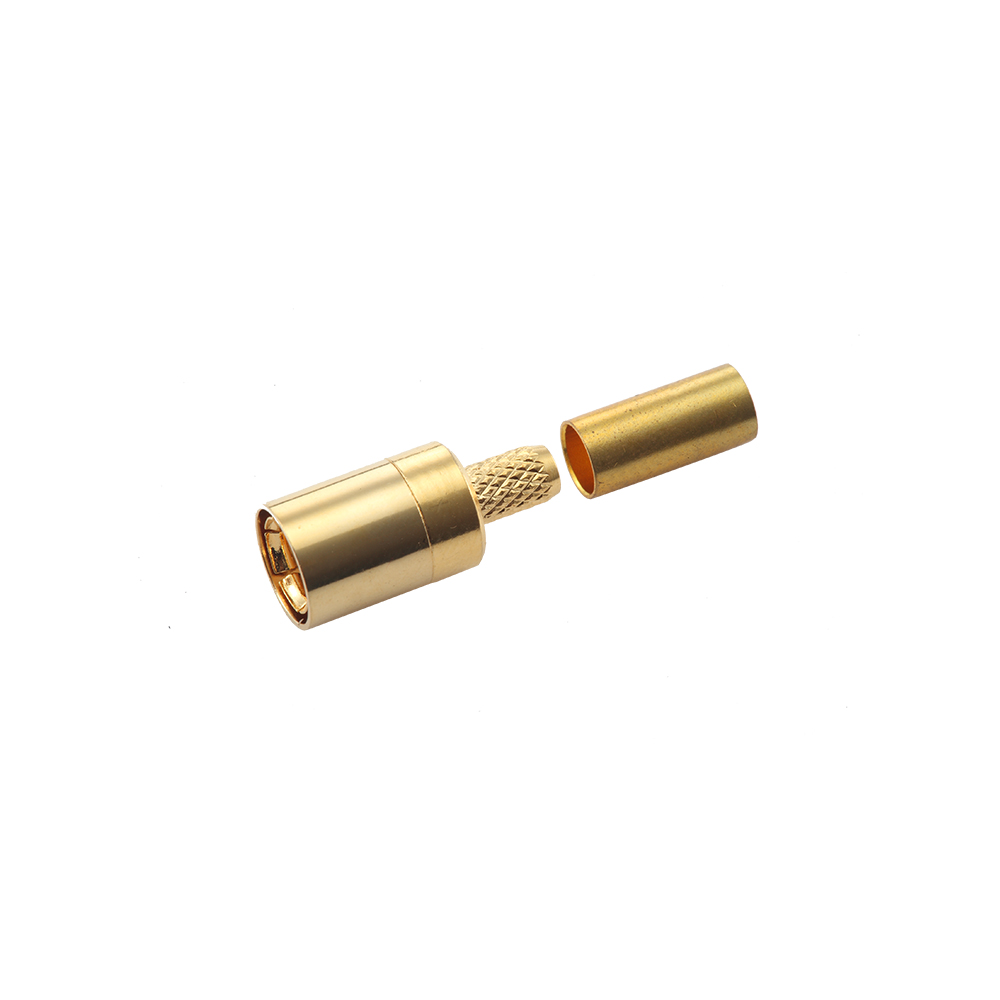

EnglishSMB RF Coaxial Connectors for Flexible Cable
Product Introduction:
This is the most commonly used model in the SMB series, widely compatible with flexible cables such as RG174, RG178, RG316, and LMR100. It is a standard choice for wireless communication and instrumentation interconnection.
Product Features:
Fast assembly: Adopts a crimp-type structure, which, when used with professional crimping tools, enables efficient production line assembly.
Lightweight structure: Extremely low weight and compact size, making it ideal for handheld test instruments and mobile radio equipment.
Low loss: Insertion loss is only 0.30 dB at 1.5 GHz.
Application Advantages:
Convenient routing: When used with flexible cables, it can easily navigate complex internal chassis structures.
High cost performance: Suitable for large-volume procurement and general civilian RF system wiring requirements.
|
Temperature Range |
-55～+155℃(PE Cable -40～+85℃) |
|
Impedance |
50Ω,75Ω |
|
Frequency Range |
DC～4GHz(50Ω);0～2GHz(75Ω) |
|
Insulation resistance |
≥1000MΩ |
|
Insertion loss |
0.30 dB/1.5GHz |
|
Voltage Standing Wave Ratio (VSWR) |
Straight ≤1.35/3GHz |
|
|

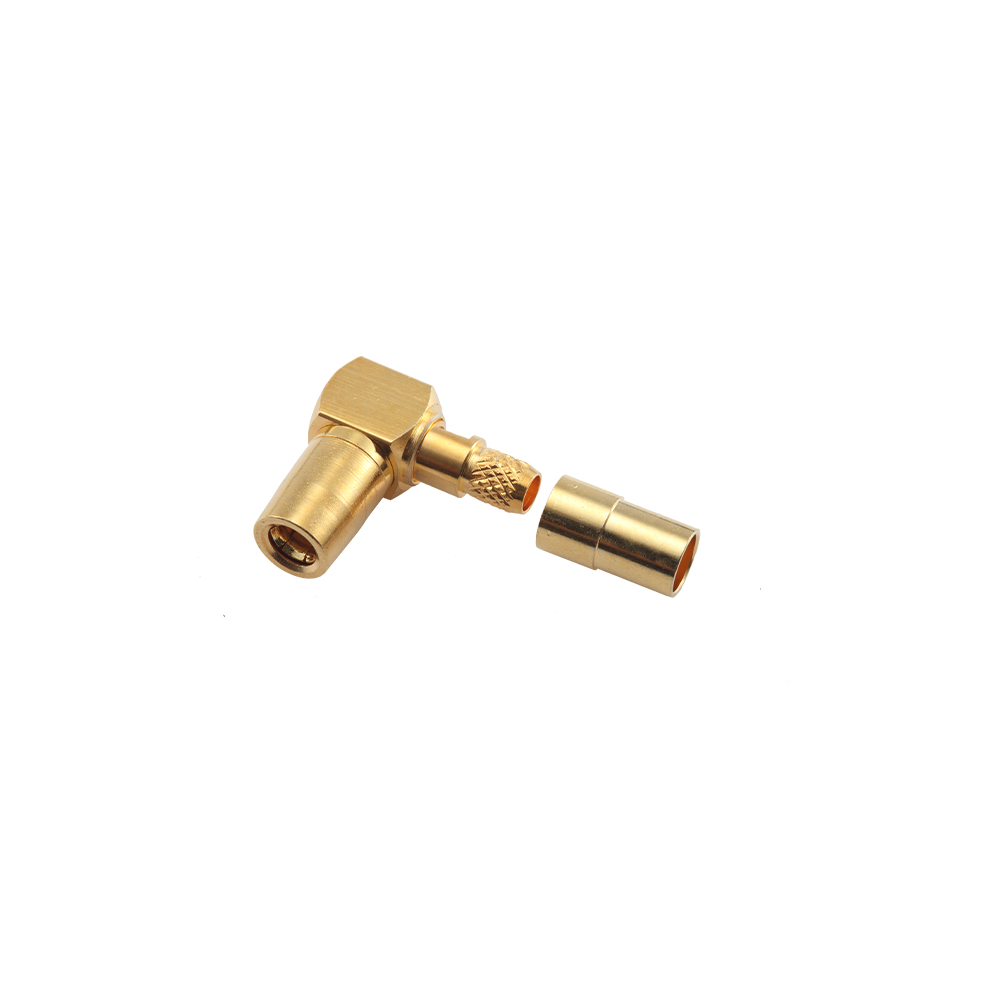

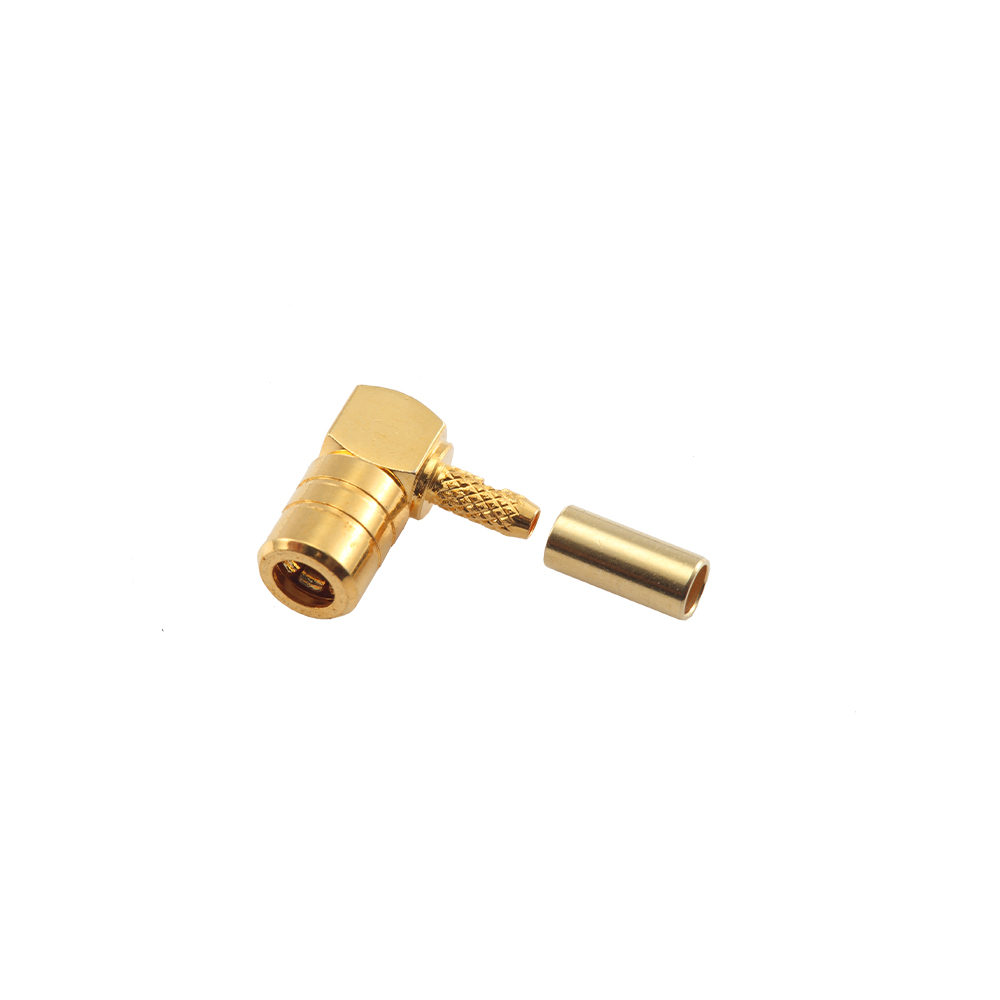

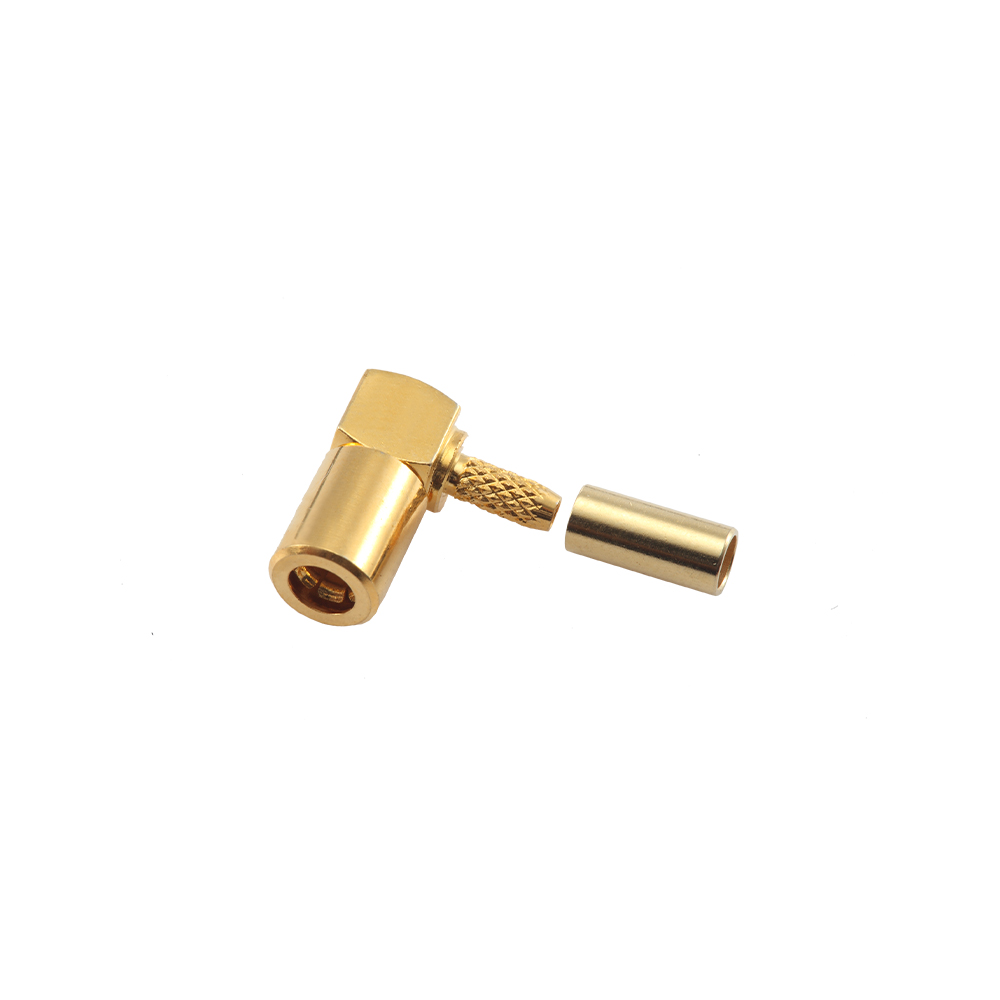

Right angle ≤1.45/3GHz |
|
Durability(mating) |
≥500 cycles |
