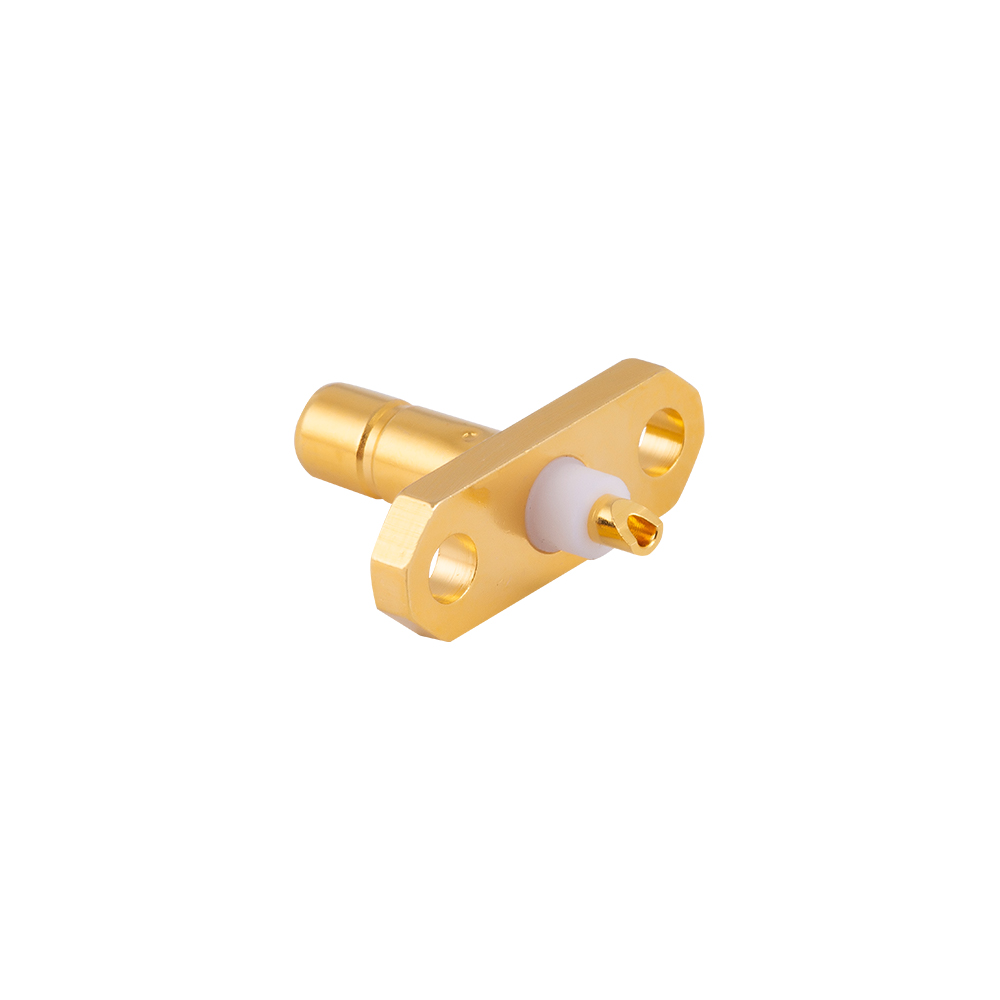

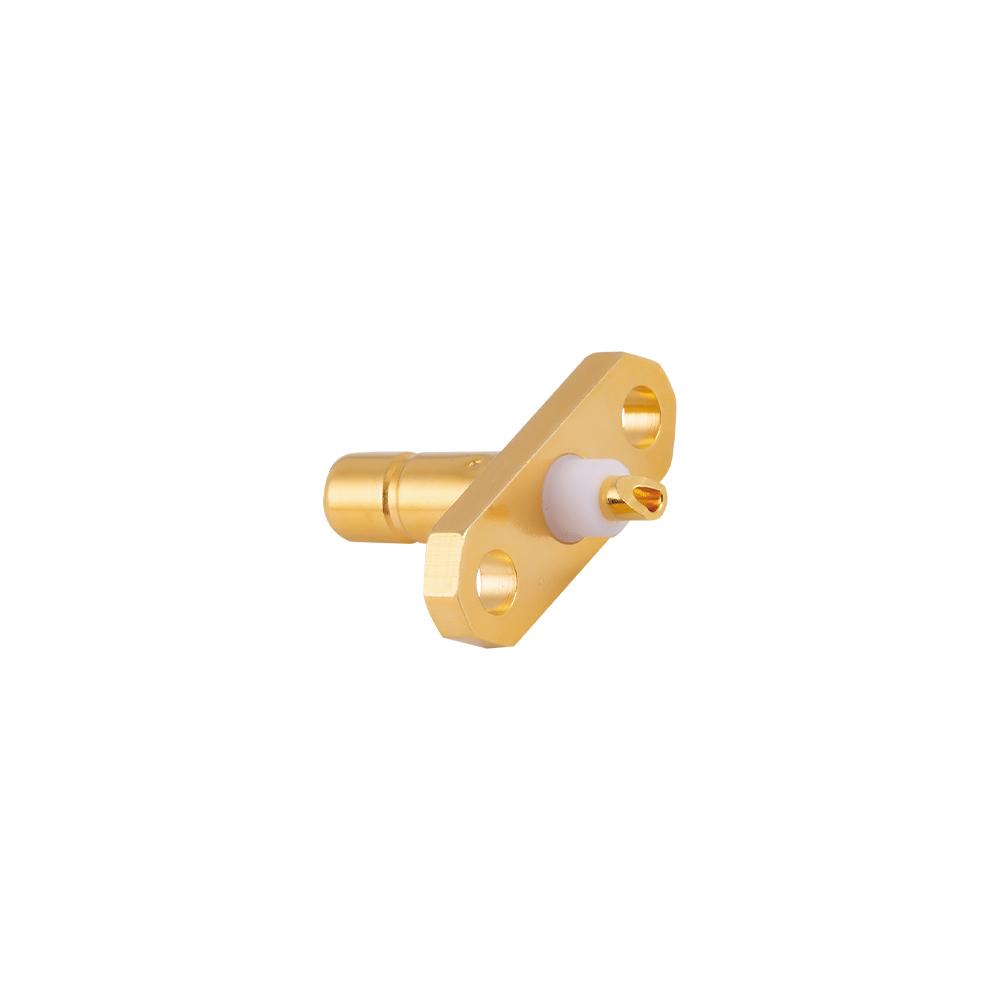

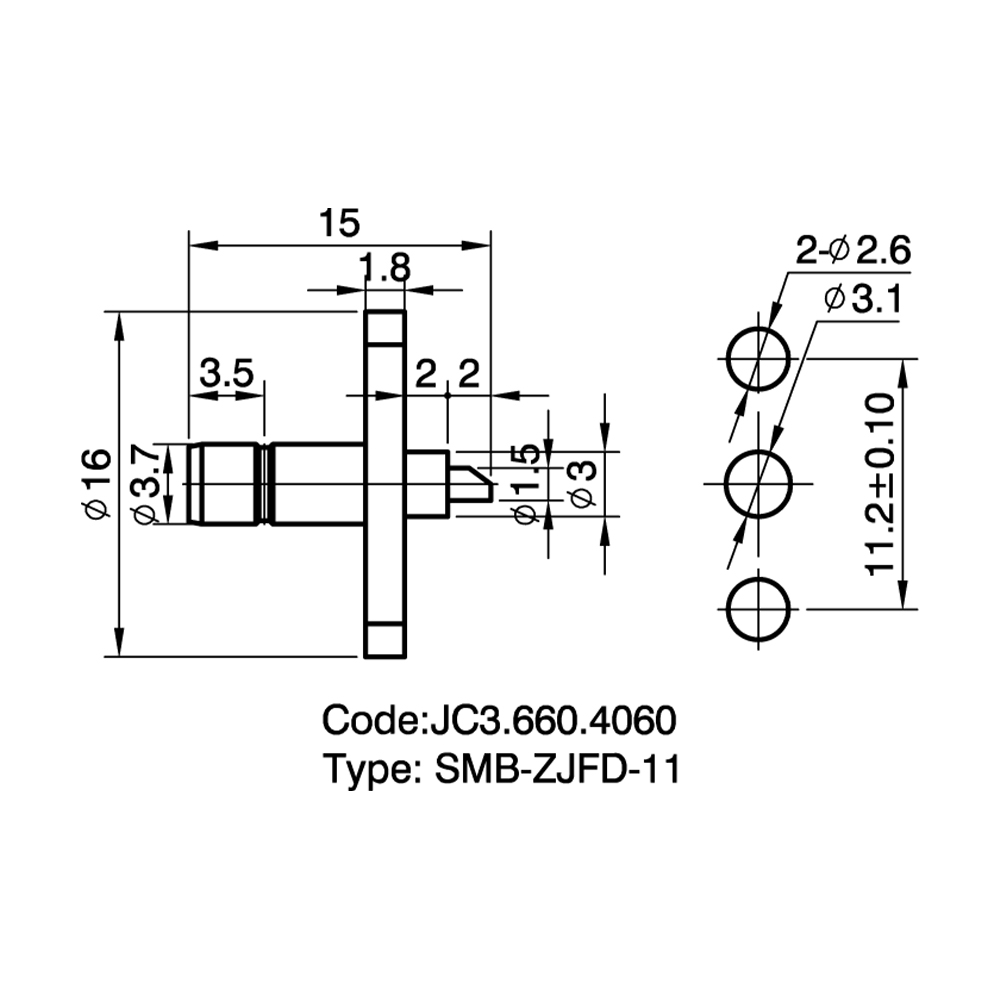

SMB Flange Mount Micro-strip RF Connectors

Product Introduction:
This product is typically equipped with a 2-hole or 4-hole flange and is mainly used at the edge of RF modules to achieve a seamless transition between microstrip circuits and external test cables.

Product Features:
Panel mounting: The flange structure allows secure installation on shielding enclosures or chassis panels, effectively distributing mating and unmating stress.
High-frequency performance: Designed with impedance compensation for 50Ω and 75Ω systems, reducing reflection in the microstrip transition area.
Premium materials: Full gold plating provides excellent conductivity and strong resistance to oxidation.

Application Advantages:
Easy maintenance: As an external chassis interface, it allows users to quickly replace external jumper cables.
Space saving: Mounted at the board edge via the flange, reducing internal PCB routing length and space usage.

Temperature  Range

-55～+155℃(PE Cable   -40～+85℃)

Impedance

50Ω,75Ω

Frequency Range

 DC～4GHz(50Ω);0～2GHz(75Ω)

Insulation resistance

≥1000MΩ

Insertion loss

 0.30  dB/1.5GHz

Voltage Standing Wave Ratio (VSWR)

Straight ≤1.35/3GHz



Right  angle ≤1.45/3GHz

Durability(mating)

≥500 cycles
