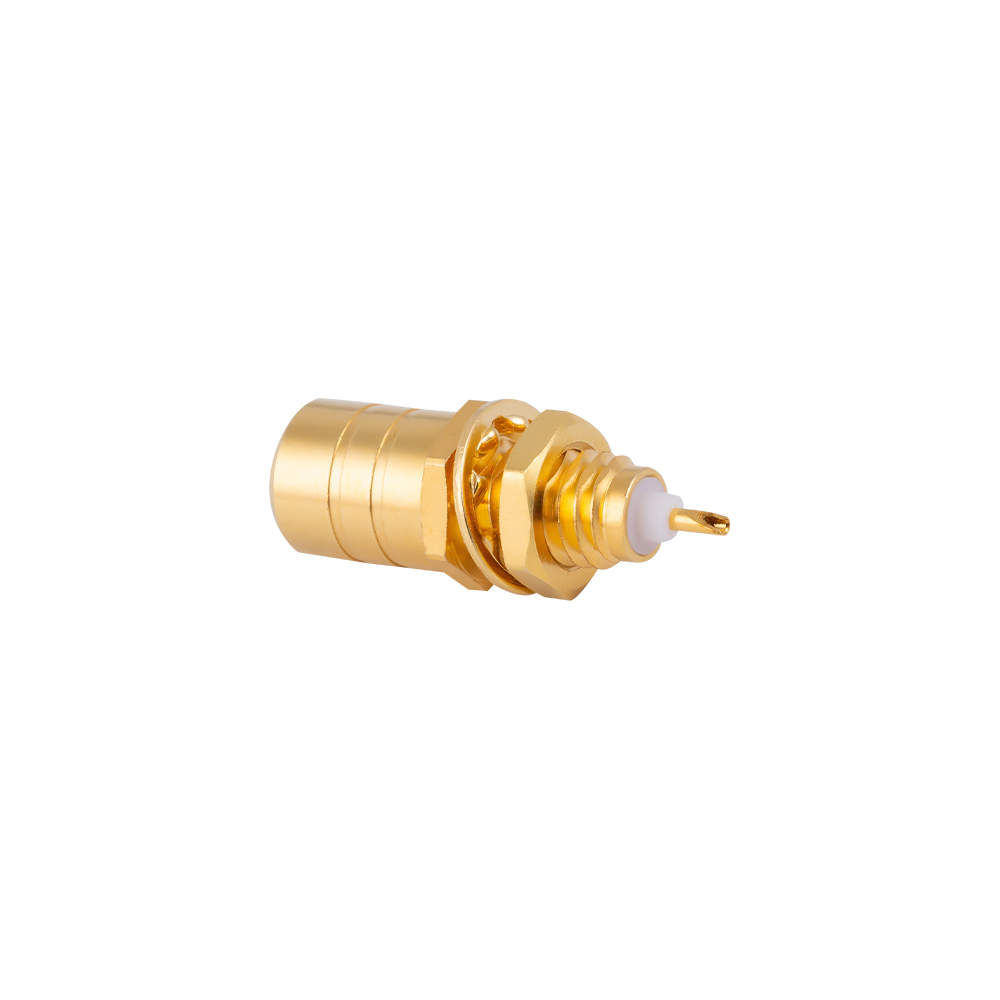

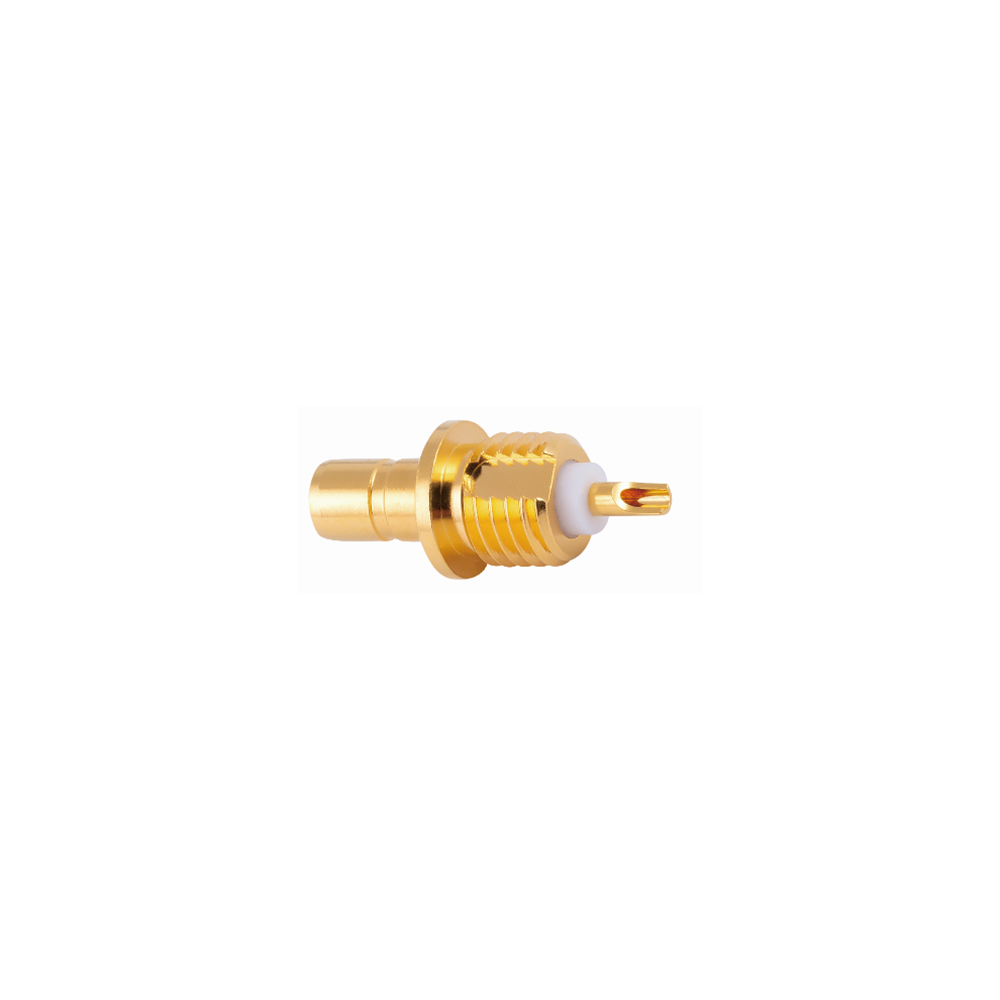

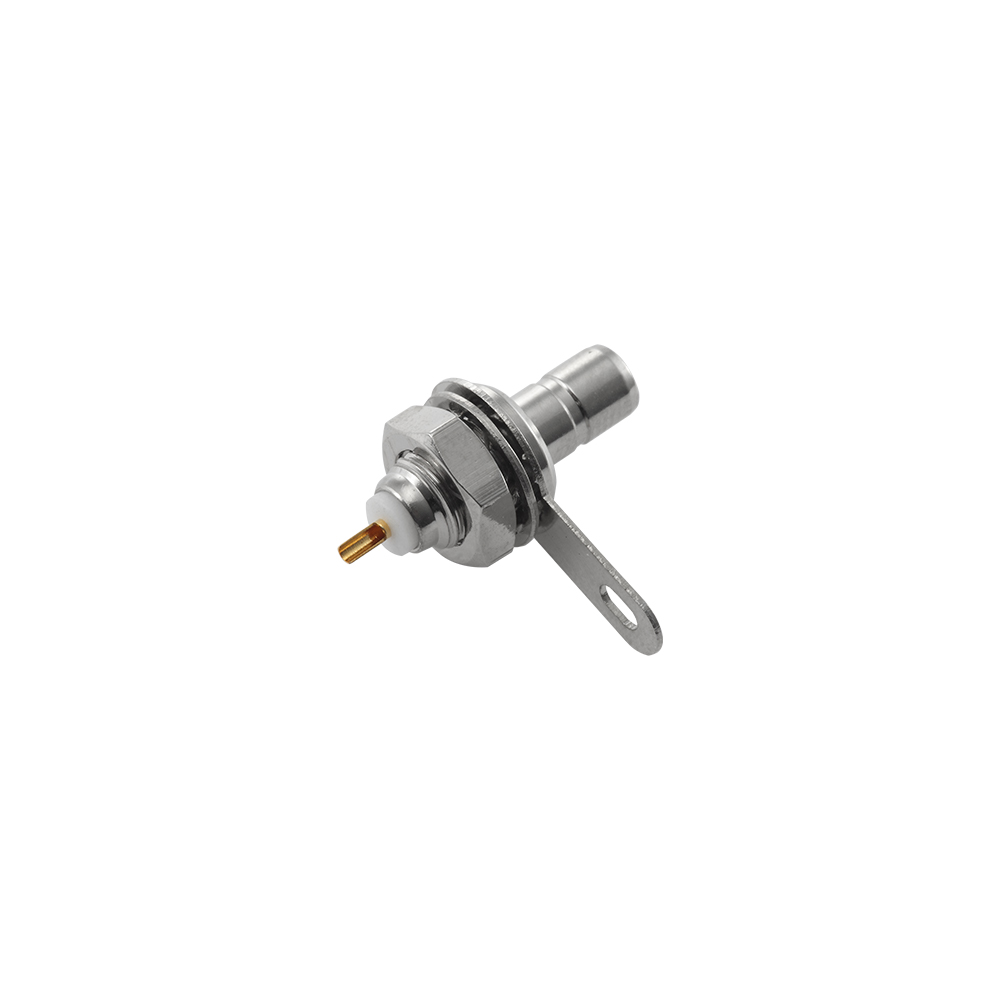

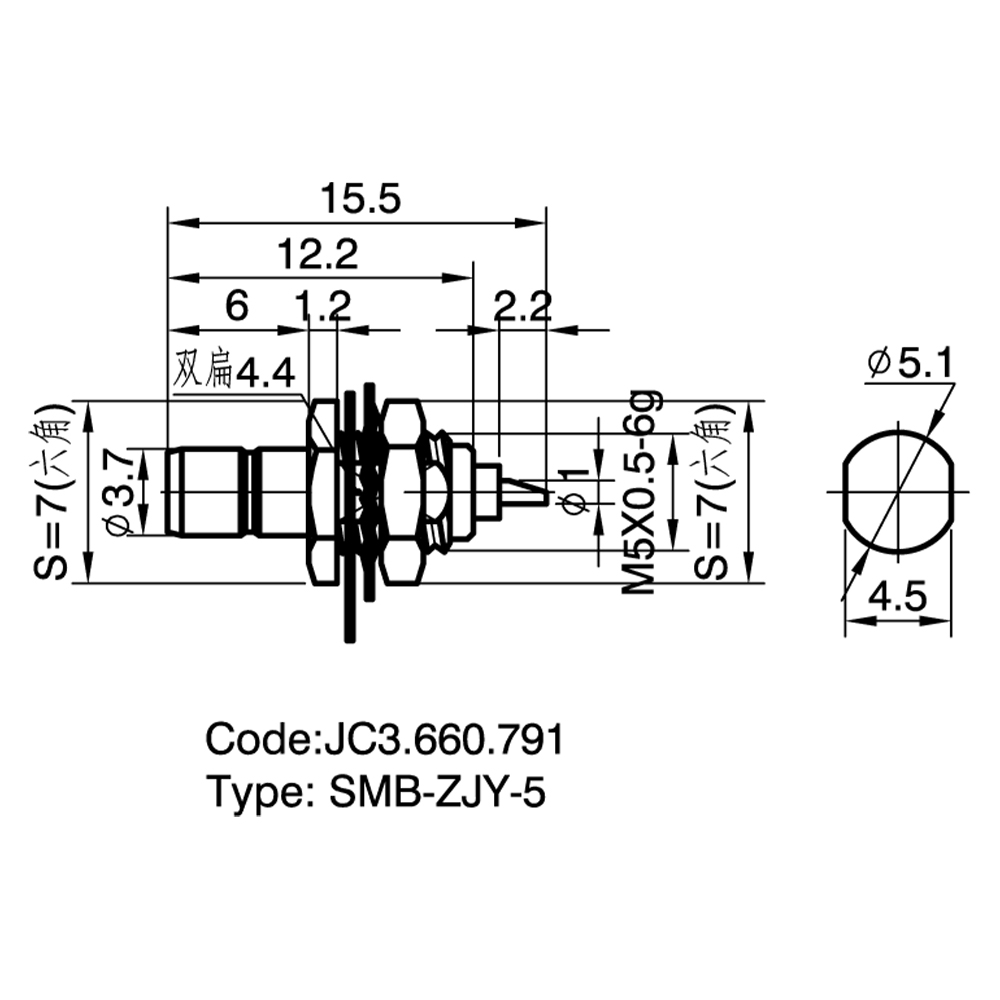

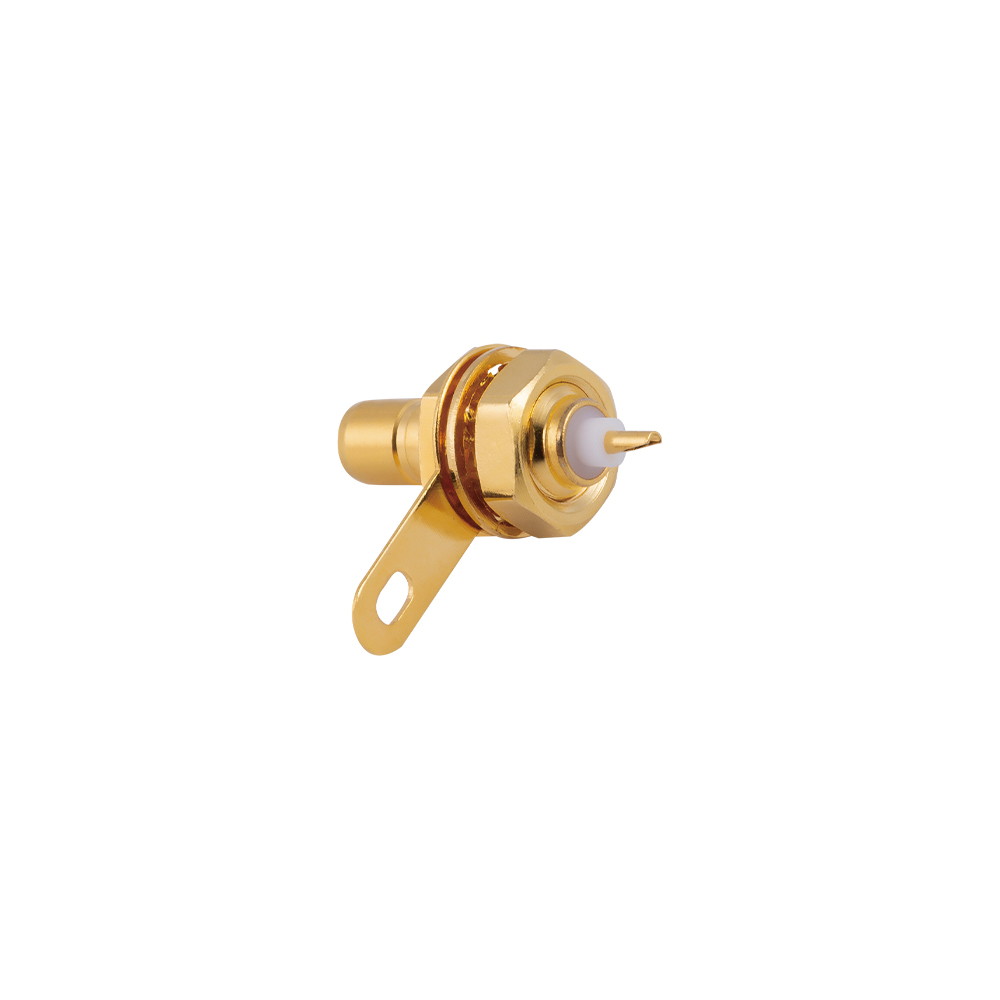

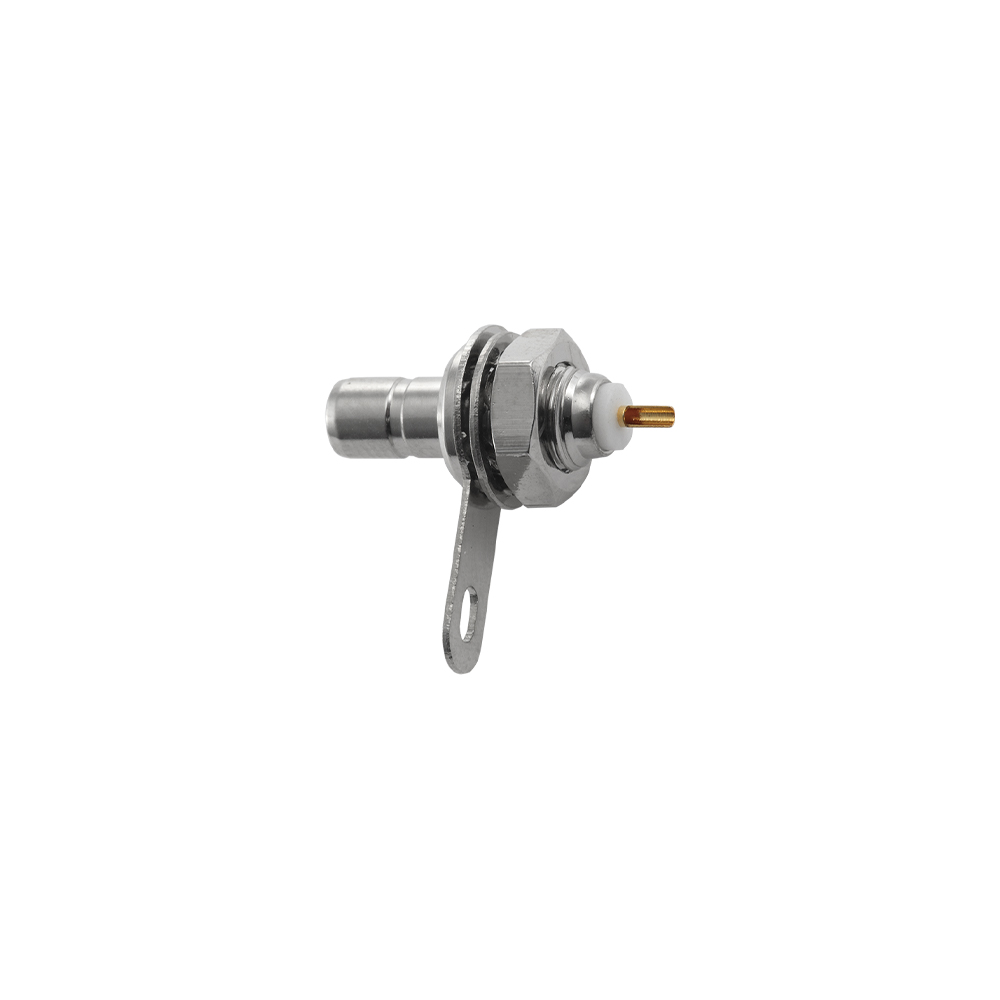

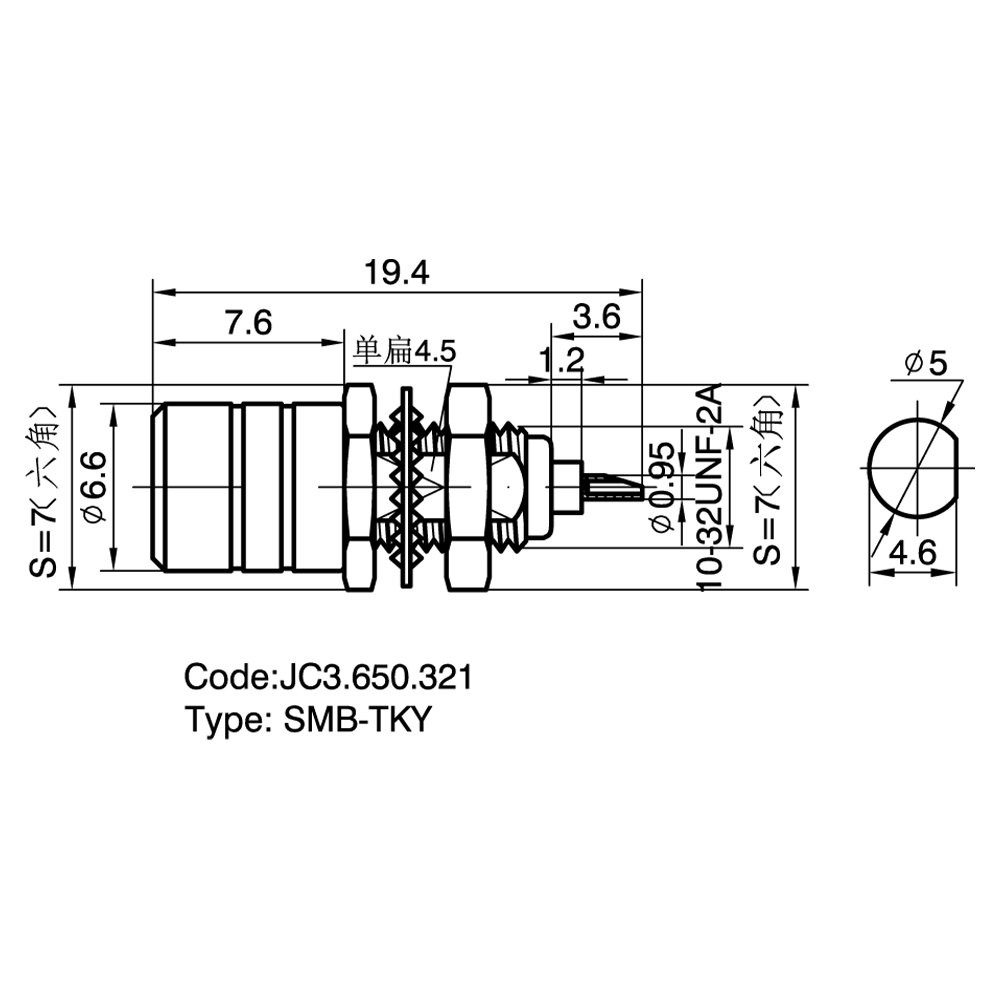

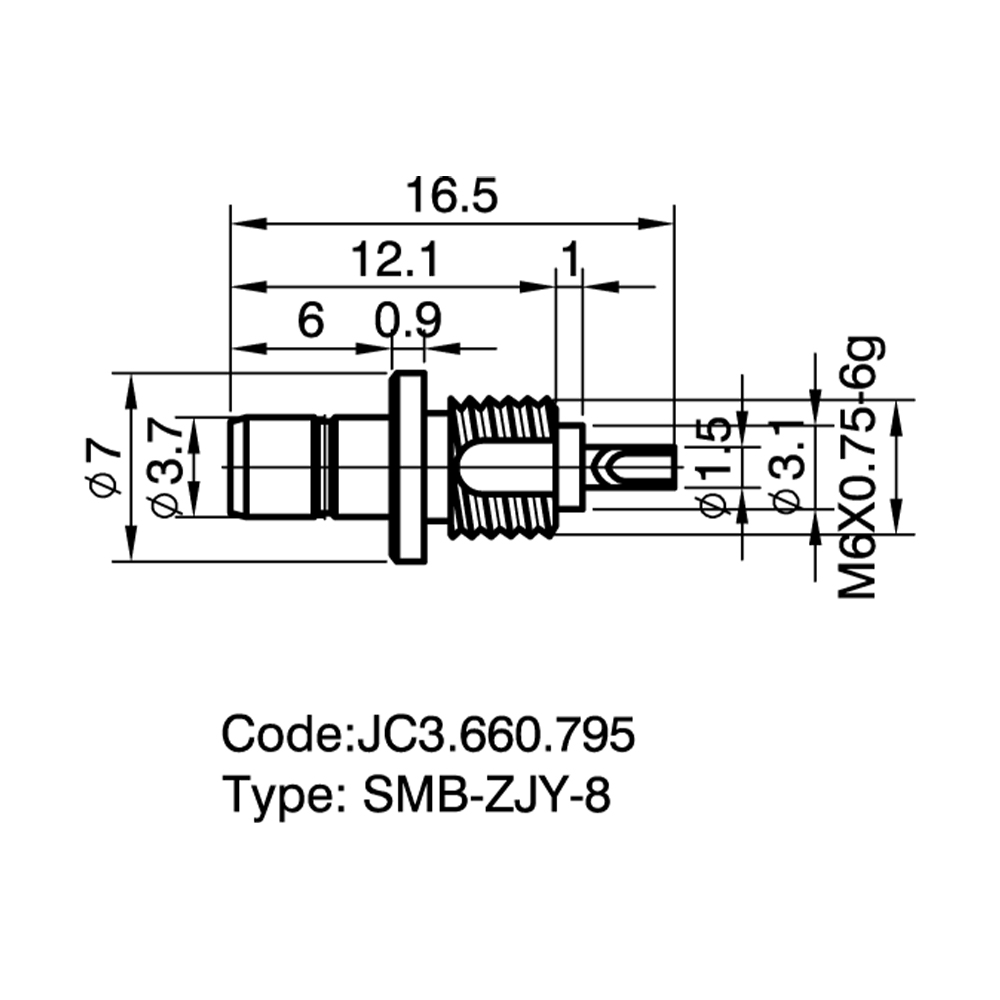

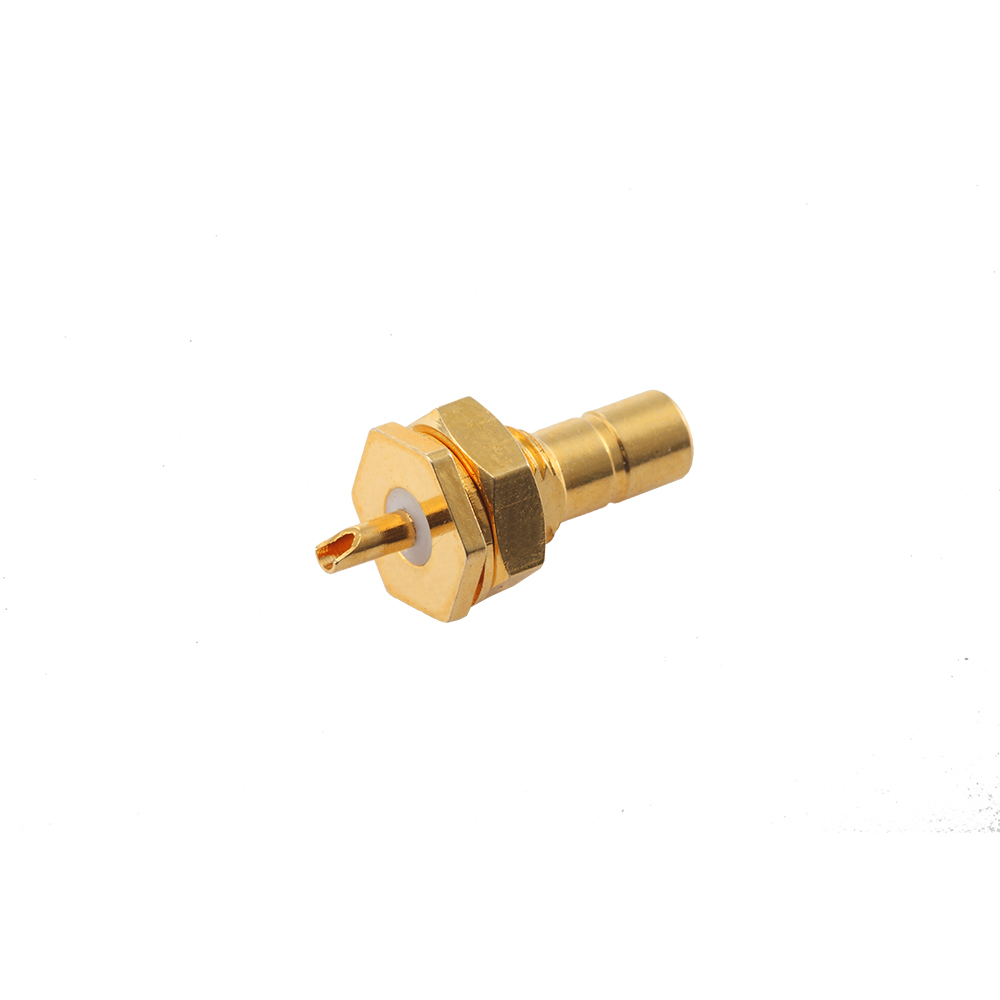

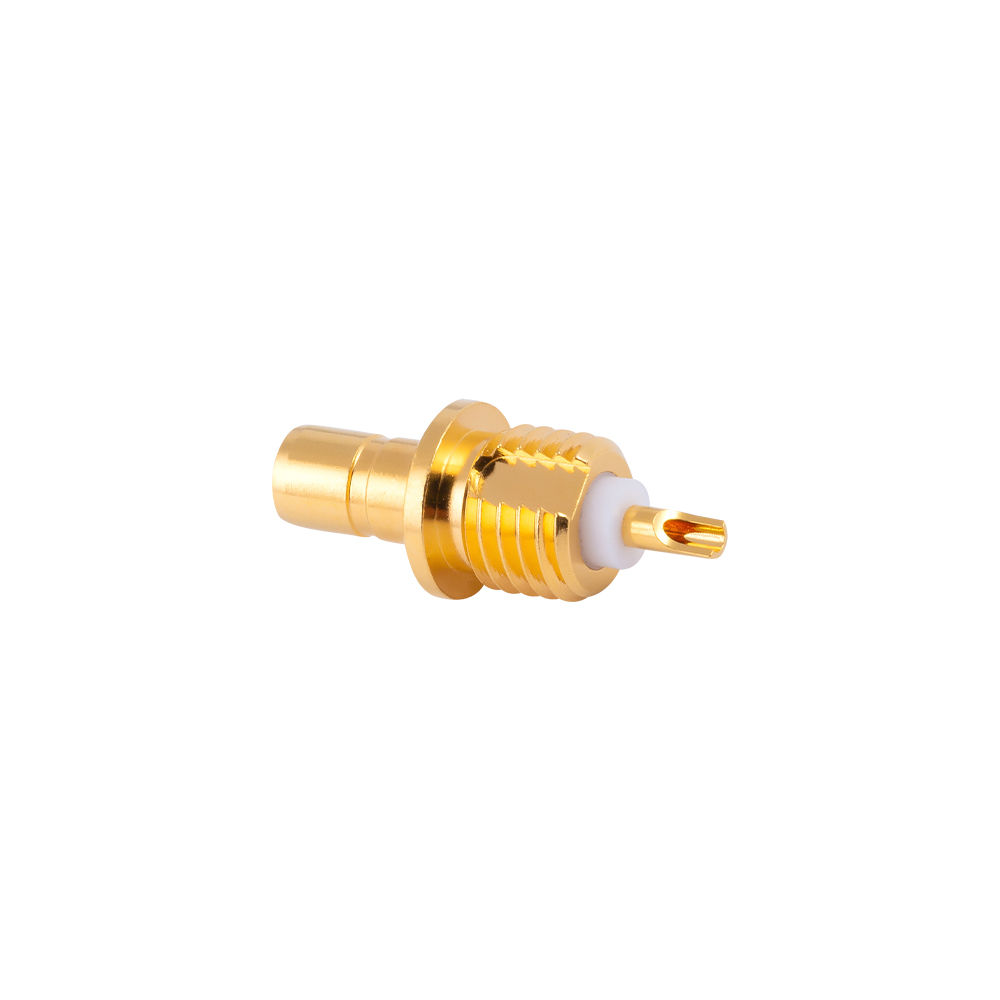

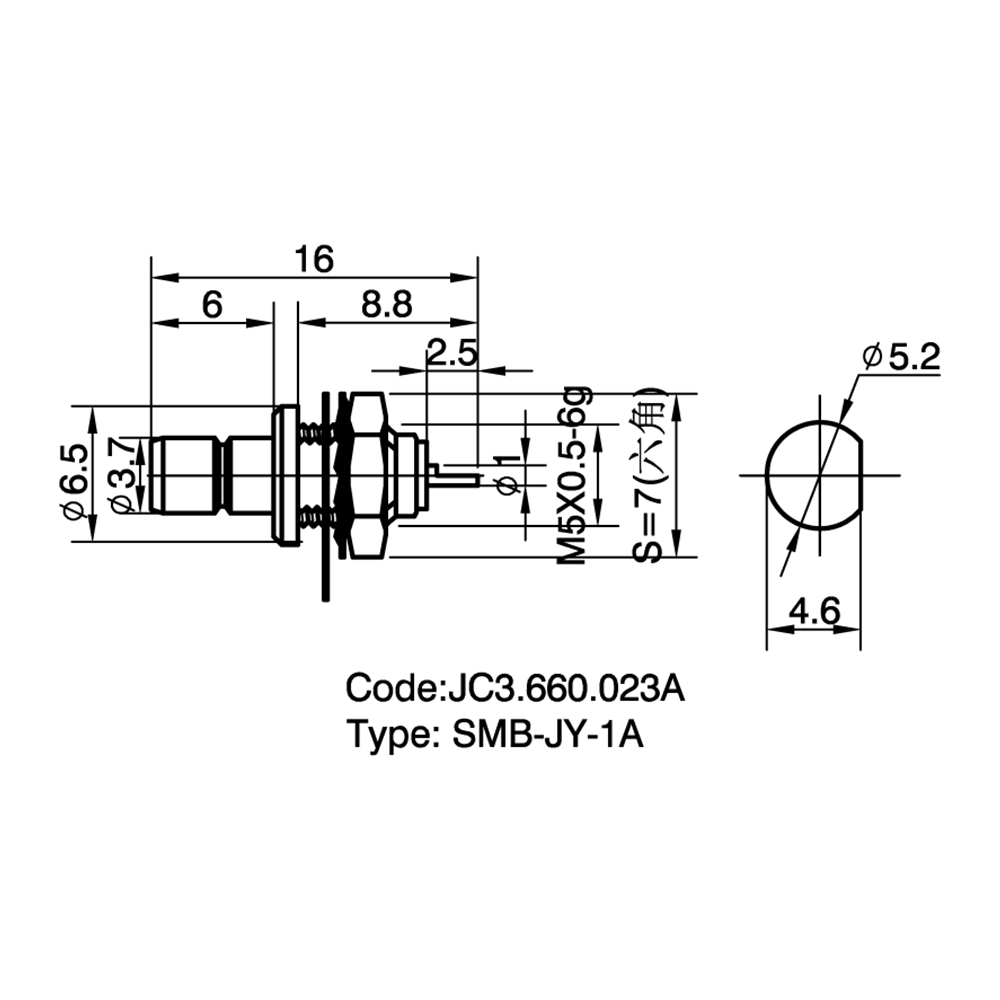

EnglishSMB Bulkhead Mount RF Coaxial Connectors
Product Introduction:
This is an SMB connector with external threads and a fastening nut, specifically designed for bulkhead mounting through chassis panels, serving as an internal-to-external signal interconnection.
Product Features:
Sealing protection: An optional waterproof sealing ring (O-ring) is available to meet IP-rated sealing requirements in specific environments.
Flexible installation: Supports front or rear mounting, accommodating different panel thicknesses.
Wide temperature range: Maintains excellent electrical performance under extreme temperatures from -55°C to +155°C.
Application Advantages:
Robust structure: The nut fastening ensures the connector remains securely in place even when external cables are subjected to pulling forces.
Professional appearance: Provides a clean and professional panel interface for communication cabinets such as broadcast stations and radio facilities.
|
Temperature Range |
-55～+155℃(PE Cable -40～+85℃) |
|
Impedance |
50Ω,75Ω |
|
Frequency Range |
DC～4GHz(50Ω);0～2GHz(75Ω) |
|
Insulation resistance |
≥1000MΩ |
|
Insertion loss |
0.30 dB/1.5GHz |
|
Voltage Standing Wave Ratio (VSWR) |
Straight ≤1.35/3GHz |
|
|
Right angle ≤1.45/3GHz |
|
Durability(mating) |
≥500 cycles |
