SMA Flange Mount Connectors

Product Introduction:

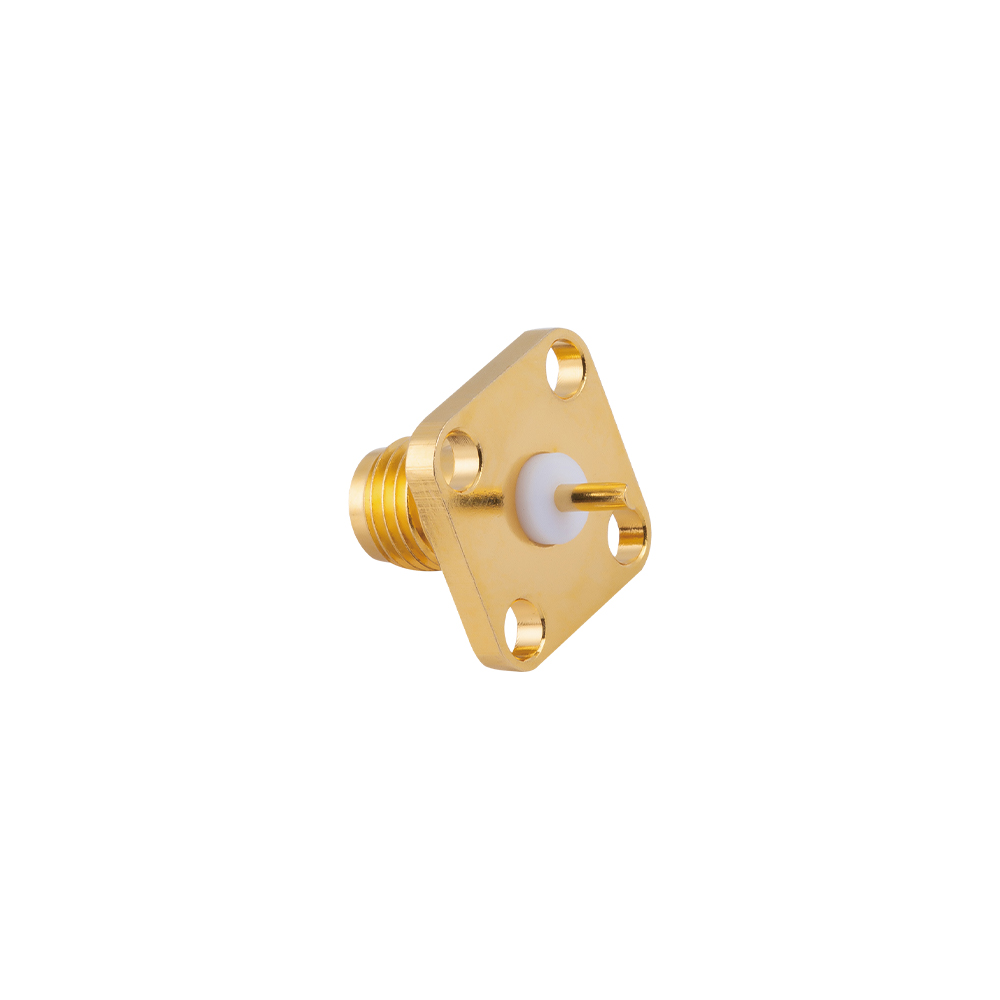

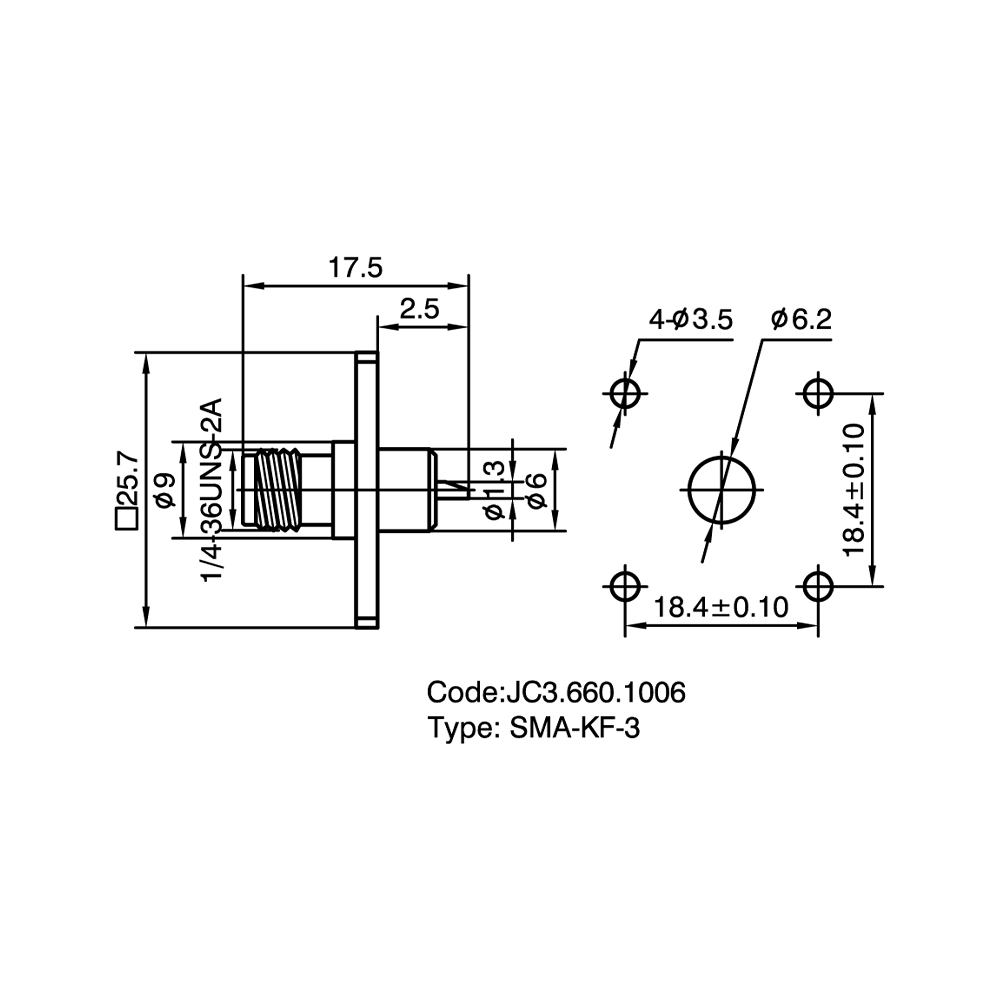

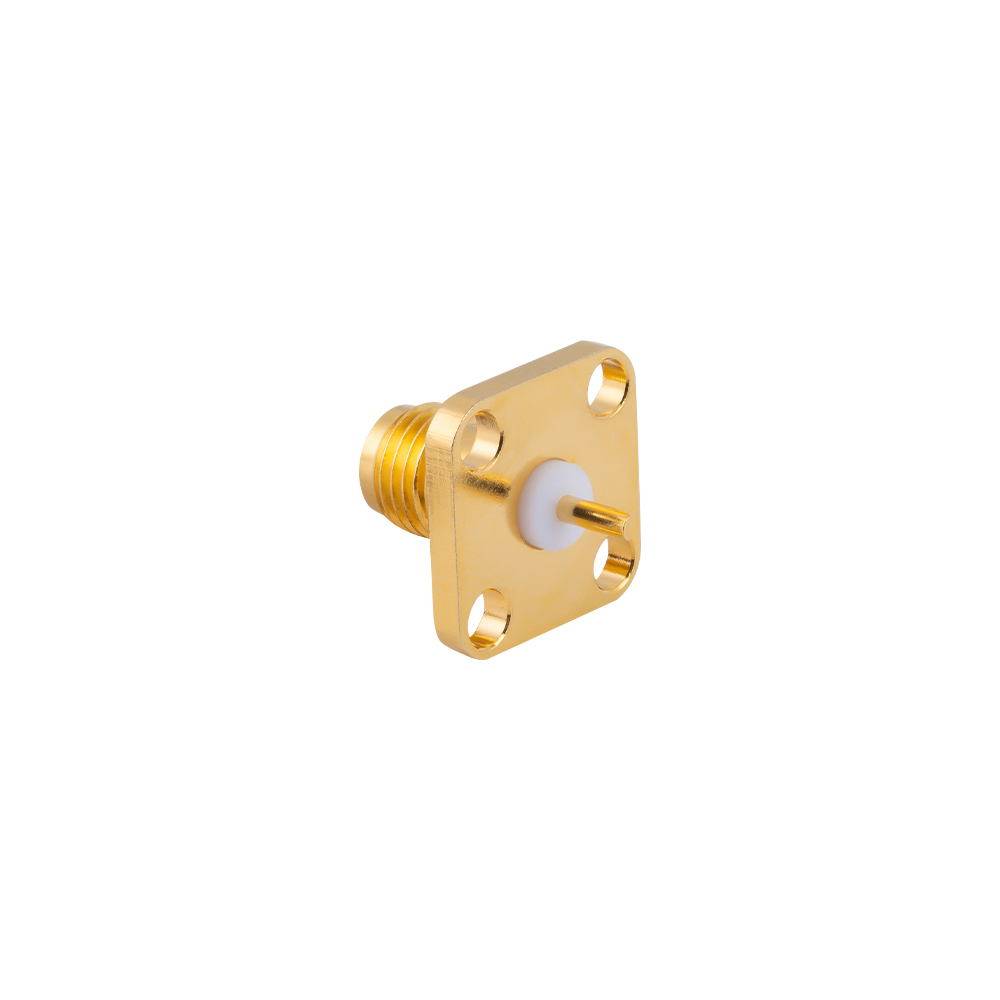

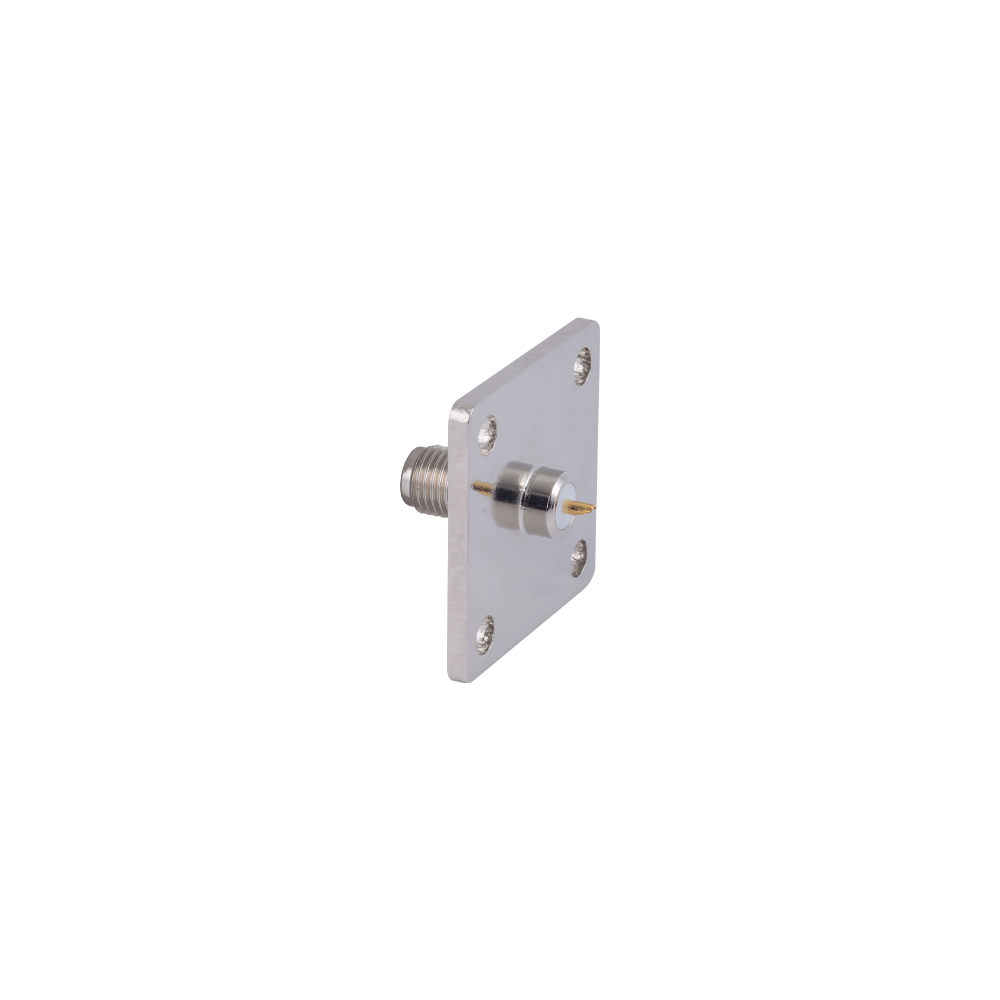

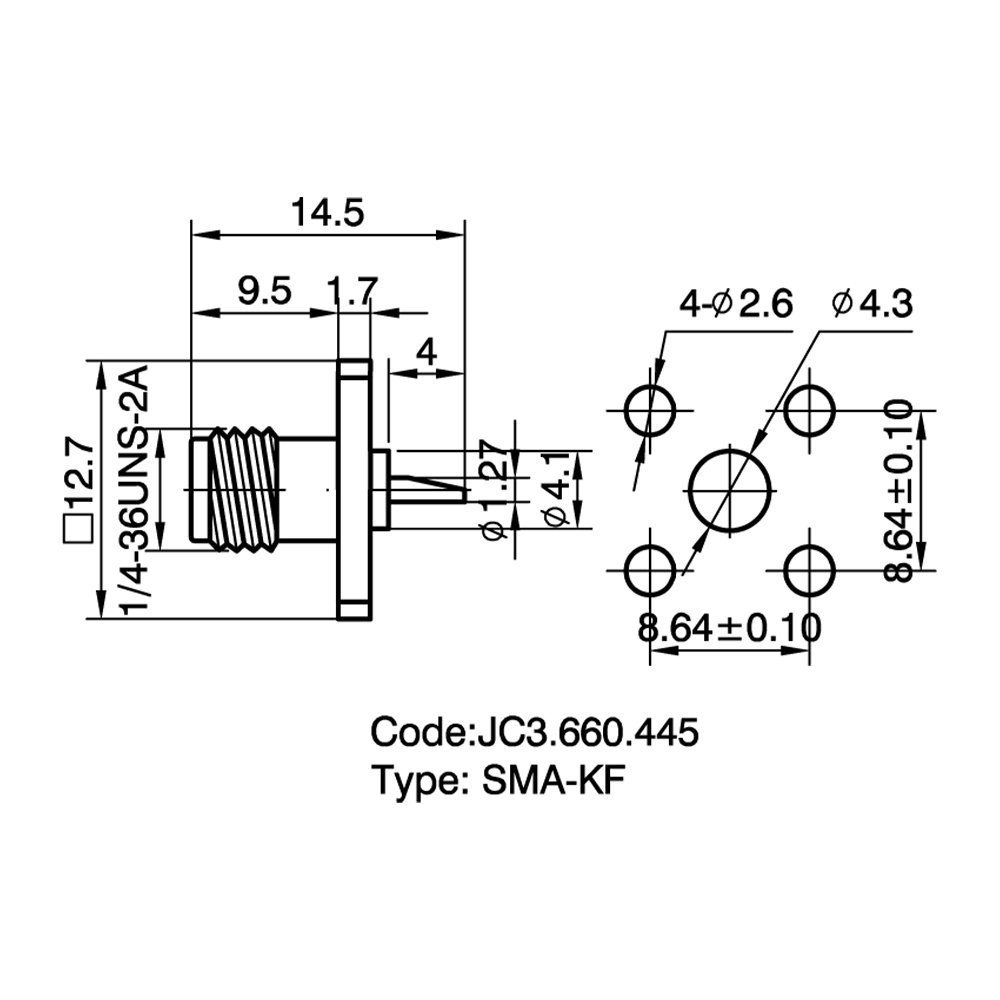

This type of connector typically features a 2-hole or 4-hole flange for secure mounting on equipment panels, serving as an external signal input/output interface.

Product Features:
Secure mechanical mounting: The flange structure, combined with screw fastening, can withstand high torque during mating and unmating.
Sealing performance: Optional models with O-ring seals are available, achieving IP67/IP68 waterproof and dustproof ratings.
Various contact types: Offers multiple termination options, including solder cup, pin type, socket type, and terminal post.

Application Advantages:
Easy integration: Standard flange dimensions allow convenient modular installation on various RF enclosures and amplifier housings.
Long-term reliability: Suitable for use in high-vibration environments such as communication base stations and military electronic equipment.

Temperature Range

-55～+155℃(PE Cable   -40～+85℃)

Frequency Range

DC～12.4GHz(Semi-Rigid Cable  DC~18GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.15 dB/6GHz

Voltage Standing Wave Ratio (VSWR)

Straight Flexible cable≤1.10+0.02f

Semi-Rigid Cable≤1.07+0.018f

Right angle Flexible cable≤≤1.20+0.03f

Semi-Rigid Cable≤≤1.17+0.02f

Durability(mating)

≥500 cycles
