EnglishSMA Connectors for Flexible Cable
Product Introduction:
Widely compatible with flexible coaxial cables such as RG174, RG316, RG58, and LMR100/200. It is currently the most commonly used SMA connection solution in the market.
Product Features:

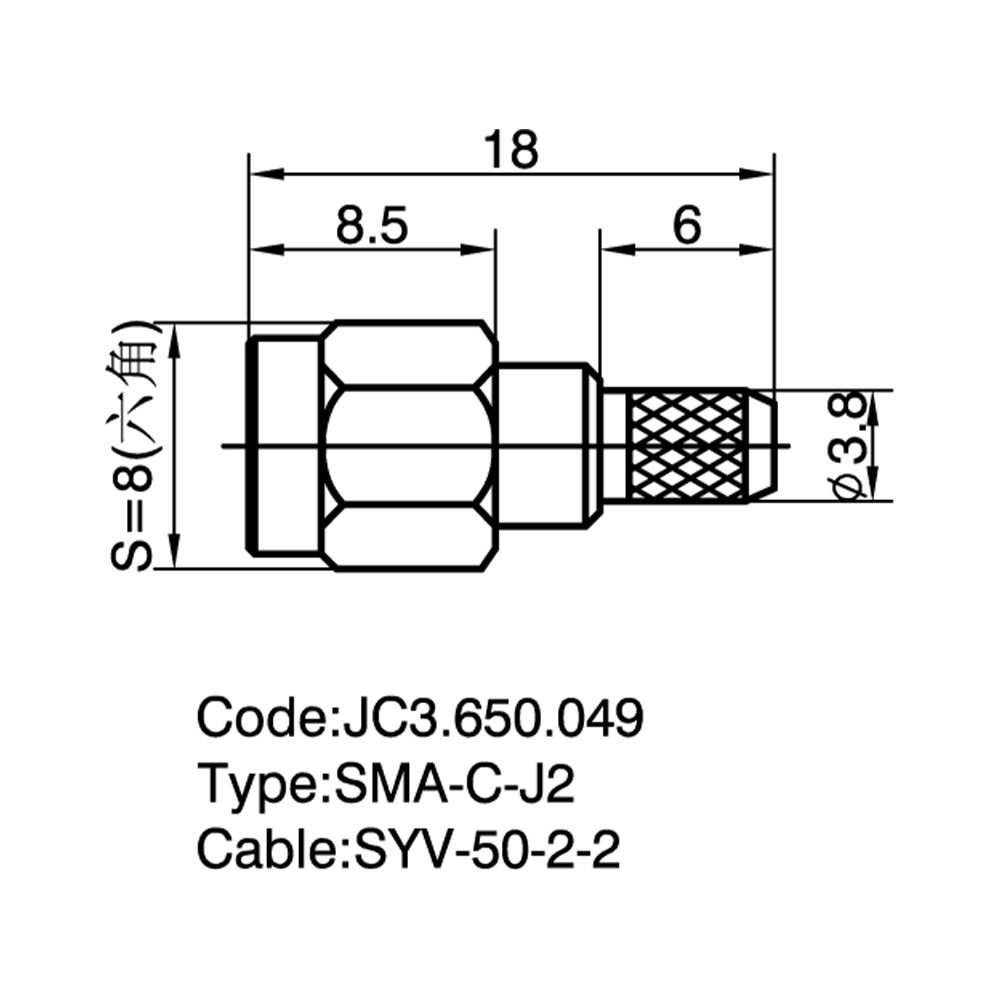

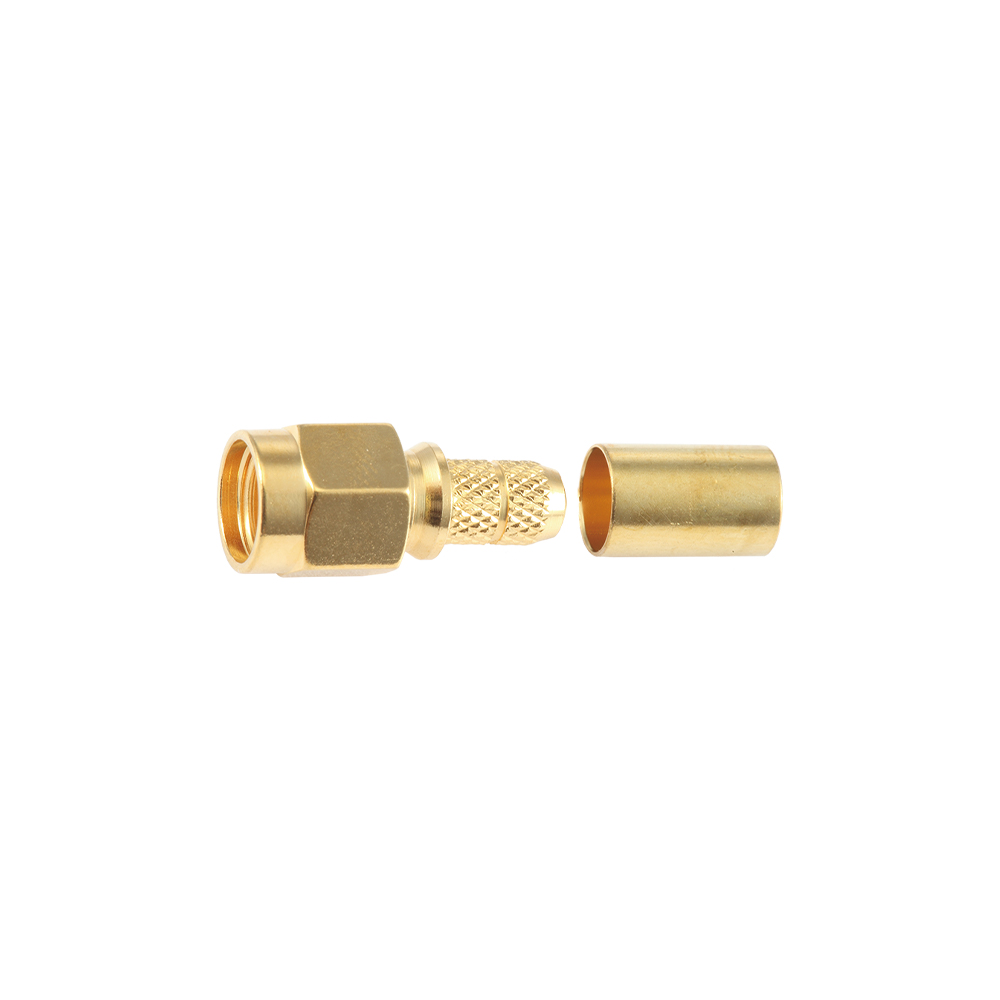

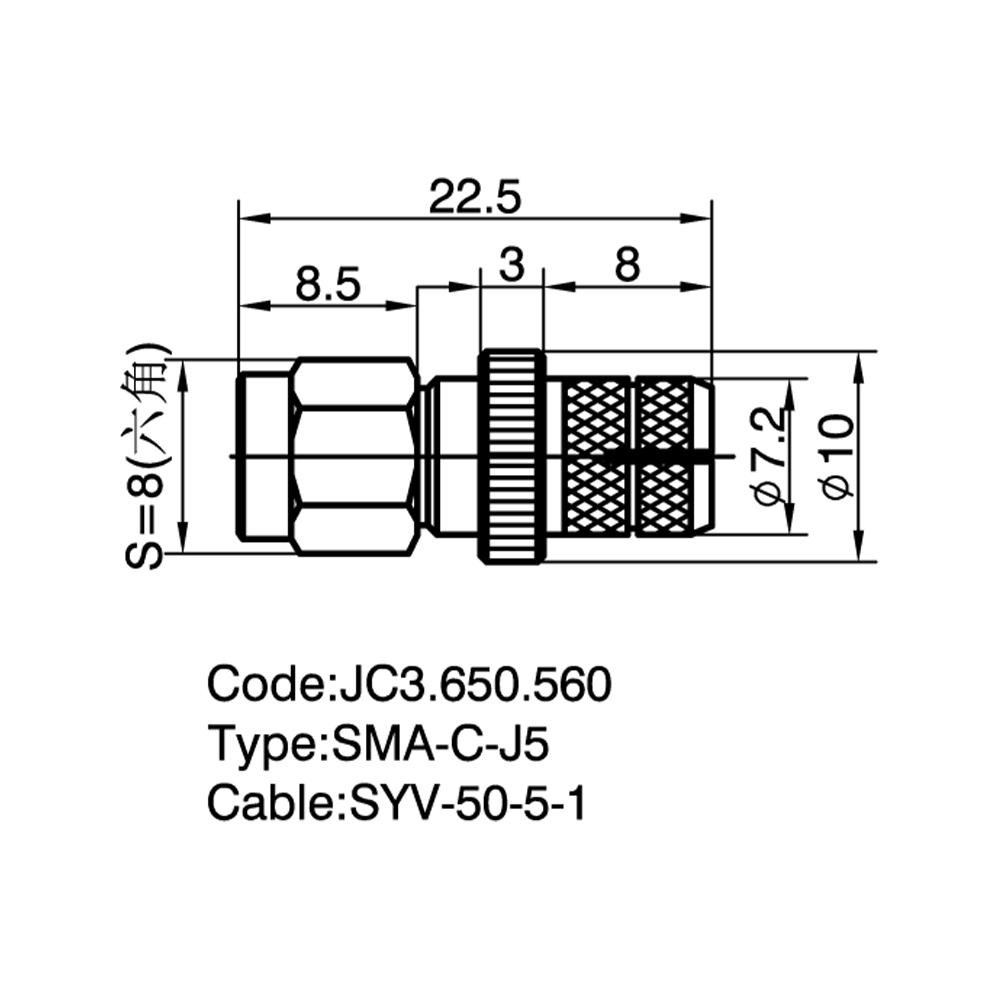

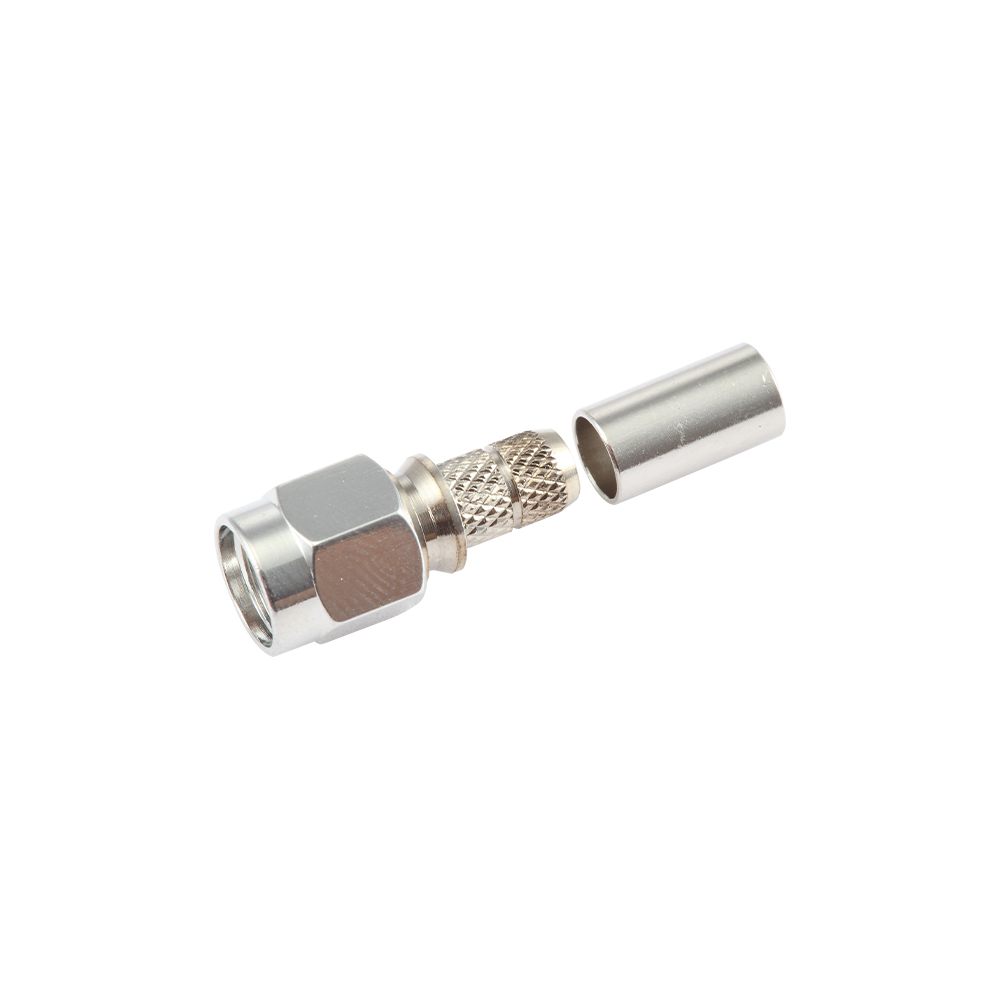

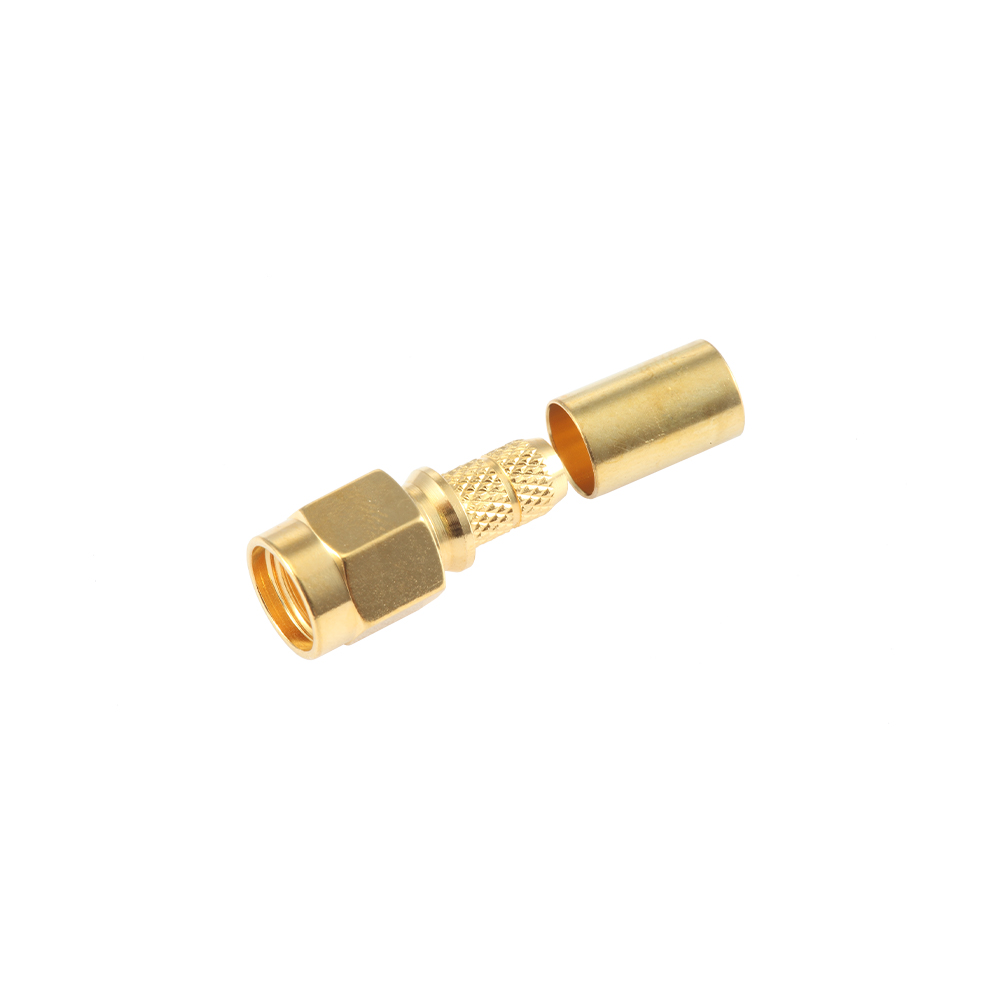

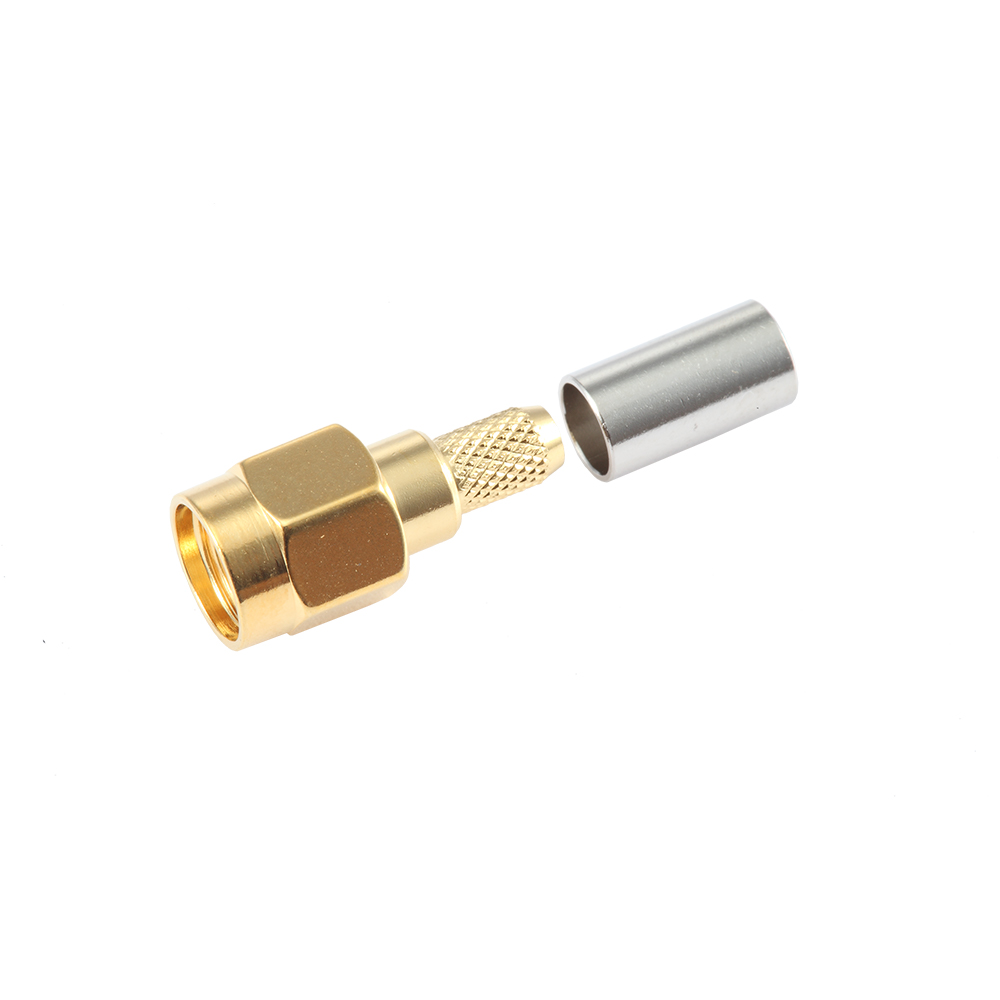

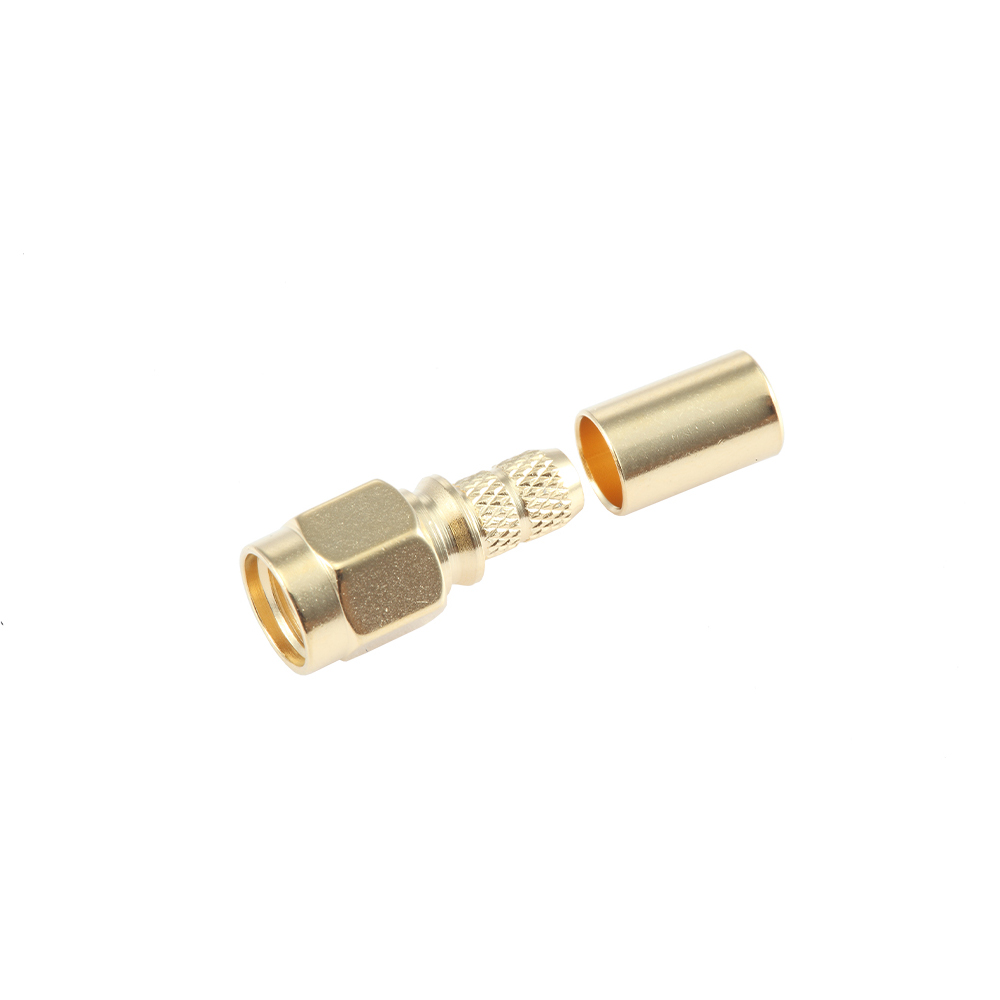

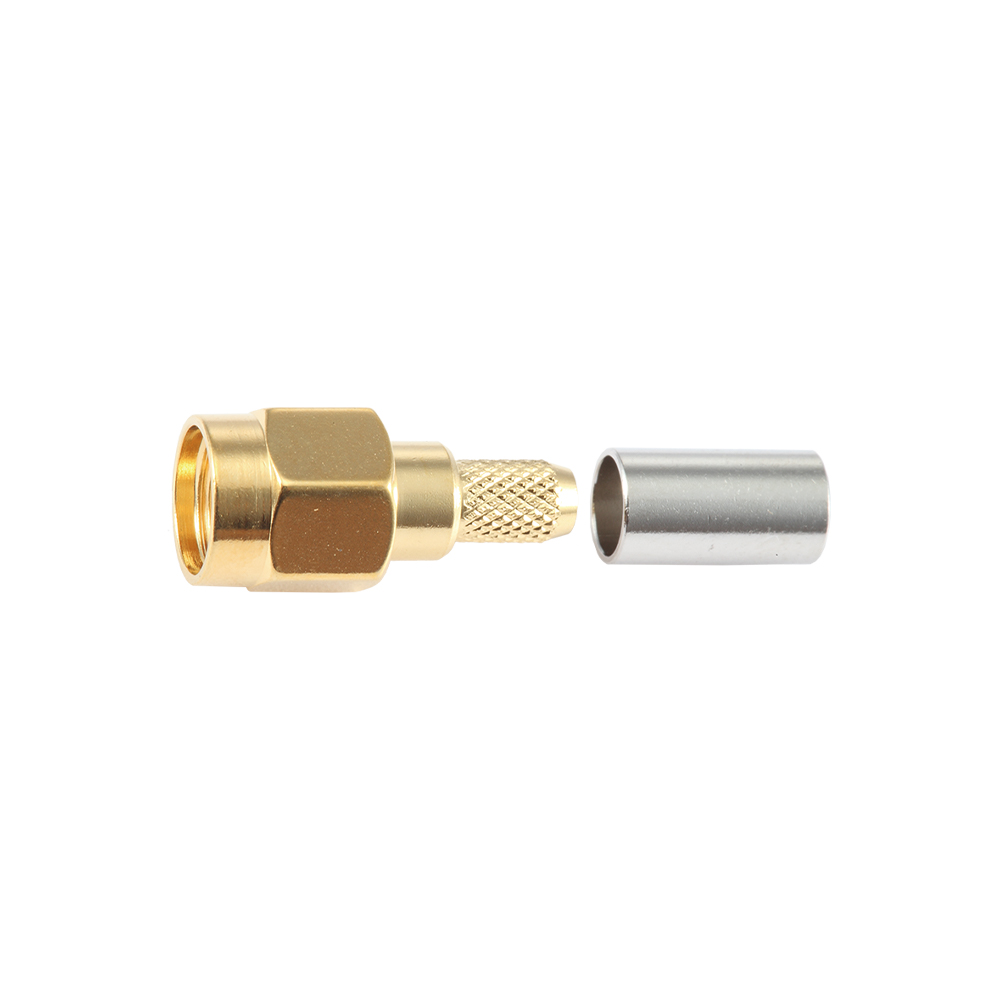

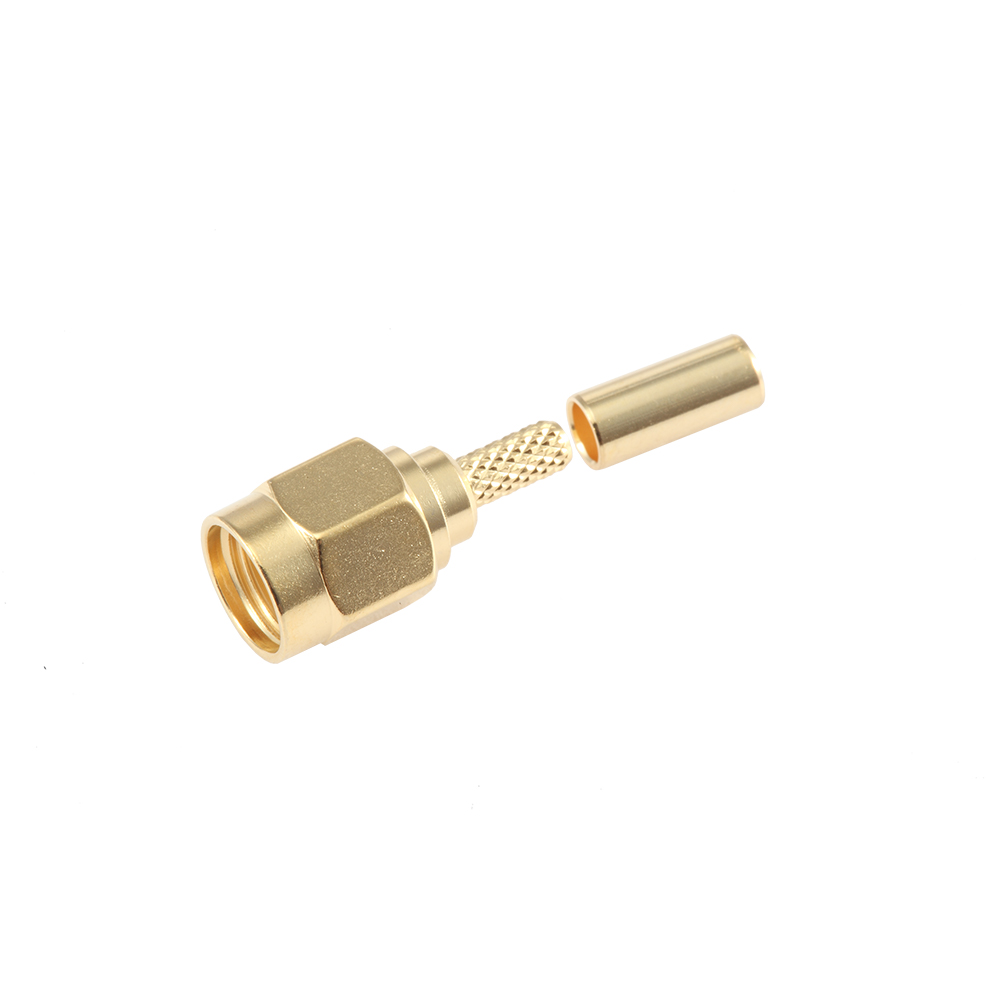

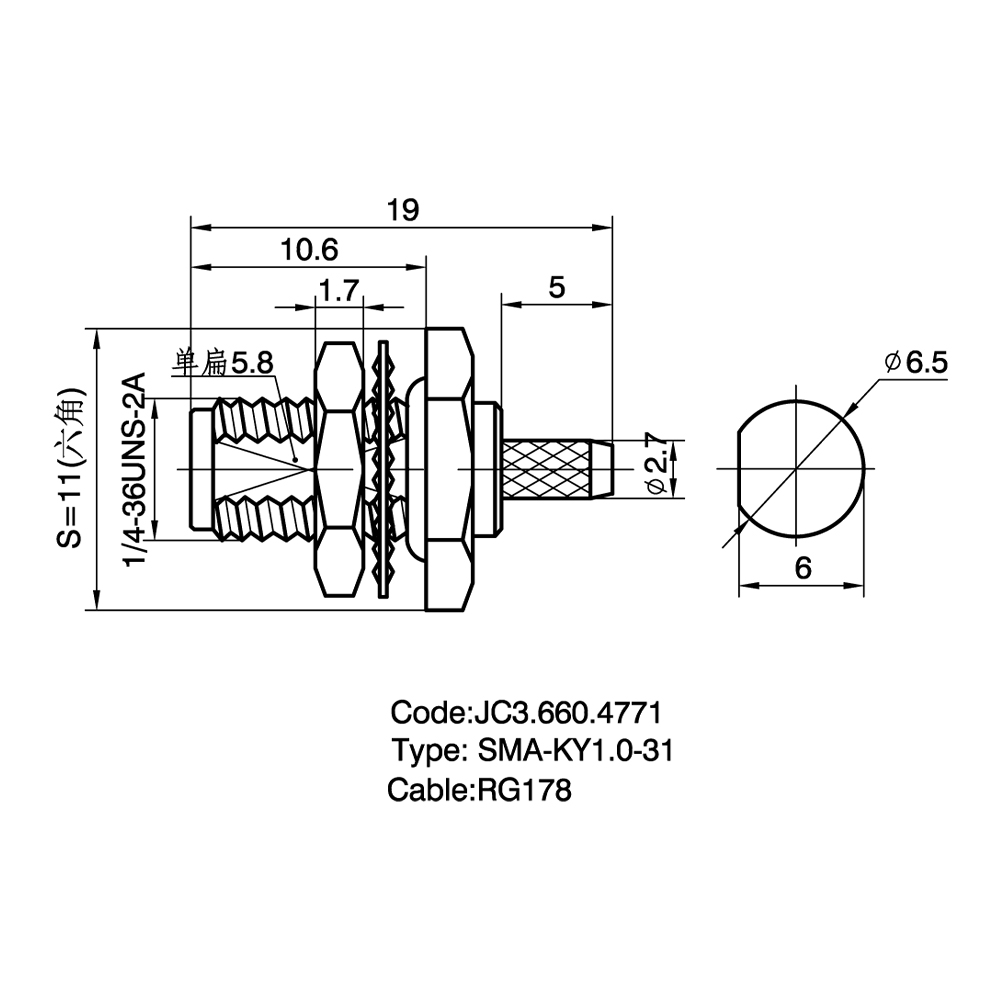

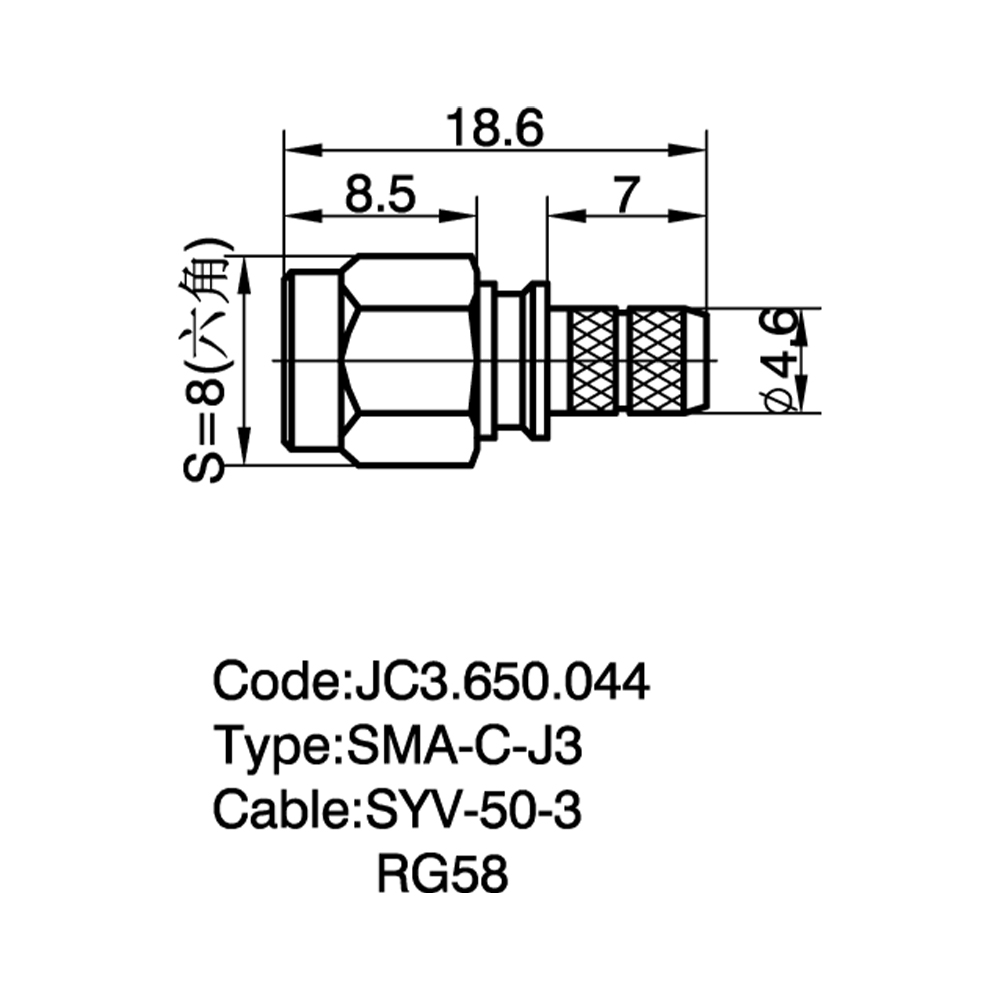

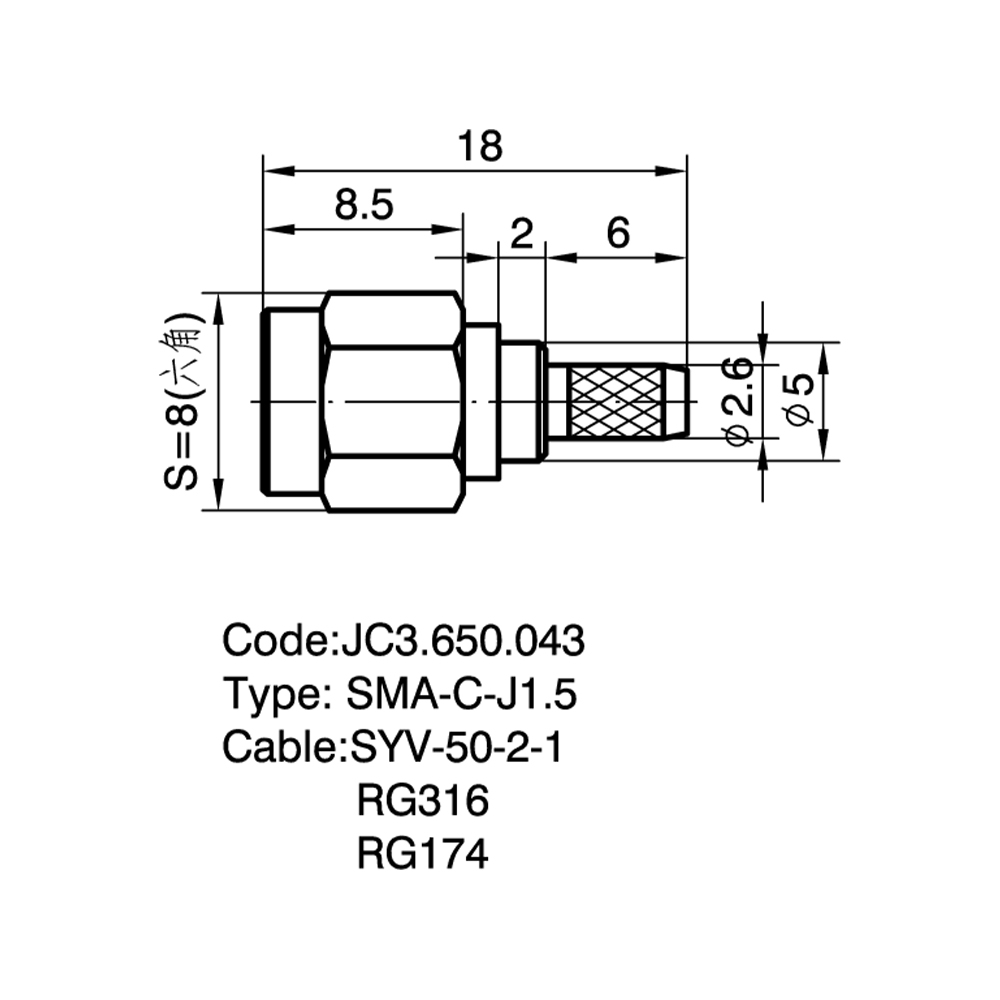

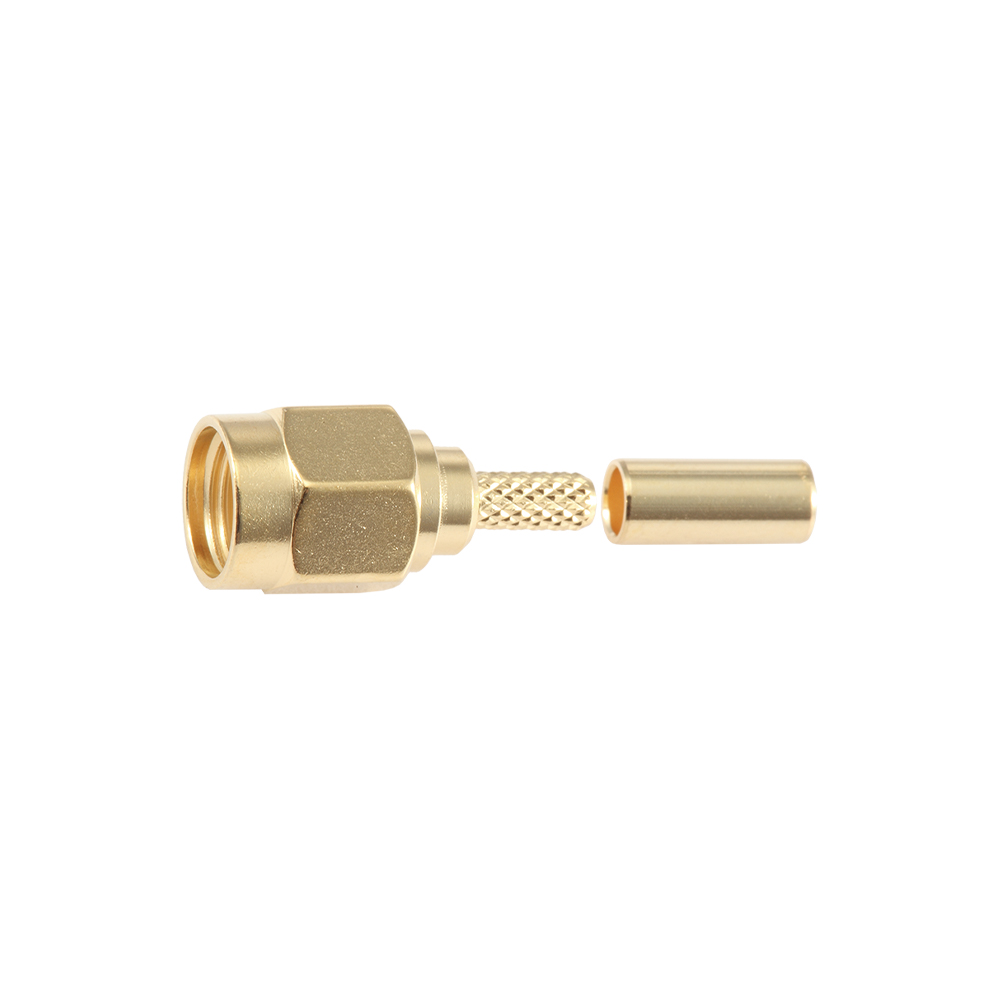

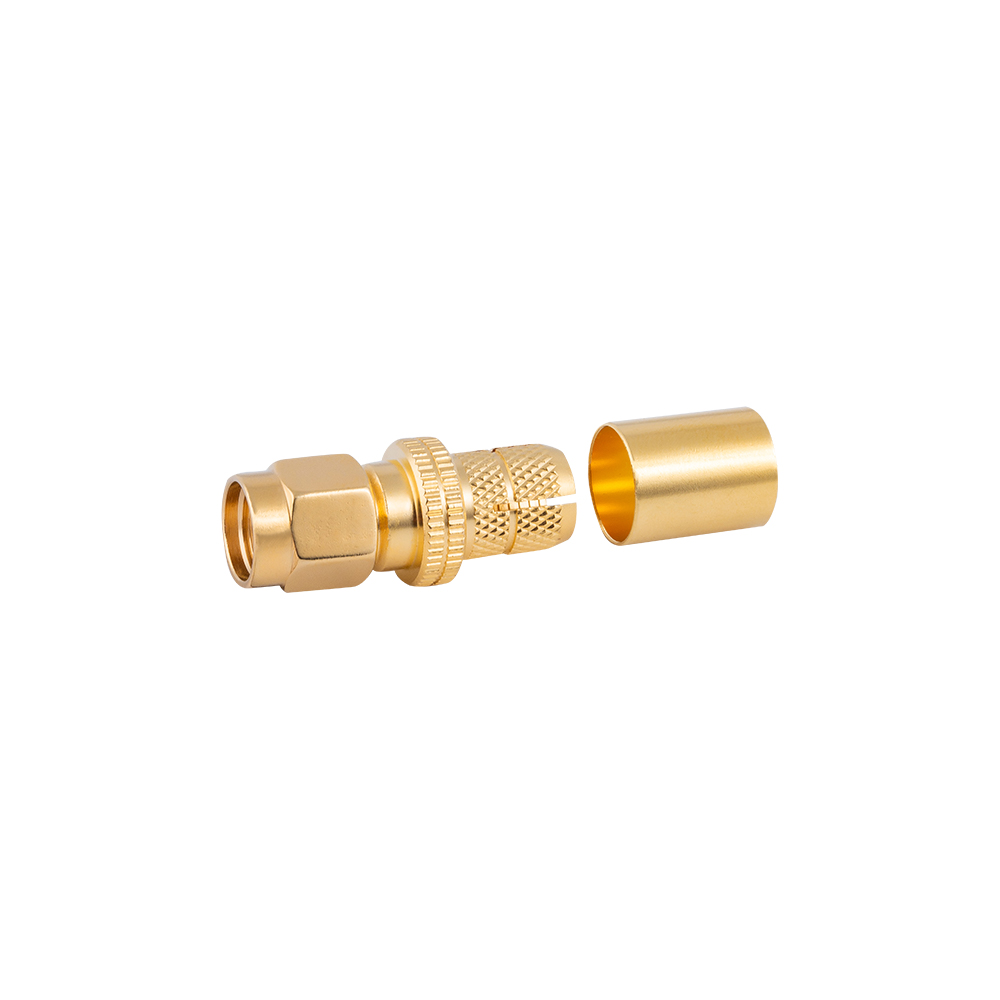

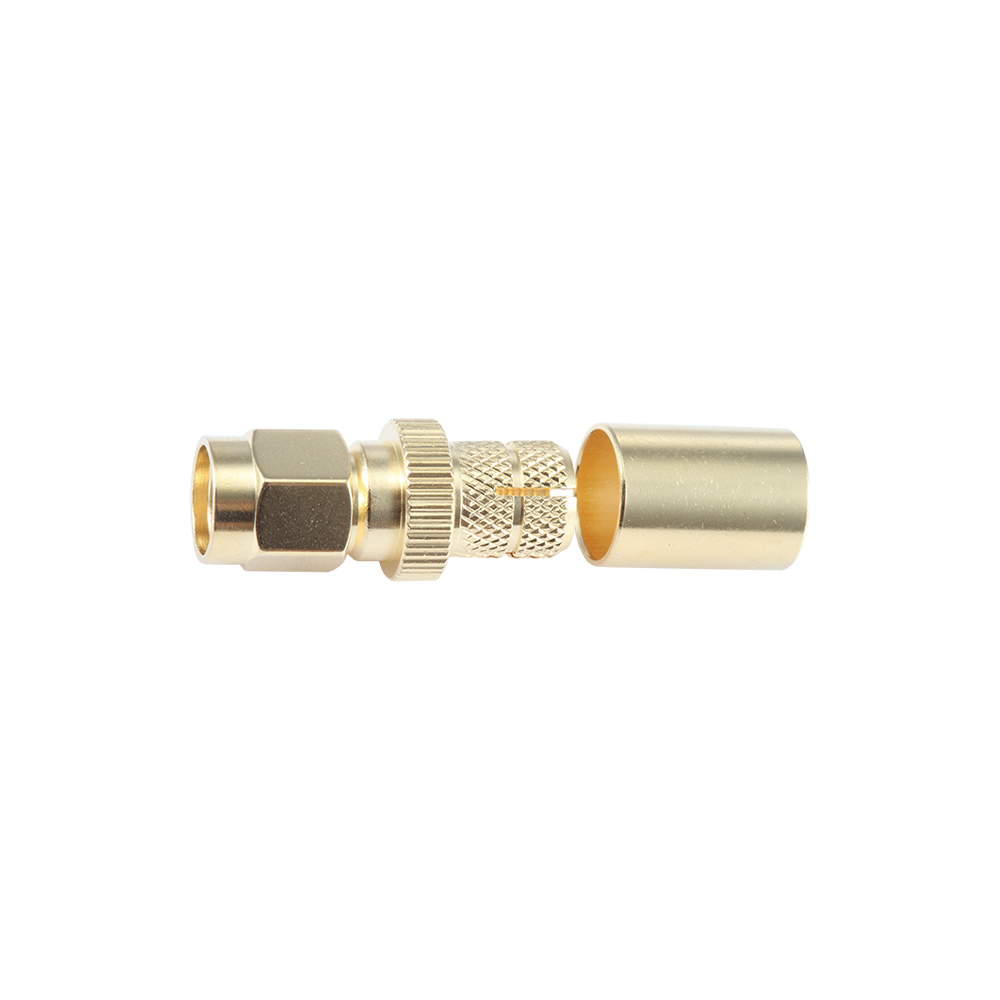

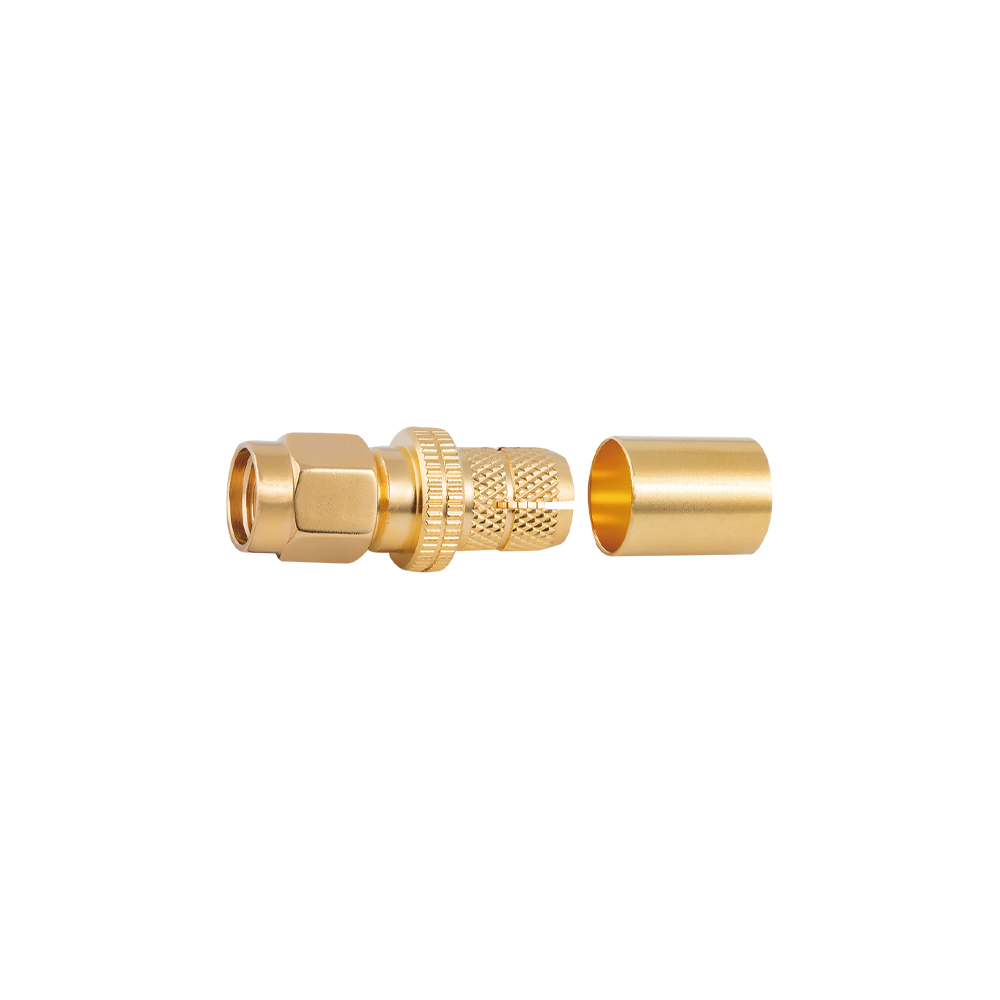

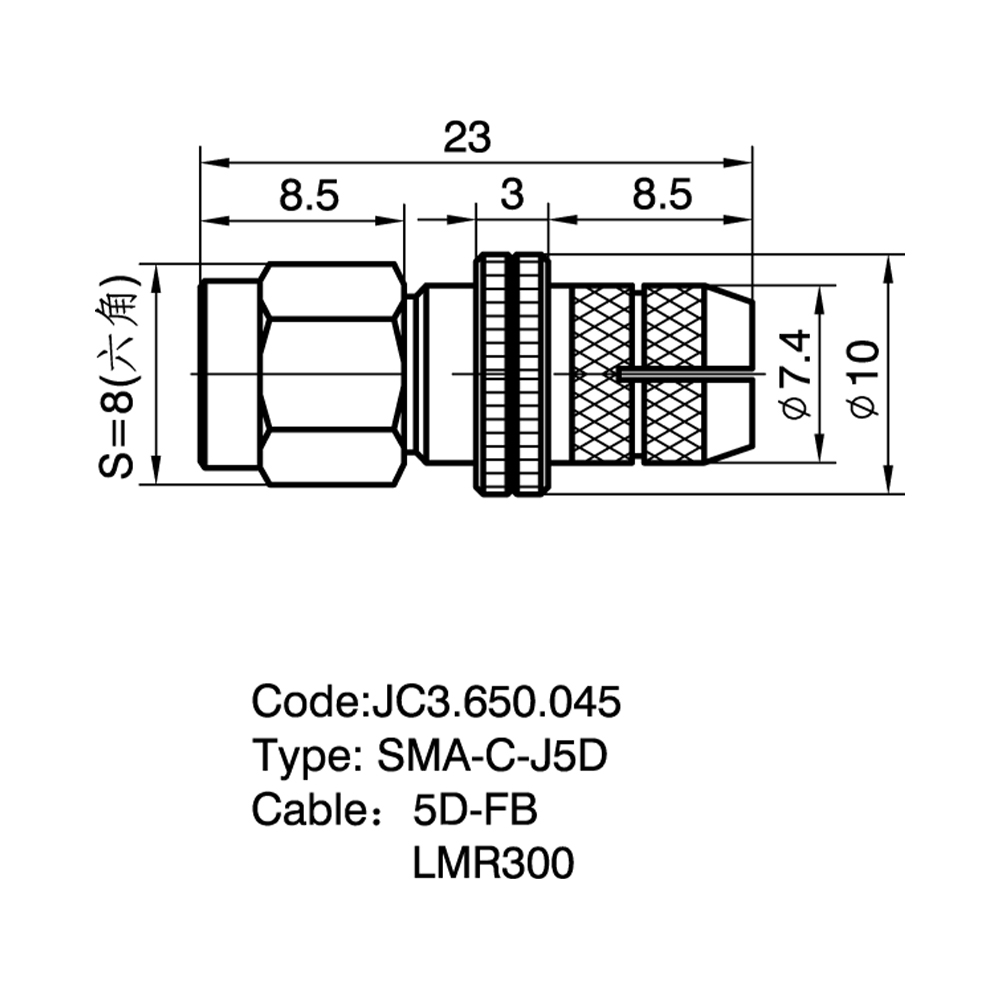

Crimp-type structure: Uses an outer sleeve crimping process, enabling fast assembly and suitability for large-scale cable harness production.

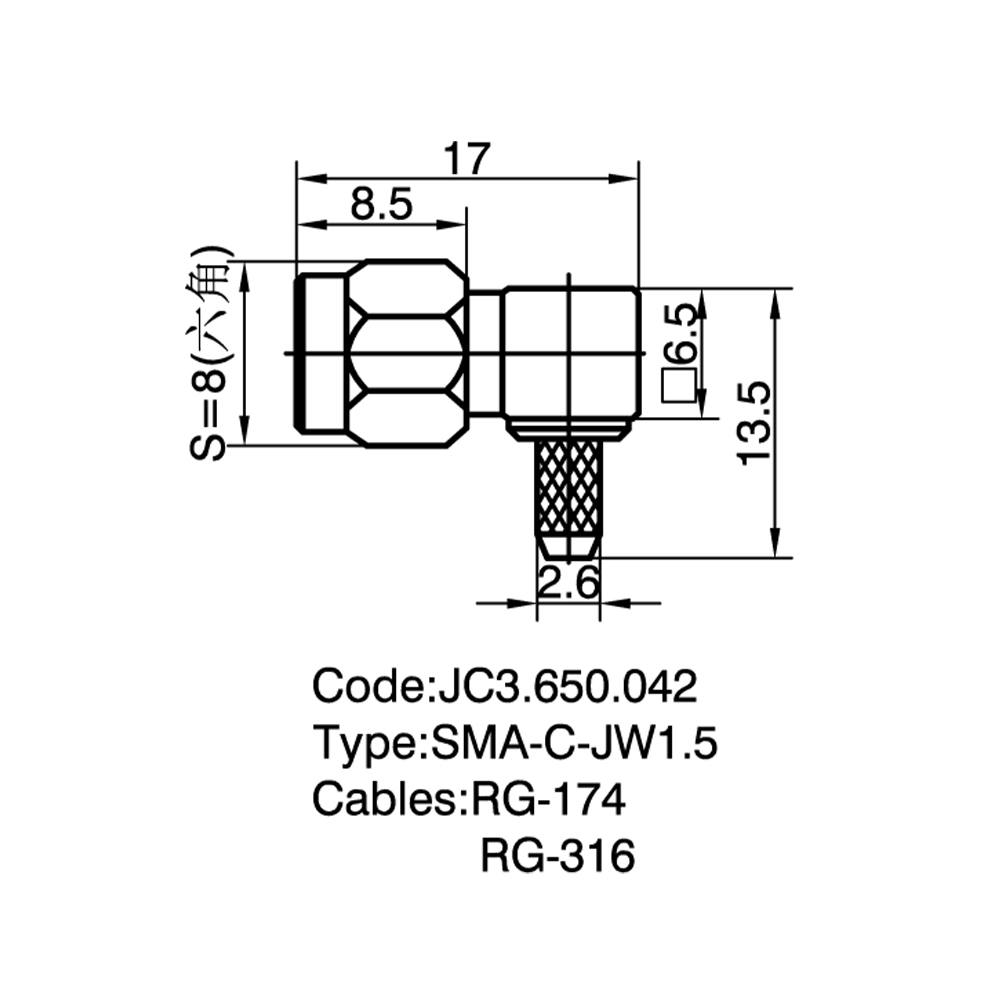

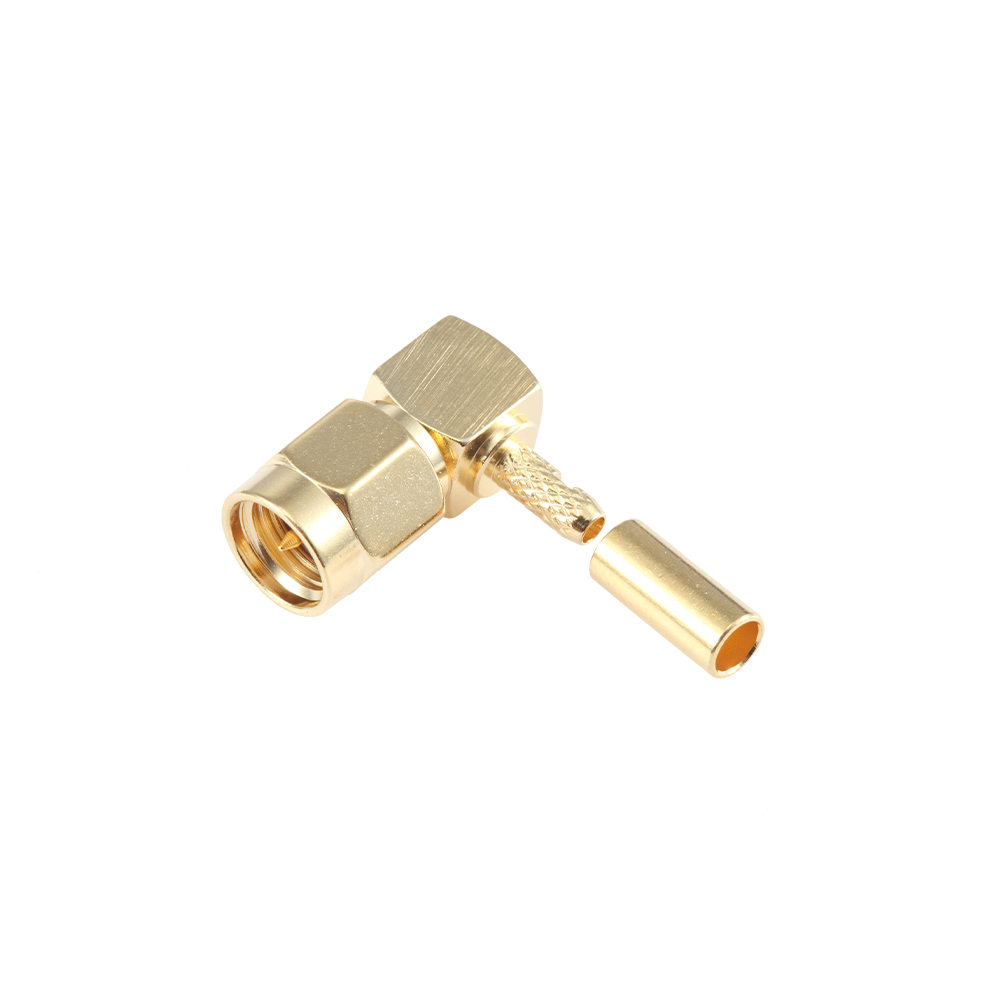

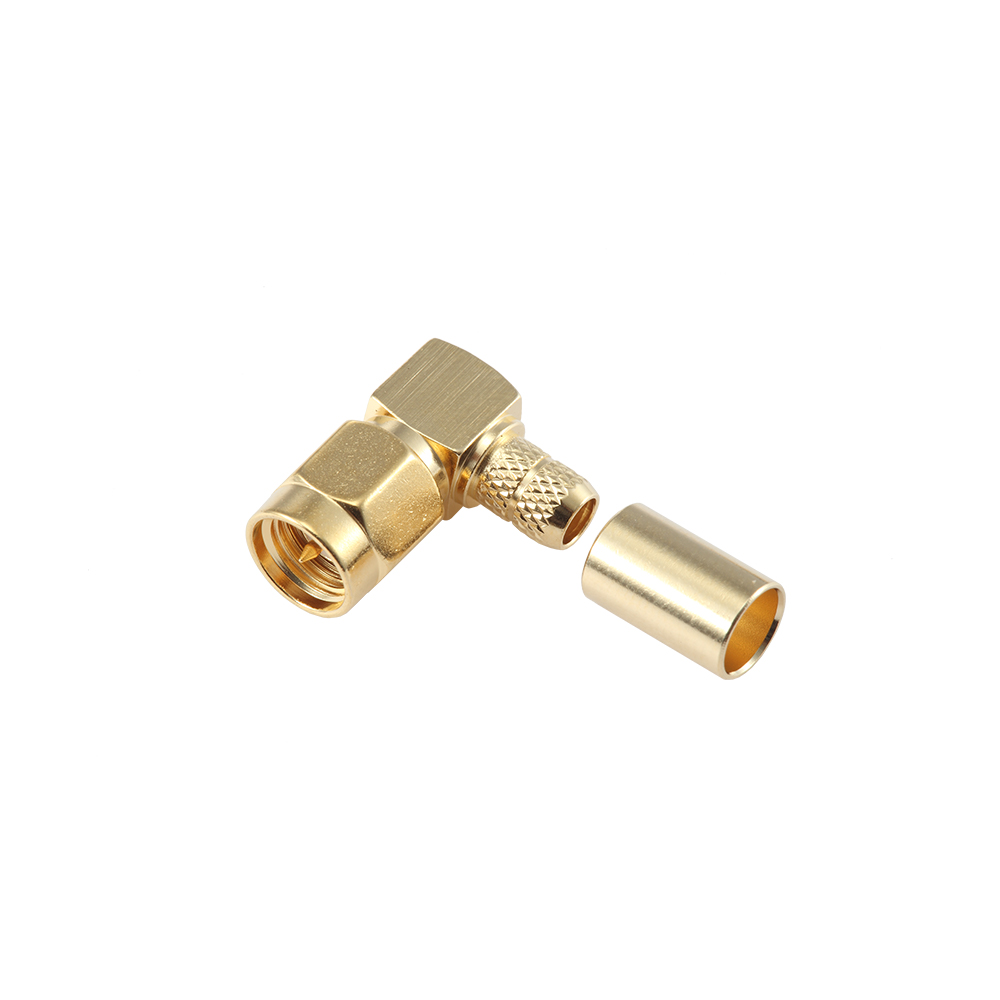

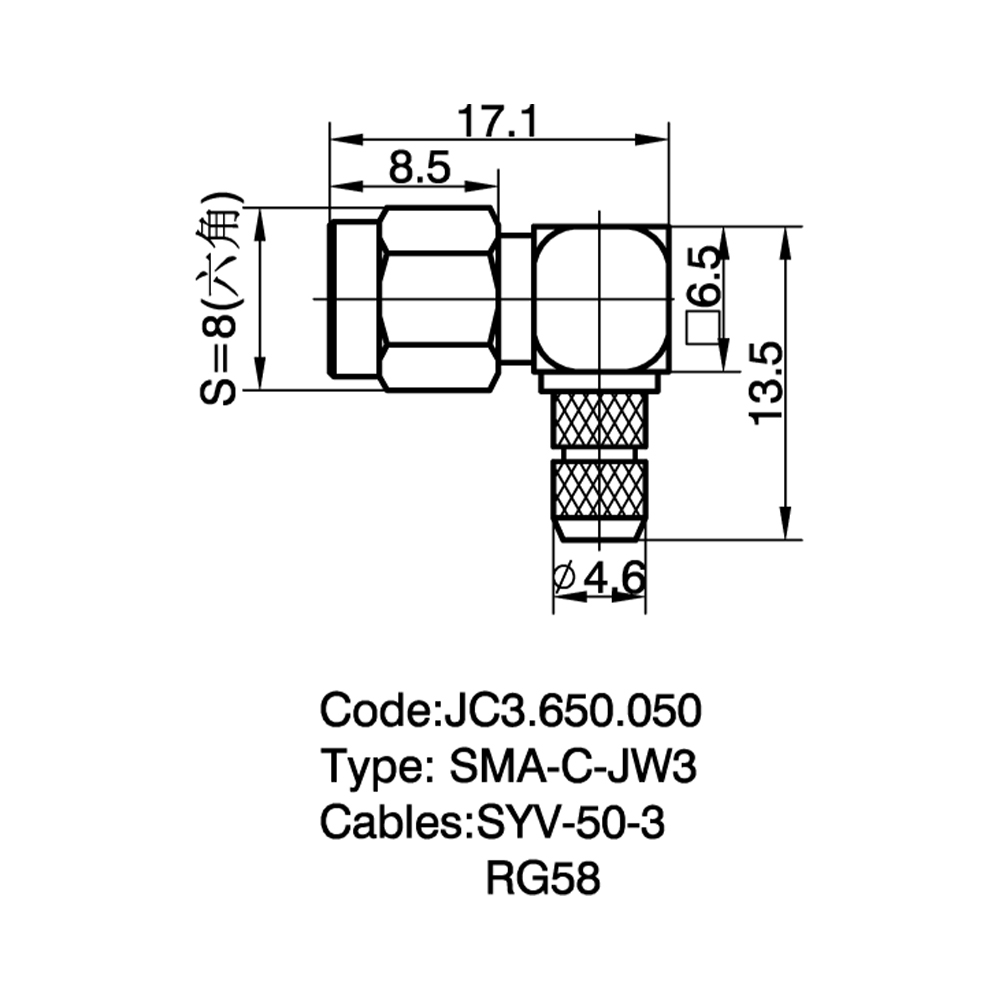

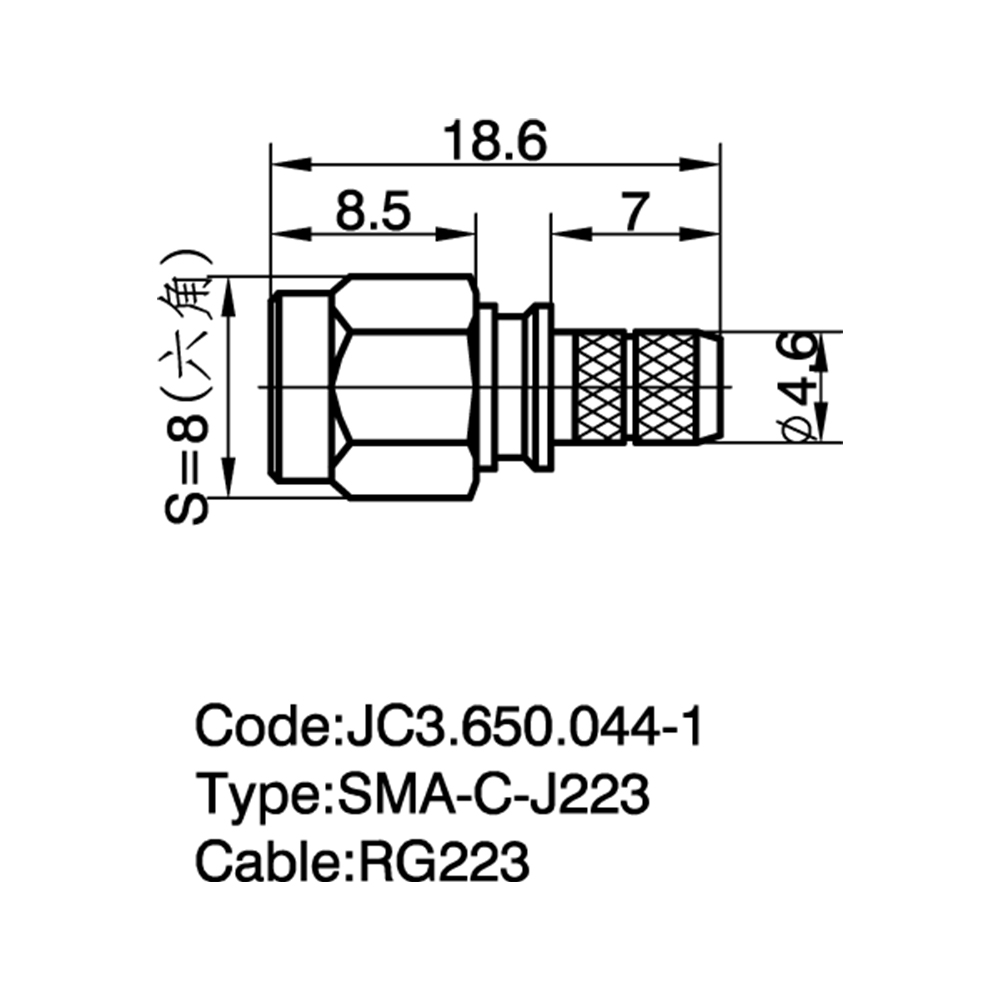

Compact structure: Available in straight and right-angle types to meet different routing space constraints.
High-standard plating: The center pin features thick gold plating, ensuring more than 500 mating cycles.
Application Advantages:
Excellent routing flexibility: When used with flexible cables, it allows free bending within confined spaces.
Reduced overall cost: High production efficiency and relatively low cable cost make it an ideal solution for civilian wireless surveillance and WLAN antennas.
|
Temperature Range |
-55～+155℃(PE Cable -40～+85℃) |
|
Frequency Range |
DC～12.4GHz(Semi-Rigid Cable DC~18GHz) |
|
Insulation resistance |
≥5000MΩ |
|
Insertion loss |
≤0.15 dB/6GHz |
|
Voltage Standing Wave Ratio (VSWR) |
Straight Flexible cable≤1.10+0.02f |
|
Semi-Rigid Cable≤1.07+0.018f |
|
|
Right angle Flexible cable≤≤1.20+0.03f |
|
|
Semi-Rigid Cable≤≤1.17+0.02f |
|
|
Durability(mating) |
≥500 cycles |
