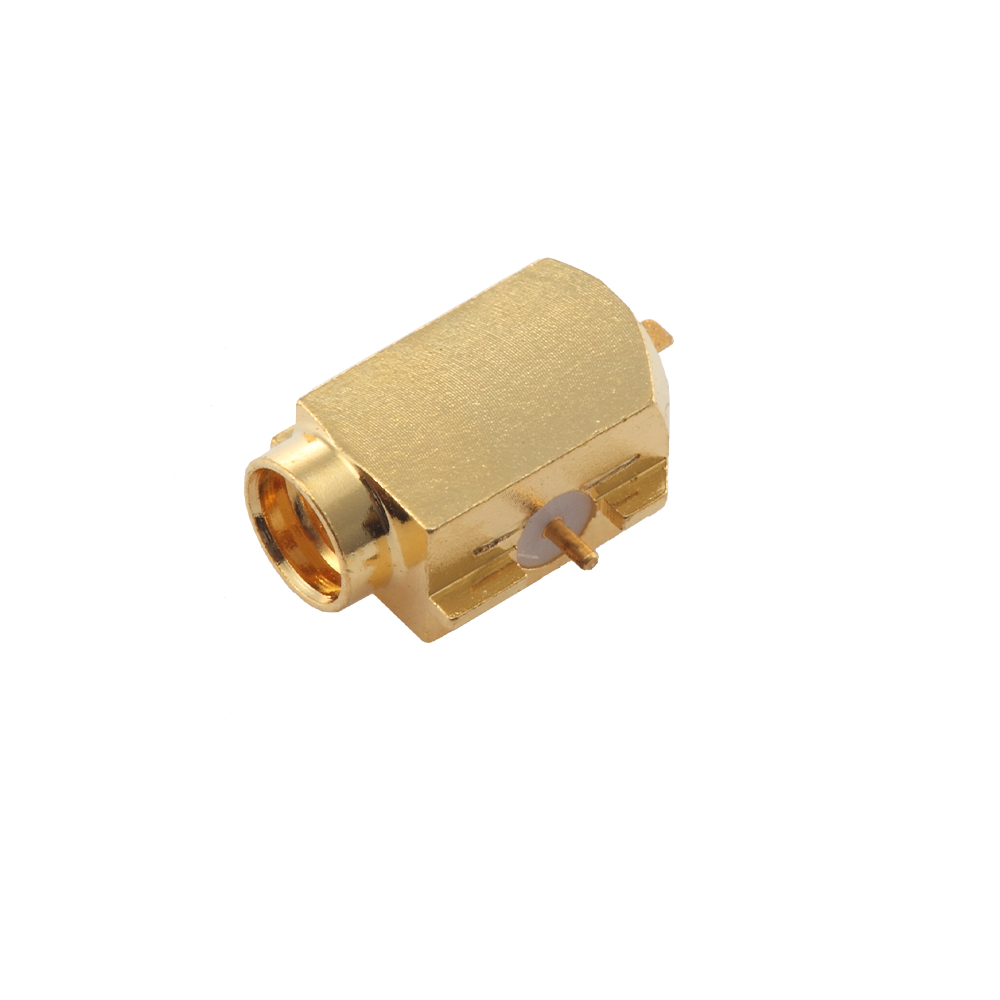

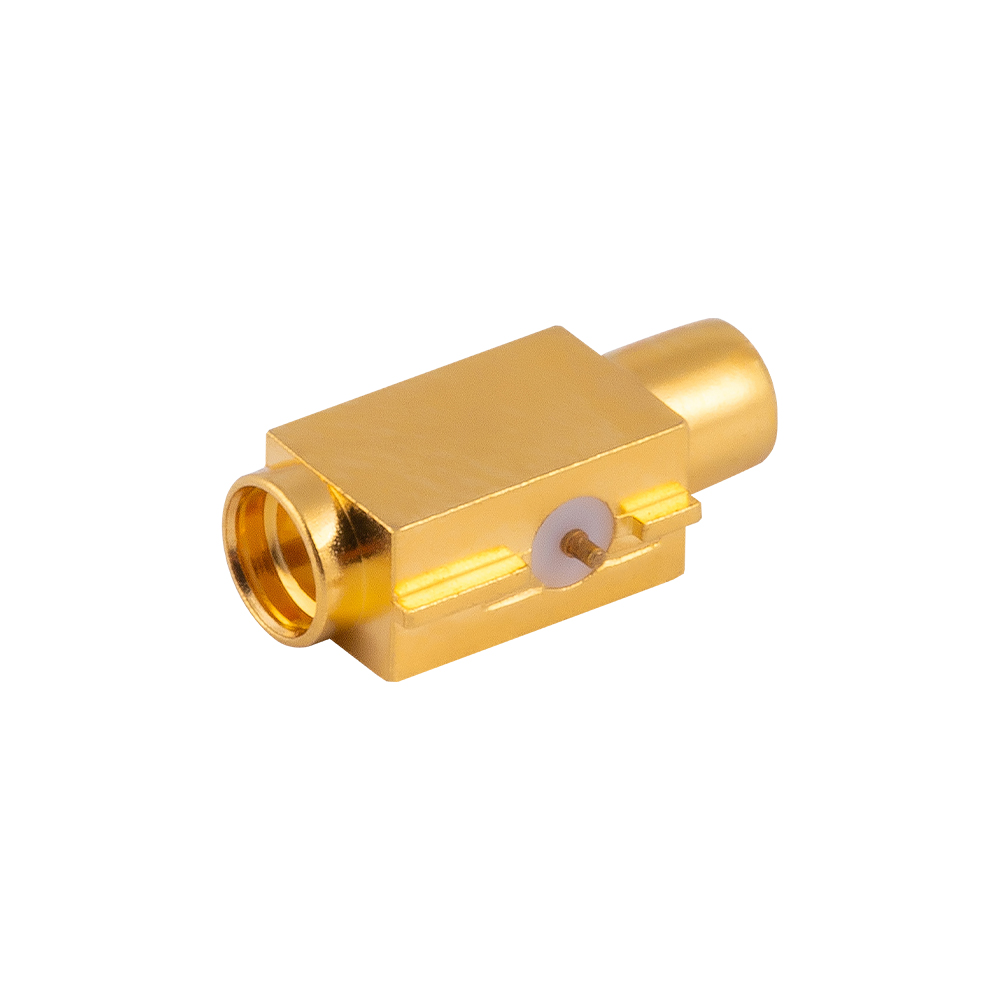

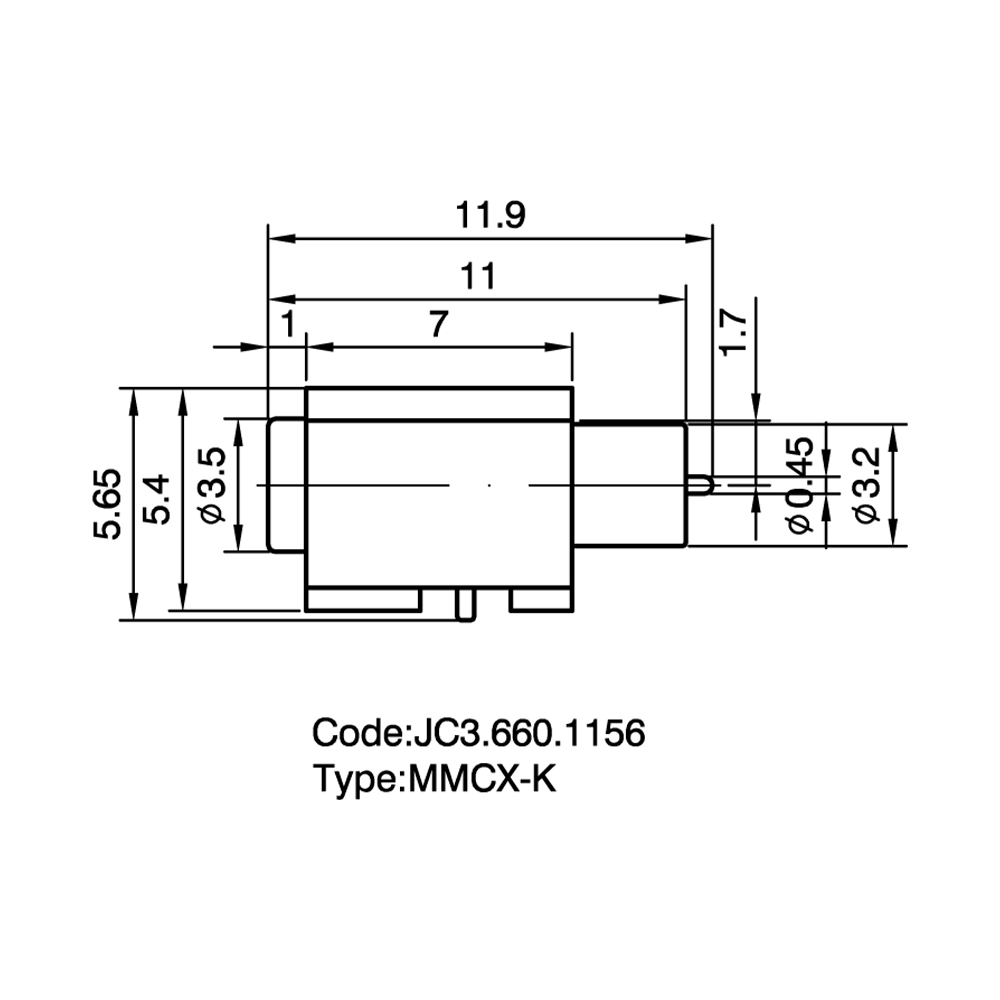

EnglishMMCX RF Coaxial Switch Socket
Product Introduction:
This is a special PCB socket with an integrated automatic switching function. When a plug is inserted, the internal mechanical structure automatically disconnects the onboard antenna link and switches the signal to an external test port.
Product Features:
Mechanical switch durability: The internal spring contacts are made of high-performance beryllium copper and have undergone tens of thousands of elastic fatigue tests, ensuring precise and reliable switching action.
High isolation: In the disconnected state, the ports provide extremely high isolation, preventing signal interference and false detection.
Compact package: Complex mechanical switching functions are realized within a very small form factor, suitable for automated SMT assembly.
Application Advantages:
Automated production line testing: RF performance calibration and conducted testing can be performed through the switch socket without disassembling the enclosure.
Multi-function switching: Enables easy switching between built-in antennas and external high-gain antennas, enhancing device flexibility.
|
Temperature Range |
-55～+155℃(PE Cable -40～+85℃) |
|
Impedance |
50Ω |
|
Frequency Range |
DC～6GHz |
|
Insulation resistance |
≥1000MΩ |
|
Insertion loss |
0.18 dB/1GHz |
|
Voltage Standing Wave Ratio (VSWR) |
Straight ≤1.25/3GHz |
|
|
Right angle ≤1.43/3GHz |
|
Durability(mating) |
≥500 cycles |
