EnglishMMCX PCB Connectors
Product Introduction:

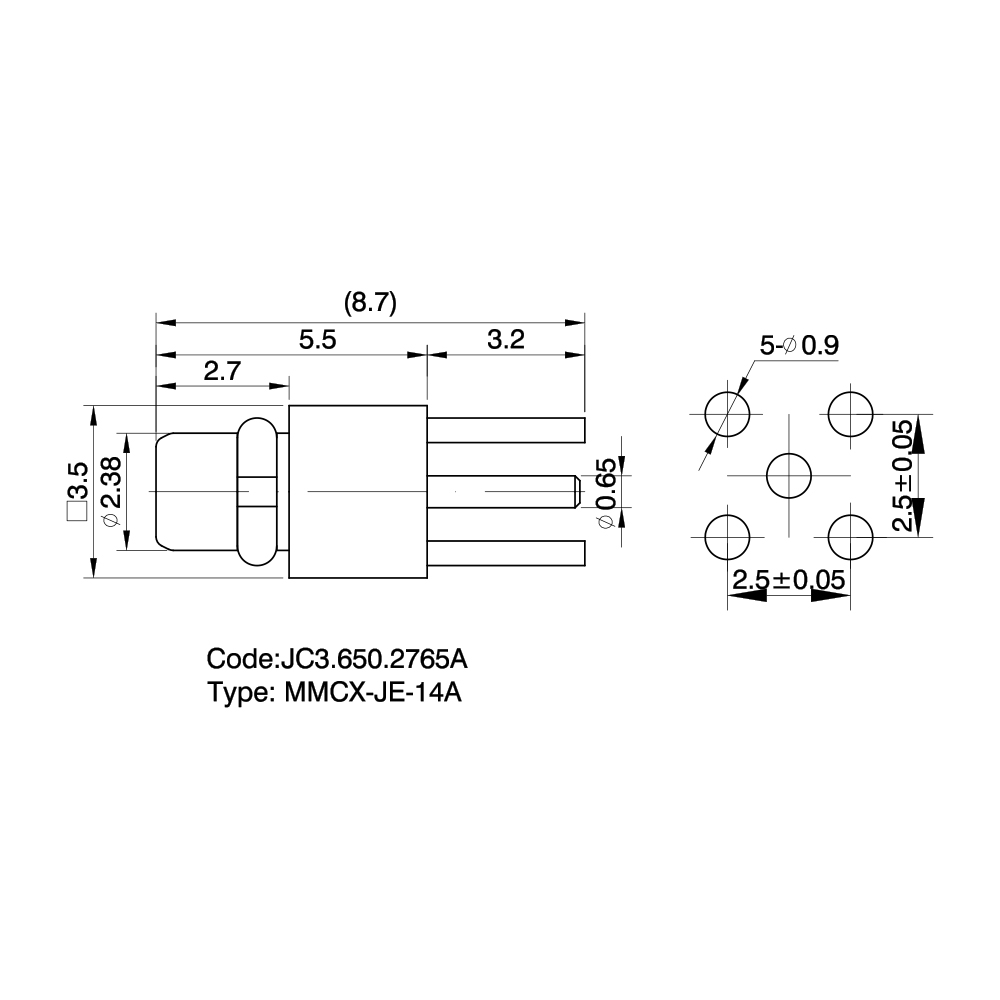

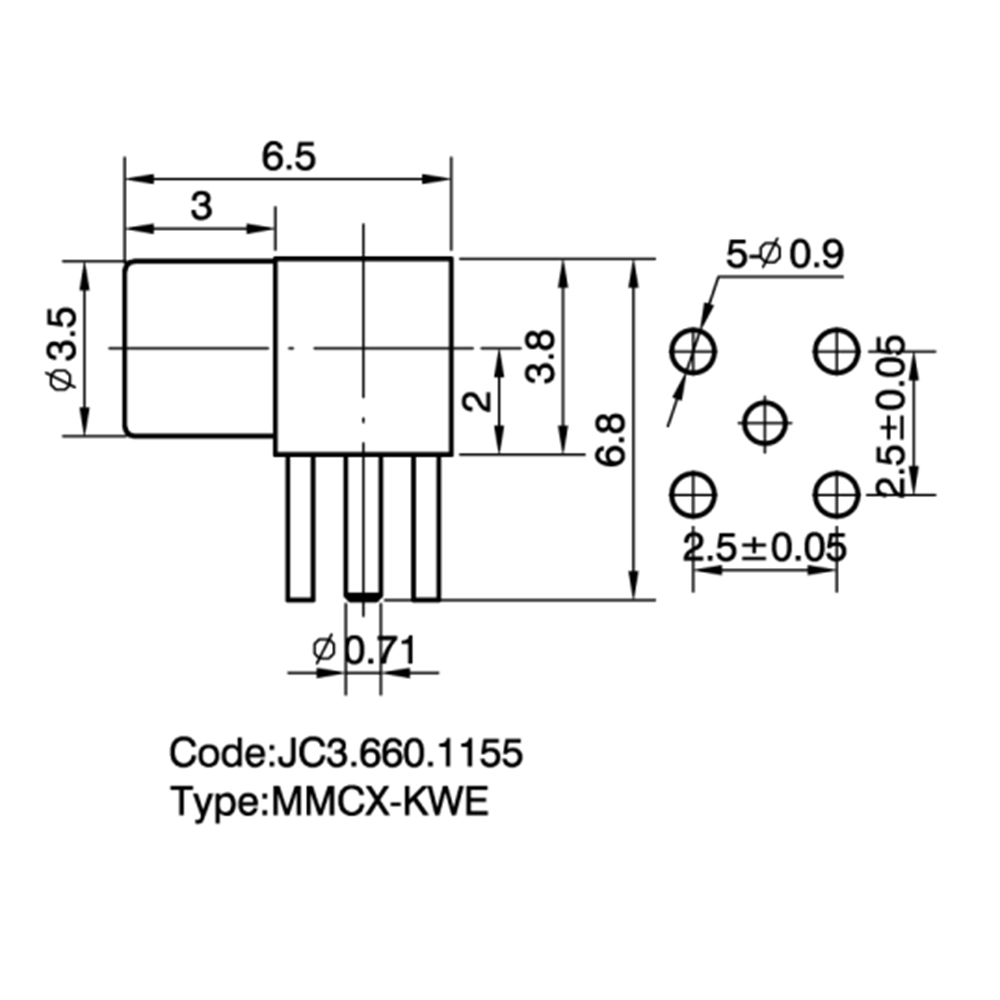

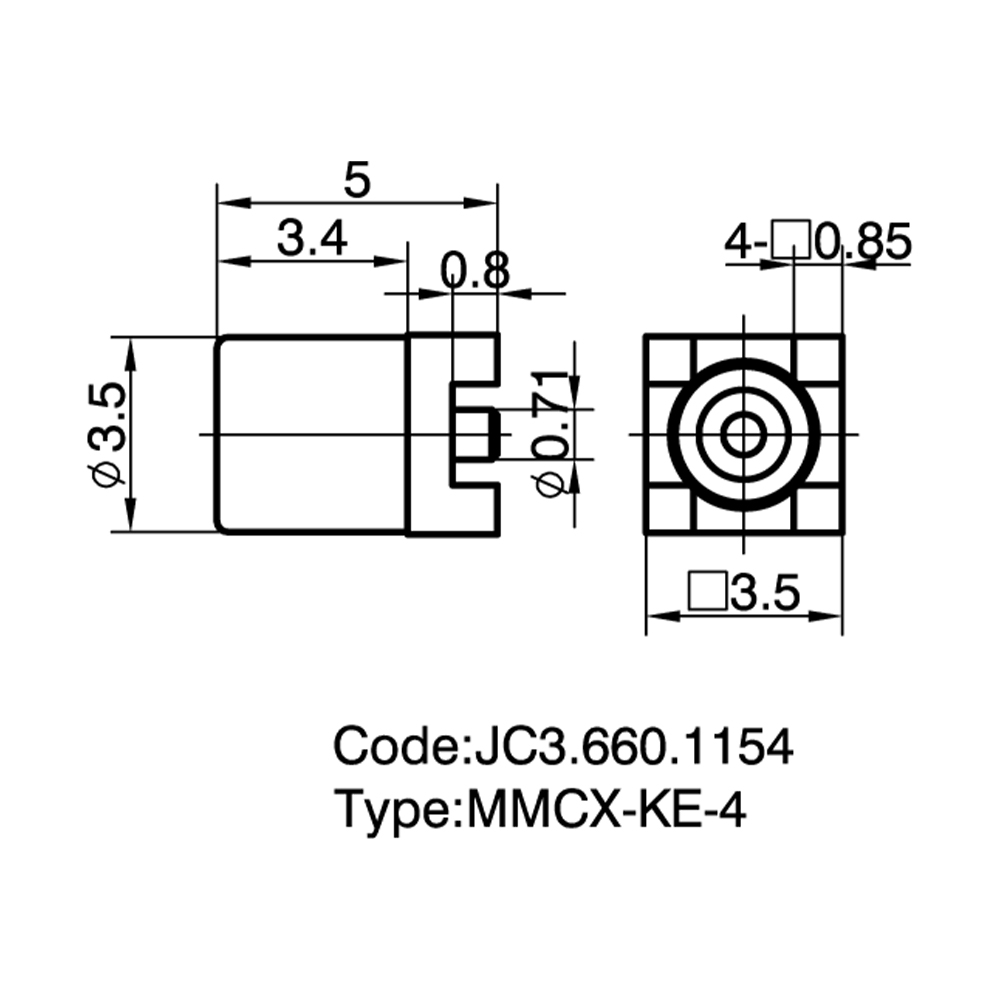

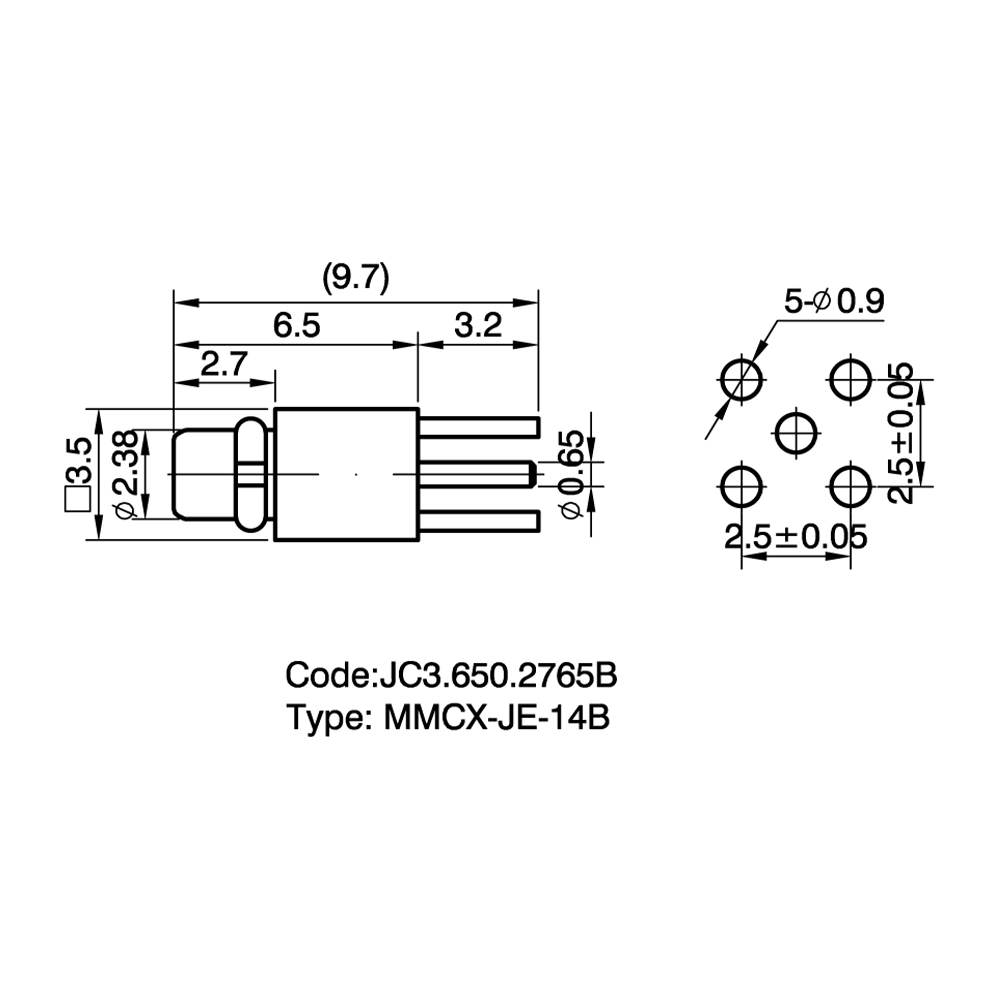

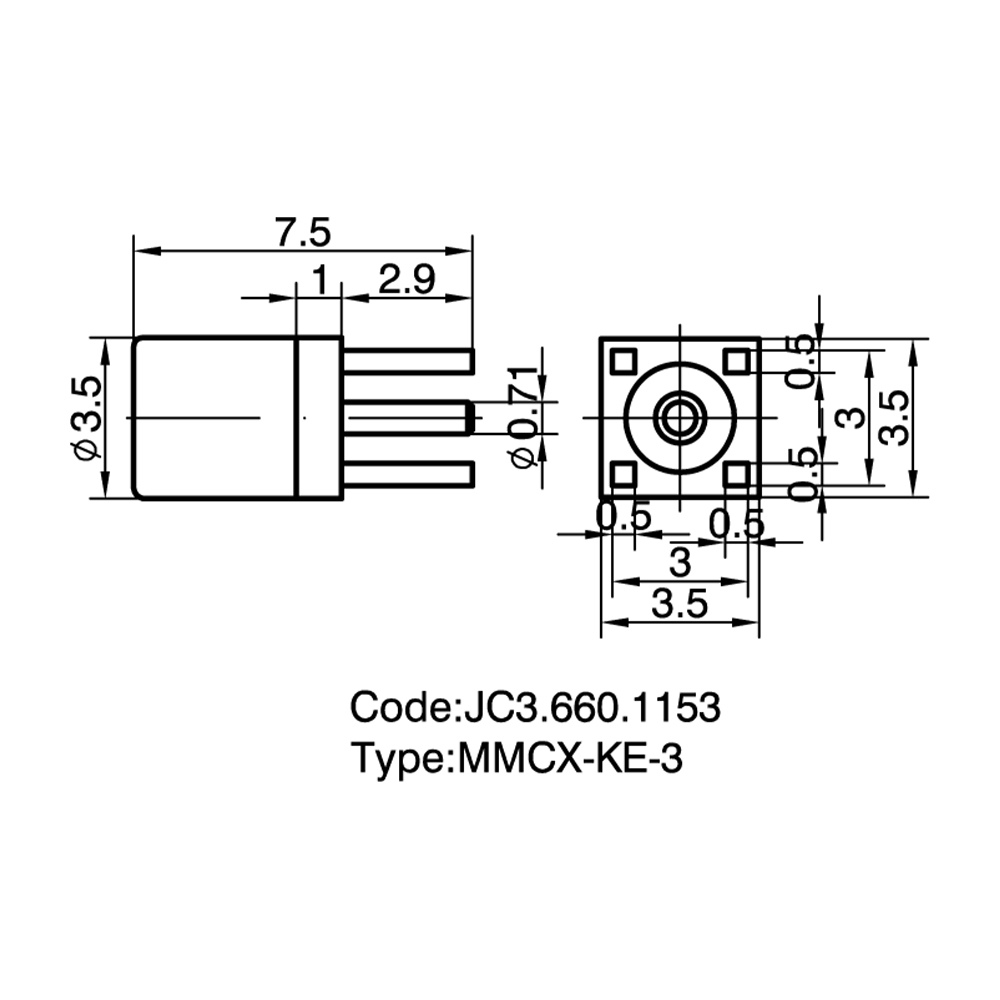

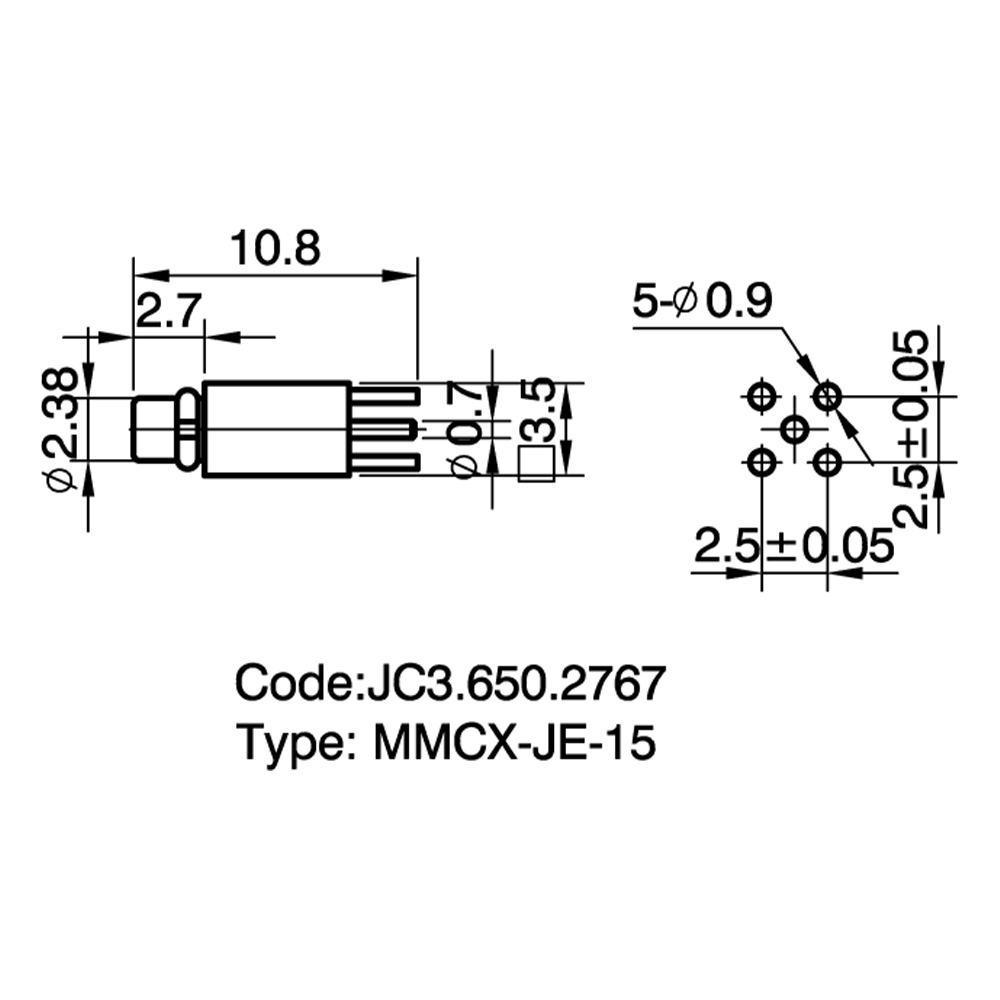

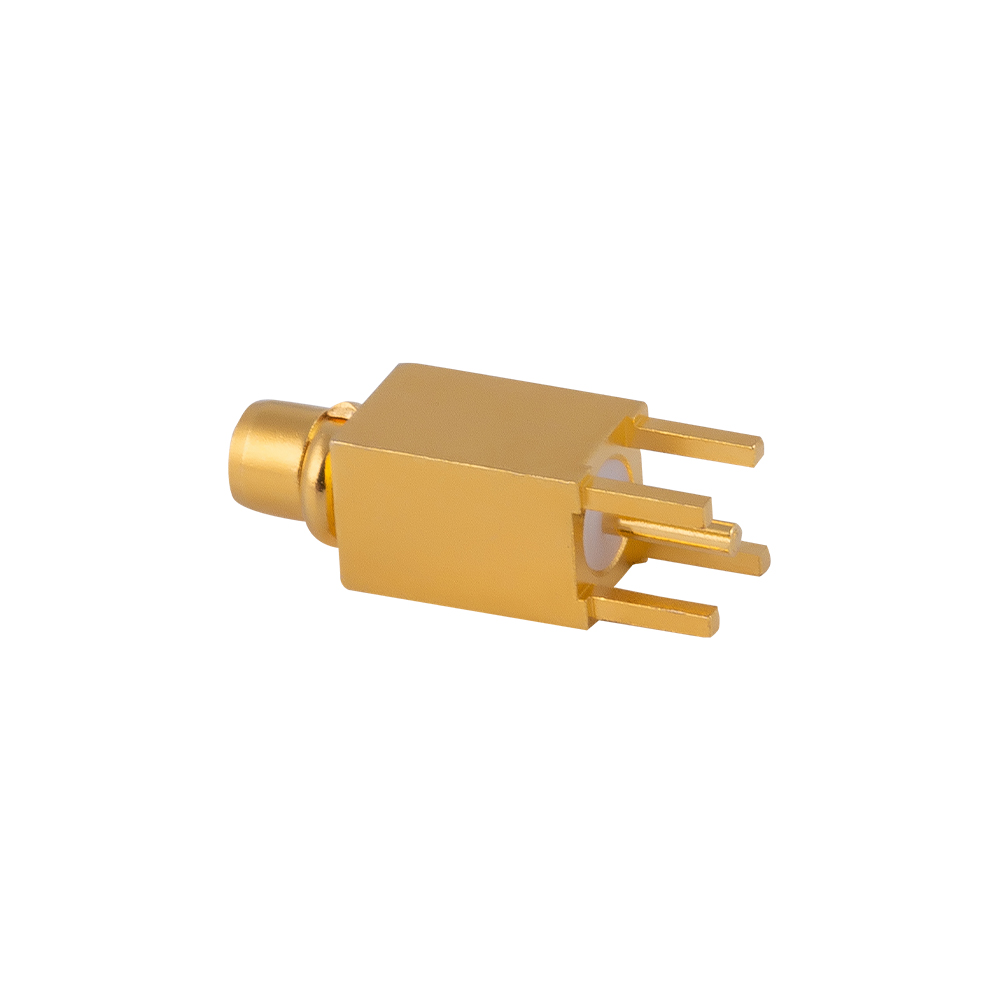

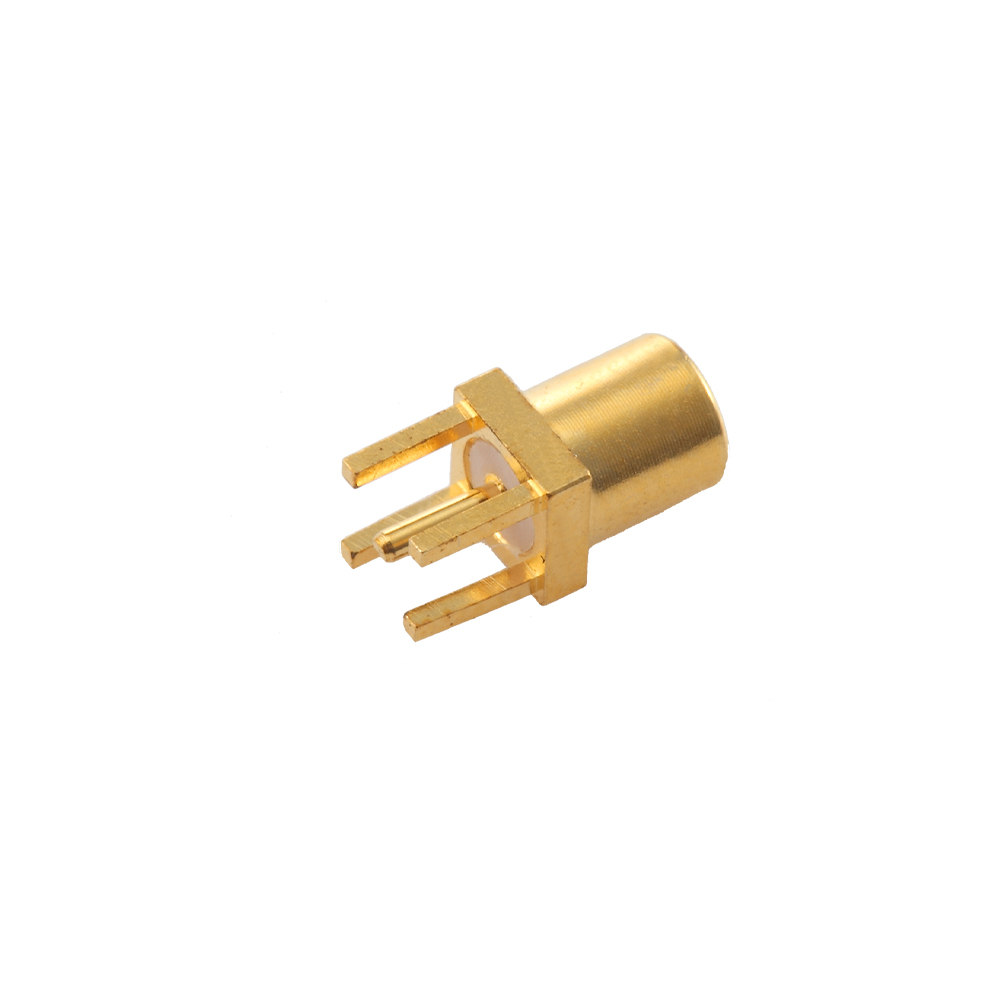

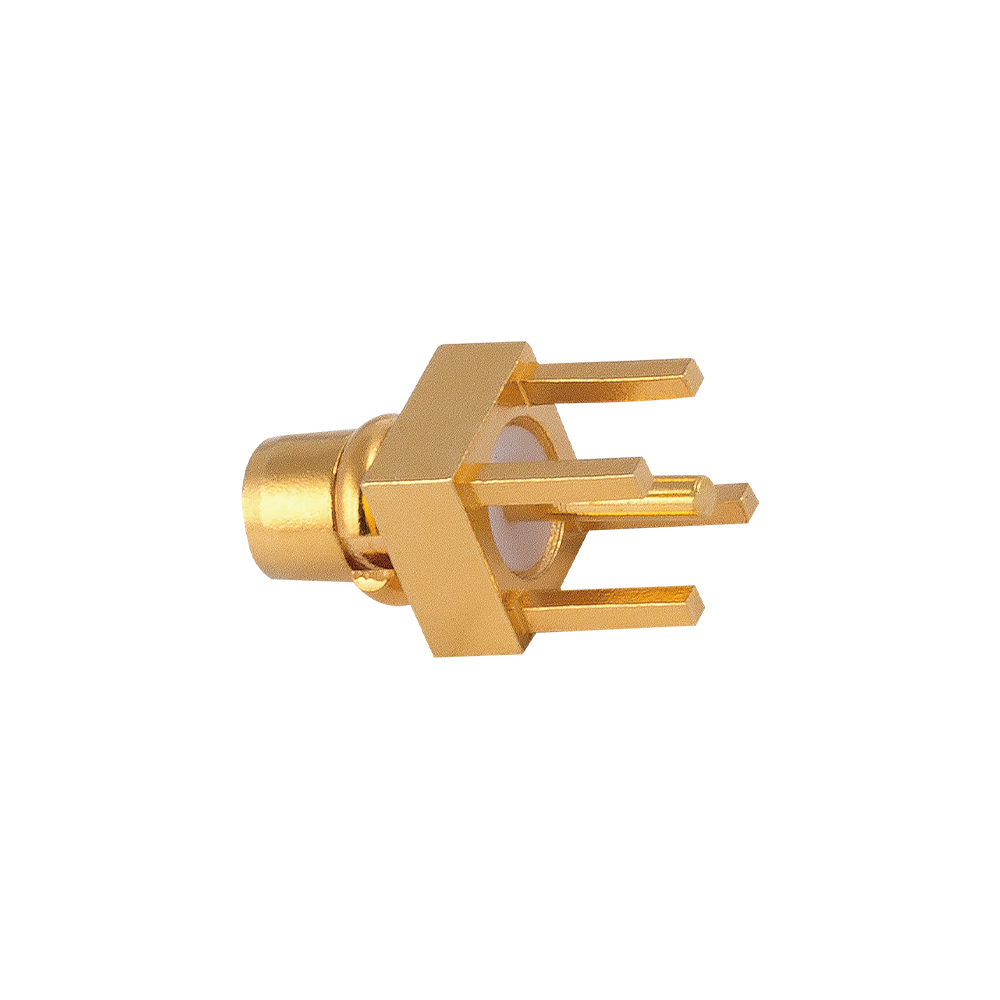

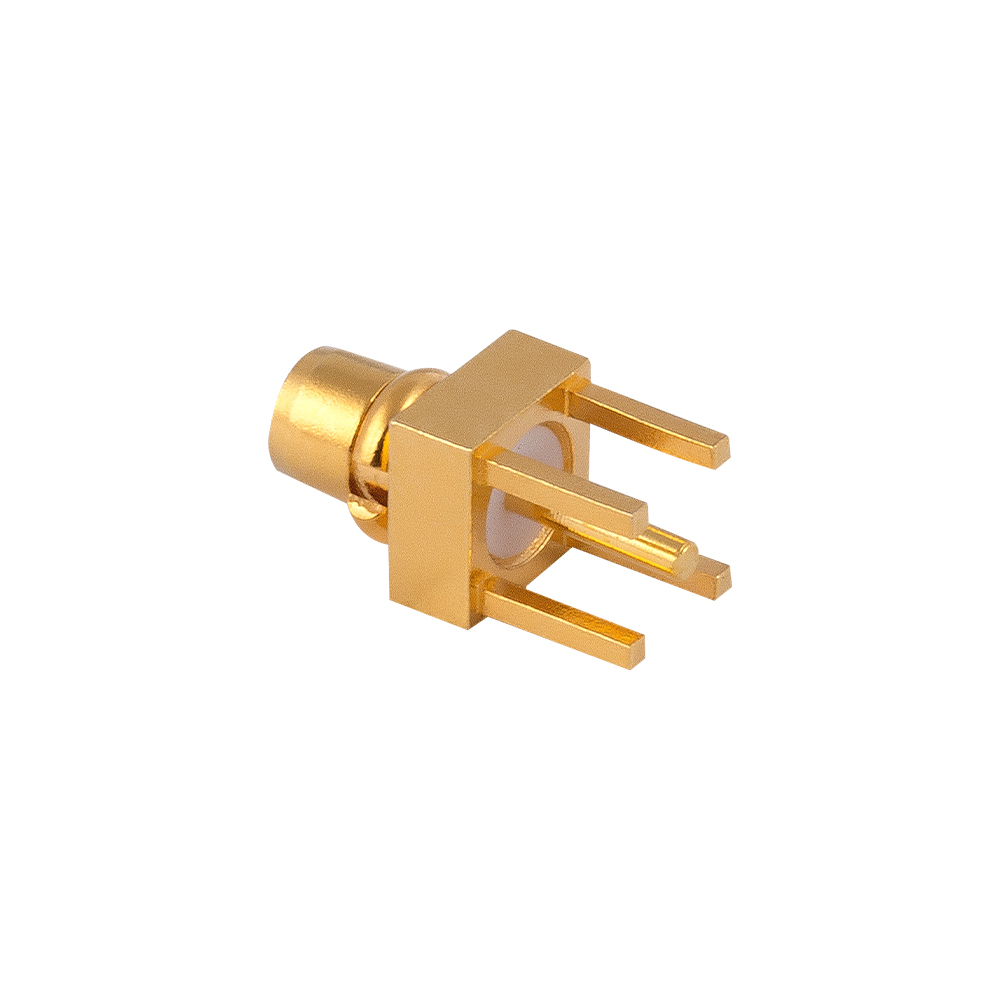

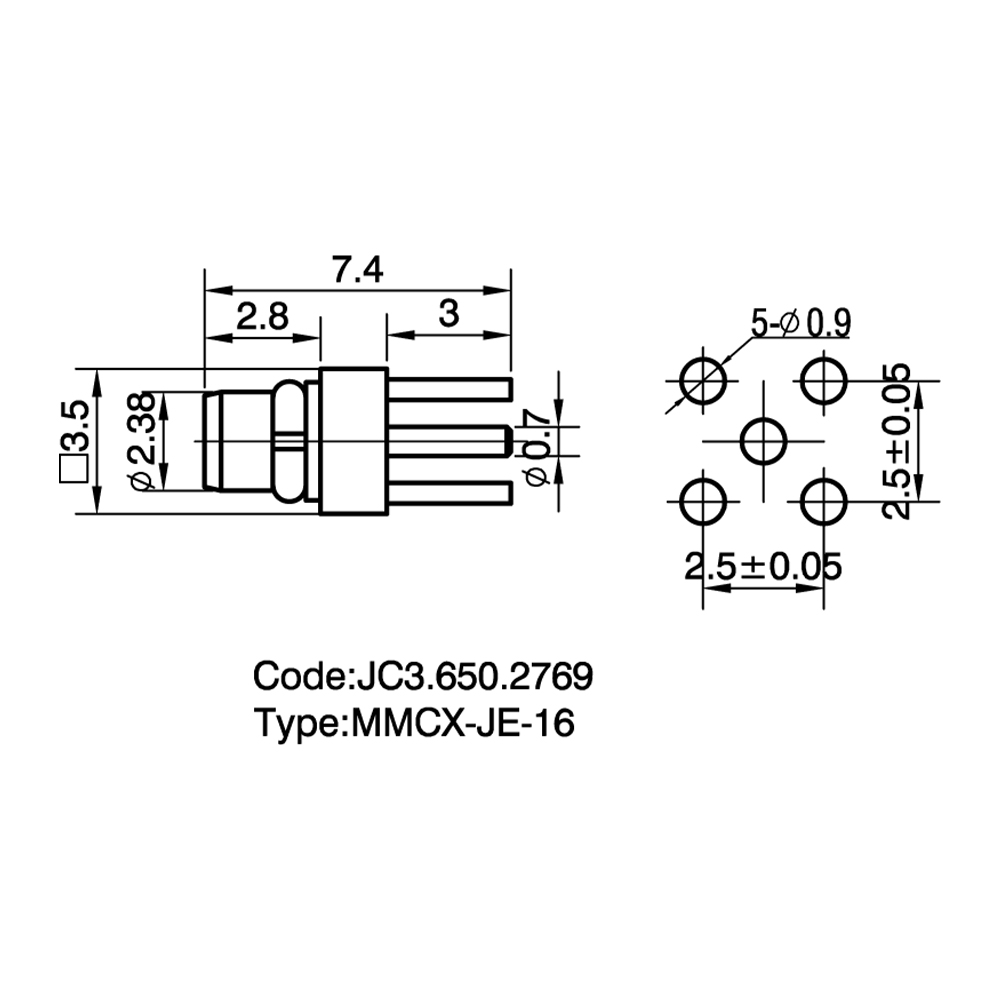

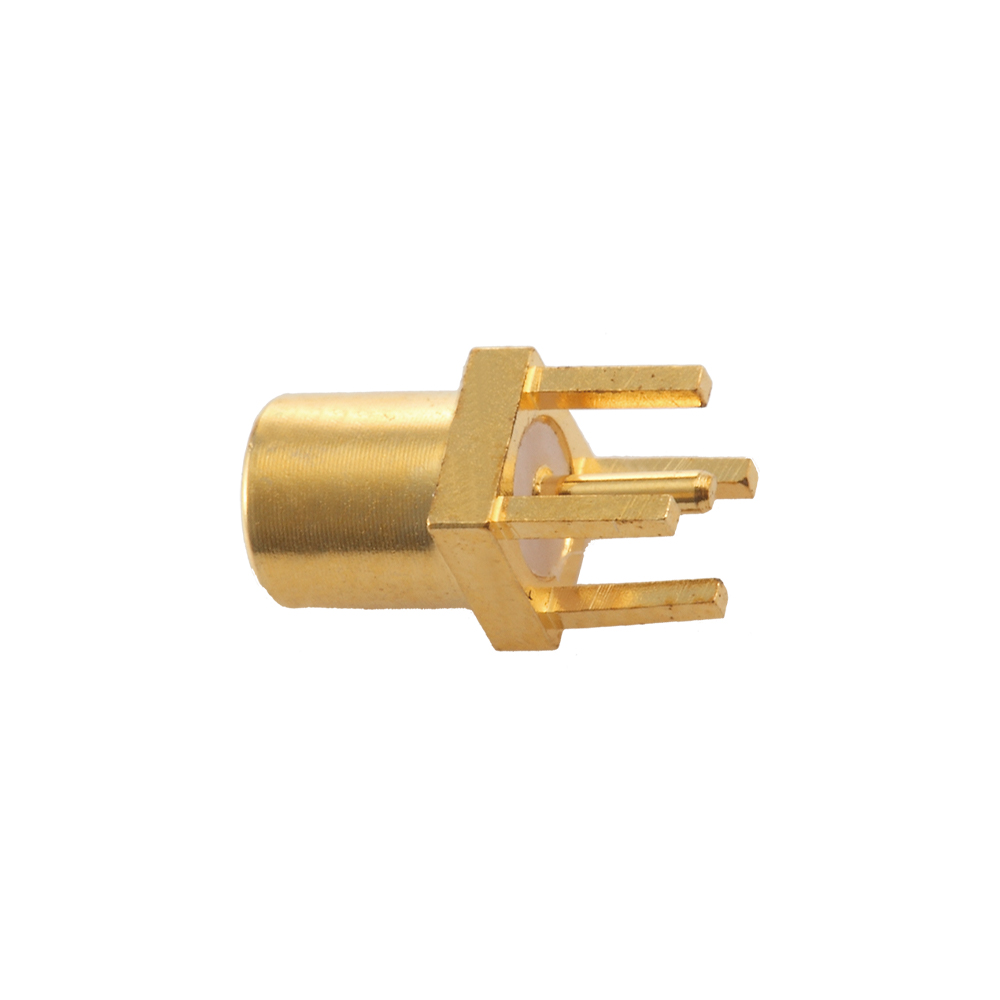

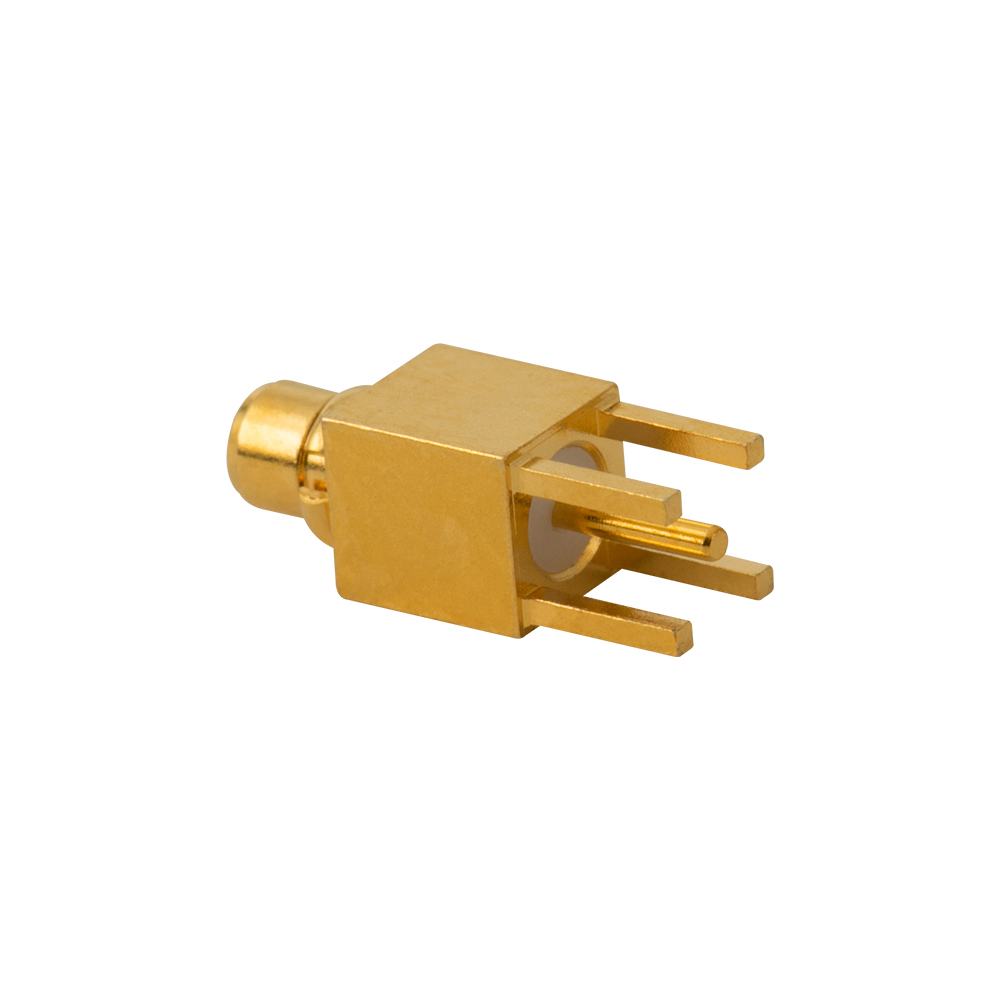

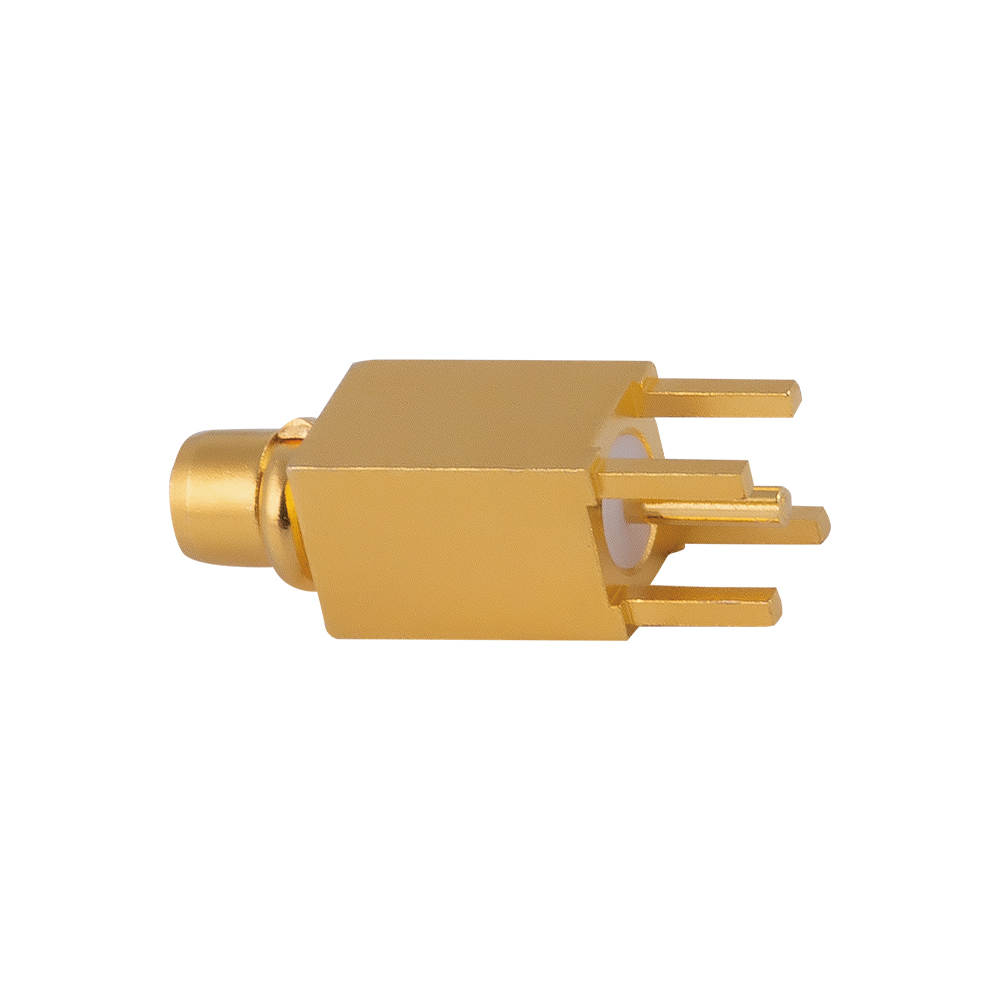

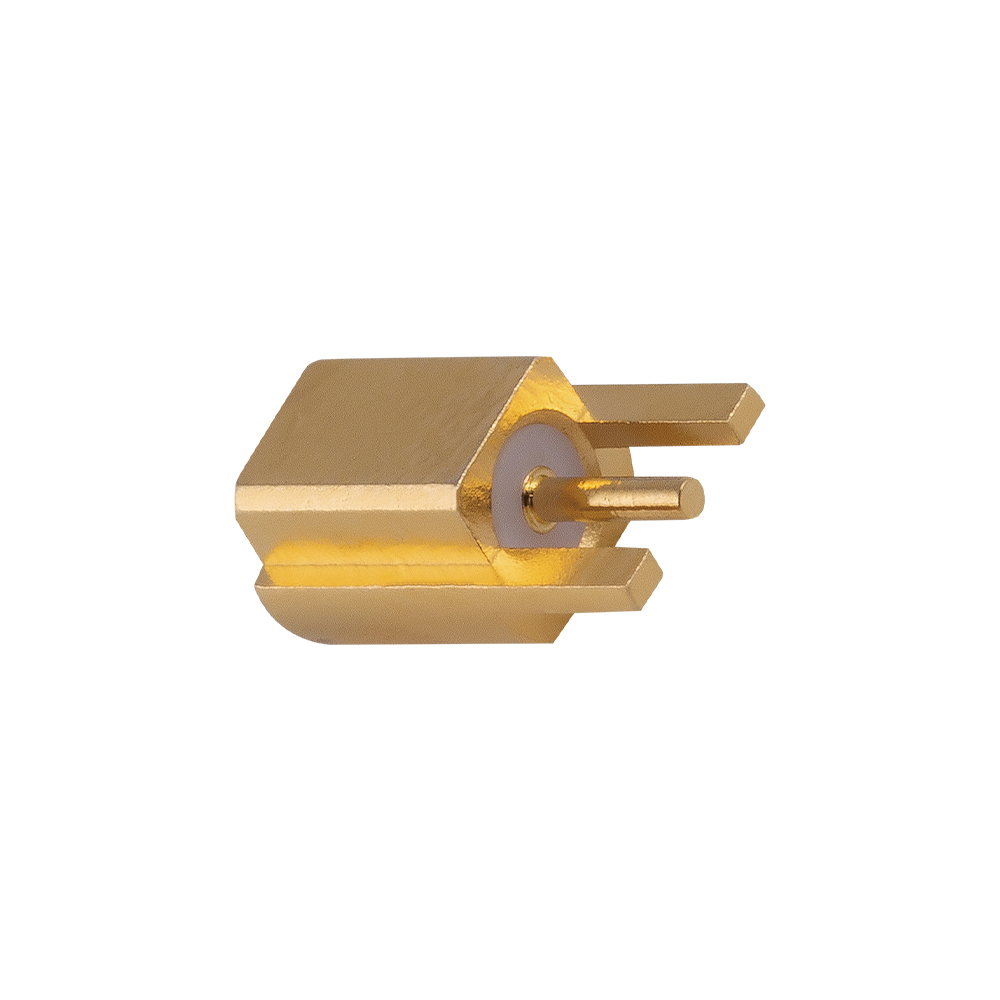

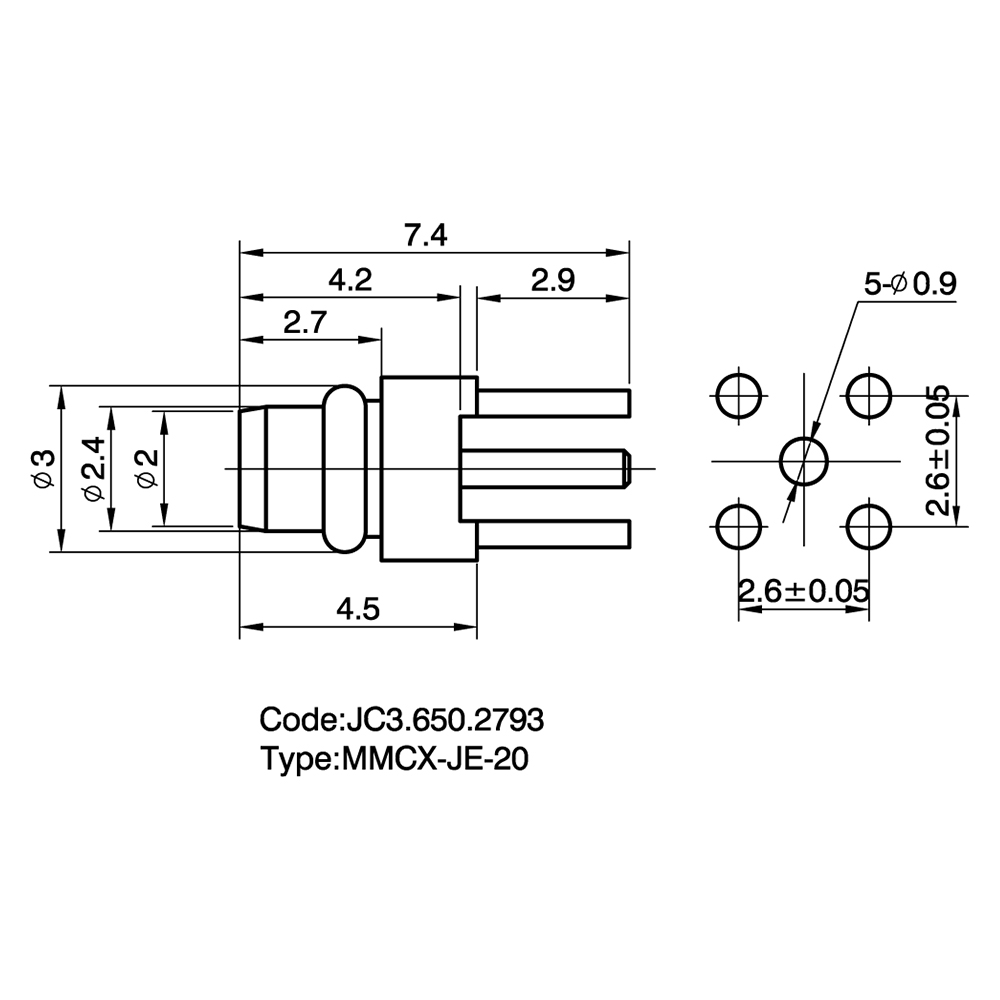

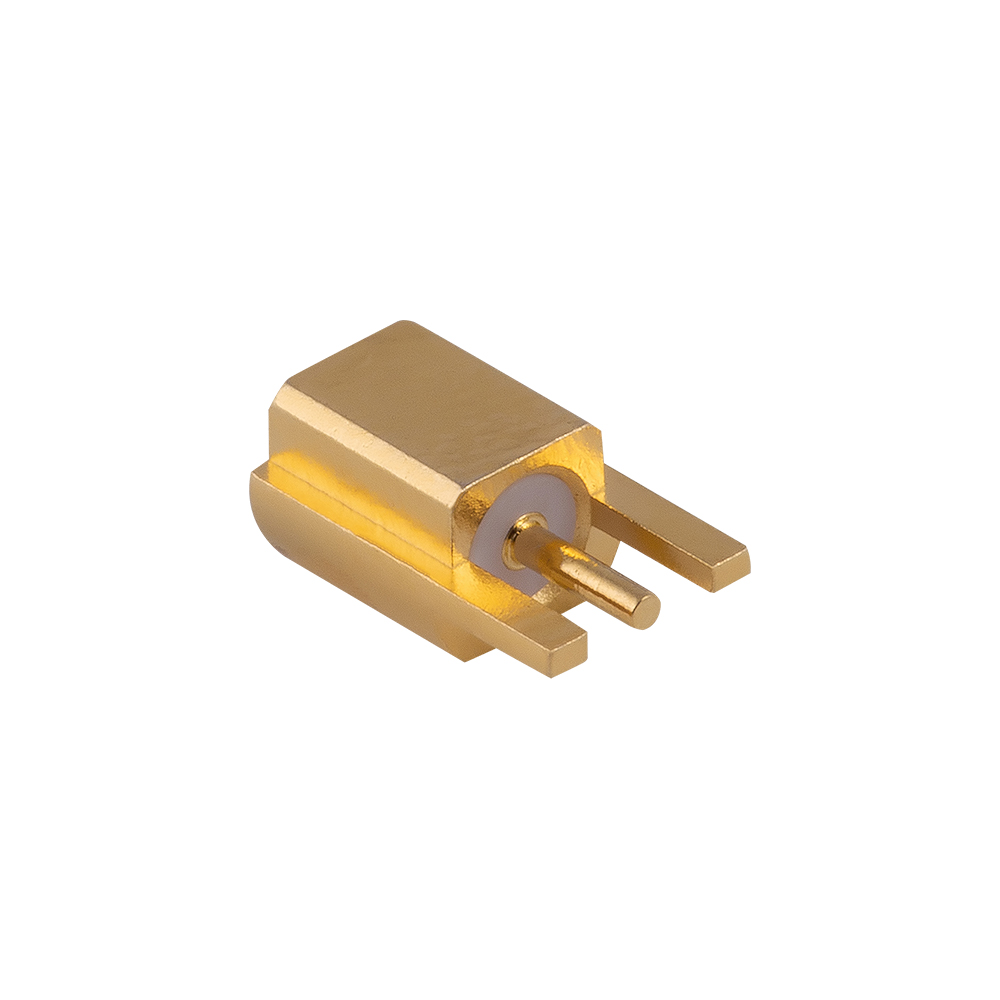

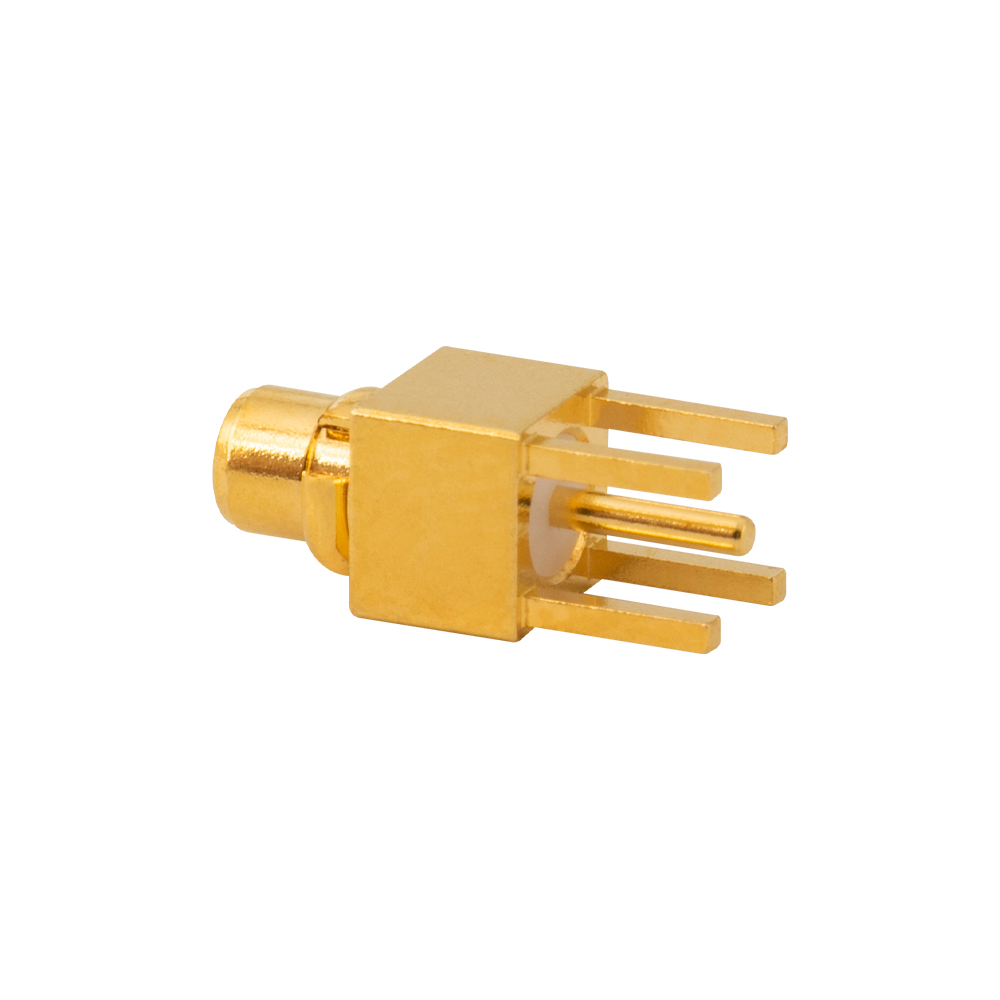

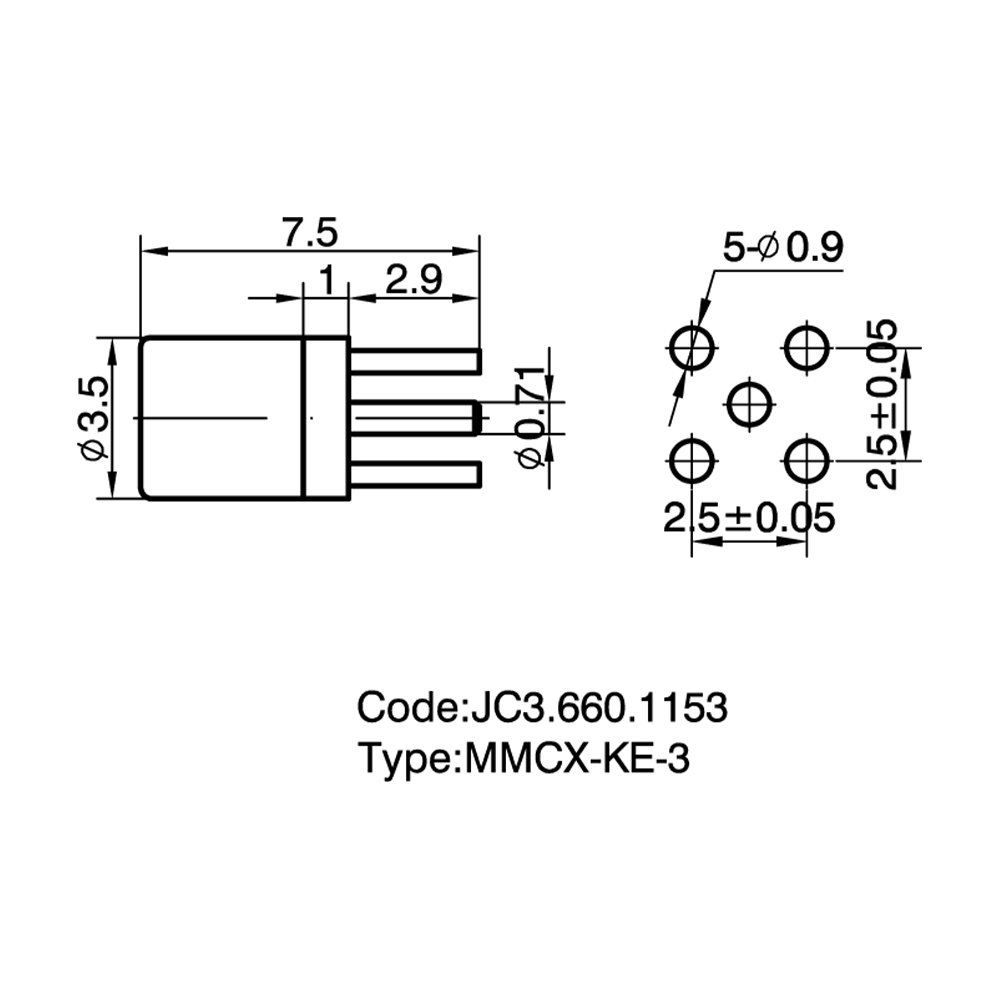

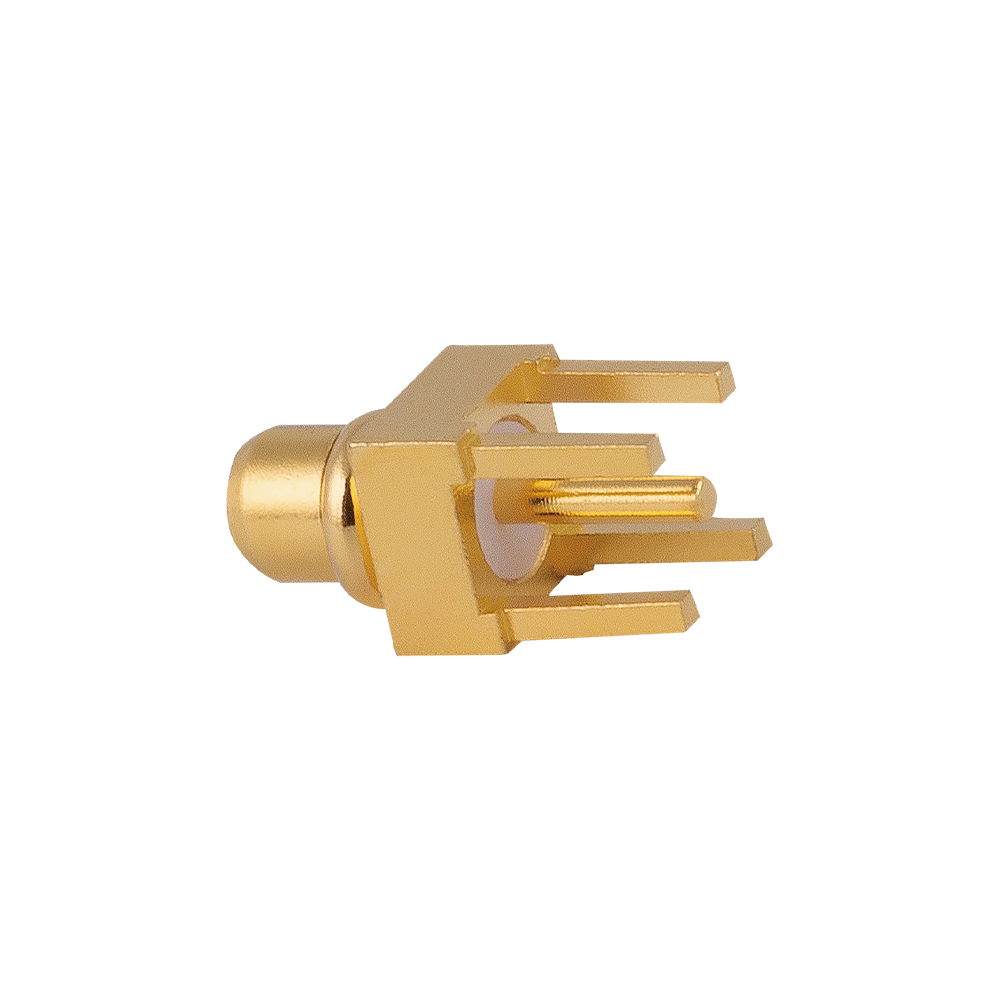

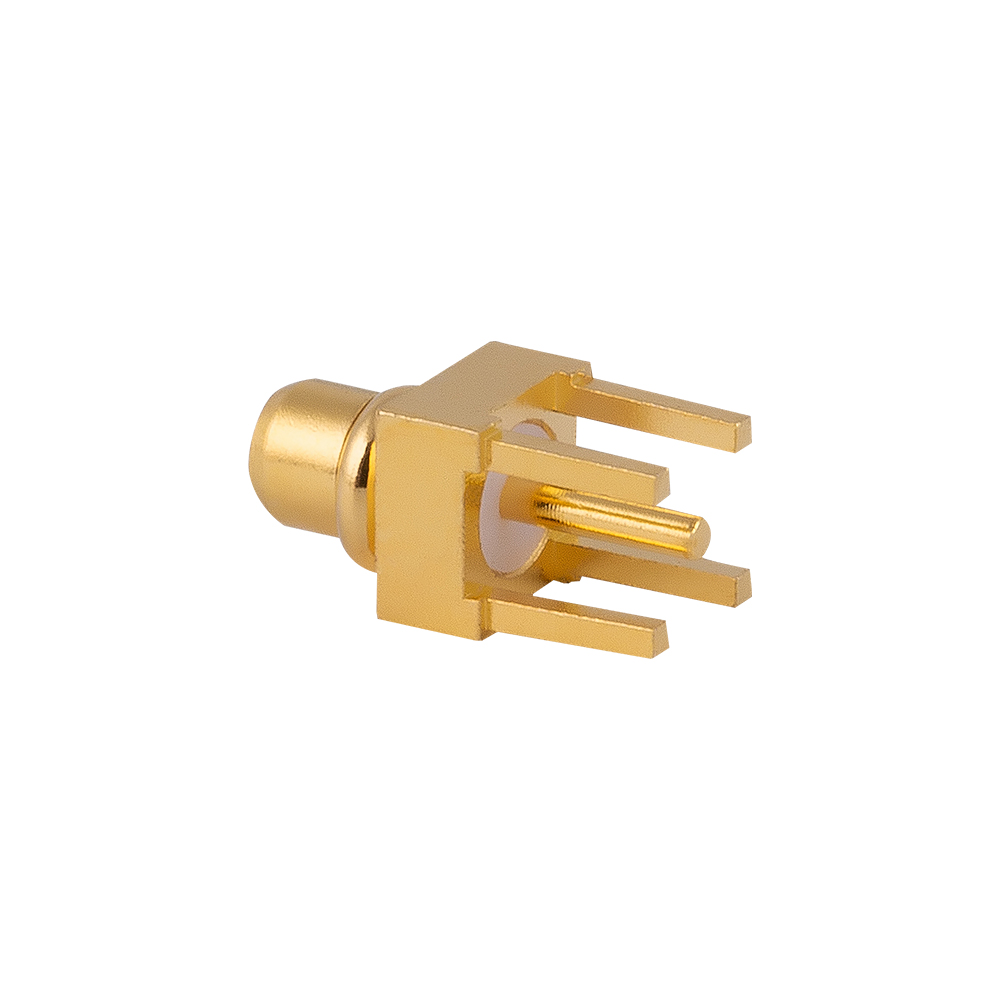

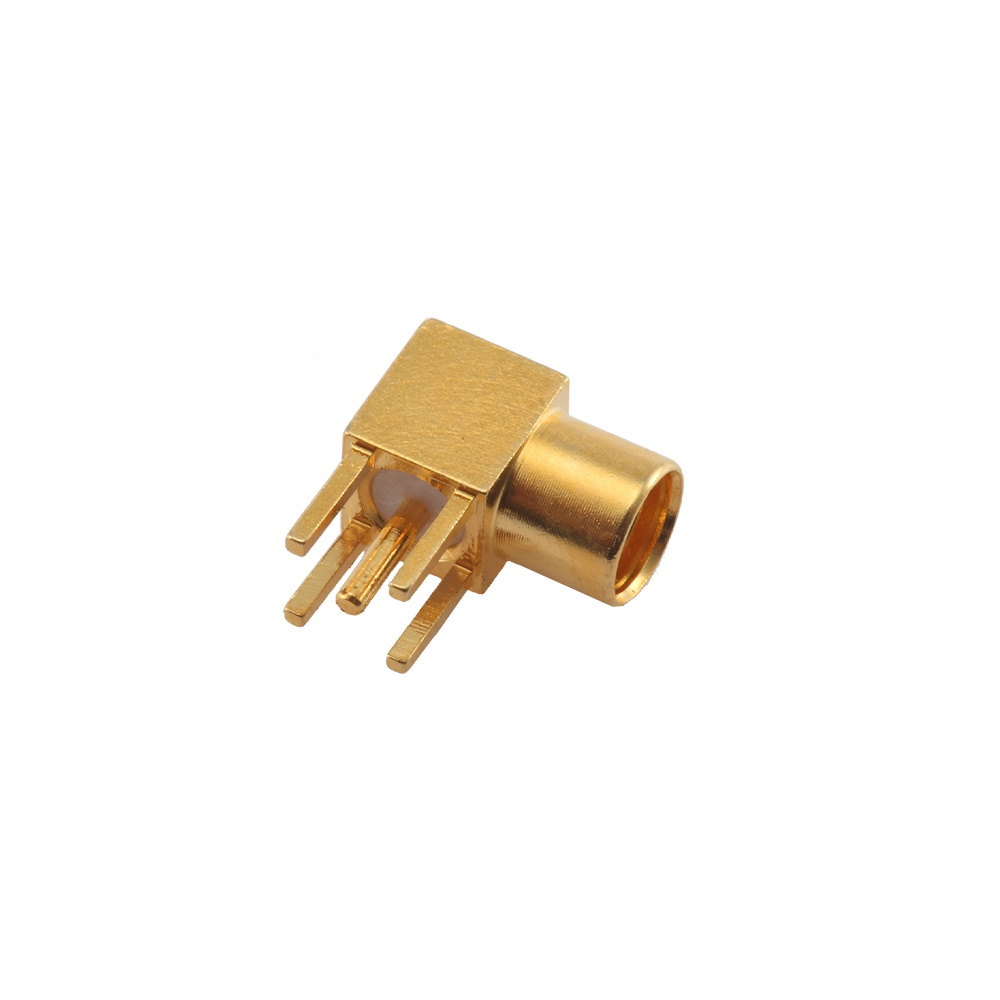

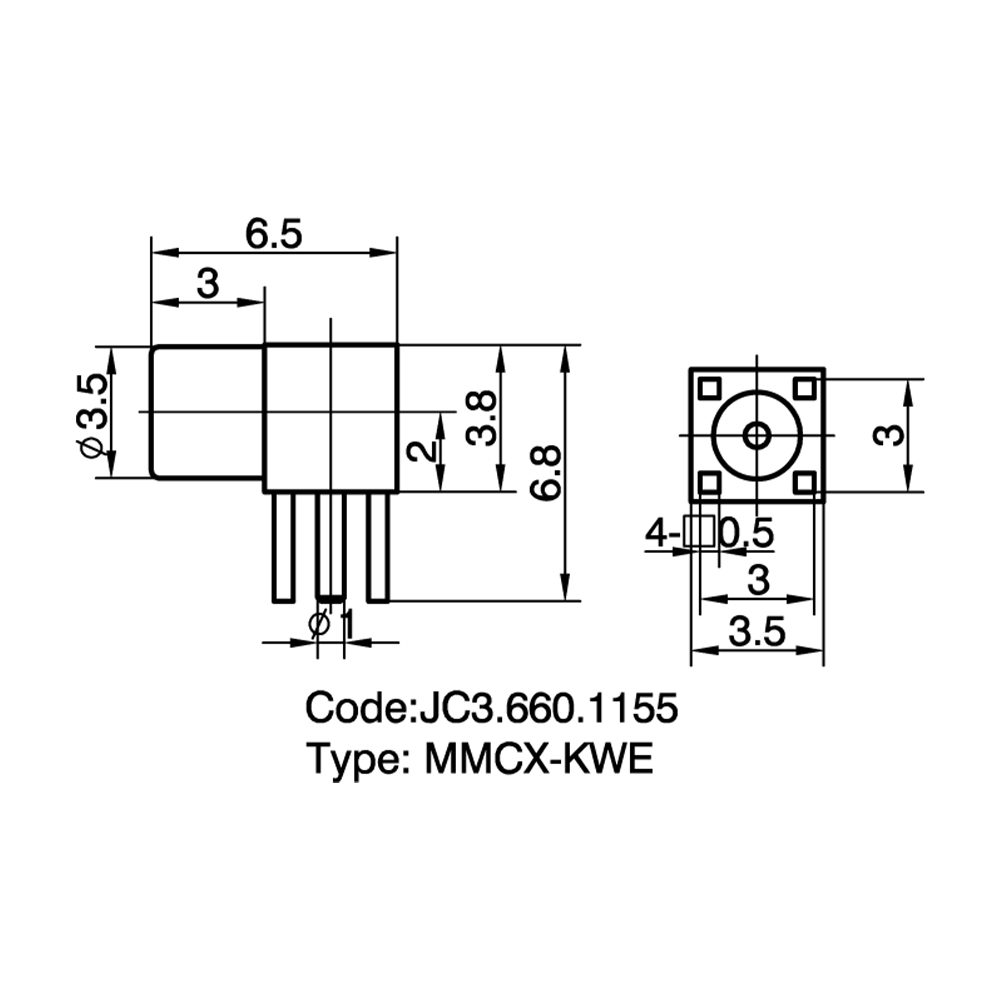

Provides multiple PCB mounting options, including straight, right-angle, and edge-mount types.
Product Features:
Ultra-low insertion loss design: The center pin uses a thick gold-plating process, significantly reducing contact resistance.

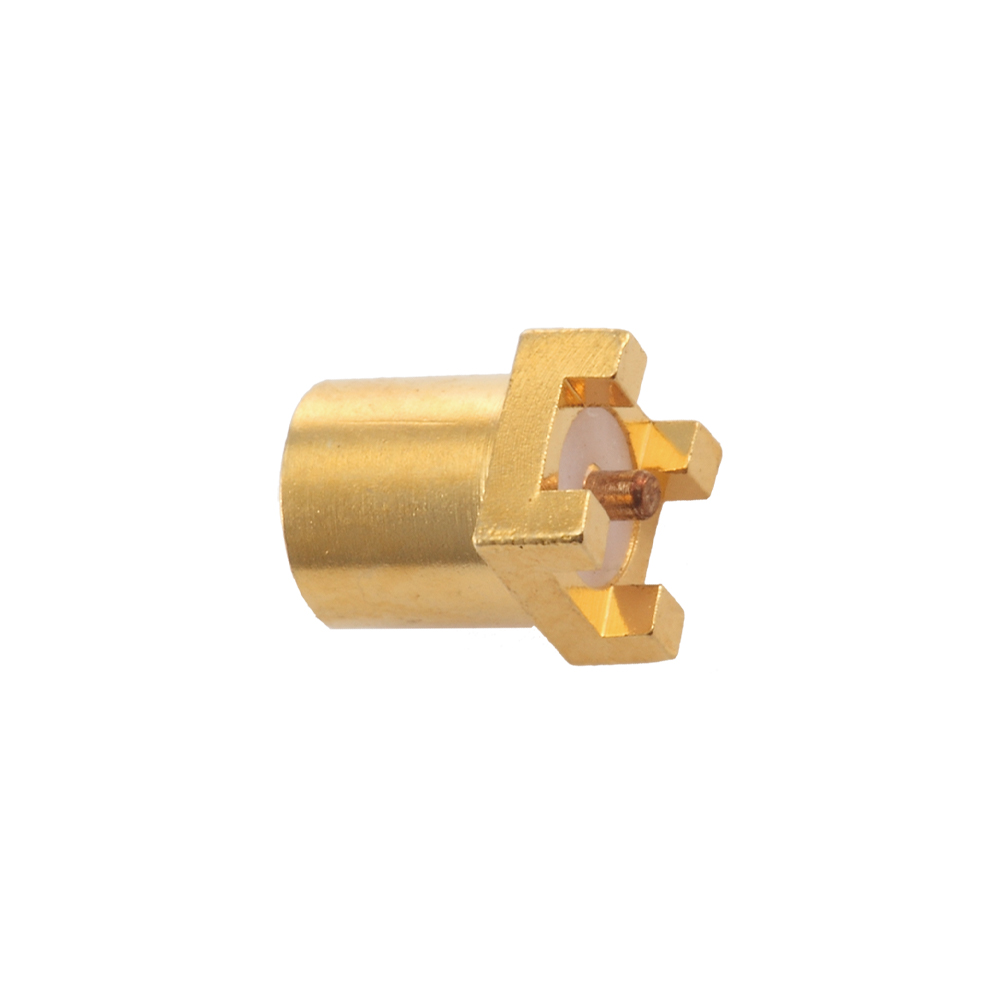

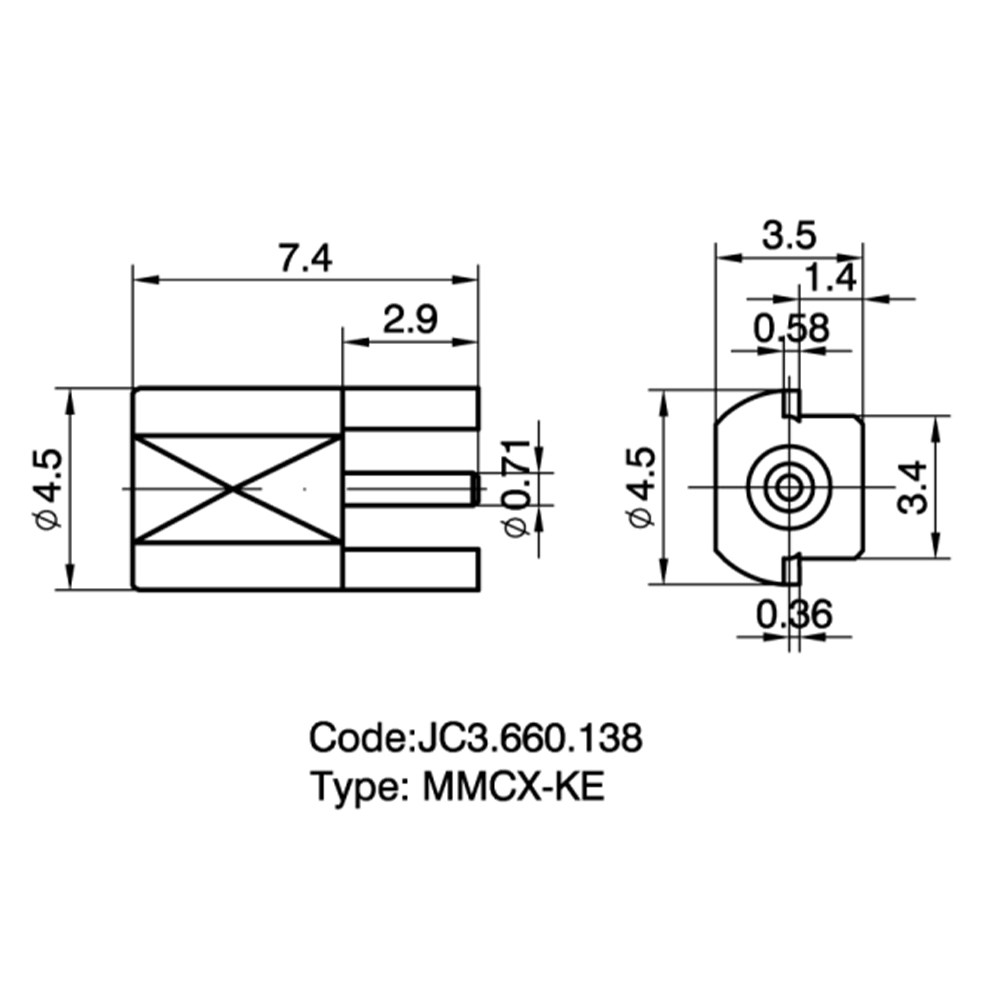

Board-edge optimization: The edge-mount connector is specifically designed for thin PCBs, allowing seamless edge integration and reducing vertical height.
Excellent thermal performance: High-performance PTFE insulating material maintains stable impedance even under long-term high-power transmission.
Application Advantages:
High-density PCB layout: More RF interfaces can be arranged within a 10 mm² area, serving as a key component for implementing MIMO (Multiple Input Multiple Output) technology.
Reduced production cost: Standardized pin design is compatible with mainstream PCB layouts and supports reflow soldering, improving yield in mass production.
|
Temperature Range |
-55～+155℃(PE Cable -40～+85℃) |
|
Impedance |
50Ω |
|
Frequency Range |
DC～6GHz |
|
Insulation resistance |
≥1000MΩ |
|
Insertion loss |
0.18 dB/1GHz |
|
Voltage Standing Wave Ratio (VSWR) |
Straight ≤1.25/3GHz |
|
|
Right angle ≤1.43/3GHz |
|
Durability(mating) |
≥500 cycles |
