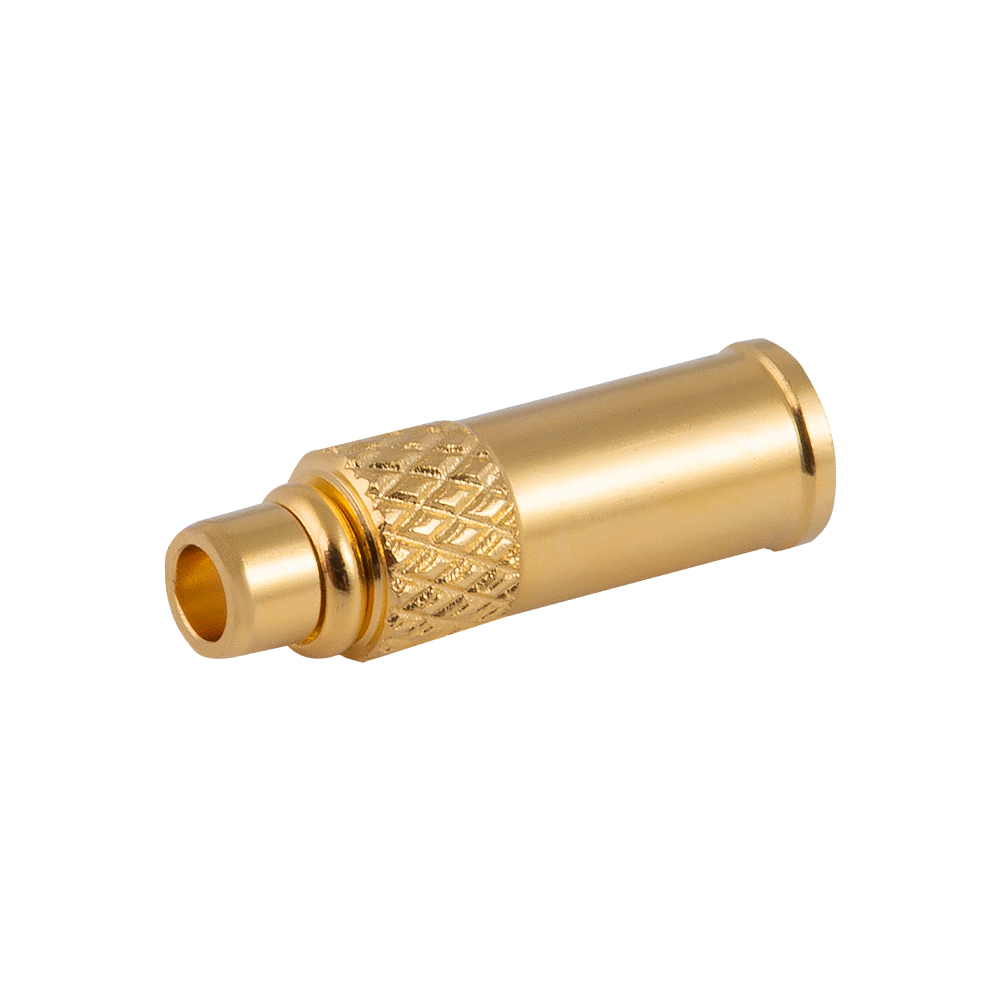

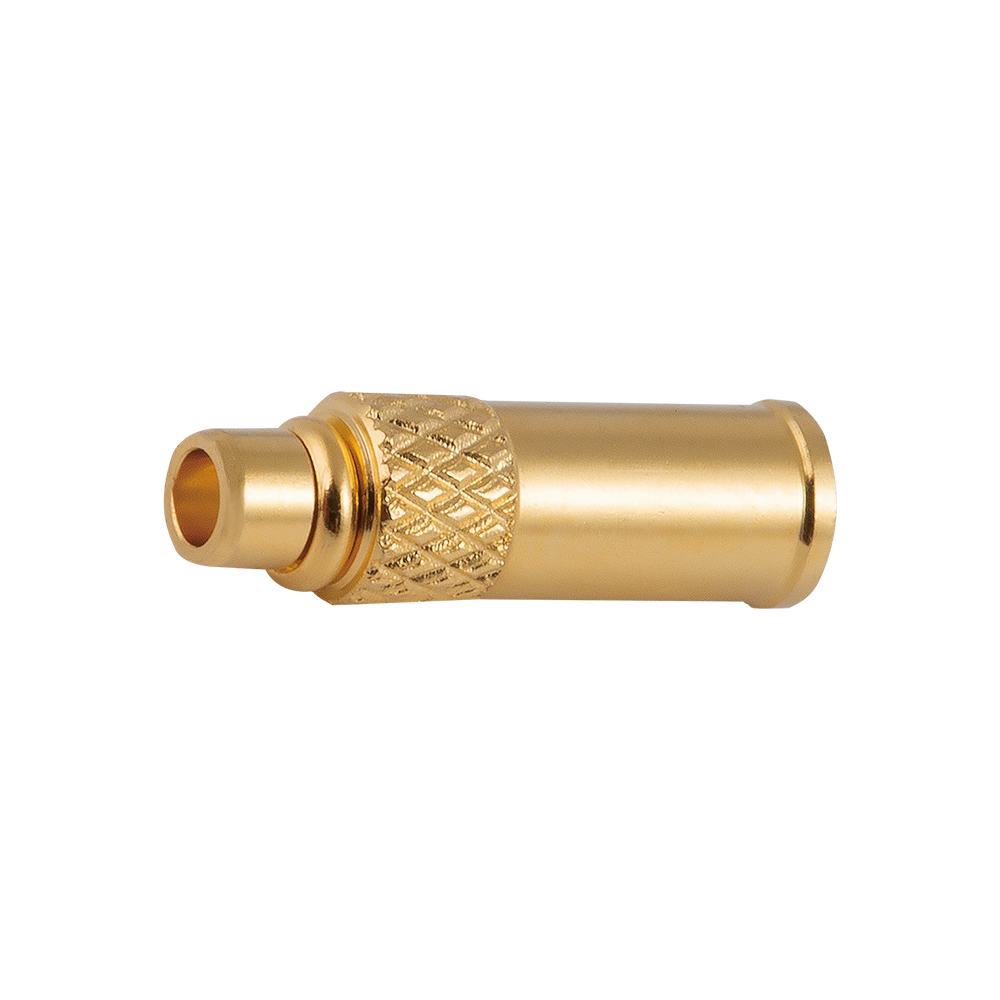

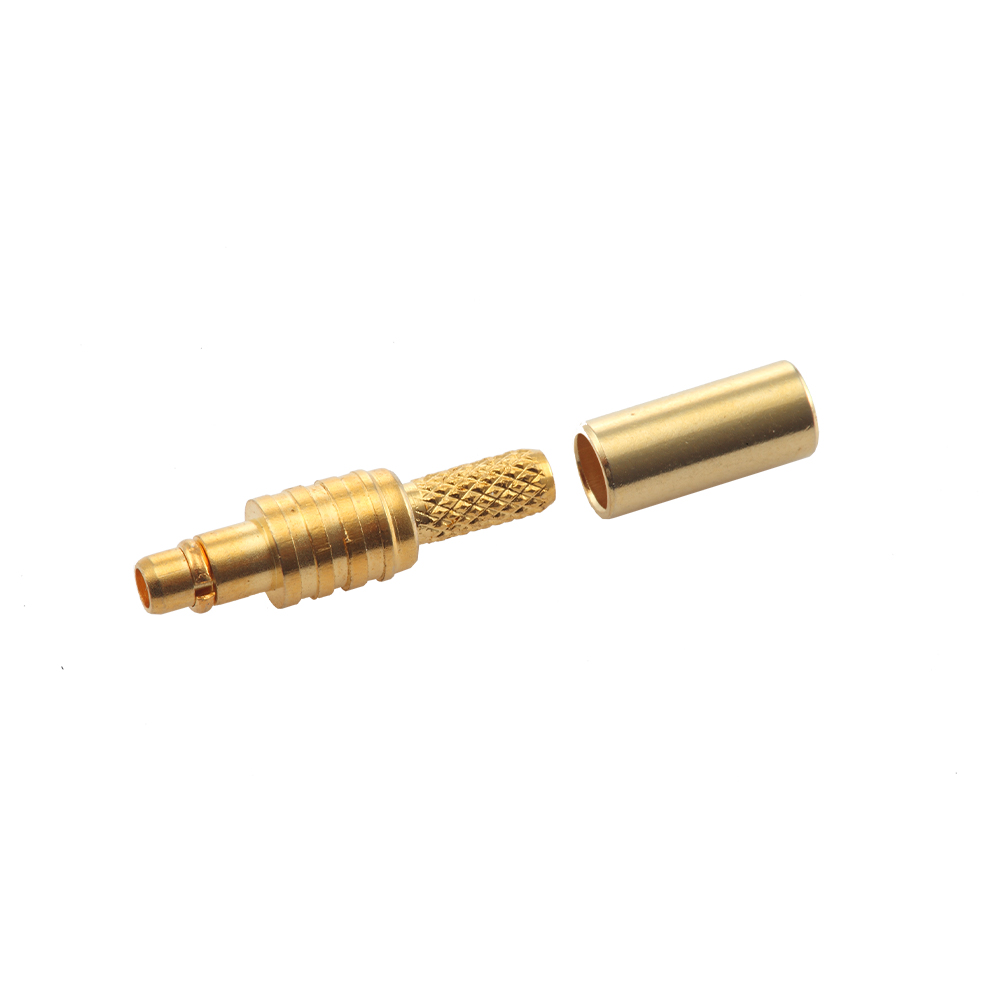

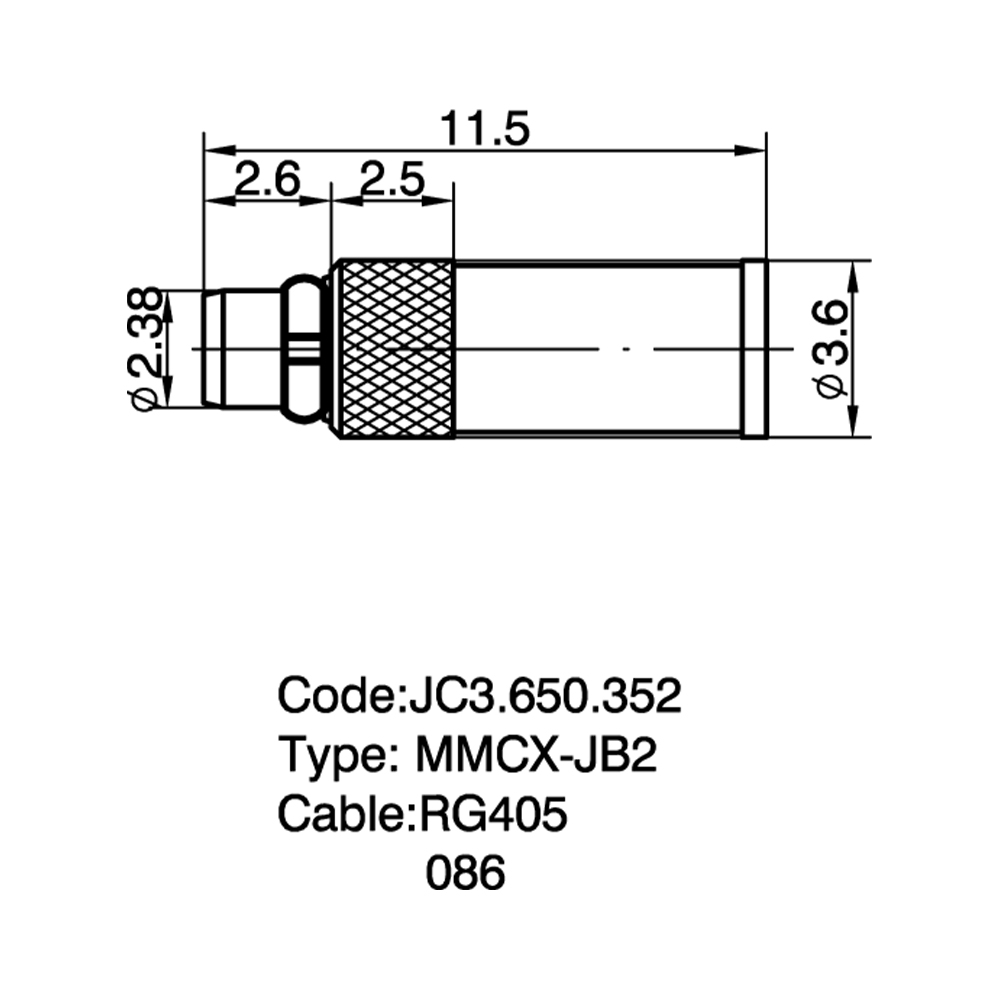

MMCX RF Coaxial Connectors

TYPE MMCX RF coaxial connector is a kind of Microminiature Product smaller than type MCX. Characteristic impedance is 50Ώ. The characteristics of connector is in small volume、light weight、convenient connection and reliable. They are widely used in Connection with the RF Coaxial Cables, Transmition of RF Signal, Equipments or small-sized communications Network that are demanding on systematic Volume and weight. By using Surface Mounting Technology, it is suitable for mass instrument equipment production and producing on the assembly line.

Temperature  Range

-55～+155℃(PE Cable   -40～+85℃)

Impedance

50Ω

Frequency Range

DC～6GHz

Insulation resistance

≥1000MΩ

 Insertion loss

0.18 dB/1GHz

Voltage Standing Wave Ratio (VSWR):

 Straight ≤ 1.25 / 3 GHz

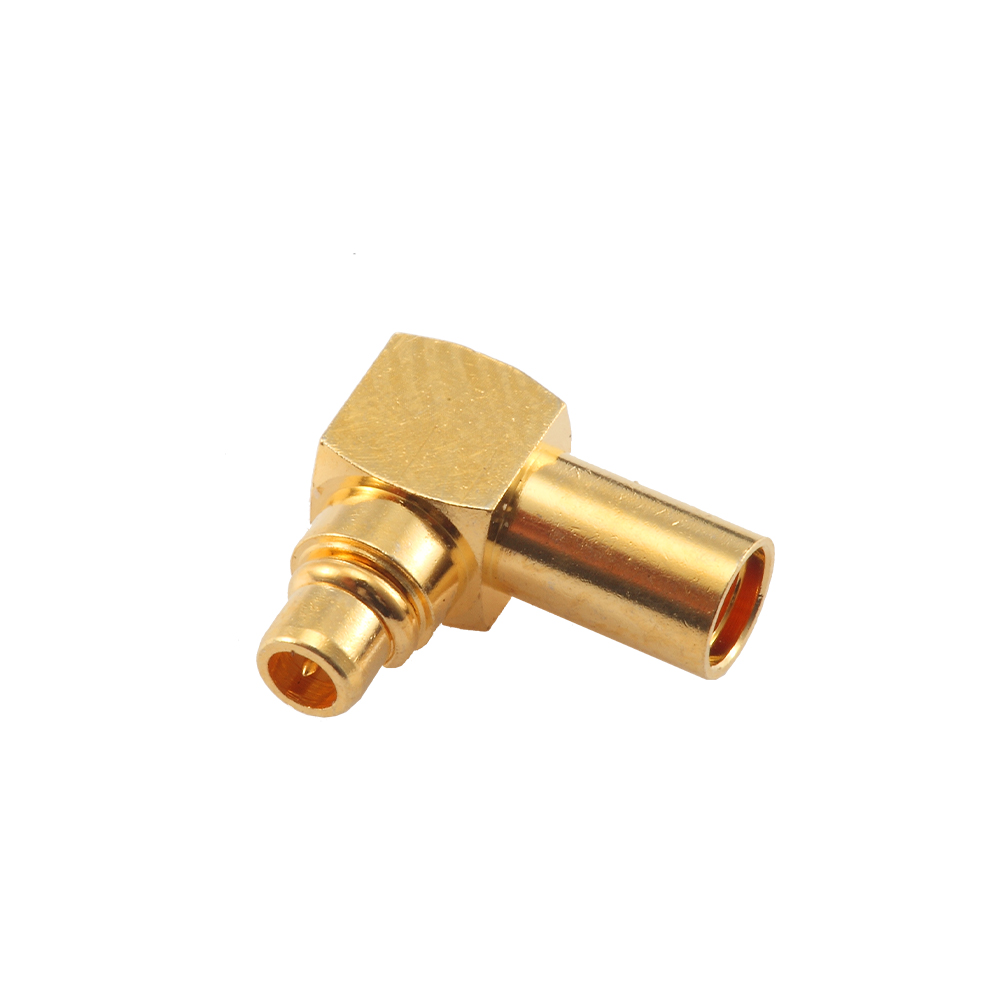

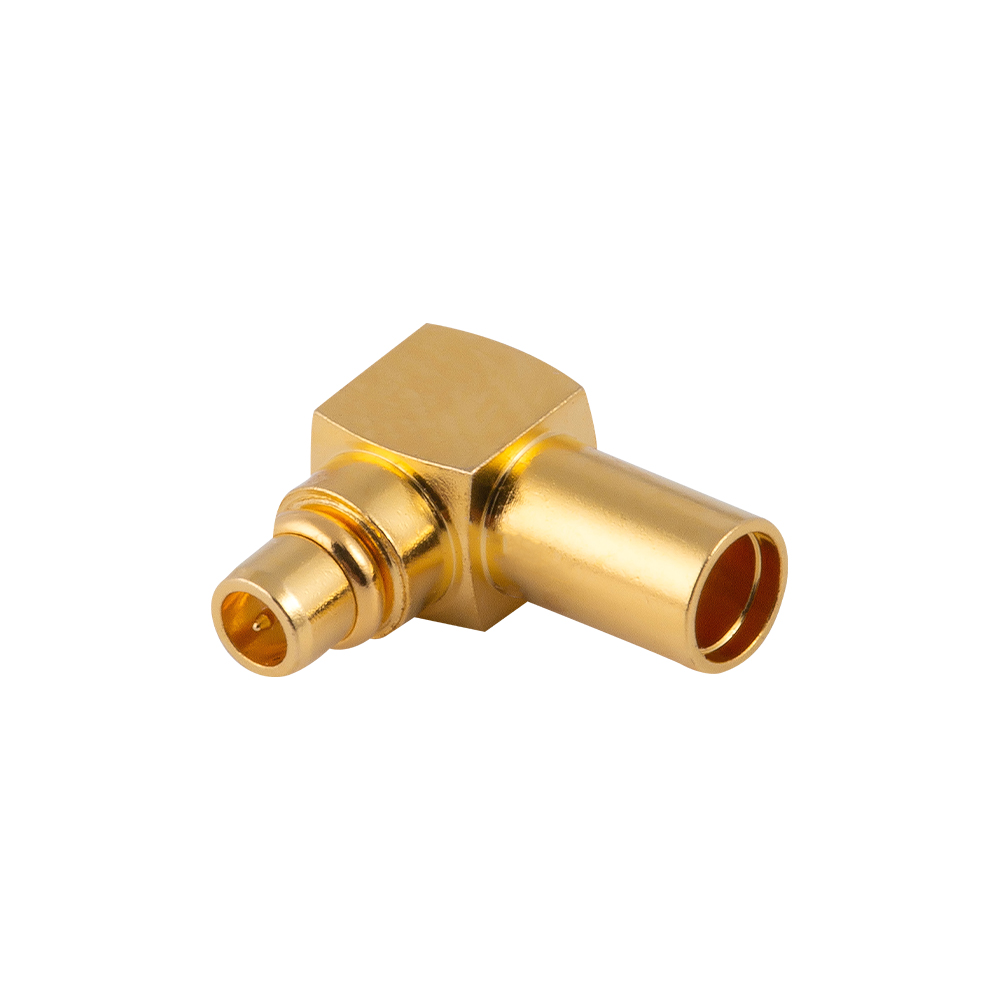

 Right angle ≤ 1.43 / 3 GHz

 Durability(mating)

≥500 (cycles)
