EnglishBMA PCB Mount RF Coaxial Connectors
Product Introduction:

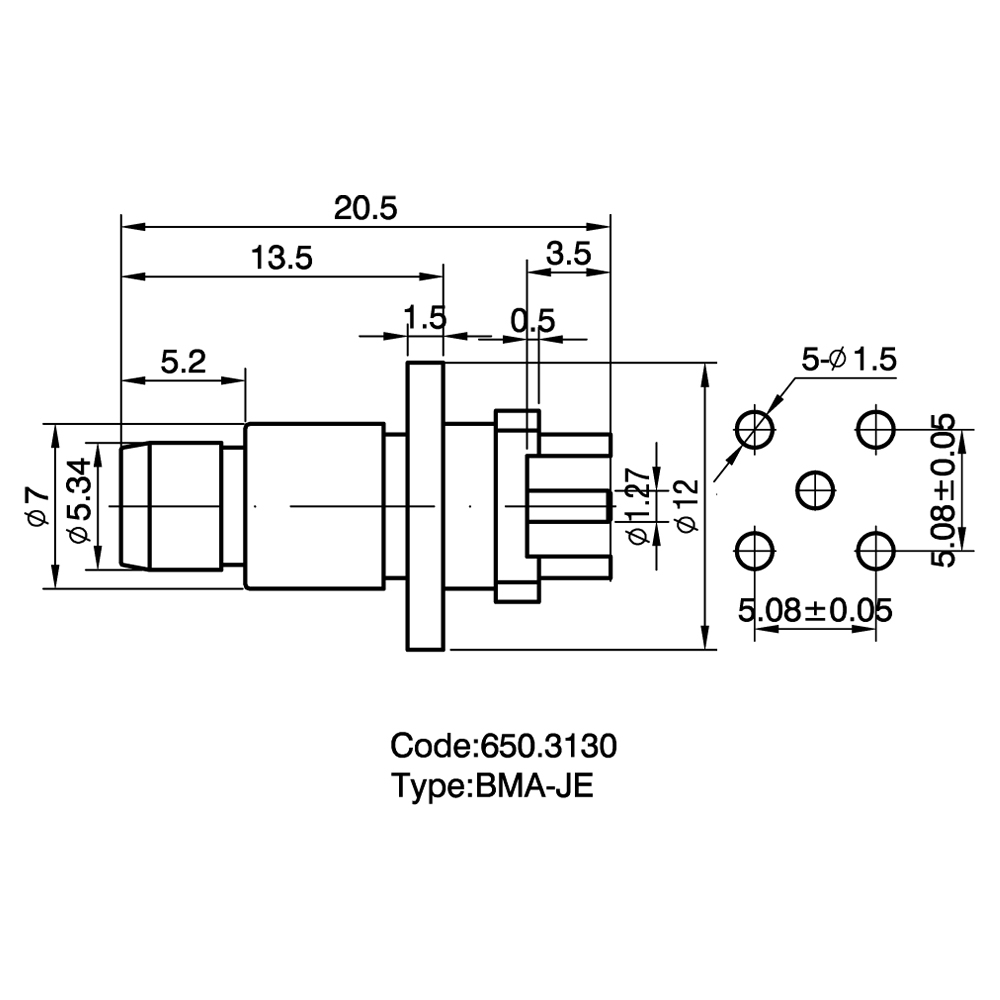

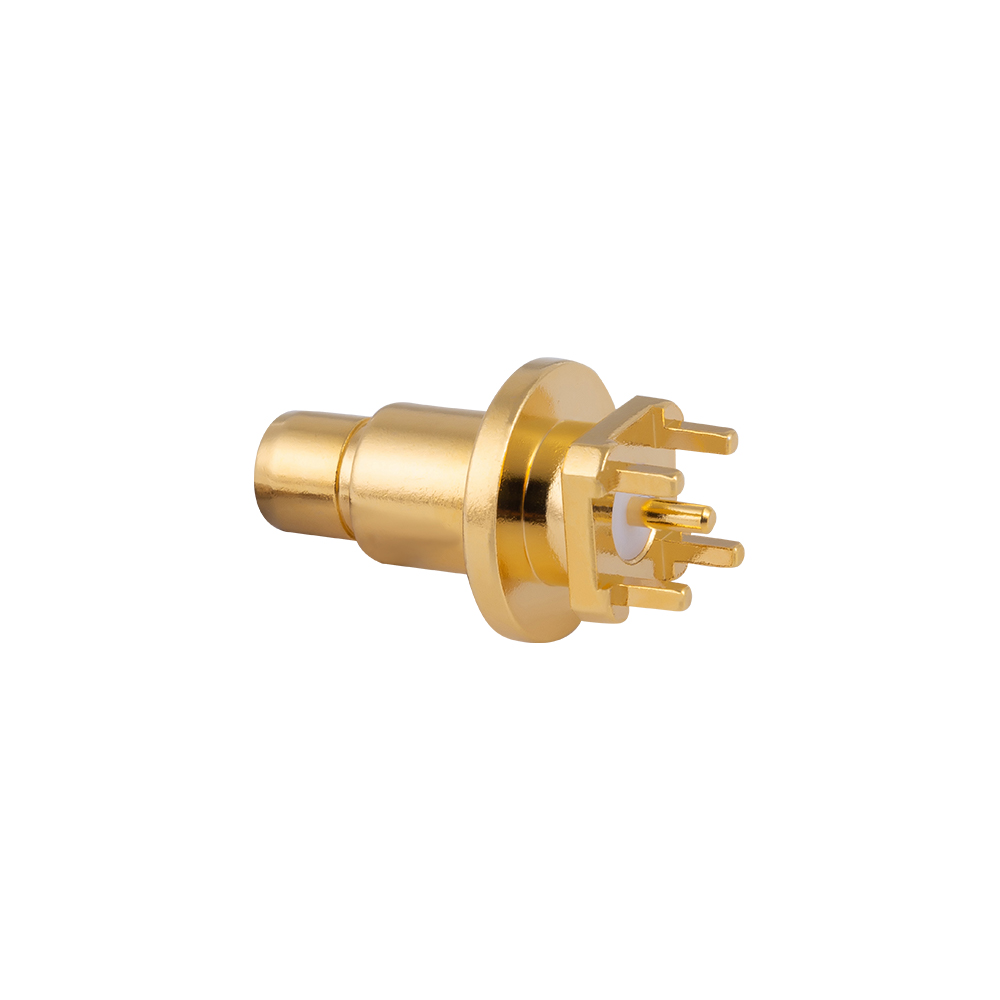

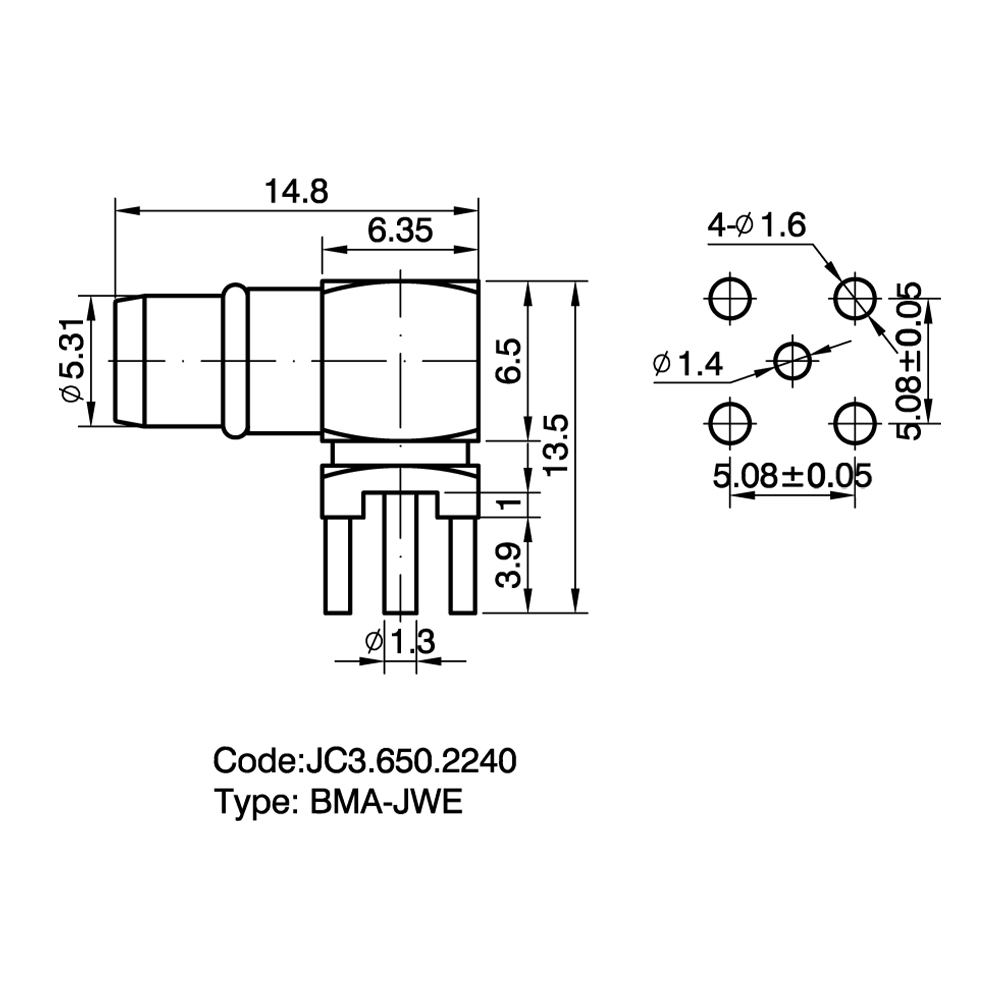

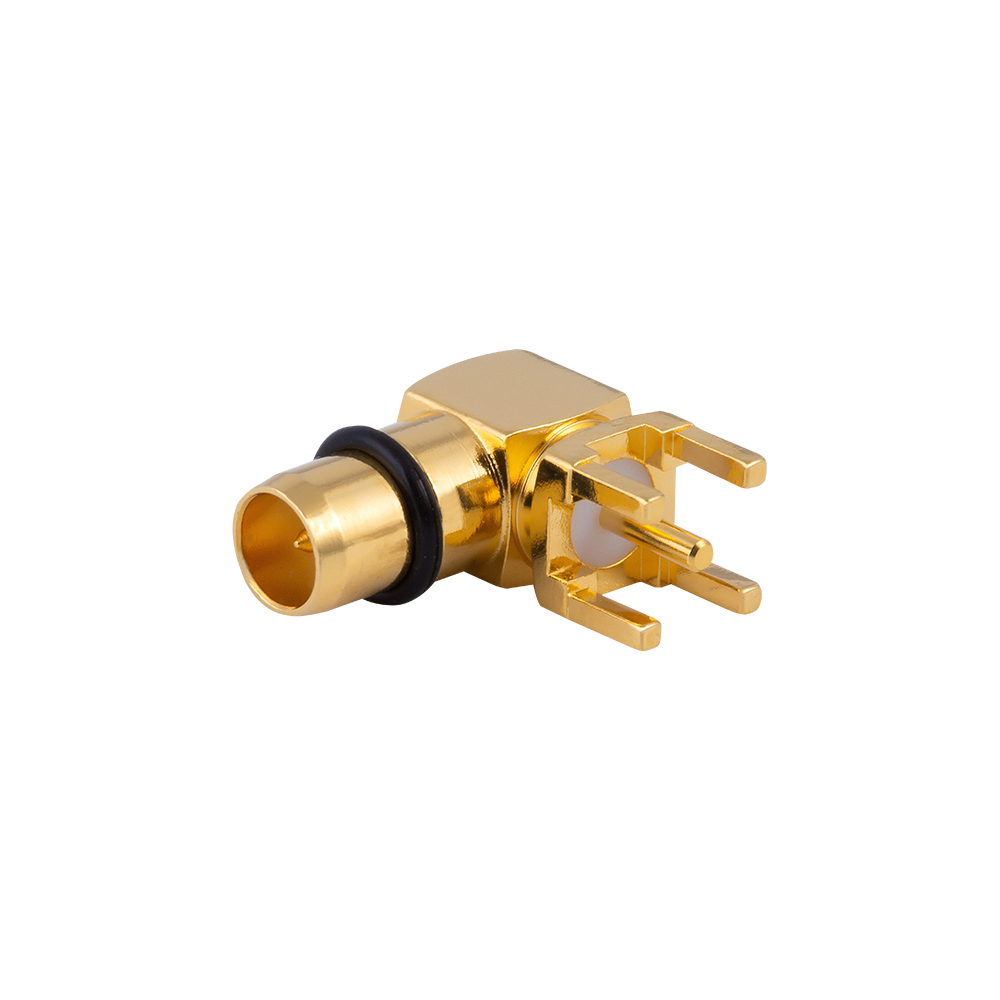

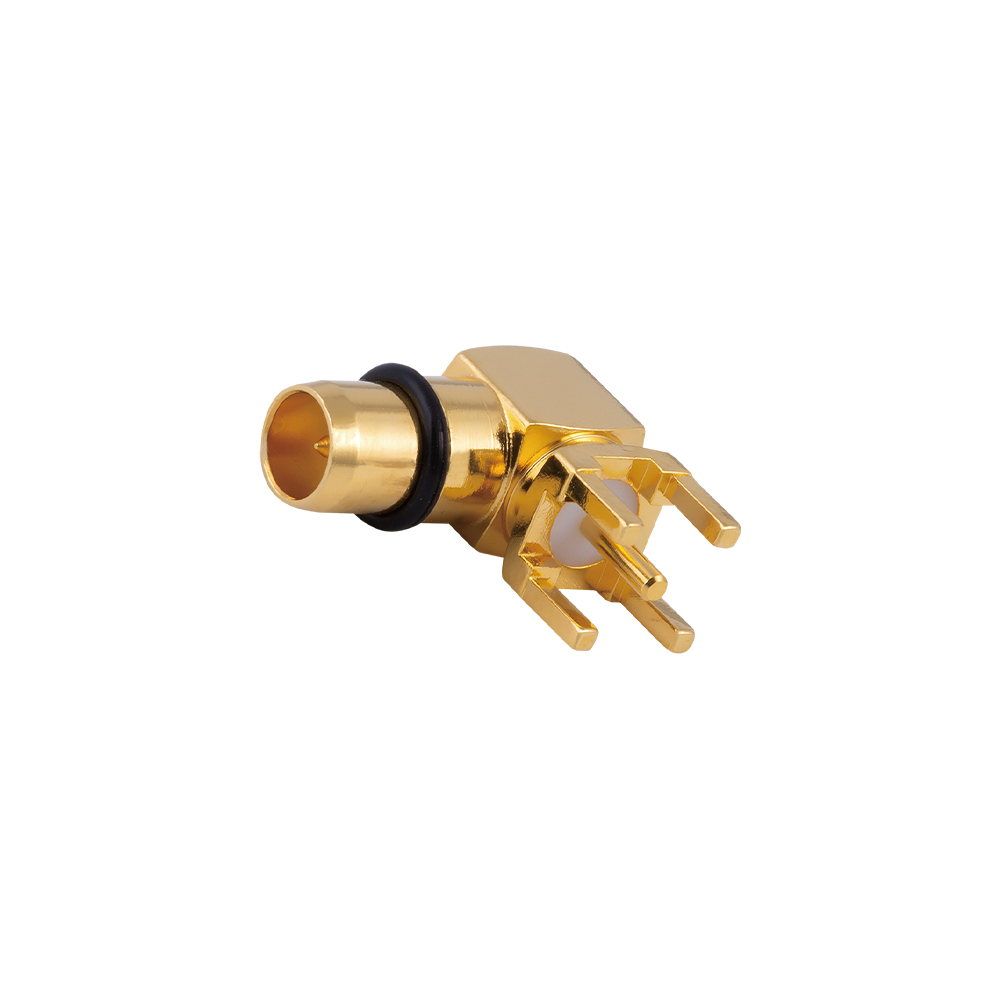

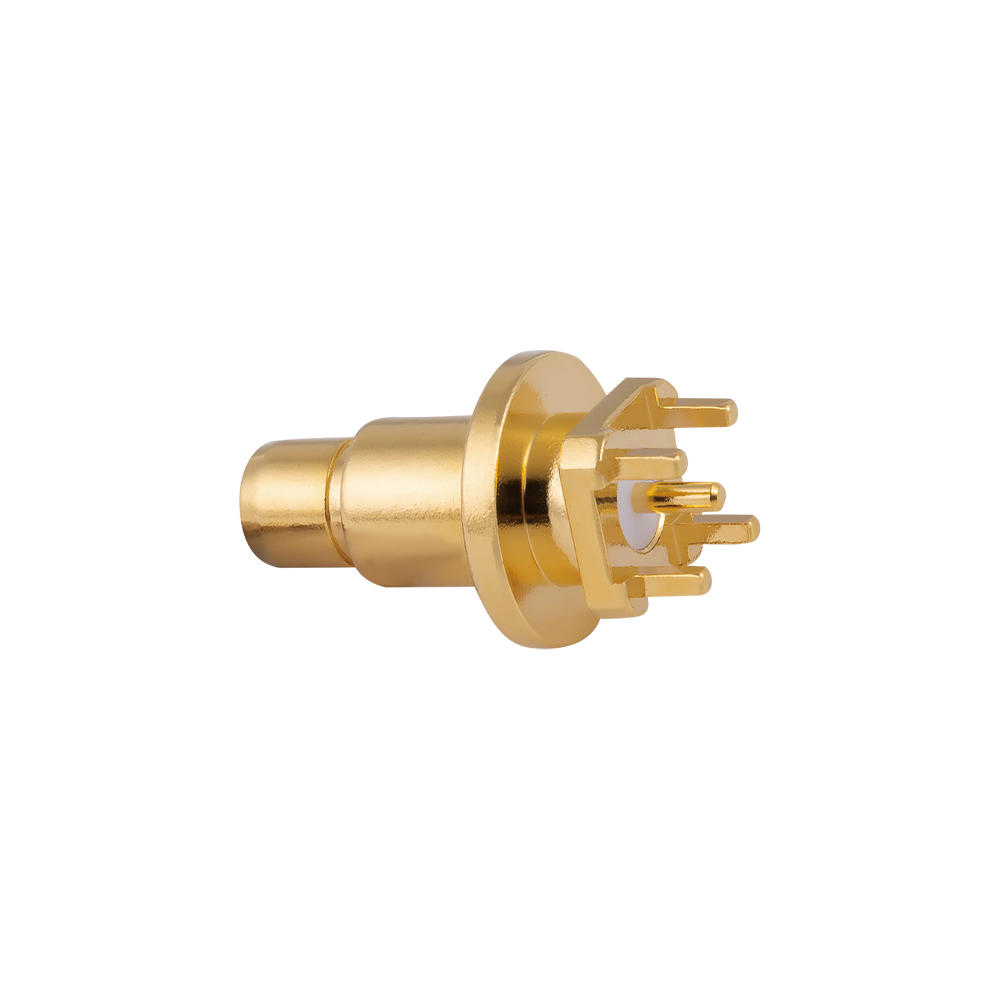

This connector is directly mounted on the PCB surface to provide a reliable board-level RF interface. Available in vertical through-hole and right-angle SMT configurations, it is one of the most commonly used components in automated system assembly.
Product Features:
Industrial-grade soldering reliability: Equipped with a high-temperature PTFE (polytetrafluoroethylene) dielectric, it is fully compatible with 260°C reflow soldering processes. After soldering, the connector base offers sufficient mechanical strength to withstand frequent mating cycles.
Multi-point grounding design: Multiple ground pins are integrated into the base to ensure electrical continuity at high frequencies. This not only strengthens solder joints but also forms an effective electromagnetic return path, reducing common-mode interference.
Precision manufacturing consistency: Produced with over 200 automated precision machines, ensuring micron-level tolerance control across batches and guaranteeing interchangeability in large-scale assembly.
Typical Applications:
Widely used in industrial server RF motherboards, 5G/6G evaluation platforms, automated test equipment (ATE), and various board-level RF switching matrix systems.
|
Frequency Range |
DC ～ 18 GHz |
|
Interface |
Air interface |
|
Coupling |
Blind-mate connection |
|
Structure |
Floating mounting structure, supports misalignment compensation |
|
Mechanical tolerance (Float) |
Supports axial and radial displacement compensation |
|
Insulation resistance |
≥ 5000 MΩ |
|
Durability (mating) |
≥ 500 cycles |
|
Standards |
Compliant with MIL-C-39012, IEC, DIN international standards |
